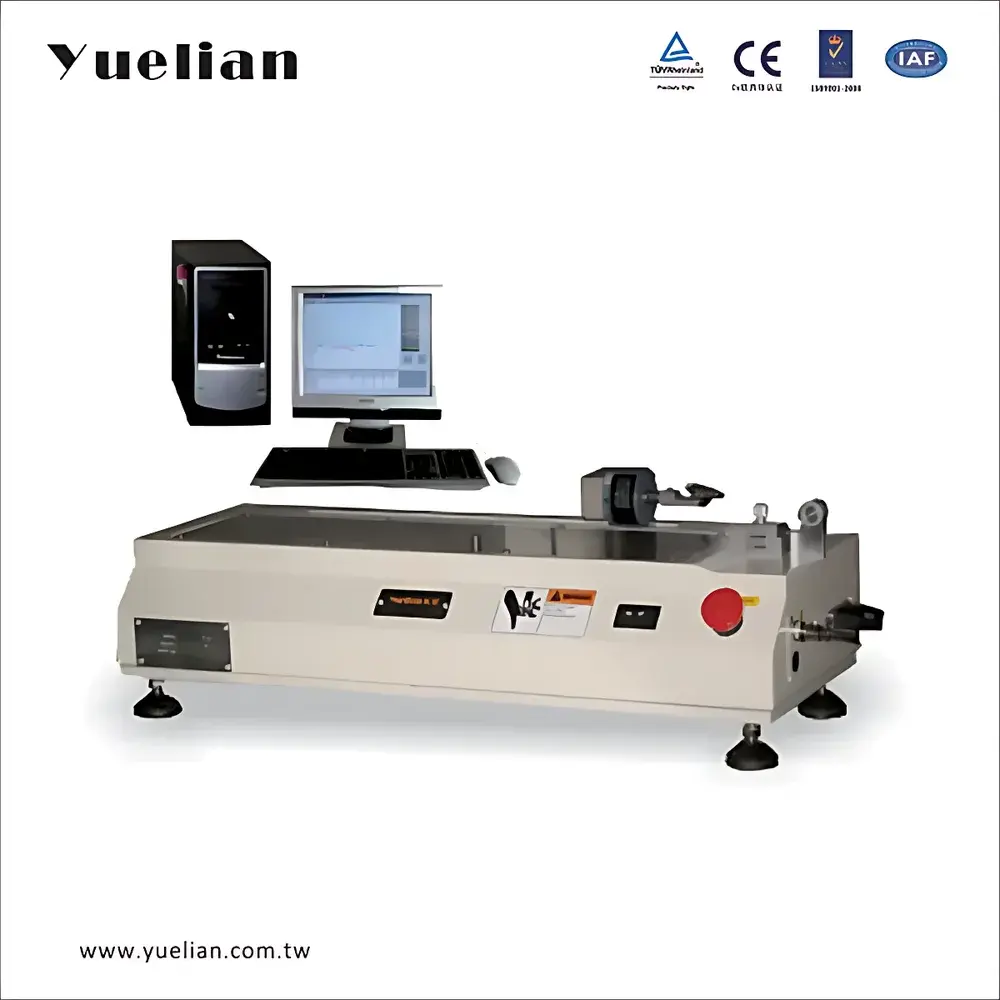

YL-1103 Yuelian Electronic Universal Testing Machine for Carrier Tape Peel Strength and Material Tensile Testing

Overview

The YL-1103 is a microprocessor-controlled electronic universal testing machine engineered specifically for high-reproducibility peel strength evaluation of surface-mount device (SMD) carrier tapes, embossed plastic tapes, cover tapes, and pressure-sensitive adhesive (PSA) films used in electronics assembly and packaging. It operates on the fundamental principle of controlled uniaxial displacement under load, measuring the force required to separate two bonded interfaces at a defined angle (typically 90° or 180° per ASTM D3330 and ISO 8510-2). Its rigid frame architecture, precision-ground ball screw transmission, and stepper motor actuation ensure minimal mechanical hysteresis and excellent positional repeatability—critical for compliance with IPC-STD-020, JIS C 0047, and JEDEC J-STD-033 tape integrity specifications. Unlike hydraulic or servo-motor systems, this instrument delivers optimal resolution and stability in the low-force regime (10–200 N), making it suitable for thin-gauge polymer tapes, die-attach films, and wafer-level bonding substrates where overloading must be strictly avoided.

Key Features

• Modular dual-range load cell configuration supporting simultaneous calibration across two capacities (e.g., 10 N / 100 N), enabling seamless transition between delicate SMD tape peel and higher-force tensile tests on lead frames or PCB substrates
• Real-time force-displacement data acquisition at ≥1 kHz sampling rate, synchronized with PC-based control logic for precise event-triggered stopping (e.g., at first peak, at 5-mm displacement, or upon rupture)
• Automated post-test return-to-origin function with adjustable speed, minimizing operator intervention between sequential specimens
• Integrated USB interface compliant with Windows 10/11 x64 environments; no external DAQ cards or proprietary hardware drivers required
• Comprehensive curve analysis toolkit including tangent modulus calculation, linear regression over user-defined strain intervals, and failure mode annotation (adhesive vs. cohesive failure)
• Preconfigured test methods aligned with ASTM D903 (peel resistance), ASTM D638 (tensile properties of plastics), and ISO 527-2 (tensile testing of thermoplastics)

Sample Compatibility & Compliance

The YL-1103 accommodates standardized carrier tape widths up to 140 mm and supports custom fixture mounting for 8 mm, 12 mm, 16 mm, 24 mm, and 44 mm pitch configurations. It complies with mechanical safety requirements outlined in ISO 12100 and electromagnetic compatibility standards per EN 61326-1. While not certified for GMP or FDA 21 CFR Part 11 out-of-the-box, its software architecture supports audit trail generation, user-level access control, and electronic signature capability when deployed within validated laboratory information management systems (LIMS). All test reports include embedded metadata: timestamp, operator ID, environmental temperature/humidity (if externally logged), calibration certificate ID, and raw binary data export (.csv or .txt) for third-party statistical process control (SPC) platforms.

Software & Data Management

The included Windows-native application provides a graphical workflow interface for method creation, batch execution, and comparative analysis. Test parameters—including peel angle, pre-load dwell time, separation speed ramp profiles, and trigger thresholds—are stored as reusable XML templates. Raw data files retain full 16-bit ADC resolution and are archived in an encrypted MS-ACCESS database with field-level encryption options. Export modules support direct output to Excel-compatible formats, PDF reports with embedded stress-strain plots, and CSV files compatible with JMP, Minitab, or Python pandas workflows. Optional API integration enables automated report push to enterprise MES or ERP systems via RESTful endpoints.

Applications

• Quantitative assessment of cover tape adhesion strength to embossed carrier tapes per IPC-TM-650 2.4.1
• Validation of thermal release tape performance during reflow soldering processes
• Tensile property characterization of polyimide film carriers and copper-clad laminates
• Shear strength evaluation of conductive epoxy bonds on flex circuits
• Quality conformance testing of ESD-safe packaging materials against ANSI/ESD S20.20
• R&D screening of novel low-residue adhesive formulations for semiconductor handling

FAQ

Is the YL-1103 compliant with ISO/IEC 17025 calibration traceability requirements?
Yes—when calibrated using NIST-traceable deadweight standards and documented per ISO/IEC 17025 Annex A.3, the system meets metrological requirements for accredited laboratories.
Can the software generate GLP-compliant audit trails?
The base software logs all user actions, parameter changes, and test events with timestamps; full GLP compliance requires supplemental validation documentation and role-based access configuration.
What is the maximum recommended sample thickness for peel testing?
For reliable 90° peel measurements, total stack thickness (tape + cover tape + liner) should not exceed 0.8 mm to prevent buckling-induced measurement artifacts.
Does the system support dynamic load control modes (e.g., constant strain rate)?
Yes—the firmware implements closed-loop displacement control with real-time PID adjustment, enabling constant crosshead speed, constant loading rate, or displacement-limited ramp-hold sequences.
Are fixtures available for non-standard geometries such as die-attach film strips or wafer dicing tape?
Custom fixture design services are available through Yuelian’s engineering team, with lead times of 4–6 weeks for machined aluminum or stainless-steel solutions.
