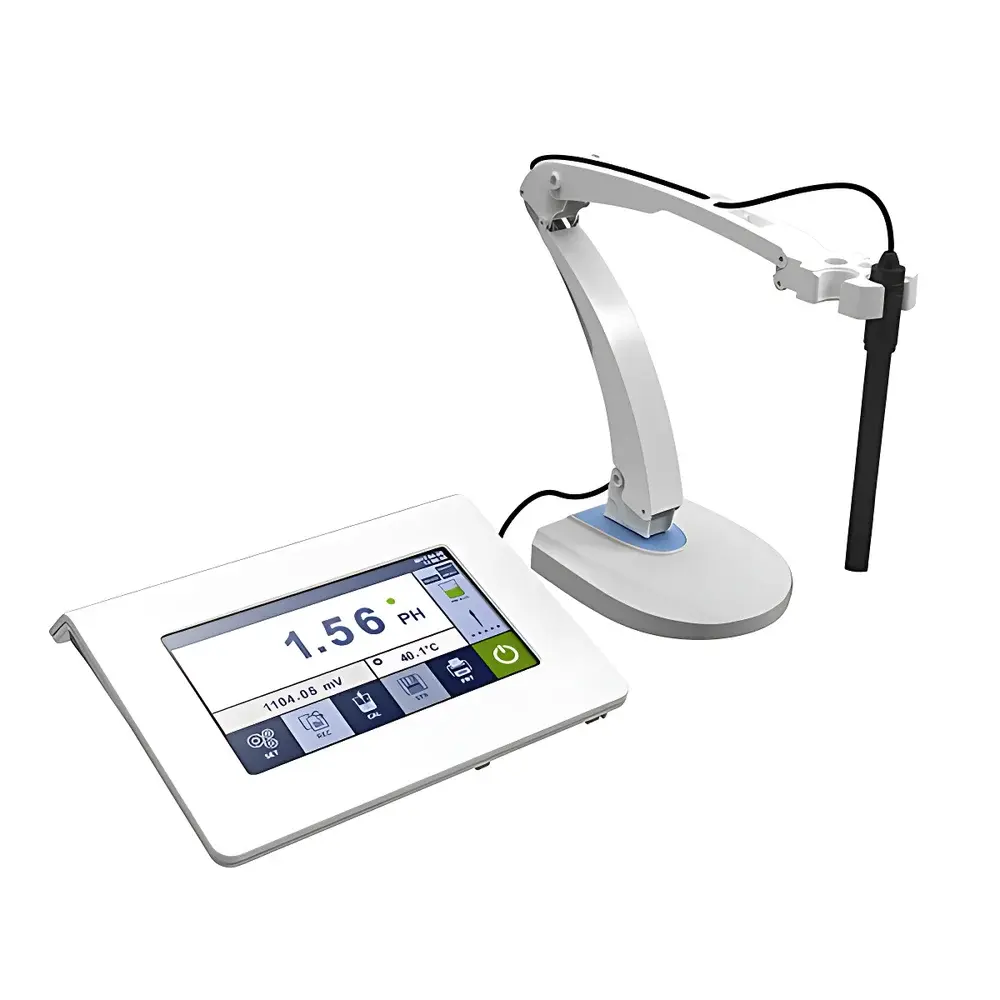

Yoke P20 Benchtop pH Meter

Overview

The Yoke P20 Benchtop pH Meter is a high-precision, single-parameter electrochemical analyzer engineered for routine and regulated laboratory applications requiring trace-level pH quantification across extreme ranges. Built upon a low-drift, high-impedance analog front-end (≥1 × 10¹² Ω input impedance; ≤2 × 10⁻¹² A input current), the P20 employs potentiometric measurement principles in accordance with ISO 3696, ASTM E70, and USP guidelines. Its extended pH range (−2.000 to 19.999) supports specialized applications including concentrated alkaline process streams, acidic etchants, and non-aqueous electrolyte characterization—where conventional meters fail due to junction potential drift or electrode saturation. The instrument operates under strict GLP-compliant firmware architecture, ensuring data integrity through timestamped calibration events, operator ID logging (when integrated into networked lab systems), and immutable measurement records.

Key Features

• 7-inch capacitive touchscreen (1024 × 600 resolution) with adjustable brightness and intuitive dual-language UI (English/Chinese), enabling rapid method navigation without external peripherals.
• Automated 3-point pH calibration with intelligent buffer recognition—seamlessly switching between US/EU, NIST-traceable, and GB/T 604-2002 Chinese standard buffer series without manual selection errors.
• Real-time electrode health diagnostics: monitors asymmetry potential, slope deviation, and reference junction stability to flag degradation prior to measurement drift.
• IP54-rated enclosure ensures operational reliability in humid QC labs or industrial environments with incidental splashes and dust exposure.
• Dual-mode temperature compensation (manual or automatic, 0–100 °C) using integrated Pt1000 sensor or external probe input, minimizing thermal error in non-ambient measurements.
• Onboard storage of 2000 measurement sets with full metadata (pH, mV, temperature, date/time, calibration ID), exportable via USB mass-storage mode to CSV-compatible spreadsheets.

Sample Compatibility & Compliance

The P20 is validated for aqueous, low-ionic-strength, and moderately viscous samples typical in pharmaceutical water testing (Purified Water, WFI), electroplating bath control, semiconductor cleaning solutions, and academic electrochemistry research. It complies with ISO/IEC 17025 documentation requirements for instrument qualification and meets functional equivalence to ASTM D1293 (water pH), ISO 10523 (water quality), and GB/T 604-2002 (Chinese buffer standards). All calibration and measurement logs include GLP-mandated fields: operator ID (configurable), calibration buffer lot numbers, electrode serial identifiers, ambient conditions, and pass/fail status per point—enabling full audit readiness for FDA 21 CFR Part 11–aligned workflows when paired with secure network time protocol (NTP) synchronization.

Software & Data Management

Data export occurs via USB 2.0 in native CSV format—directly importable into Microsoft Excel, LabArchives, or LIMS platforms without proprietary software dependencies. Optional Bluetooth 5.0 module enables wireless transmission of live readings or batch exports to Windows/macOS PCs or Android/iOS devices, supporting remote monitoring during long-duration stability studies. Firmware supports configurable auto-save intervals, measurement hold triggers, and user-defined alarm thresholds (e.g., pH >14.2 → audible alert). All stored records retain embedded calibration history, eliminating post-hoc reconstruction errors common in legacy meters.

Applications

• Pharmaceutical QC: USP compliance testing of purified water, buffer preparation verification, and cleaning validation rinse samples.
• Chemical manufacturing: Real-time monitoring of caustic soda concentration (via pH-to-NaOH correlation), acid regeneration efficiency, and catalyst slurry stability.
• Environmental labs: High-accuracy field-deployable verification of extreme pH in mining effluents or alkaline soil leachates.
• Academic research: Electrode characterization studies requiring sub-millivolt resolution and low-noise signal acquisition.
• Food & beverage R&D: Shelf-life modeling of fermented products where minor pH shifts (<0.01 unit) correlate with microbial activity onset.

FAQ

Does the P20 support FDA 21 CFR Part 11 compliance?
The P20 provides foundational elements—including electronic signatures (via optional network authentication), audit trails, and data immutability—but requires integration with a validated LIMS or ELN system to achieve full Part 11 enforcement. Its local logs meet ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate).
Can the instrument automatically detect which buffer series is in use?
Yes—the P20 performs real-time buffer identification by measuring open-circuit potential and conductivity signature against preloaded profiles for US/EU (pH 4.01/7.00/10.01), NIST (pH 4.005/6.865/9.180), and Chinese GB/T standards (pH 4.00/6.86/9.18), eliminating manual series selection errors.
Is external temperature probe connectivity supported?
Yes—RS-232 or analog (0–1 V) inputs accept third-party Pt100/Pt1000 probes for immersion or flow-cell applications where built-in sensor placement is impractical.
What is the maximum recommended cable length for the composite electrode?
For optimal noise immunity and signal fidelity, Yoke specifies ≤1.5 m for standard shielded cables; longer runs require active buffering or fiber-optic signal conversion to maintain ≤±0.002 pH accuracy.
How frequently should the instrument be recalibrated under GLP conditions?
Per ISO/IEC 17025:2017 Clause 6.4.6, recalibration is required before each analytical sequence, after electrode replacement, following exposure to extreme pH or contaminants, and at defined intervals (e.g., every 2 hours for continuous operation)—all enforced via configurable firmware prompts.
