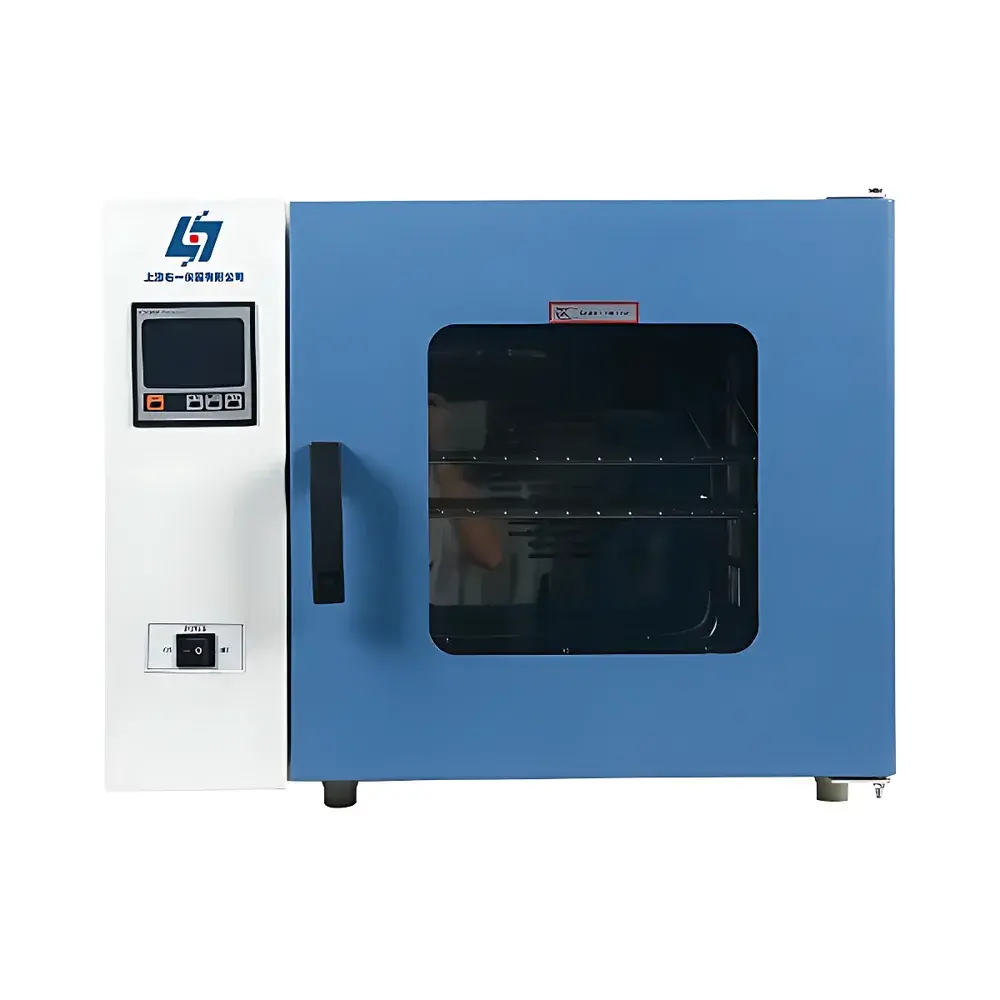

Yoyi DHG-9030C Benchtop Nitrogen-Purged Forced-Air Drying Oven

Overview

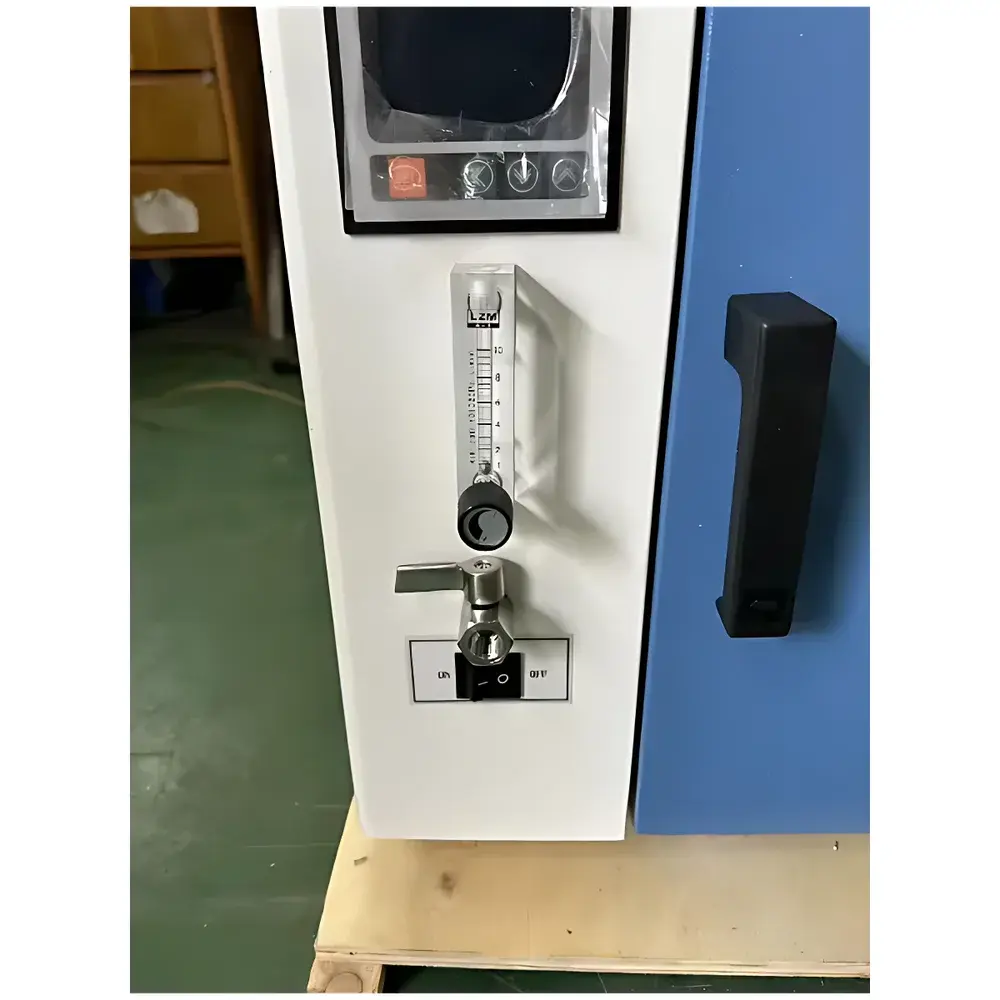

The Yoyi DHG-9030C is a benchtop nitrogen-purged forced-air drying oven engineered for precision thermal processing in environments where oxidation sensitivity, moisture control, and atmospheric purity are critical. It operates on the principle of convective heat transfer enhanced by a unidirectional, turbulence-minimized air circulation system—integrated with programmable inert gas purging—to establish and maintain a stable, low-oxygen, low-humidity chamber atmosphere. Unlike conventional hot-air ovens, the DHG-9030C incorporates a dedicated nitrogen inlet port (Φ10 mm), calibrated float-type flowmeter (0–10 L/min), and automatic exhaust venting to continuously displace ambient air and residual moisture vapor. This architecture enables reproducible thermal treatment of oxygen-labile compounds, moisture-sensitive standards, and thermally unstable biomolecules—making it suitable for applications ranging from pharmaceutical stability testing (ICH Q1A) to polymer curing and electronic component pre-baking.

Key Features

• Microprocessor-based PID temperature controller with 4.3-inch LCD interface: supports real-time display of setpoint, actual chamber temperature, elapsed time, and remaining hold duration—all simultaneously visible on a single screen.
• Intelligent data retention logic: automatically saves user-defined parameters (setpoint, timer, alarm thresholds) during power interruption or system reset; resumes operation upon power restoration without manual reconfiguration.
• Optimized airflow design: rear-mounted blower and asymmetric wind tunnel geometry ensure laminar, uniform air distribution across the entire 30 L stainless-steel chamber (340 × 330 × 320 mm), achieving ≤±2.5% temperature deviation at 100℃ under no-purge conditions—and further improved uniformity under active nitrogen flow.
• Dual-layer tempered glass observation window with high-temperature silicone gasket seal: provides clear visual monitoring while maintaining thermal integrity and minimizing heat loss.
• Robust mechanical construction: cold-rolled steel exterior with electrostatic epoxy-polyester coating; mirror-finish 304 stainless-steel interior; reinforced door hinge mechanism and replaceable high-temp silicone door seal (rated to 300℃).
• Integrated environmental management: rear-positioned auto-exhaust port eliminates manual vent adjustment; condensate drainage path prevents internal humidity accumulation during extended low-temperature drying cycles.

Sample Compatibility & Compliance

The DHG-9030C accommodates standard laboratory sample formats—including Petri dishes, weighing boats, glass vials (up to 100 mL), aluminum pans, and PCB substrates—on two independently adjustable stainless-steel shelves. Its RT+10 to 250℃ operating range satisfies ASTM E145 Class II oven requirements for gravimetric moisture analysis, USP sterilization validation protocols (dry-heat cycle qualification), and ISO 5725 repeatability benchmarks. The nitrogen purging capability supports ICH-guided accelerated stability studies requiring inert atmospheres (e.g., API degradation kinetics under N₂), as well as GMP-aligned drying of excipients prior to tablet compression. All electrical components comply with IEC 61010-1 safety standards; the unit is CE-marked and designed for use in ISO Class 7/8 cleanroom-adjacent lab zones.

Software & Data Management

While the base DHG-9030C operates via embedded firmware, optional RS485 communication module (part #RS485-KIT, $600) enables bidirectional integration with LabArchives, Empower, or custom SCADA systems using Modbus RTU protocol. The included software package supports audit-trail-enabled parameter logging (timestamped setpoint, PV, alarm status), CSV export, and configurable alarm escalation (email/SMS via gateway). Optional embedded thermal printer ($1,500) provides hard-copy records compliant with FDA 21 CFR Part 11 Annex 11 expectations for raw data traceability. Multi-segment programmable controller upgrade ($1,500) adds up to 32 ramp-soak profiles—essential for complex thermal desorption or controlled-rate drying protocols.

Applications

• Pharmaceutical: residual solvent removal from lyophilized intermediates; dry-heat depyrogenation of glassware per USP ; stability-indicating assays under inert atmosphere.
• Materials Science: outgassing of composites and adhesives; thermal aging of elastomers and encapsulants; pre-conditioning of sensors and MEMS devices.
• Food & Agriculture: moisture content determination (AOAC 950.46); enzyme inactivation studies; shelf-life modeling of lipid-rich matrices.
• Electronics: PCB bake-out prior to conformal coating; moisture mitigation in SMT assembly lines; wafer-level packaging pre-dry cycles.
• Academic Research: catalyst activation under reducing atmospheres; controlled pyrolysis of biomass precursors; thermal gravimetric reference calibration.

FAQ

What is the maximum safe operating temperature with nitrogen purge enabled?
The DHG-9030C maintains full specification integrity up to 250℃ regardless of purge state; nitrogen flow does not impose additional thermal derating.
Can the oven operate without nitrogen supply?
Yes—it functions as a high-uniformity forced-air oven without inert gas; all control features remain fully operational.
Is the stainless-steel chamber electropolished?
No—the interior uses mechanically polished 304 stainless steel (Ra ≤ 0.8 µm), optimized for cleanability and corrosion resistance under repeated thermal cycling.
Does the unit include calibration certification?
Factory calibration data (NIST-traceable PT100 sensor verification at 3 points: 50℃, 100℃, 200℃) is provided with shipment; ISO/IEC 17025-accredited calibration services are available separately.
How is temperature uniformity verified during installation qualification (IQ)?
Per ISO 14644-3, nine-point mapping (3×3 grid at center plane) is recommended using calibrated thermocouples; Yoyi provides IQ/OQ documentation templates aligned with EU GMP Annex 15 requirements.
