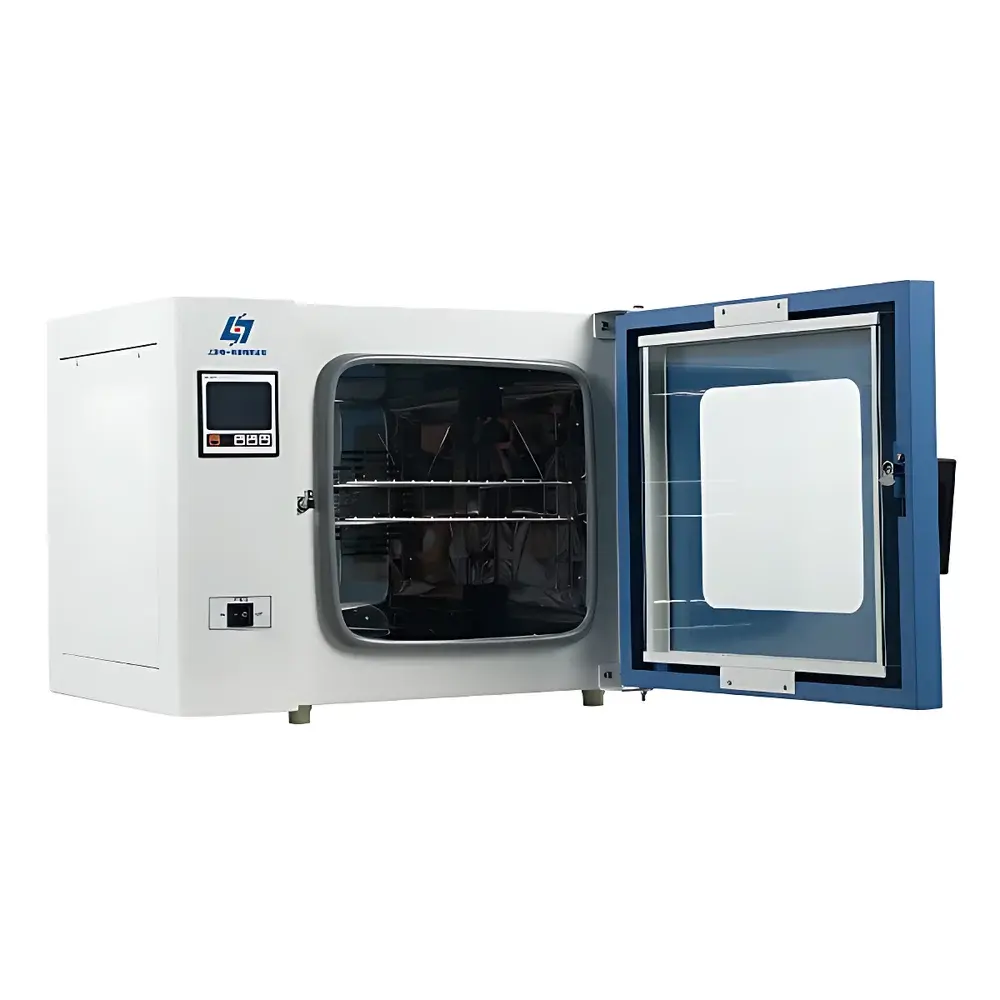

Yoyi DHG-9075A Forced-Air Constant-Temperature Drying Oven

Overview

The Yoyi DHG-9075A is a precision-engineered forced-air constant-temperature drying oven designed for reliable thermal processing in research laboratories, quality control environments, and industrial R&D settings. Based on the principle of convective heat transfer, it utilizes a rear-mounted adjustable fan and optimized air duct architecture to ensure uniform temperature distribution across the entire working chamber—critical for applications demanding reproducible drying, baking, sterilization, or thermal aging. Its operational range extends from ambient +10 °C up to 300 °C, meeting the thermal requirements of polymer curing, moisture content analysis, pharmaceutical stability testing, and pre-conditioning of electronic components. The unit complies fully with GB/T 30435–2013, the national standard governing performance specifications and safety criteria for electric heating ovens in China, and is constructed to support long-term operation under GLP-aligned workflows where traceability and parameter integrity are essential.

Key Features

• Microprocessor-based PID temperature controller with 0.1 °C resolution, real-time display of setpoint, actual chamber temperature, and remaining timer duration on an intuitive LCD interface
• Mirror-finish stainless steel interior chamber (450×400×450 mm) resistant to corrosion and easy to decontaminate; compatible with routine cleaning protocols using ethanol, isopropanol, or mild alkaline solutions
• Double-layer tempered glass observation window with silicone-sealed frame, enabling non-intrusive visual monitoring without compromising thermal stability or operator safety
• Robust cold-rolled steel exterior with electrostatic powder coating for mechanical durability and resistance to abrasion in shared lab environments
• Intelligent power recovery function: automatically resumes prior operating parameters—including set temperature and elapsed time—following unexpected power interruption or system reset
• Integrated rear air inlet/outlet ports with passive humidity venting capability, minimizing condensation buildup during extended low-temperature drying cycles
• Optional independent over-temperature protection circuit (hardware-limited cut-off) provides redundant safety assurance beyond primary control logic

Sample Compatibility & Compliance

The DHG-9075A accommodates a broad spectrum of sample formats—including Petri dishes, weighing boats, crucibles, glassware, PCB assemblies, and bulk granular materials—within its 80 L chamber. Its stainless steel construction and absence of organic gasketing (except high-temp silicone door seal) ensure compatibility with solvents, acids, and oxidizing agents commonly used in preparatory workflows. From a regulatory standpoint, the oven supports documentation practices aligned with ISO/IEC 17025, ASTM E145, and USP for thermal validation. While not inherently 21 CFR Part 11 compliant, optional RS485 communication enables integration with validated LIMS or ELN platforms when paired with audit-trail-capable software. All electrical components meet IEC 61010-1 safety standards for laboratory equipment.

Software & Data Management

Standard configuration includes local data logging via the built-in timer and temperature history buffer (retains last 100 cycle records). For enhanced traceability, the optional RS485 interface supports Modbus RTU protocol, allowing bidirectional communication with third-party SCADA systems or custom Python/Node-RED scripts for automated CSV export. The embedded thermal printer option produces time-stamped hardcopy logs compliant with internal QA record retention policies. When equipped with the multi-stage programmable controller, users can define up to 32 ramp-hold segments per profile—enabling complex thermal protocols such as gradient drying, stepwise annealing, or accelerated shelf-life testing—all stored securely in non-volatile memory.

Applications

• Moisture loss-on-drying (LOD) assays per ASTM D2298 and ISO 712 in food, feed, and pharmaceutical raw material QC
• Thermal stabilization of calibration standards and reference materials prior to gravimetric or spectroscopic analysis
• Baking of ceramic substrates, sensor elements, and printed circuit boards during prototyping and failure analysis
• Pre-drying of filter papers, silica gel packs, and desiccant media in environmental sampling labs
• Heat treatment of polymer films and composite laminates for tensile property conditioning (per ASTM D638)
• Low-temperature sterilization of reusable glassware and metal tools in biosafety level 1/2 facilities

FAQ

What is the maximum recommended continuous operating temperature?
The DHG-9075A is rated for sustained operation at 300 °C; however, prolonged use above 250 °C may accelerate aging of the door gasket and reduce long-term sealing performance.
Can this oven be validated for GMP-compliant processes?
Yes—when configured with the optional programmable controller, RS485 interface, and external temperature mapping probes, it supports IQ/OQ/PQ execution per Annex 15 and EU GMP guidelines.
Is inert gas purging supported out of the box?
No—the inert gas inlet port and calibrated rotameter are optional accessories; installation requires field modification by qualified personnel and must be verified for leak integrity before first use.
How many adjustable shelves does the standard configuration include?
Two stainless steel wire shelves are supplied; additional shelves (part number YO-DHG-SH80) can be ordered separately and installed without tools.
Does the unit require external ventilation or exhaust ducting?
Not under standard operation; the integrated passive venting system suffices for most applications. However, active exhaust ducting is advised when processing volatile organic compounds or generating significant vapor loads.
