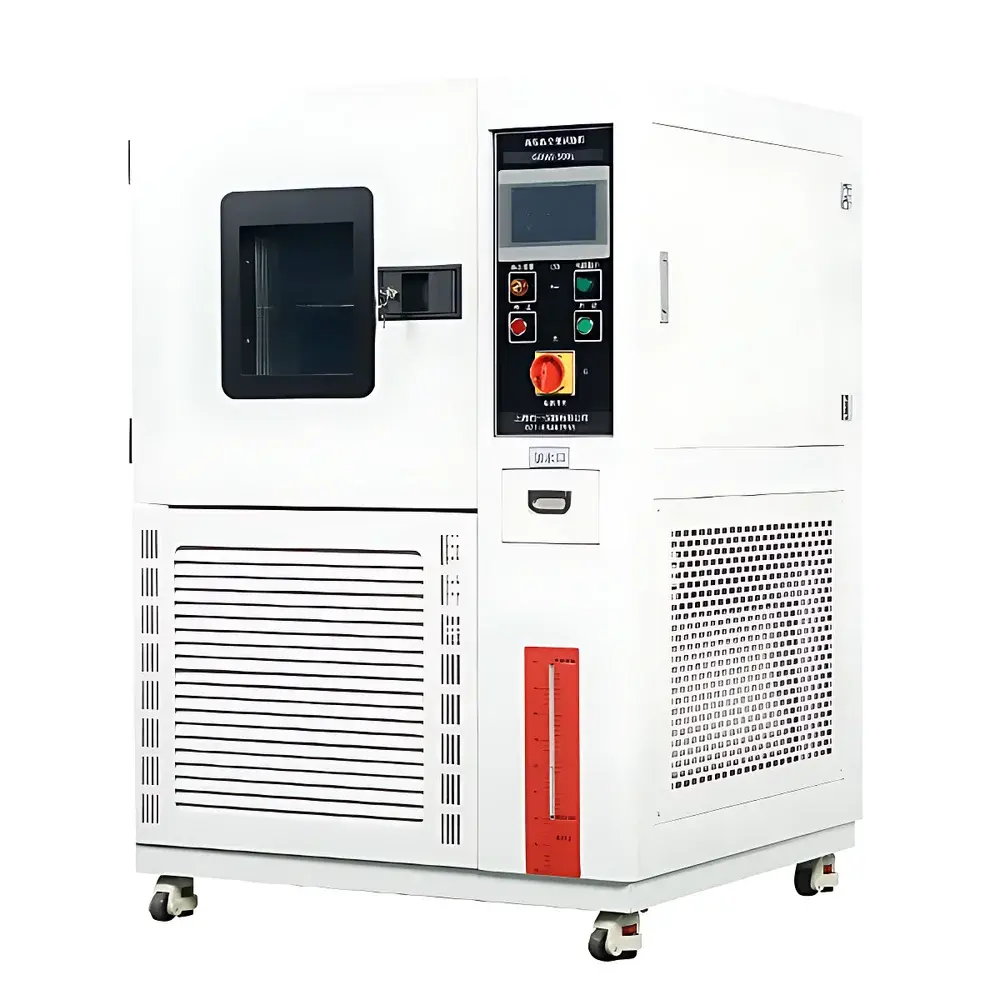

Yoyi GDW-500L(A) High-Low Temperature and Humidity Cycling Environmental Test Chamber

Overview

The Yoyi GDW-500L(A) High-Low Temperature and Humidity Cycling Environmental Test Chamber is an engineered solution for accelerated environmental stress testing of industrial components, electronic assemblies, lighting systems, and material specimens under rigorously controlled thermal and hygrothermal conditions. Based on the principle of forced-air convection combined with precision vapor compression refrigeration and PID-regulated steam humidification, this chamber replicates real-world climatic exposure profiles—including rapid temperature transitions, sustained high/low humidity extremes, and complex multi-segment cycling protocols. Designed in accordance with IEC 60068-2 series standards for environmental testing of electrotechnical products, it supports qualification testing per MIL-STD-810G, GB/T 2423, and ISO 16750-4. Its operational envelope—spanning -20°C to +150°C with simultaneous humidity control from 20% to 98% RH—enables comprehensive evaluation of thermal expansion mismatch, condensation resistance, seal integrity, and long-term reliability under alternating stress conditions.

Key Features

• Triple-layer vacuum-insulated tempered glass observation window with integrated electric defrosting and LED interior lighting, ensuring unobstructed visual monitoring without thermal bridging or fogging.
• Robust chamber construction: cold-rolled steel exterior with electrostatic epoxy coating; 304 stainless steel inner chamber with seamless arc-welded corners and removable, adjustable 304 stainless steel shelves (2 fixed + 12 configurable positions).
• High-efficiency air circulation system featuring centrifugal forced-convection blower and nickel-chromium alloy heating elements, delivering uniform temperature distribution (±2°C) and minimal fluctuation (±0.5°C) across the 500 L working volume.
• Imported hermetic compressor with R404A/R134a eco-friendly refrigerant blend, optimized for low-noise operation, extended service life, and stable sub-zero performance down to -20°C.
• TEMI880 programmable controller with 10.4″ color touchscreen interface, supporting up to 100 programmable segments, 999 cycles, and real-time data logging of temperature/humidity trends.
• Comprehensive safety architecture including over-temperature cut-off, compressor high-pressure protection, door-open alarm, and automatic power disconnection upon fault detection or timer expiration.
• Standard left-side Ø50 mm test port with silicone gasket, facilitating external sensor integration, signal feedthrough, or continuous parameter monitoring during operation.

Sample Compatibility & Compliance

The GDW-500L(A) accommodates a broad range of sample geometries and mass loads typical of electronics packaging, automotive modules, LED luminaires, PCB assemblies, polymer housings, and passive components. Its open-shelf design allows unrestricted airflow around vertically stacked or horizontally mounted specimens. The chamber meets structural and operational requirements outlined in ASTM D4332 (conditioning containers), ISO 4892-2 (plastics exposure to laboratory light sources), and IEC 60068-2-1 (cold testing), IEC 60068-2-2 (dry heat), and IEC 60068-2-30 (damp heat cyclic). It supports GLP-compliant validation protocols through optional IQ/OQ documentation packages and is compatible with third-party calibration traceability to NIST or CNAS-accredited laboratories.

Software & Data Management

The TEMI880 controller provides built-in data storage for ≥10,000 measurement points and exports time-stamped CSV files via USB. Optional RS485 Modbus RTU communication enables bidirectional integration with SCADA platforms, LIMS, or custom LabVIEW-based monitoring suites. Remote supervision—including program upload/download, real-time setpoint adjustment, alarm acknowledgment, and emergency shutdown—is achievable via Ethernet-enabled gateway modules (sold separately). Audit trail functionality records all user actions, parameter changes, and alarm events with timestamp and operator ID—supporting 21 CFR Part 11 compliance when deployed with appropriate access controls and electronic signature modules.

Applications

• Accelerated aging of printed circuit boards and solder joints under thermal-hygric cycling to assess intermetallic growth and microcrack propagation.
• Validation of ingress protection (IP) ratings for enclosures subjected to condensation-induced corrosion at low-temperature soak followed by rapid warm-up.
• Stress screening of LED drivers and optical lenses for delamination, yellowing, or refractive index shift under combined UV-free thermal-humidity load.
• Material compatibility testing of adhesives, conformal coatings, and potting compounds exposed to repeated freeze-thaw and humidity swelling cycles.
• Pre-compliance verification for automotive ECUs per ISO 16750-4 (climate-related environmental conditions) and AEC-Q200 stress testing requirements.

FAQ

What temperature and humidity ranges does the GDW-500L(A) support?
The GDW-500L(A) operates from -20°C to +150°C with simultaneous humidity control between 20% and 98% RH.
Is the chamber suitable for continuous 24/7 operation?
Yes—the unit is designed for uninterrupted duty cycles with redundant thermal protection, compressor oil management, and robust bearing-grade fan motors rated for >30,000 hours MTBF.
Can I integrate this chamber into an existing factory automation system?
Absolutely—RS485 Modbus RTU interface is standard; optional Ethernet-to-Modbus gateways enable direct PLC or MES integration.
Does the system comply with FDA or pharmaceutical environmental testing requirements?
While primarily intended for industrial and electronics testing, its data integrity features (audit trail, user authentication, calibration logs) can be extended to meet FDA 21 CFR Part 11 requirements with documented configuration and procedural controls.
Are validation documents (IQ/OQ) available?
Yes—Yoyi provides optional GMP-aligned Installation Qualification (IQ) and Operational Qualification (OQ) templates, along with as-built drawings and calibration certificates traceable to national metrology institutes.
