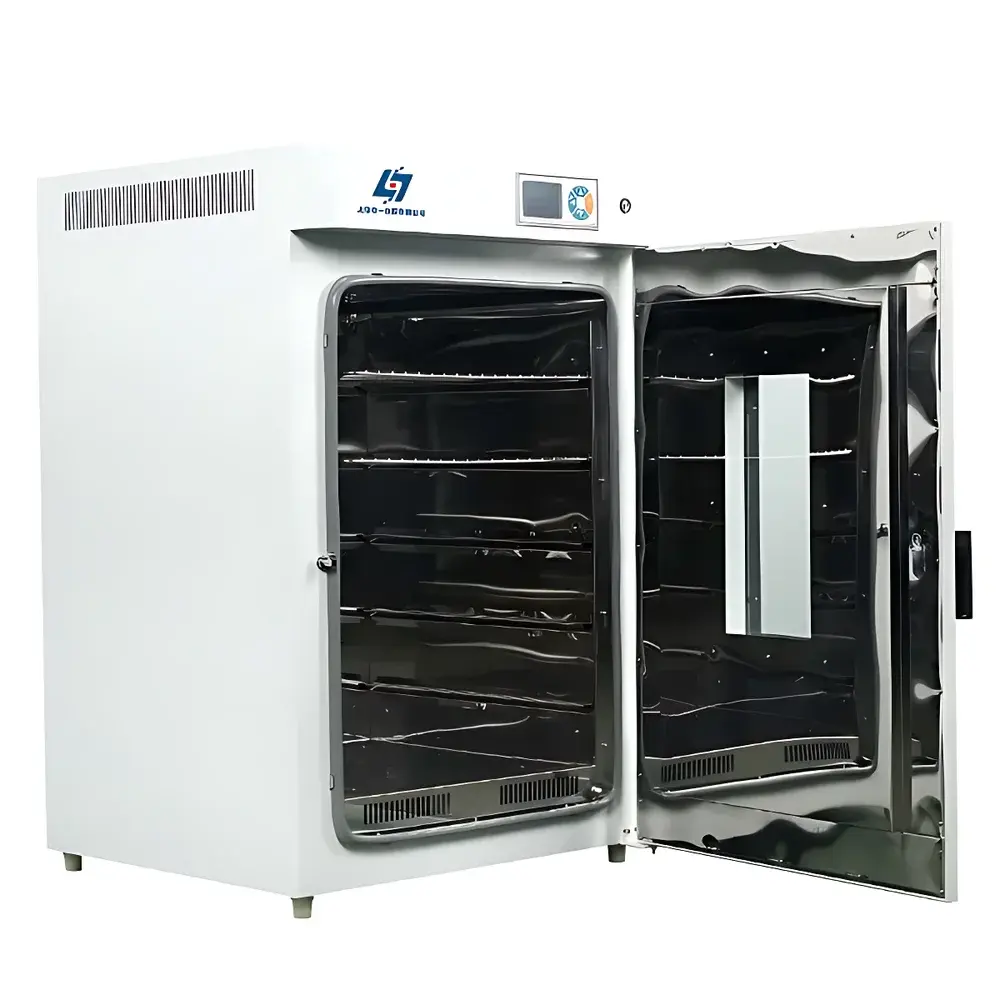

Yoyi DHG-9076A Precision Forced-Air Drying Oven

Overview

The Yoyi DHG-9076A is a microprocessor-controlled forced-air drying oven engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. It operates on the principle of convection-based heat transfer, utilizing an optimized rear-mounted air circulation system with adjustable airflow distribution to ensure consistent thermal energy delivery throughout the working chamber. Designed in strict accordance with GB/T 30435–2013 — the Chinese national standard for electric heating forced-air ovens — the DHG-9076A delivers stable, repeatable temperature profiles across its full operating range of RT+10°C to 300°C. Its robust architecture supports applications requiring controlled dehydration, sterilization, curing, baking, wax melting, and thermal aging of materials such as polymers, pharmaceutical excipients, electronic components, and biological specimens.

Key Features

• Intelligent microcomputer PID temperature controller with real-time display of setpoint, actual chamber temperature, and remaining timer duration on a backlit LCD interface
• Dual-layer tempered glass observation window with large viewing area, enabling non-intrusive monitoring without compromising thermal integrity
• High-efficiency air circulation system featuring rear-mounted blower and directional ductwork, delivering uniform airflow and minimizing thermal gradients (±2.5% uniformity at 100°C, empty load)
• Stainless steel interior chamber (SUS304 mirror finish) with removable, height-adjustable stainless steel shelves; corrosion-resistant and easy to clean
• Exterior housing constructed from cold-rolled steel with electrostatic epoxy-polyester powder coating for mechanical durability and chemical resistance
• High-temperature silicone door gasket ensures long-term sealing performance and thermal insulation efficiency
• Automatic exhaust/intake ports integrated into the rear panel, enabling passive moisture removal during extended drying cycles without manual vent adjustment
• Independent over-temperature protection circuit (optional) that cuts power when preset safety limit is exceeded — critical for unattended operation and GLP-compliant workflows

Sample Compatibility & Compliance

The DHG-9076A accommodates a wide variety of sample formats including Petri dishes, weighing boats, crucibles, glassware, metal trays, and custom fixtures up to 400×425×445 mm. Its inert atmosphere compatibility (via optional inert gas inlet with calibrated rotameter) allows safe processing of oxygen-sensitive materials such as lithium battery cathodes, catalysts, or reactive metal powders. The unit conforms to GB/T 30435–2013 requirements for temperature accuracy, stability, uniformity, and safety interlocks. While not certified to ISO/IEC 17025 or ASTM E145, its design principles align with general laboratory best practices for thermal validation under GLP and GMP frameworks. Users performing regulated work are advised to conduct in-house IQ/OQ/PQ protocols using NIST-traceable thermocouples and data loggers.

Software & Data Management

The DHG-9076A supports optional RS485 serial communication (Modbus RTU protocol) for integration into centralized lab management systems. When paired with supplied PC software, it enables time-stamped logging of temperature setpoints, actual chamber readings, and timer status — supporting audit-ready records per FDA 21 CFR Part 11 requirements when combined with appropriate user access controls and electronic signature implementation. Optional embedded thermal printer provides hard-copy output of temperature profiles for immediate verification. All configuration parameters — including alarm thresholds, timer presets, and PID tuning values — are retained during power interruption via non-volatile memory, ensuring operational continuity after unexpected outages.

Applications

• Moisture content determination in food, agricultural, and pharmaceutical raw materials (per AOAC or USP <921> guidelines)
• Pre-drying of samples prior to gravimetric analysis, Karl Fischer titration, or elemental testing
• Thermal stabilization of reference standards and calibration weights
• Curing of adhesives, coatings, and composite resins in materials science labs
• Heat treatment of electronic assemblies to remove residual solvents or moisture before encapsulation
• Depyrogenation of glassware and stainless-steel tools in biopharmaceutical QC environments
• Aging studies of polymer films, elastomers, and packaging materials per ISO 188 or ASTM D573

FAQ

What is the maximum recommended continuous operating temperature?
The DHG-9076A is rated for continuous operation up to 300°C. Prolonged use above 250°C may accelerate aging of seals and insulation; routine maintenance intervals should be shortened accordingly.
Is the internal chamber volume verified per ISO 17025 calibration procedures?
No. Chamber volume is a geometric specification (75 L, calculated from internal dimensions). Users requiring metrologically traceable volume verification must perform volumetric calibration per ISO/IEC 17025-accredited methods using certified reference standards.
Can this oven be used for sterilization of surgical instruments?
It is not validated or intended for medical device sterilization per ISO 17665 or EN 285. Dry heat sterilization requires specific cycle validation, documentation, and biological indicators — capabilities beyond the scope of this general-purpose drying oven.
Does the oven support multi-step temperature programming?
Standard configuration includes single-setpoint control. Multi-segment ramp-soak programming is available via optional programmable controller accessory (sold separately).
How often should the air filter be cleaned or replaced?
The rear-mounted air intake filter should be inspected weekly in high-particulate environments and cleaned with compressed air or replaced every 6 months under typical laboratory use conditions.
