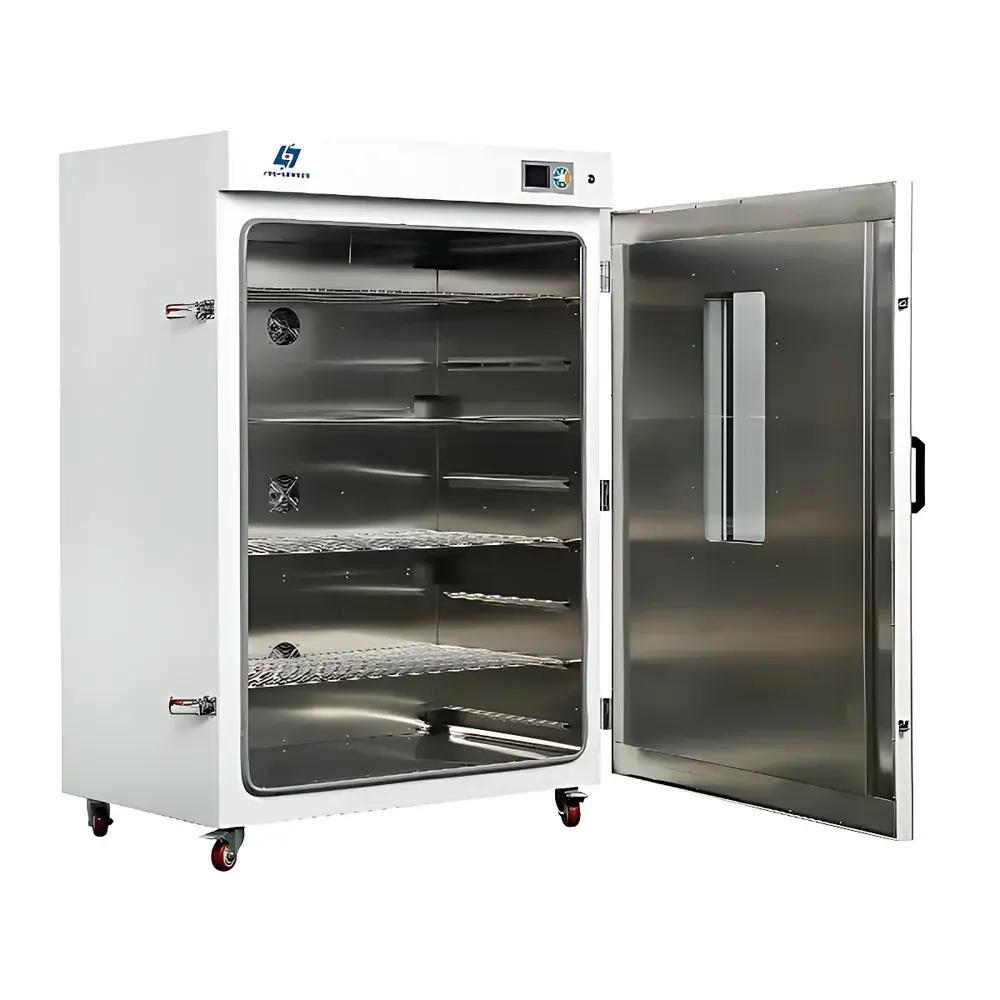

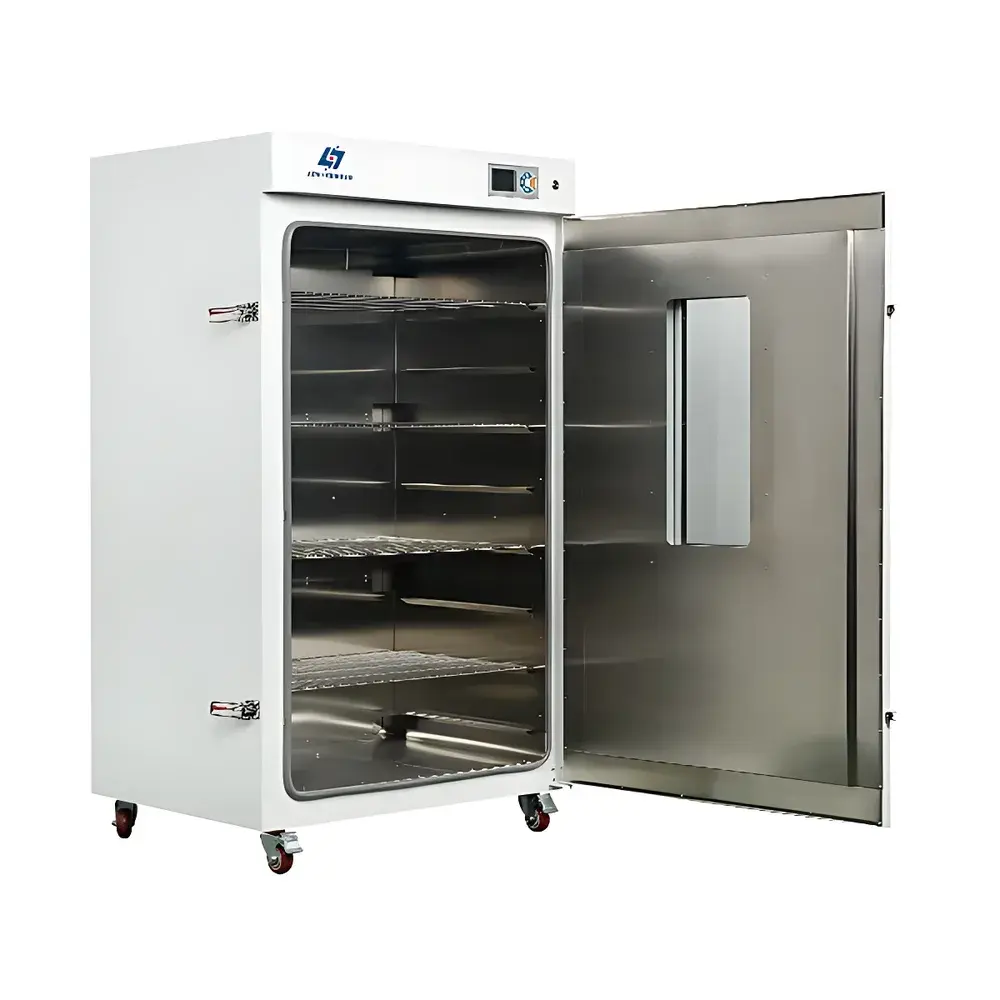

Yoyi DHG-9640C Nitrogen-Purged Forced-Air Drying Oven

Overview

The Yoyi DHG-9640C is a high-capacity, nitrogen-purged forced-air drying oven engineered for laboratories requiring precise thermal processing under inert atmospheres. Unlike conventional convection ovens, the DHG-9640C integrates a dedicated inert gas inlet (Φ10 mm) with calibrated flow control (0–10 L/min via integrated rotameter), enabling continuous displacement of ambient air to suppress oxidation, moisture ingress, and volatile decomposition during thermal treatment. Its operational principle relies on a dual-path air circulation architecture: heated air is distributed through an optimized rear-mounted duct system, while exhaust ports automatically vent humid or reactive vapors—eliminating manual venting and ensuring stable dew point management within the chamber. Designed for reproducible thermal conditioning at temperatures up to 250 °C, it meets foundational requirements for ASTM E145, ISO 17025-compliant drying protocols, and GLP-aligned material stabilization workflows in pharmaceutical, polymer, and electronics manufacturing environments.

Key Features

• Four-shelf stainless steel interior (mirror-finish 304 grade) with tool-free vertical adjustment and load capacity up to 30 kg per shelf
• Microcomputer-based PID temperature controller with 4.3″ backlit LCD interface; supports real-time display of setpoint, actual chamber temperature, elapsed time, and remaining hold duration
• Integrated power-loss recovery function: retains all user-defined parameters—including ramp/soak profiles, timer settings, and alarm thresholds—after unexpected shutdowns or brownouts
• Dual-layer tempered glass observation window with silicone gasket seal, providing unobstructed visual monitoring without thermal leakage or condensation interference
• Robust cold-rolled steel exterior with electrostatic epoxy-polyester coating for corrosion resistance and long-term structural integrity
• High-efficiency tangential blower assembly with asymmetric airflow vanes ensures uniform heat distribution across the full 640 L working volume (±2.5% deviation at 100 °C, per IEC 60068-3-5 validation methodology)
• Front-accessible inert gas coupling with quick-connect fitting and inline needle valve for fine-tuned nitrogen flow regulation and repeatable atmosphere establishment

Sample Compatibility & Compliance

The DHG-9640C accommodates diverse sample formats including Petri dishes, crucibles, glassware, PCB assemblies, polymer films, and biological tissue cassettes. Its chamber geometry (800 × 800 × 1000 mm) permits vertical stacking of standard ISO 9001-certified stainless steel trays (300 × 300 × 50 mm) or custom fixtures. The oven complies with electrical safety standards IEC 61010-1 and EN 61000-6-3 for laboratory equipment emissions. While not intrinsically rated for hazardous area use, its nitrogen purge capability supports OSHA-recommended handling of pyrophoric compounds, oxygen-sensitive catalysts, and moisture-labile APIs per USP . Optional RS485 communication enables integration into centralized lab infrastructure for audit-ready data logging compliant with FDA 21 CFR Part 11 when paired with validated software.

Software & Data Management

The embedded controller supports time-stamped event logging (temperature excursions, door openings, alarm triggers) stored internally for ≥10,000 cycles. With optional RS485 interface and OEM-provided Windows-compatible configuration software, users can export CSV-formatted datasets with millisecond-resolution timestamps, generate calibration reports aligned with ISO/IEC 17025 Clause 6.4.6, and configure multi-step thermal programs (up to 32 segments). Optional embedded thermal printer provides hard-copy output of run summaries—including start/end times, peak deviation, and operator ID—for batch record retention in GMP environments. All firmware updates are delivered via USB flash drive with cryptographic signature verification to ensure traceability.

Applications

• Thermal stabilization of lithium-ion battery cathode materials under N₂ prior to XRD analysis
• Drying of hygroscopic excipients (e.g., microcrystalline cellulose, lactose monohydrate) for content uniformity testing per USP
• Curing of epoxy-coated semiconductor wafers without interfacial oxidation
• Moisture removal from optical-grade polymers prior to injection molding trials
• Pre-conditioning of reference standards for gravimetric moisture analysis (ASTM D2298)
• Accelerated aging studies of elastomeric seals under controlled inert atmospheres (ISO 188)
• Residue-free solvent evaporation from HPLC fractions containing thermally labile natural products

FAQ

What inert gases are compatible with the DHG-9640C?
Nitrogen (N₂) and argon (Ar) are fully supported; helium requires pressure regulation due to higher diffusivity.
Is the temperature uniformity specification valid during active nitrogen purging?
Yes—the ±2.5% uniformity (at 100 °C) is verified under continuous 5 L/min N₂ flow per IEC 60068-3-5 Annex B.
Can the oven operate continuously at 250 °C for extended periods?
Yes; continuous operation is permitted with mandatory 2-hour cooldown interval every 72 hours to maintain heater coil longevity.
Does the unit include validation documentation for IQ/OQ protocols?
Factory-supplied as-built drawings, calibration certificates (NIST-traceable PT100 sensor), and FAT test reports are provided; site-specific SAT documentation requires third-party qualification.
Are internal shelves supplied with non-slip surface treatment?
Standard shelves feature laser-etched grip patterns; optional silicone-coated variants are available upon request.
