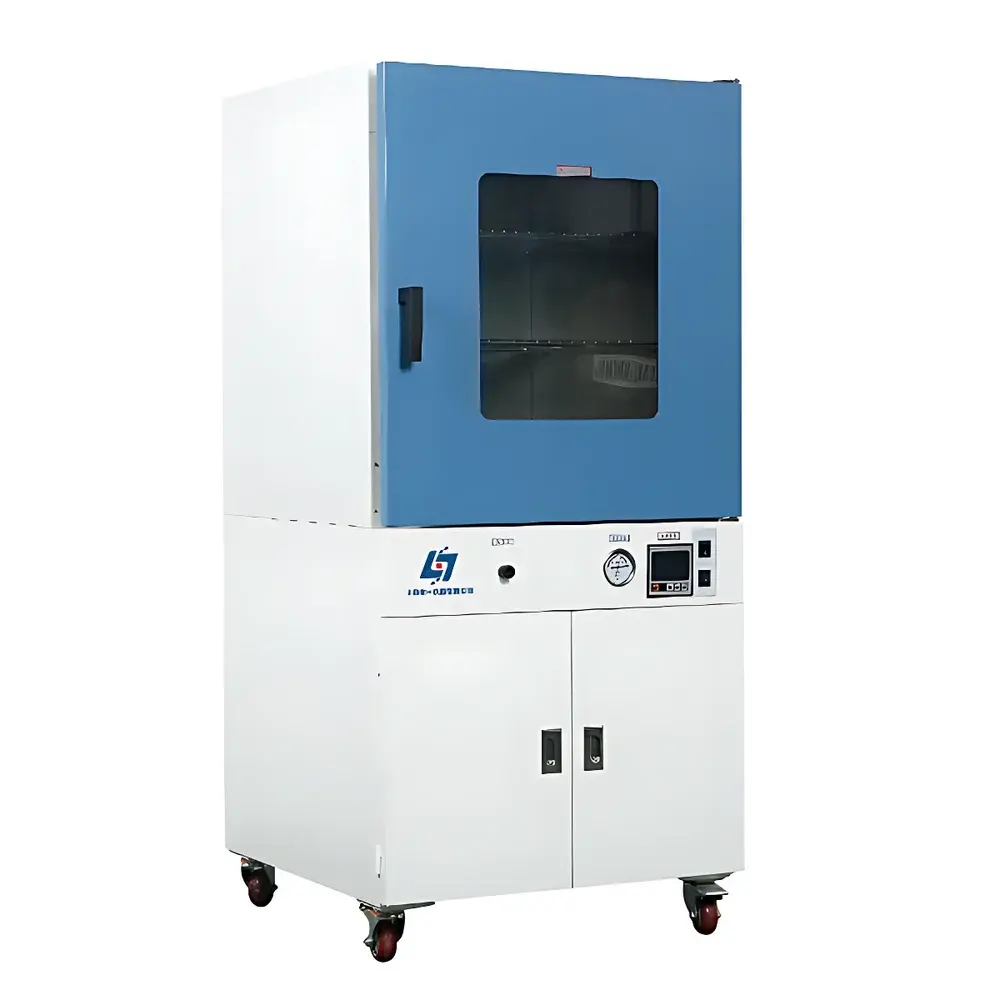

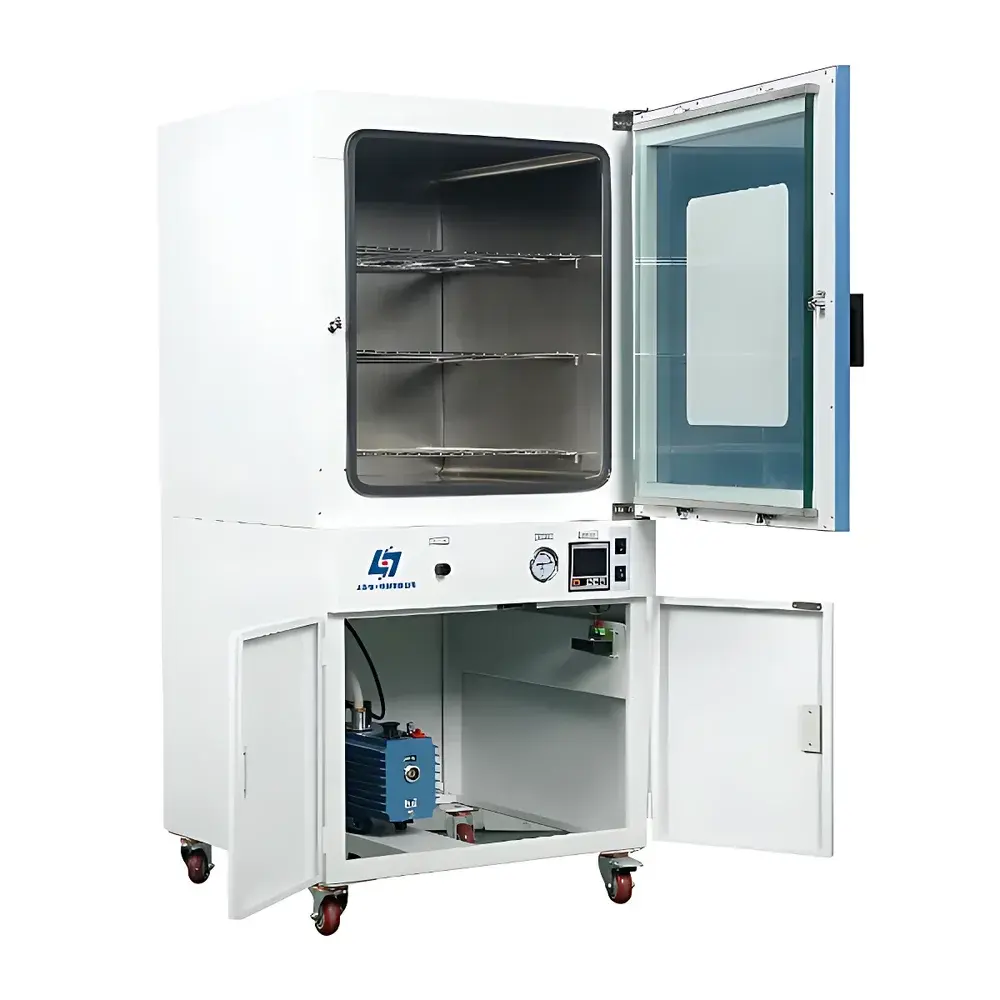

Yoyi DZF-6500C Nitrogen-Purged Vacuum Drying Oven

Overview

The Yoyi DZF-6500C Nitrogen-Purged Vacuum Drying Oven is an engineered solution for controlled thermal processing under inert and low-pressure environments. It operates on the principle of simultaneous vacuum evacuation and nitrogen backfilling—enabling precise suppression of oxidative degradation during drying, curing, or conditioning of oxygen-sensitive materials. Unlike standard convection ovens, this system eliminates convective heat transfer limitations by removing ambient air and replacing it with high-purity nitrogen, thereby minimizing thermal decomposition pathways in thermolabile compounds. The chamber maintains a stable vacuum level of ≤133 Pa while permitting regulated gas flow (0–10 L/min), ensuring reproducible atmosphere control across extended operational cycles. Designed for laboratory-scale R&D and quality assurance workflows, the DZF-6500C supports process validation requirements common in pharmaceutical stability testing (ICH Q1), polymer curing studies, and moisture-sensitive electronics packaging.

Key Features

• Microprocessor-based PID temperature controller with real-time monitoring, ±1°C uniformity across the 630×810×845 mm stainless steel (SUS304) interior, and 0.1°C resolution for fine-grained thermal setpoint management.
• Dual-layer tempered glass observation window with integrated silicone gasket seal, enabling visual inspection without compromising vacuum integrity or nitrogen purity.
• Internal heating architecture with custom-stamped aluminum shelving—engineered for rapid thermal response, minimal oxidation at elevated temperatures, and uniform heat distribution across loaded samples.
• Integrated analog vacuum gauge with stainless steel housing and front-panel mounting—designed for long-term mechanical reliability and ease of calibration verification.
• Quick-connect nitrogen inlet (Φ10 mm) paired with a calibrated float-type flowmeter, supporting manual adjustment of inert gas introduction rate from 0 to 10 L/min with traceable flow indication.
• Ceramic fiber insulation layer between inner chamber and outer cold-rolled steel enclosure—reducing standby heat loss and improving energy efficiency during prolonged dwell cycles.
• Power-fail recovery function with non-volatile parameter memory; automatically resumes pre-interruption settings upon power restoration, preserving experimental continuity.
• Programmable timer (1–9999 minutes) with audible end-cycle alert and optional auto-shutdown, compliant with GLP documentation practices for time-bound thermal protocols.

Sample Compatibility & Compliance

The DZF-6500C accommodates heterogeneous sample formats including powders, granules, thin-film coatings, printed circuit boards, lyophilized biologics, and composite precursors. Its inert-gas-compatible chamber design conforms to ASTM E145-22 (Standard Specification for Gravity-Convection and Forced-Ventilation Ovens) for thermal uniformity verification, and supports method development aligned with USP (Package Integrity Evaluation) for dry-heat sterilization qualification. While not intrinsically certified for hazardous location use, its construction meets IEC 61010-1 safety standards for laboratory electrical equipment. The stainless steel interior facilitates cleaning validation per FDA 21 CFR Part 211 (cGMP for Finished Pharmaceuticals), and the sealed nitrogen environment enables compliance with ISO 11140-1 (sterilization indicators) when used in conjunction with validated vacuum/nitrogen purge cycles.

Software & Data Management

This model operates via embedded firmware without external PC dependency. All operational parameters—including set temperature, vacuum hold duration, nitrogen flow rate, and elapsed time—are displayed simultaneously on a high-contrast LCD interface. The system logs runtime events (e.g., overtemperature alarms, vacuum breach alerts, power interruptions) into internal memory with timestamping, supporting audit-ready record retention for up to 10,000 cycles. Data export is not supported natively; however, the unit provides RS-232 output (optional accessory) for integration into centralized lab data acquisition systems adhering to IEEE 11073 or ASTM E2500-22 standards. For regulated environments, users may configure alarm thresholds and enable password-protected parameter locking to satisfy 21 CFR Part 11 requirements for electronic records and signatures when paired with compliant third-party logging software.

Applications

• Pharmaceutical: Residual solvent removal from active pharmaceutical ingredients (APIs) under inert conditions to prevent racemization or hydrolysis.
• Electronics: Pre-bake of PCB assemblies and semiconductor substrates prior to conformal coating or wire bonding, eliminating moisture-induced delamination.
• Materials Science: Degassing of polymer resins and ceramic slurries before casting or sintering to suppress void formation.
• Academic Research: Controlled dehydration of botanical extracts, enzyme preparations, and nanomaterial dispersions where redox stability is critical.
• Quality Control Labs: Moisture content determination per AOAC 950.46 (vacuum oven method) with nitrogen overlay to stabilize volatile analytes.
• Aerospace: Outgassing validation of adhesives and composites per NASA-STD-6001B, Section 4.3.2, using repeatable vacuum/nitrogen cycling profiles.

FAQ

What vacuum pump is recommended for optimal performance with the DZF-6500C?
A two-stage oil-sealed rotary vane pump with ultimate vacuum ≤5 Pa and pumping speed ≥12 m³/h is advised for achieving and sustaining ≤133 Pa within the specified chamber volume.
Can the DZF-6500C be used for oxygen-free annealing of metal samples?
Yes—when operated with continuous nitrogen purge at flow rates ≥5 L/min and maintained vacuum level, it provides suitable conditions for low-oxygen thermal treatment of copper, aluminum, and nickel alloys.
Is the stainless steel interior electropolished or passivated?
The chamber uses standard mill-finish SUS304 stainless steel; electropolishing is available as a factory customization option for enhanced corrosion resistance in aggressive chemical drying applications.
Does the unit support programmable multi-step drying protocols?
No—the DZF-6500C executes single-setpoint thermal/vacuum/gas sequences only; multi-segment ramp-soak profiles require external PLC integration via RS-232 or analog I/O modules.
How often should the silicone door gasket be replaced for sustained vacuum integrity?
Under normal operation (≤200°C, daily use), replacement is recommended every 18–24 months; visual inspection for compression set or cracking should precede each quarterly maintenance cycle.
