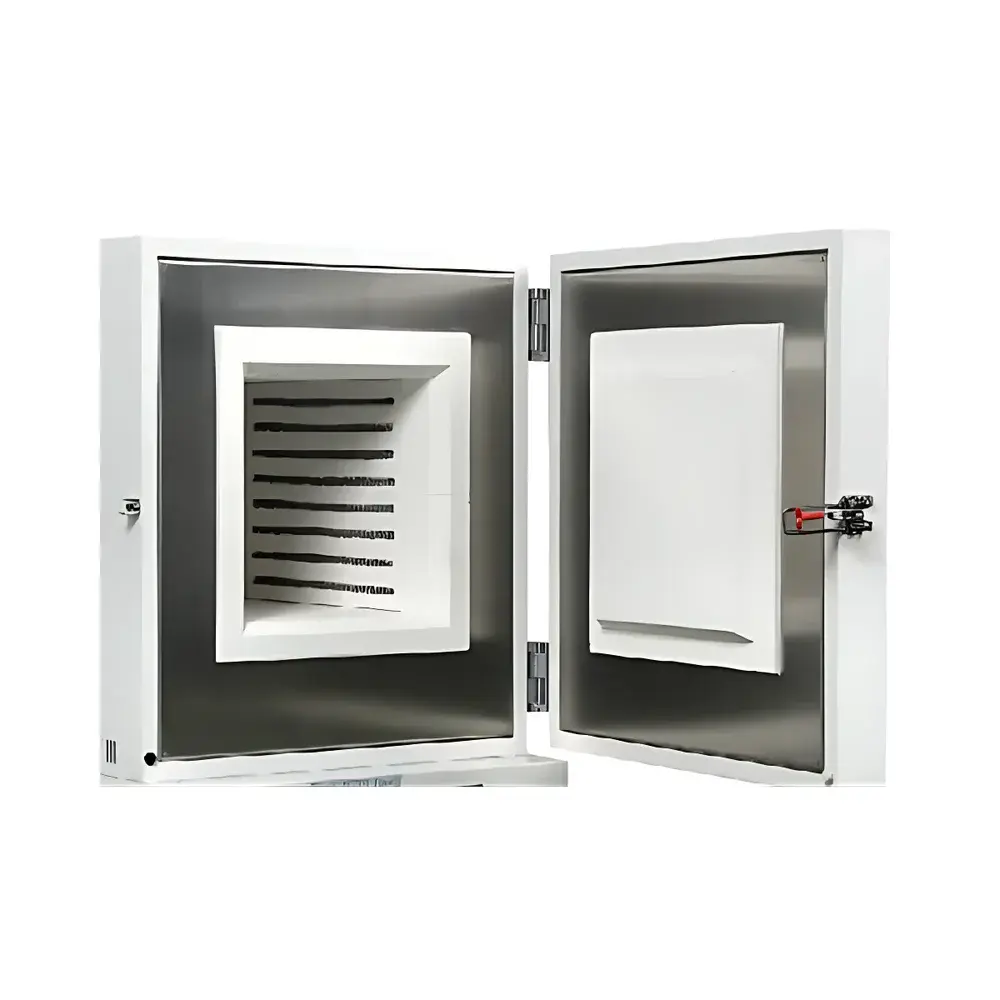

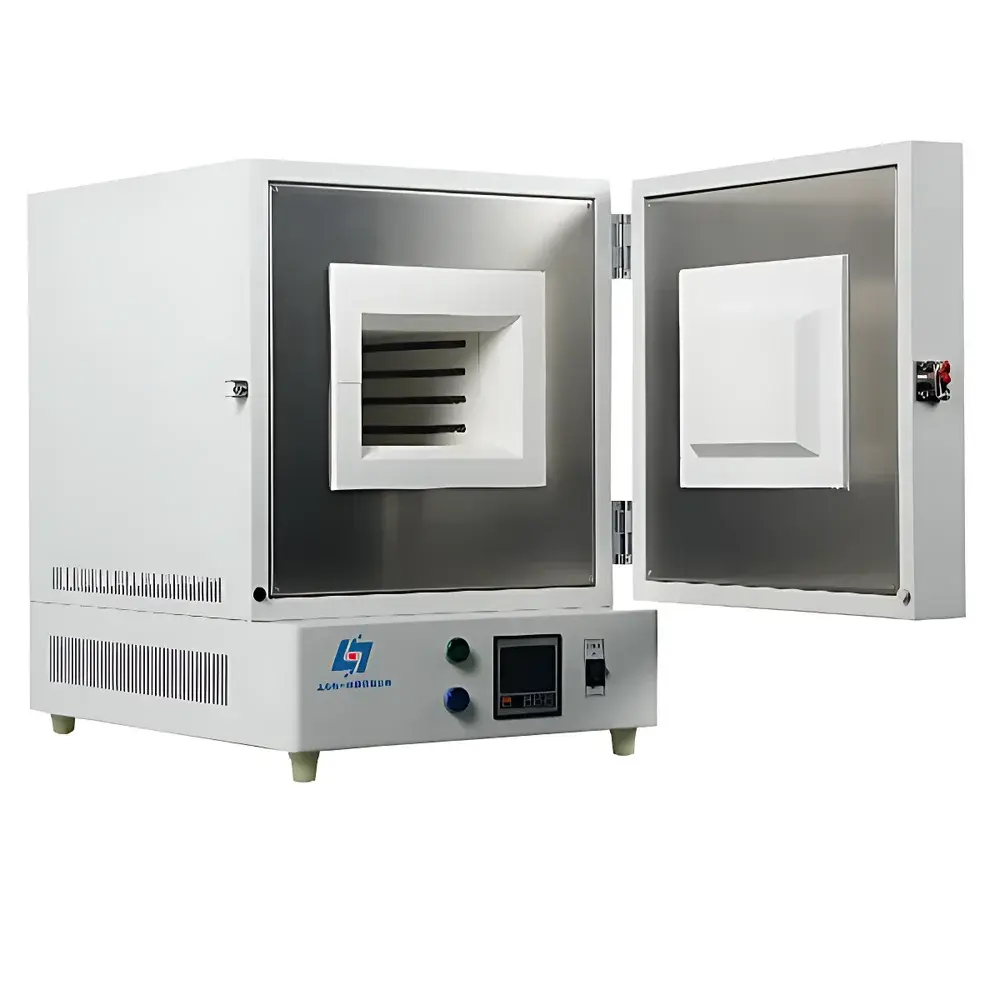

Yoyi SX2-4-12A Plus 1200°C Ceramic Fiber Muffle Furnace

Overview

The Yoyi SX2-4-12A Plus is a high-performance, ceramic fiber–insulated box-type muffle furnace engineered for precise thermal processing in research laboratories, materials science facilities, and quality control environments. It operates on the principle of resistive heating via Mo-doped nickel-chromium alloy wire embedded within a low-thermal-mass, high-purity alumina-silica ceramic fiber chamber. This architecture enables rapid thermal response, exceptional temperature uniformity (±3°C across the working zone at 1200°C), and minimal energy consumption—approximately 60% less than conventional refractory-brick furnaces. Designed to meet ISO 9001-compliant manufacturing standards, the furnace supports critical heat treatment protocols including sintering, ashing, calcination, annealing, and controlled-atmosphere pre-treatment (when used with optional purge gas fittings). Its maximum operating temperature of 1200°C conforms to ASTM E1112 (Standard Specification for Laboratory Muffle Furnaces) and is validated for continuous-duty operation under GLP conditions.

Key Features

• Lightweight ceramic fiber insulation (density: ~128 kg/m³) reduces thermal inertia and improves ramp rates—achieving 1200°C in ≤35 minutes from ambient, approximately 2× faster than brick-lined equivalents.
• Double-layer chamber construction: inner wall lined with 20 mm thick ceramic fiber board; outer shell fabricated from cold-rolled steel with phosphating + electrostatic epoxy coating for corrosion resistance and mechanical durability.
• Microprocessor-based PID temperature controller with 0.1°C resolution, programmable 30-segment ramp-soak profiles, and auto-tuning capability for stable setpoint maintenance over extended cycles.
• Comprehensive safety architecture: dual independent overtemperature cutoff (mechanical limit switch + digital sensor), earth leakage protection, overcurrent/overvoltage monitoring, and automatic power cut-off upon door opening or thermocouple failure.
• Intuitive 3.5-inch monochrome LCD interface displaying real-time chamber temperature, setpoint, elapsed time, remaining hold duration, and fault codes—all accessible without menu navigation.
• Power-fail recovery function retains all active parameters and resumes operation from interruption point after grid restoration, ensuring data integrity in unattended runs.

Sample Compatibility & Compliance

The SX2-4-12A Plus accommodates crucibles, boats, and trays up to 100 mm in height and 250 mm in diameter, compatible with standard alumina, quartz, silicon carbide, and stainless-steel sample holders. Its muffle design isolates samples from direct radiant exposure and combustion byproducts, making it suitable for ASTM C117 (ash content determination), ISO 1171 (determination of ash in coal and coke), and USP heavy metals testing. The furnace meets CE electromagnetic compatibility (EMC) Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Optional RS485 Modbus RTU interface enables integration into centralized lab management systems compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures when paired with audit-trail-enabled software.

Software & Data Management

While the base unit features standalone operation, optional RS485 connectivity (available as add-on module) allows bidirectional communication with PC-based thermal process software. This enables remote configuration of multi-step programs, real-time temperature logging at user-defined intervals (1–60 sec), CSV export for statistical process control (SPC) analysis, and generation of IQ/OQ/PQ validation reports per GMP Annex 15 guidelines. All logged data includes timestamp, operator ID (via login prompt), and environmental metadata (ambient T/RH if external sensors are connected). Firmware supports firmware-over-the-air (FOTA) updates via USB host port for long-term regulatory compliance maintenance.

Applications

• Ceramic & glass R&D: glaze firing, nucleation annealing, controlled devitrification studies.
• Powder metallurgy: binder burnout, solid-state sintering, diffusion bonding preheating.
• Environmental testing: gravimetric analysis of total suspended solids (TSS), volatile solids (VS), and loss-on-ignition (LOI) per APHA Standard Methods 2540E.
• Pharmaceutical QA: excipient dehydration validation, residual solvent removal verification, and capsule shell brittleness assessment via controlled thermal aging.
• Nanomaterial synthesis: thermal decomposition of metal-organic frameworks (MOFs), oxide nanoparticle crystallization, and carbon black oxidation kinetics.

FAQ

What thermocouple type is used for temperature sensing?
Type K (Chromel-Alumel) mineral-insulated thermocouple, calibrated traceable to NIST standards, mounted in a protected sheath at the chamber centerline.
Can this furnace operate under inert or reducing atmospheres?
Yes—when equipped with optional quartz or alumina tube inserts and gas inlet/outlet ports (sold separately), it supports N₂, Ar, H₂/N₂ mixtures, and forming gas environments up to 1200°C.
Is the ceramic fiber lining resistant to halogen-containing vapors?
Standard alumina-silica fiber is not recommended for prolonged exposure to HF, HCl, or Cl₂ above 600°C; for such applications, we recommend upgrading to high-purity polycrystalline alumina fiber liners (available on request).
What maintenance schedule is required for optimal performance?
Visual inspection of heating element continuity and fiber integrity every 200 operating hours; thermocouple recalibration annually or per ISO/IEC 17025 internal audit cycle.
Does the furnace support validation documentation packages?
Yes—factory-installed IQ/OQ documentation kits (including calibration certificates, wiring diagrams, and test protocols) are available upon order confirmation.
