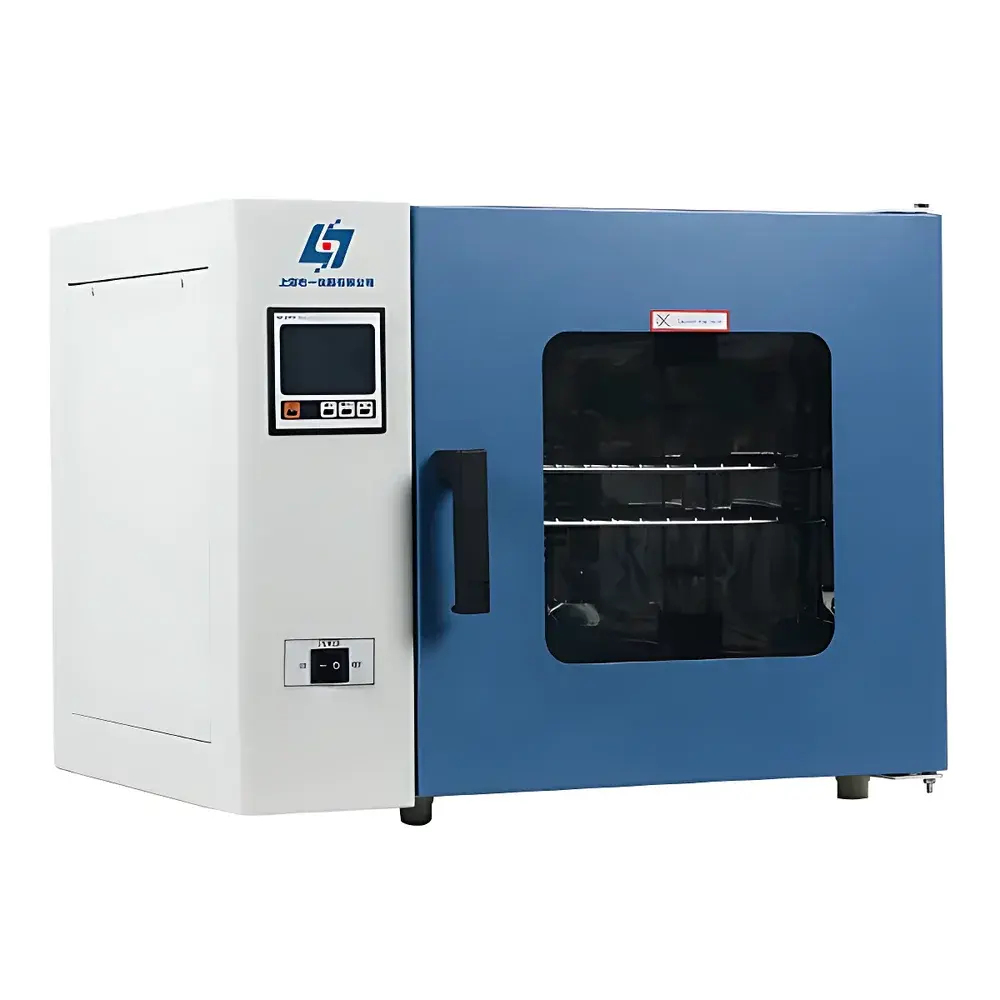

Yoyilab DHG-9073A Precision Forced-Air Constant-Temperature Drying Oven

Overview

The Yoyilab DHG-9073A is a precision forced-air constant-temperature drying oven engineered for reproducible thermal processing in regulated laboratory and industrial quality control environments. It operates on the principle of convection-based heat transfer, utilizing a rear-mounted centrifugal blower and optimized air duct architecture to ensure uniform airflow distribution across the entire working chamber. This design enables stable thermal equilibrium and minimizes spatial temperature gradients—critical for applications requiring strict adherence to thermal protocols such as moisture content determination (per ISO 712 or AOAC 934.01), polymer curing, pharmaceutical residual solvent removal, and pre-sterilization drying of glassware and instrumentation components. The oven complies with GB/T 30435–2013, the national standard governing performance requirements and test methods for electric heating drying ovens in China, and its construction supports alignment with broader GLP and GMP documentation practices when integrated with optional data logging interfaces.

Key Features

• Microprocessor-controlled PID temperature regulation with 0.1°C resolution and ±1°C fluctuation tolerance at setpoint
• Forced-air circulation system featuring a rear-mounted high-efficiency impeller and multi-directional air ducts for ±2.5% temperature uniformity (measured at 100°C per GB/T 30435)

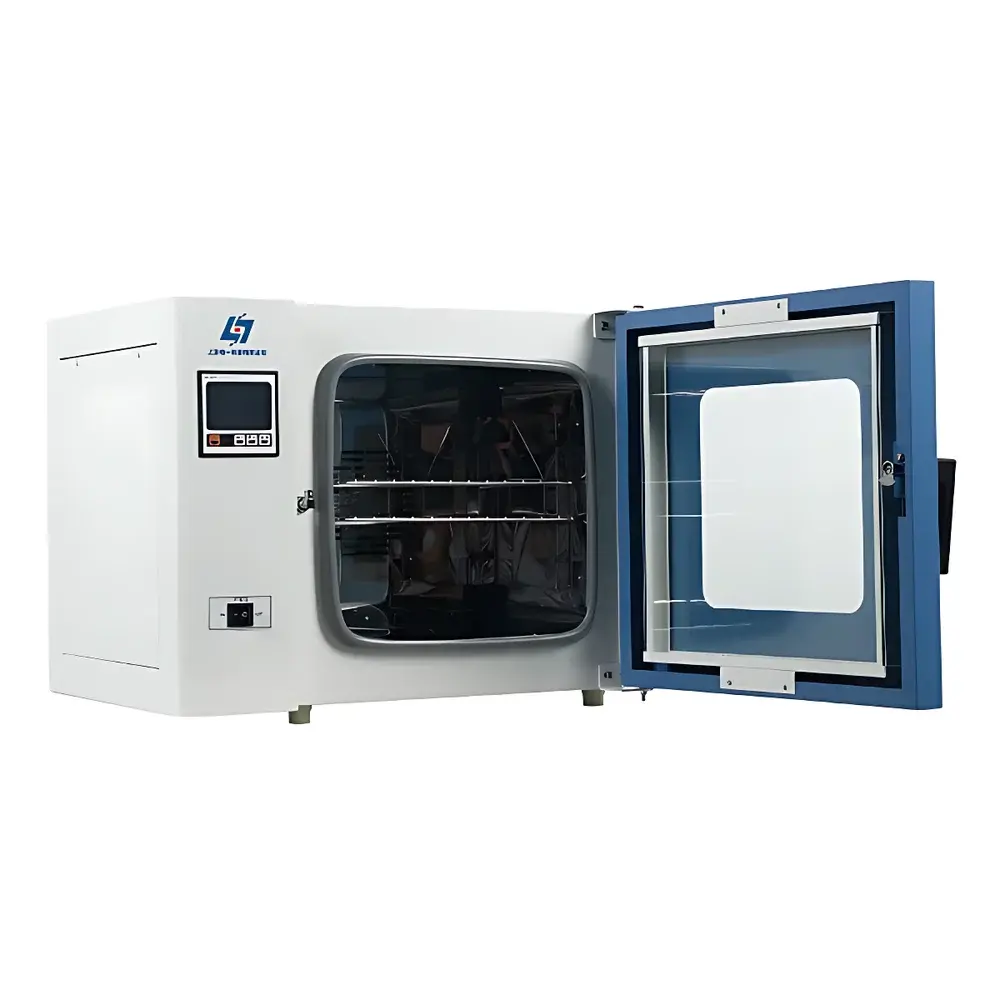

• Double-layer tempered glass observation window with stainless steel frame, enabling real-time visual monitoring without thermal interruption
• Mirror-finish 304 stainless steel interior chamber (450 × 400 × 450 mm) resistant to oxidation and corrosion from repeated thermal cycling
• Cold-rolled steel exterior with electrostatic epoxy-polyester powder coating for mechanical durability and chemical resistance
• High-temperature silicone door gasket ensuring consistent sealing integrity up to 280°C and extended service life
• Auto exhaust/intake ports with passive ventilation management to expel condensate and volatile byproducts during prolonged operation
• Power-fail recovery function preserving user-defined parameters—including target temperature, dwell time, and alarm thresholds—after unexpected shutdown
• Independent over-temperature cut-off circuit (optional) meeting IEC 61000-4-2 immunity requirements for safety-critical thermal equipment

Sample Compatibility & Compliance

The DHG-9073A accommodates a broad range of sample formats, including Petri dishes, weighing boats, crucibles, glass vials, metal trays, and polymer molds—provided dimensional constraints (max. 450 mm width × 400 mm depth × 450 mm height) and thermal stability limits are observed. Its operational envelope (RT+10°C to 280°C) supports ASTM D1654 (coating corrosion testing), ISO 527-2 (plastic tensile specimen conditioning), and USP (dry heat sterilization validation). While not certified to UL/CSA or CE for standalone medical device use, the unit’s electrical architecture conforms to GB 4706.1–2005 (IEC 60335-1) for household and similar electrical appliances, and its thermal performance data is traceable under metrological conditions defined in JJF 1101–2019 (Calibration Specification for Environmental Test Chambers).

Software & Data Management

The DHG-9073A features an embedded LCD interface supporting menu-driven configuration of temperature setpoints, hold durations, ramp rates (when paired with optional programmable controller), and alarm thresholds. Optional RS485 serial communication (Modbus RTU protocol) enables integration with SCADA systems or LIMS platforms for centralized parameter logging and audit trail generation. An optional embedded thermal printer provides hard-copy output of temperature/time profiles compliant with FDA 21 CFR Part 11 requirements when used with validated timestamping firmware. All digital interfaces undergo electromagnetic compatibility (EMC) testing per GB/T 17626.2–2018 (IEC 61000-4-2) to ensure signal integrity in shared laboratory infrastructure.

Applications

• Moisture loss-on-drying (LOD) analysis for raw materials in food, pharma, and agrochemical QA/QC labs
• Pre-conditioning of polymeric specimens prior to mechanical testing per ISO 291 and ASTM D618
• Drying of filter papers, chromatography media, and microbiological culture plates
• Thermal aging studies of electronic encapsulants and conformal coatings
• Desiccation of hygroscopic reagents and calibration standards
• Heat treatment of metallographic samples before etching or microscopy
• Residual solvent evaporation from coated substrates in R&D pilot lines

FAQ

What is the maximum operating temperature of the DHG-9073A?
The unit is rated for continuous operation from ambient +10°C up to 280°C.
Does the oven include calibration documentation?
Factory calibration certificates (traceable to CNAS-accredited reference standards) are available upon request; on-site verification using NIST-traceable thermocouples is recommended annually.
Can the DHG-9073A be used for sterilization?
It meets dry-heat sterilization temperature thresholds (e.g., 160°C for 120 min per USP ), but validation must be performed per facility-specific SOPs and ISO 17665–1.
Is inert gas purging supported natively?
An optional inert gas inlet port with calibrated float flowmeter (0–10 L/min range) is available for nitrogen or argon blanketing during oxygen-sensitive drying.
How many shelves are included, and are they adjustable?
Two 304 stainless steel wire shelves are supplied; all shelf positions are fully adjustable via vertical support notches spaced at 25 mm intervals.
