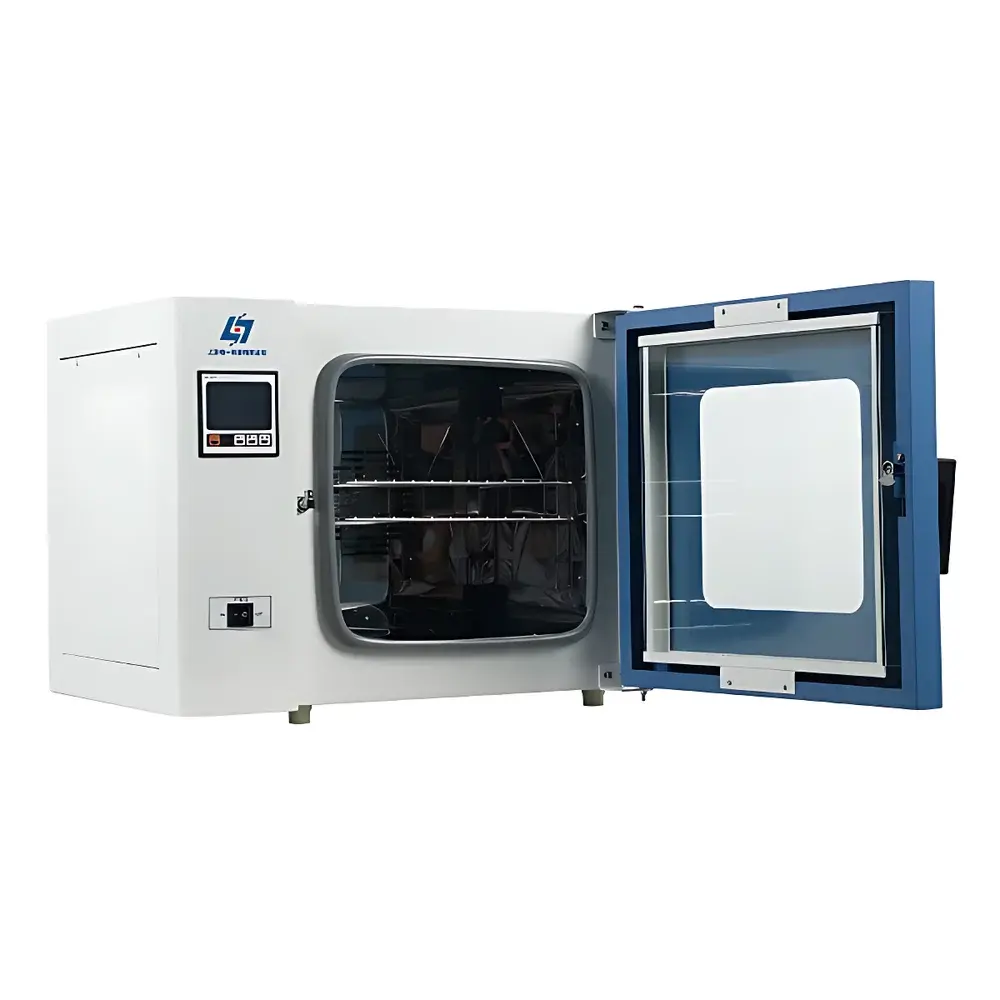

Yoyilab DHG-9140A Precision Forced-Air Drying Oven

Overview

The Yoyilab DHG-9140A is a precision-engineered forced-air drying oven designed for laboratory and industrial applications requiring stable, uniform thermal environments across a wide operating range (RT+10°C to 250°C). It operates on the principle of controlled convective heat transfer, utilizing a rear-mounted centrifugal blower and optimized wind tunnel architecture to ensure rapid temperature recovery and high spatial uniformity—critical for drying, baking, sterilization, moisture removal, polymer curing, and thermal stability testing. Unlike natural convection ovens, the DHG-9140A’s active air circulation system minimizes thermal gradients and accelerates process throughput while maintaining repeatability under load. Its construction adheres to GB/T 30435–2013—the Chinese national standard governing performance requirements, safety provisions, and test methods for electric heating drying and forced-air drying ovens—ensuring baseline conformity with internationally recognized thermal equipment benchmarks.

Key Features

• Microprocessor-based intelligent temperature controller with PID algorithm, offering precise setpoint control (0.1°C resolution), programmable timer (1–9999 min), and over-temperature alarm with independent hardware cutoff circuitry (optional)
• Large dual-pane observation window with tempered glass and silicone-sealed frame, enabling real-time visual monitoring without thermal disturbance or condensation buildup
• Mirror-finish SUS304 stainless steel interior chamber and adjustable stainless steel shelving—corrosion-resistant, non-porous, and compatible with cleaning validation protocols
• Electrostatically coated cold-rolled steel exterior with reinforced structural rigidity and ergonomic door handle; high-temperature silicone gasket ensures long-term sealing integrity up to 250°C
• Integrated rear air inlet/outlet ducts with automatic humidity venting capability—eliminates manual damper adjustment and prevents internal condensation during prolonged low-temperature drying cycles
• Configurable optional interfaces including RS485 serial port (with Modbus RTU support), embedded thermal printer, multi-segment programmable controller, inert gas purge port with calibrated rotameter (0–10 L/min), and electronic door lock

Sample Compatibility & Compliance

The DHG-9140A accommodates a broad spectrum of sample types—including biological specimens, pharmaceutical excipients, polymer films, ceramic precursors, electronic components, and food matrices—without cross-contamination risk due to its seamless stainless steel chamber and absence of paint or epoxy coatings inside the work area. Its thermal performance has been validated under no-load conditions per GB/T 30435–2013: temperature uniformity is ±2.5% at 100°C, and fluctuation remains within ±1°C during steady-state operation. While not certified to ISO/IEC 17025 or ASTM E145 as a standalone metrology instrument, the unit supports GLP/GMP-aligned workflows when paired with external calibration documentation and periodic verification using NIST-traceable PT100 probes. The optional RS485 interface enables integration into centralized lab management systems compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures when used with validated software.

Software & Data Management

The DHG-9140A’s embedded controller logs real-time temperature data internally and supports external data acquisition via RS485. When connected to a host PC running Yoyilab’s OEM-compatible software (included with interface option), users can configure multi-step thermal profiles, export timestamped CSV files, generate trend charts, and apply audit-trail-enabling user authentication. The system records event logs—including power interruptions, alarm triggers, door openings, and parameter modifications—with time stamps and operator IDs. For regulated environments, the optional embedded printer provides hard-copy traceability of temperature history during critical processes such as depyrogenation or residual solvent removal. All firmware updates are delivered via secure USB loading, ensuring version control and change management compliance.

Applications

This drying oven serves core functions across analytical, quality control, and R&D laboratories: moisture content determination (per AOAC 950.46 or USP <731>), pre-weighing desiccation of filters and crucibles, thermal aging of elastomers and composites, sterilization of glassware and tools (160°C for 2 hours), melt-index stabilization of thermoplastics, catalyst activation, and accelerated shelf-life testing of packaged goods. In electronics manufacturing, it facilitates flux residue removal and conformal coating curing. Its consistent airflow profile and minimized hot/cold spots make it suitable for ASTM D2857 (moisture in plastics) and ISO 11358 (thermogravimetric analysis sample prep). The inert gas port further extends utility to oxygen-sensitive materials such as lithium battery cathode precursors or metal-organic frameworks.

FAQ

What is the maximum recommended continuous operating temperature?
The DHG-9140A is rated for continuous operation up to 250°C. Sustained use above this threshold may compromise sensor accuracy, seal longevity, and insulation integrity.
Can the oven be validated for IQ/OQ/PQ protocols?
Yes—its mechanical design, digital control architecture, and optional data logging features support installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) activities when executed with third-party calibration equipment and documented procedures.
Is the stainless steel chamber electropolished or passivated?
The interior uses standard mirror-finish SUS304 stainless steel. Electropolishing or citric acid passivation is available upon request for enhanced corrosion resistance in aggressive chemical environments.
Does the unit include a certificate of conformance?
Each unit ships with a Factory Certificate of Conformance referencing GB/T 30435–2013, listing measured temperature uniformity, fluctuation, and power consumption under standard test conditions.
How is airflow velocity controlled?
Airflow is regulated via an optional infinitely variable speed switch that adjusts blower RPM—enabling optimization between gentle drying (low turbulence) and rapid heat transfer (high circulation), depending on sample sensitivity and process requirements.
