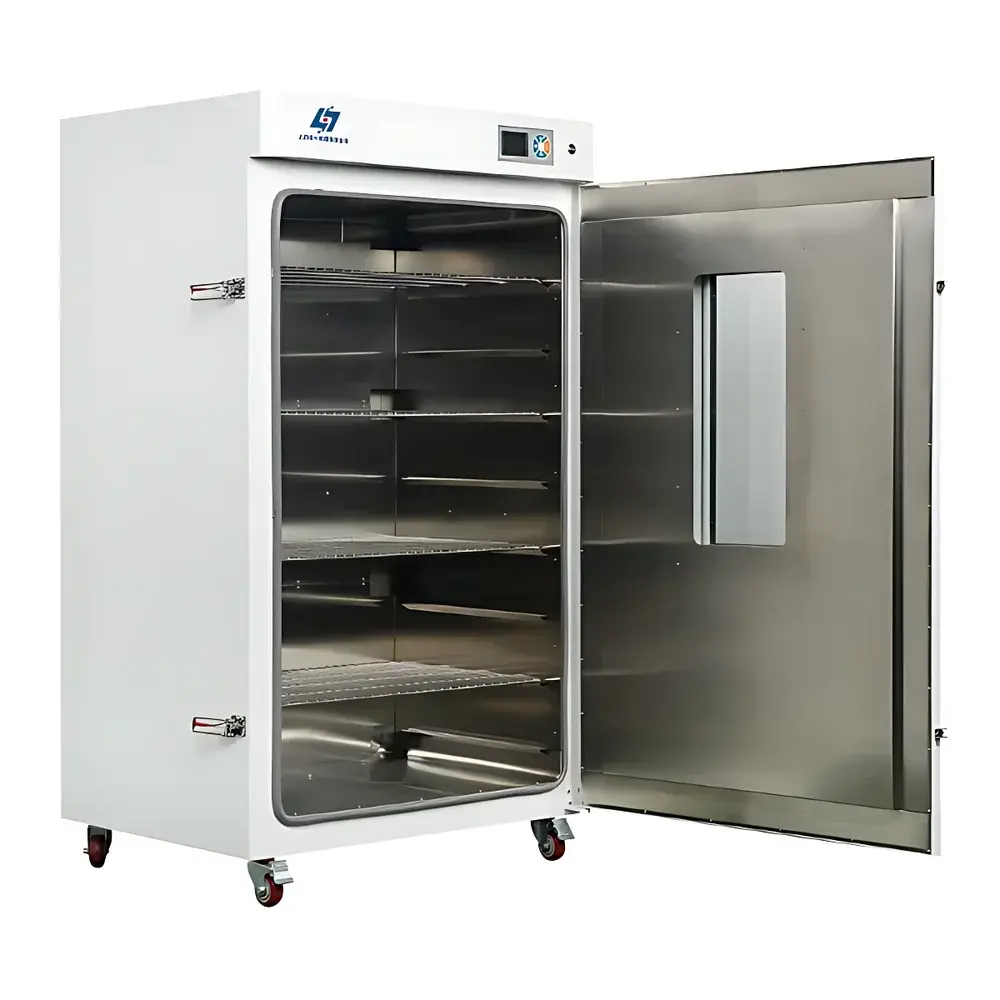

Yoyilab DHG-9425A Vertical Forced-Air Constant-Temperature Drying Oven

Overview

The Yoyilab DHG-9425A is a vertical forced-air constant-temperature drying oven engineered for precision thermal processing in regulated laboratory and industrial R&D environments. It operates on the principle of convection-based heat transfer, utilizing an optimized rear-mounted air circulation system with adjustable intake and exhaust ports to ensure consistent airflow distribution throughout the chamber. This design enables uniform thermal exposure across the full working volume—critical for applications requiring reproducible drying, baking, sterilization, or thermal aging under controlled atmospheric conditions. The unit complies with GB/T 30435–2013, the Chinese national standard for electric heating drying ovens, and its structural and control architecture supports alignment with broader quality frameworks including ISO/IEC 17025 (for testing laboratories) and GLP-compliant workflows where traceable temperature logging and alarm integrity are essential.

Key Features

• Microprocessor-based PID temperature controller with intuitive LCD menu interface—displays setpoint, real-time chamber temperature, and remaining hold time simultaneously
• Robust chamber construction: mirror-finish 304 stainless steel interior with corrosion-resistant cold-rolled steel exterior and electrostatic powder coating
• Double-layer tempered glass observation window with wide-angle viewing field—enables non-intrusive monitoring without thermal loss
• High-efficiency horizontal air duct system with rear-mounted blower—ensures rapid heat recovery and minimizes vertical temperature gradients
• Automatic humidity venting via integrated intake/exhaust ports—eliminates manual dampening adjustments during moisture-laden cycles
• Intelligent power-loss recovery function—retains user-defined parameters and resumes operation upon grid restoration
• Independent over-temperature cut-off circuit (optional)—meets fail-safe requirements for unattended operation per IEC 61000-4-11
• Dual-seal silicone gasket door system—rated for continuous use up to 300°C with low compression-set degradation

Sample Compatibility & Compliance

The DHG-9425A accommodates a broad spectrum of sample types—including glassware, metal substrates, polymer films, ceramic wafers, biological culture plates, and electronic assemblies—without risk of cross-contamination or surface oxidation, thanks to its inert stainless-steel chamber and absence of catalytic internal coatings. Its operating envelope (RT+10°C to 300°C) supports ASTM D563–22 (rubber vulcanization), USP (dry-heat sterilization), and ISO 14644–1 (cleanroom component bake-out) protocols. While not certified to UL 61010–1 or CE EN 61000–6–3 out-of-the-box, the unit’s electrical architecture permits third-party conformity assessment for integration into EU-based QA/QC labs. All safety interlocks, thermal fuses, and grounding provisions meet Class I protection requirements as defined in IEC 61010–1.

Software & Data Management

Optional RS485 communication interface enables bidirectional data exchange with external SCADA systems or PC-based acquisition platforms using Modbus RTU protocol. When paired with supplied configuration software, users can configure multi-stage ramp-soak profiles, export timestamped temperature logs (.CSV), and generate audit-ready reports compliant with FDA 21 CFR Part 11 when combined with validated electronic signature modules. An embedded thermal printer (optional) provides hard-copy records of cycle start/end times, peak temperatures, and alarm events—satisfying documentation needs in GMP-regulated pharmaceutical stability studies. All firmware updates are delivered via secure USB loader; no cloud dependency or remote access functionality is implemented, preserving network isolation integrity.

Applications

• Drying of moisture-sensitive powders (e.g., APIs, catalysts, battery electrode slurries)
• Thermal conditioning of calibration standards prior to metrological verification
• Accelerated aging of polymeric encapsulants in electronics reliability testing
• Residual solvent removal from coated substrates in thin-film R&D
• Dry-heat sterilization of stainless-steel tools and glass vials (validated at ≥160°C for ≥2 hours)
• Curing of epoxy adhesives and silicone sealants under controlled ramp rates
• Pre-conditioning of sensors and transducers prior to environmental stress screening

FAQ

What is the maximum sustainable operating temperature for continuous use?
The DHG-9425A is rated for uninterrupted operation at 300°C, verified per GB/T 30435–2013 thermal endurance testing under load conditions.
Can the oven be purged with inert gas?
Yes—an optional inert gas inlet port with calibrated rotameter allows controlled nitrogen or argon flow (0–10 L/min), enabling oxygen-sensitive processes such as solder paste drying or lithium-ion cathode annealing.
Is temperature mapping validation supported?
The chamber includes two standardized 25 mm diameter test ports (optional upgrade), permitting insertion of calibrated thermocouples for IQ/OQ temperature uniformity qualification per ISO 17025 Annex A.4.
How many shelves are included, and are they adjustable?
Three chrome-plated steel shelves are supplied, each independently height-adjustable on dual-pin support rails with 25 mm pitch increments.
Does the unit support programmable multi-step temperature profiles?
Not natively—but the optional multi-segment programmable controller (model YPC-12) adds 12-step ramp/soak capability with independent dwell timing and slope control.
