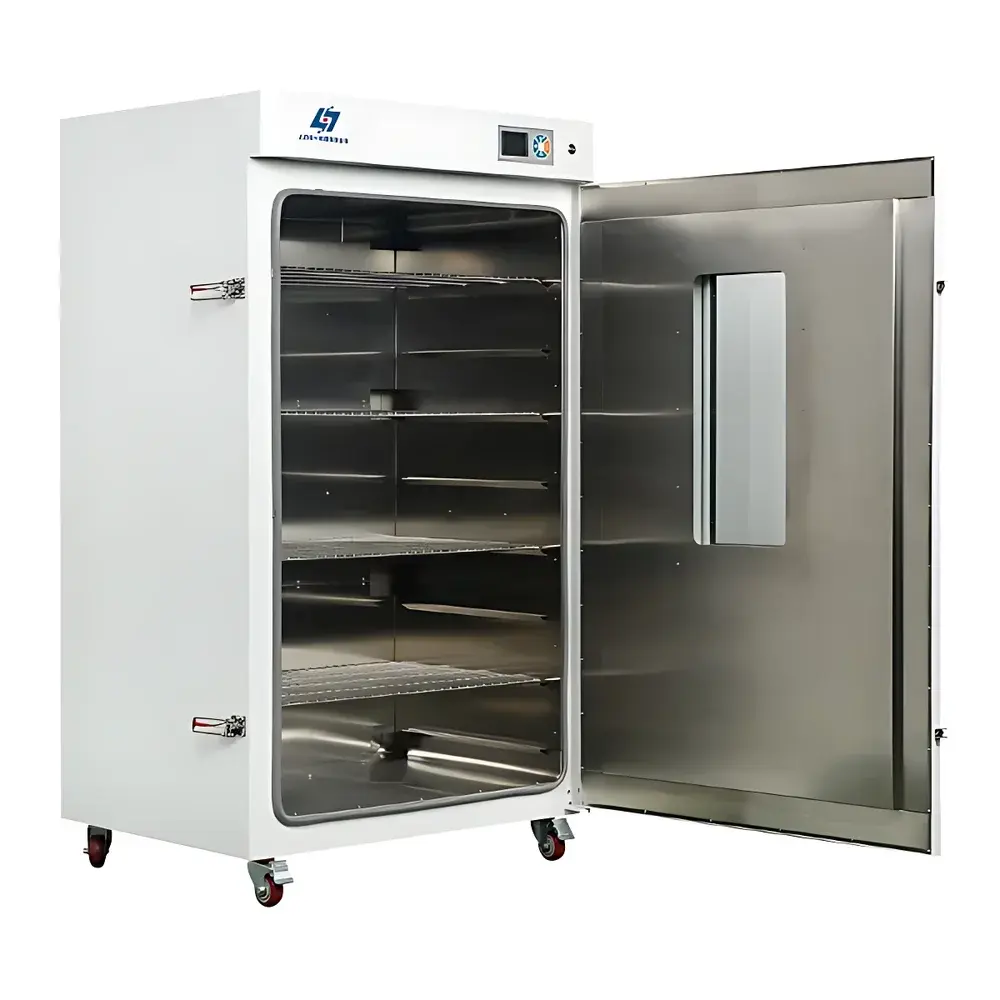

Yoyilab DHP-9402 Vertical Large-Capacity Forced-Air Electrically Heated Incubator

Overview

The Yoyilab DHP-9402 is a vertically oriented, large-volume forced-air incubator engineered for stable, reproducible thermal environments in microbiological, biochemical, and cell culture applications. It operates on the principle of uniform convective heat transfer—using a precisely calibrated axial fan and optimized internal airflow channels—to maintain consistent temperature distribution across the entire working chamber. Designed for continuous operation in academic laboratories, biotechnology R&D facilities, food safety testing labs, and agricultural research centers, this incubator supports critical workflows including bacterial propagation, fungal cultivation, enzyme activity assays, and stability testing of biological reagents under controlled thermal conditions.

Key Features

• Robust structural design with cold-rolled steel exterior and electrophoretically coated finish for corrosion resistance and long-term durability
• Polished stainless-steel interior chamber featuring seamless, rounded corners (R ≥ 15 mm) to minimize contamination traps and simplify cleaning and sterilization
• Adjustable stainless-steel shelving system with multi-position support rails—enabling flexible load configuration up to 15 kg per shelf
• Dual-door insulation architecture incorporating high-density polyurethane foam (≥40 mm thickness) and magnetic silicone gasketing to reduce thermal leakage and stabilize internal conditions during door openings
• Intelligent 5.7-inch LCD controller with real-time display of setpoint temperature, actual chamber temperature, elapsed time, and remaining hold duration
• Microprocessor-based PID temperature regulation with dual-stage protection: primary control loop + independent mechanical overtemperature cutoff (optional) compliant with IEC 61000-4-2 ESD immunity standards
• Power-loss recovery function preserving user-defined parameters—including temperature setpoint, timer value, and alarm thresholds—ensuring experimental continuity after unexpected outages
• Energy-efficient heating system with distributed tubular heaters and thermal shielding to prevent localized hot spots and ensure gradient-free operation

Sample Compatibility & Compliance

The DHP-9402 accommodates standard laboratory vessels including Petri dishes (up to 150 mm), test tubes (16 × 150 mm), flasks (up to 2 L), and multi-well plates. Its chamber geometry (600 × 550 × 1300 mm W×D×H) allows vertical stacking of stacked culture racks without impeding airflow. The unit meets ISO 13485-aligned manufacturing practices and conforms to GB/T 23792–2009 (Chinese National Standard for Incubators), with optional configurations supporting GLP-compliant data integrity requirements—including audit-trail-enabled RS485 communication and timestamped thermal logging compatible with FDA 21 CFR Part 11–ready software platforms.

Software & Data Management

While the base model features standalone embedded control, optional interfaces expand traceability and integration capabilities: an RS485 port enables connection to LabView, MATLAB, or custom SCADA systems for remote monitoring and centralized fleet management; alternatively, an embedded thermal printer (optional) provides hard-copy records of temperature profiles, alarms, and operational events. All digital outputs include ISO 8601-formatted timestamps and are exportable as CSV files for statistical process control (SPC) analysis. Firmware supports firmware-upgradable parameter sets, including multi-segment programmable ramp-soak cycles (P-series variant), facilitating accelerated stability studies per ICH Q1A(R2) guidelines.

Applications

• Bacterial and yeast culture maintenance (e.g., E. coli, S. cerevisiae) at optimal growth temperatures (30–37°C)
• Enzyme kinetics assays requiring precise thermal staging across defined time intervals
• Seed germination and plant tissue culture under standardized environmental conditions
• Accelerated shelf-life testing of probiotics, vaccines, and diagnostic reagents
• Environmental simulation for quality assurance in food processing and dairy fermentation validation
• Supporting ISO/IEC 17025-accredited microbiological testing protocols where temperature uncertainty budgets must remain below ±0.8°C (k=2)

FAQ

What is the recommended calibration interval for the DHP-9402?

Annual verification using NIST-traceable PT100 probes is advised; internal sensor drift remains within ±0.2°C/year under normal operating conditions.
Can the incubator operate continuously at 65°C?

Yes—the heating system and insulation are rated for sustained operation across the full specified range (RT+5°C to 65°C), with thermal cut-off redundancy ensuring safety compliance.
Is the chamber humidity-controlled?

No—this is a dry-air incubator. For humidified applications, consider pairing with an external saturated salt chamber or upgrading to the Yoyilab HDP series.
How many shelves are included by default?

Three adjustable stainless-steel shelves are supplied standard; additional shelves can be ordered separately (part no. DHP-SH-SS-01).
Does the unit comply with electromagnetic compatibility (EMC) directives?

Yes—it satisfies EN 61326-1:2013 for laboratory equipment and carries CE marking under the Low Voltage Directive 2014/35/EU.
