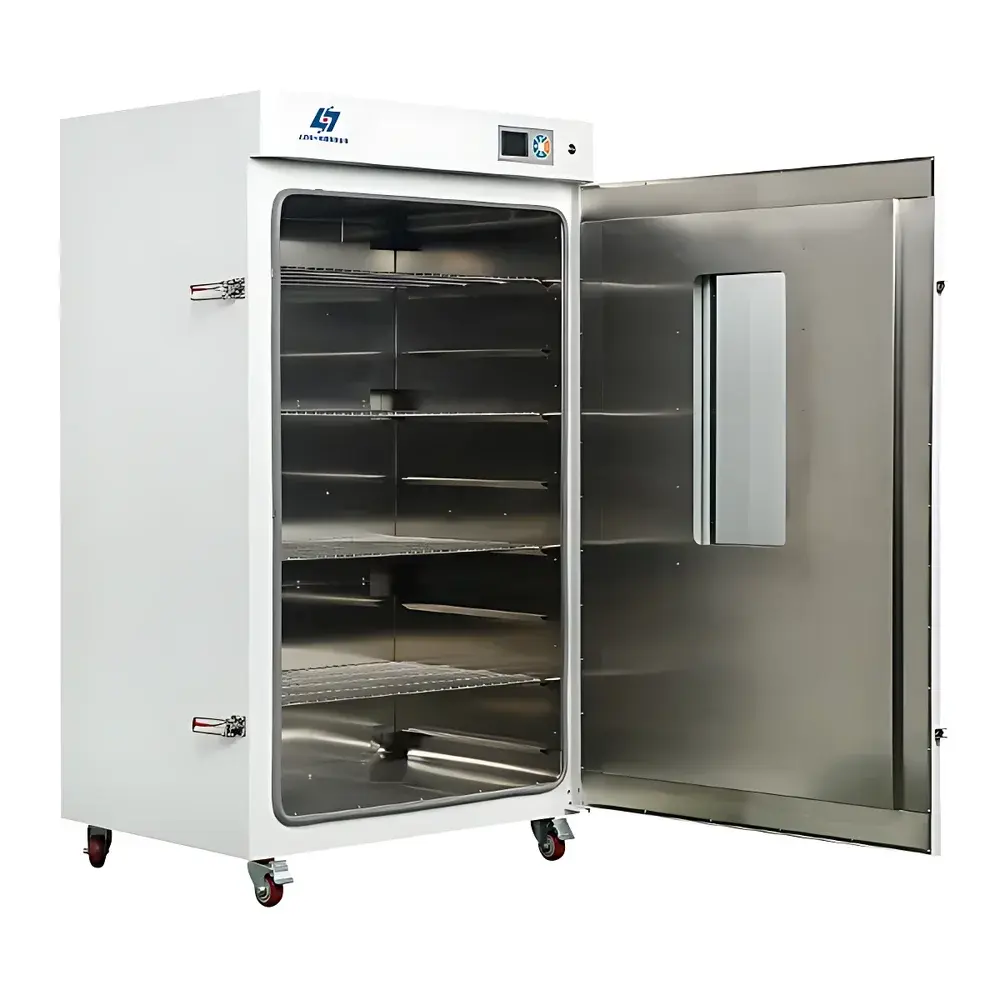

Yoyilab DHP-9602 Forced-Air Biochemical Incubator

Overview

The Yoyilab DHP-9602 is a high-capacity, forced-air biochemical incubator engineered for stable, reproducible temperature-controlled environments in life science laboratories, biotechnology R&D facilities, microbiology quality control labs, and academic research settings. Designed around the principle of uniform convective heat transfer, the unit employs a precisely balanced axial fan system with optimized airflow ducting to ensure minimal thermal stratification across its 620 L working chamber. Its operational range spans from ambient +5°C to 65°C—covering critical applications including bacterial culture propagation, enzyme activity assays, cell line maintenance, and stability testing of biological reagents. The incubator complies with fundamental design requirements outlined in ISO 13408-1 (sterility assurance), ASTM E122-22 (sampling precision), and supports GLP-compliant workflows through traceable temperature logging and alarm-triggered event capture.

Key Features

• Robust structural architecture: Cold-rolled steel outer casing with phosphate conversion coating and electrostatic powder finish; mirror-polished stainless-steel interior chamber with radius-rounded corners for seamless cleaning and reduced microbial retention.
• Thermally efficient dual-door design with magnetic silicone gasket sealing, minimizing heat loss during observation and maintaining chamber integrity during frequent access.
• Intelligent microprocessor-based temperature controller featuring a 5.7-inch backlit LCD interface—displaying real-time setpoint, actual chamber temperature, elapsed time, and remaining hold duration simultaneously.
• Dual-stage thermal protection: Primary PID control loop with deviation-based overtemperature cutoff, plus an independent mechanical safety limiter (optional) that physically interrupts heating upon exceeding user-defined thresholds.
• Power-loss recovery function: Automatically restores pre-interruption temperature settings and timer status after grid failure or unexpected shutdown, preserving experimental continuity.
• High-density polyurethane insulation (≥80 mm thickness) combined with perimeter-sealed door construction achieves low steady-state power consumption and extended service life under continuous operation.

Sample Compatibility & Compliance

The DHP-9602 accommodates standard laboratory vessels—including Petri dishes, multi-well plates, Erlenmeyer flasks (up to 2 L), and stacked culture racks—within its adjustable shelving system (four configurable stainless-steel trays included). Internal dimensions (W×D×H: 800 × 640 × 1300 mm) permit vertical stacking of large-format bioreactor bags or modular incubation modules. All materials contacting the chamber interior meet USP Class VI biocompatibility criteria. While not certified for ISO 14644-1 cleanroom use, the unit satisfies baseline environmental controls required for non-aseptic biological processing per FDA Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing (2004), and aligns with temperature monitoring expectations in EU Annex 15: Qualification and Validation.

Software & Data Management

The incubator supports optional RS485 serial communication (Modbus RTU protocol) for integration into centralized lab monitoring networks. When paired with validated third-party SCADA or LIMS platforms, it enables remote parameter adjustment, automated data export (CSV/Excel), and audit-trail generation compliant with 21 CFR Part 11 requirements—including electronic signatures, user access logs, and immutable timestamped records of all temperature deviations and alarm events. An optional embedded thermal printer provides hard-copy output of temperature profiles at user-defined intervals (e.g., every 15 minutes over 72-hour runs), satisfying internal QA documentation standards where digital archiving is unavailable.

Applications

• Microbial growth studies (E. coli, Bacillus subtilis, yeast strains) under standardized thermal conditions per ISO 8199:2018.
• Long-term stability assessment of diagnostic enzymes, monoclonal antibodies, and lyophilized vaccines at accelerated storage temperatures.
• Seed germination trials and plant tissue culture initiation requiring precise diurnal temperature cycling (when equipped with P-type programmable controller).
• Environmental simulation for food safety challenge testing (e.g., Listeria monocytogenes proliferation kinetics per USDA-FSIS protocols).
• Pre-incubation conditioning of biosensors, immunoassay plates, and ELISA substrates prior to analytical readout.

FAQ

What is the minimum ambient operating temperature for this incubator?

The unit is rated for installation in rooms maintained between 15°C and 30°C, with relative humidity ≤80% RH non-condensing. Operation below 15°C may impair compressor efficiency and extend stabilization time.
Can the DHP-9602 be used for CO₂-sensitive applications?

No—this is a dry-air convection incubator without gas regulation capability. For CO₂-dependent mammalian cell culture, consider Yoyilab’s separate CO₂ incubator series (e.g., CIC-9602) with infrared sensing and solenoid-controlled gas blending.
Is calibration certificate included with shipment?

A factory-as-tested temperature uniformity report (per ISO 17025-accredited methodology) is provided. NIST-traceable on-site calibration services are available as a post-purchase option.
How many shelves are standard, and what is their load capacity?

Four adjustable stainless-steel shelves are supplied, each rated for 15 kg uniformly distributed load. Additional shelves can be ordered separately (Part No. SHT-D9602-SS).
Does the unit meet electromagnetic compatibility (EMC) standards for laboratory deployment?

Yes—it conforms to IEC 61326-1:2022 Class A emission limits and immunity requirements for industrial environments, verified via third-party EMC testing (Report No. EMC-YL-D9602-2023-0892).
