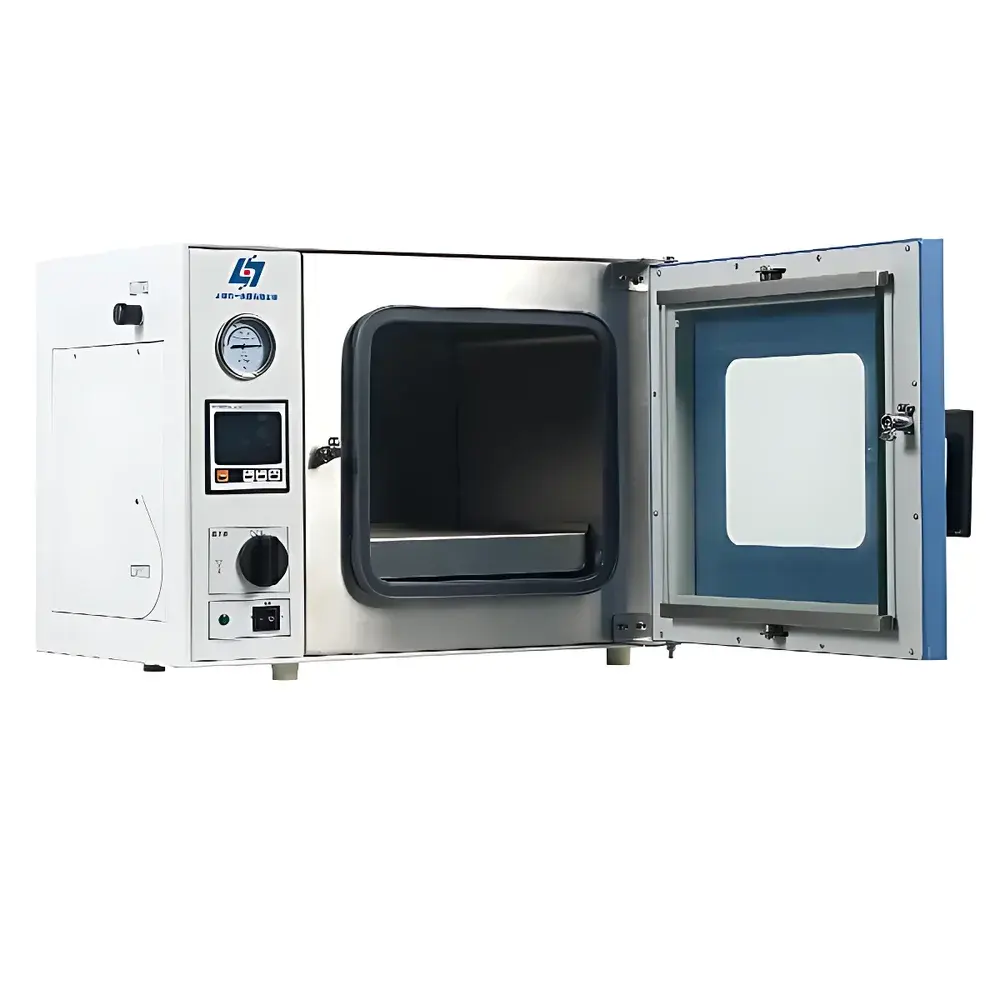

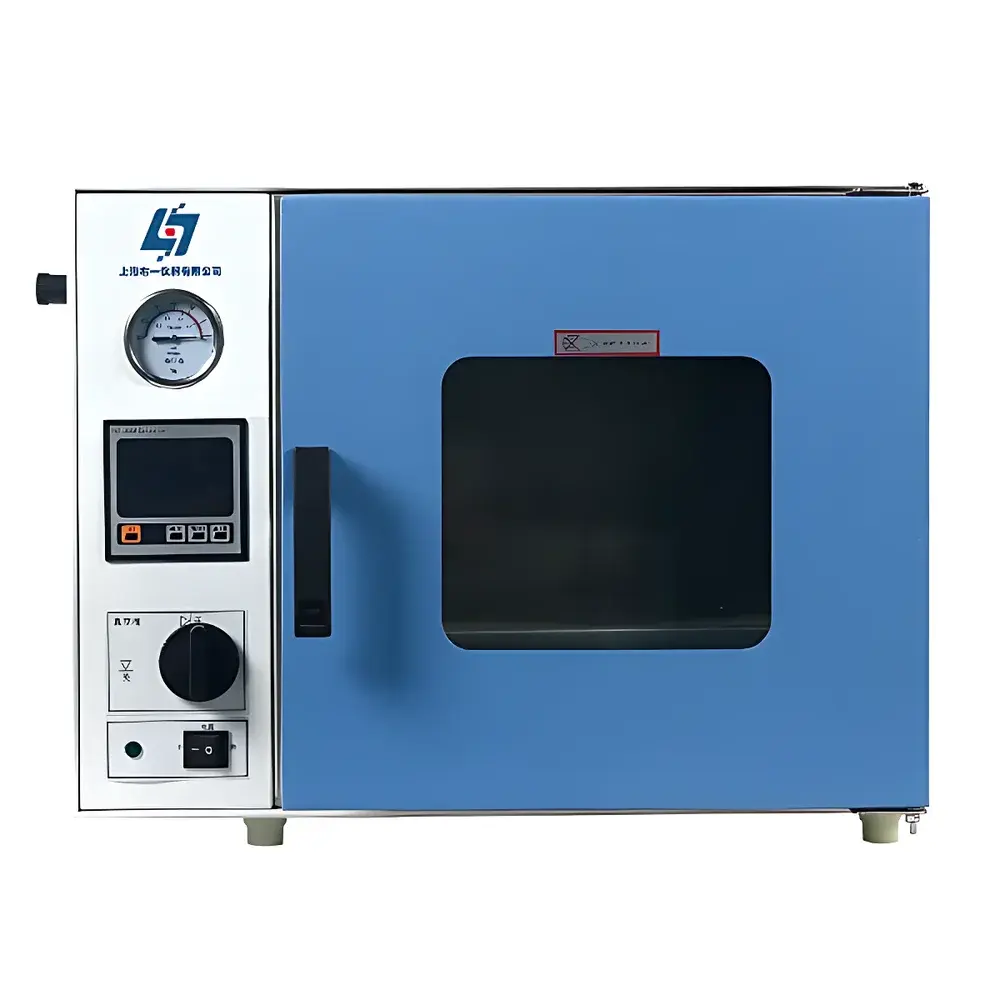

Yoyilab DZF-6050 Vacuum Drying Oven

Overview

The Yoyilab DZF-6050 Vacuum Drying Oven is an engineered solution for controlled, oxygen-free thermal processing of heat-sensitive, oxidation-prone, or chemically unstable samples. Operating on the principle of reduced-pressure drying—where lowering ambient pressure depresses the boiling point of solvents and moisture—the unit enables efficient dehydration, solvent removal, sterilization, and thermal stabilization without thermal degradation. Unlike conventional convection ovens, this vacuum oven eliminates convective heat transfer, relying instead on conductive heating via stainless-steel chamber walls and aluminum shelves. This design minimizes thermal gradients and prevents surface oxidation, making it particularly suitable for pharmaceutical active pharmaceutical ingredients (APIs), polymer precursors, biological extracts, ceramic powders, and calibration standards requiring inert-atmosphere conditioning per ISO 12744 and ASTM E145.

Key Features

• Robust 304 stainless-steel interior chamber with seamless welds and electropolished finish for corrosion resistance and easy decontamination—compliant with GLP cleaning validation requirements.
• Precision microprocessor-based temperature controller with 0.1°C resolution and ±1°C uniformity across the full operating range (RT+10°C to 250°C), supporting stable setpoint maintenance under dynamic vacuum conditions.
• Integrated power-failure recovery function: automatically restores pre-interruption temperature setpoints and timer status upon re-powering, preserving experimental integrity during unscheduled outages.
• Dual-layer tempered glass observation window with silicone-sealed, adjustable-tension door mechanism—ensures long-term vacuum integrity at ≤133 Pa while enabling real-time visual monitoring.
• Optimized chamber geometry (415 × 370 × 345 mm internal volume) maximizes usable space-to-footprint ratio; aluminum shelving—formed via precision stamping—exhibits high thermal conductivity and oxidation resistance up to 250°C.
• Front-panel LCD interface with intuitive menu navigation, multi-parameter display (setpoint, actual temperature, vacuum status, elapsed time), and programmable hold segments for multi-stage drying protocols.

Sample Compatibility & Compliance

The DZF-6050 accommodates a broad spectrum of sample formats—including Petri dishes, weighing boats, glass desiccators, quartz crucibles, and custom stainless-steel trays—without compromising vacuum integrity or thermal homogeneity. Its inert-chamber environment supports nitrogen or argon purging via optional inlet valve (accessory), fulfilling requirements for moisture-sensitive lithium battery electrode drying (per IEEE 1625), residual solvent analysis (USP ), and pre-weighing conditioning of reference materials (ISO/IEC 17025). The unit meets CE safety directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive) and conforms to IEC 61010-1 for laboratory electrical equipment. Vacuum performance is validated per ISO 2859-1 sampling plans using calibrated Pirani gauges.

Software & Data Management

While the base configuration features standalone microcontroller operation, optional RS485 communication port enables integration with centralized lab management systems (LIMS) or SCADA platforms. When paired with the optional multi-segment programmable controller, users can define up to 32 step sequences—including ramp rates, dwell times, and vacuum hold points—with timestamped event logging. Audit-trail functionality (via external data logger) satisfies FDA 21 CFR Part 11 requirements for electronic records in regulated environments. All temperature and vacuum data are exportable as CSV files for traceability and statistical process control (SPC) analysis.

Applications

• Pharmaceutical: Residual solvent removal from lyophilized intermediates; thermal aging studies of excipients under inert atmosphere.
• Materials Science: Outgassing of metal-organic frameworks (MOFs); pre-sintering conditioning of nanoceramic powders.
• Environmental Testing: Gravimetric moisture determination in soil/sediment per EPA Method 5035A; preparation of certified reference materials (CRMs).
• Electronics: Degassing of encapsulation resins prior to curing; moisture bake-out of PCB assemblies before conformal coating.
• Academic Research: Controlled dehydration of hydrogels; low-temperature polymer crosslinking without side-chain scission.

FAQ

What vacuum level is achievable with the standard configuration?
The DZF-6050 achieves a base pressure of ≤133 Pa (1 Torr) using its integrated sealing system; optimal performance requires connection to an external vacuum pump (e.g., 2 L/s or 4 L/s rotary vane pump, sold separately).
Is the chamber accessible during operation?
No—chamber access is restricted while under vacuum. The door interlock system disables heating and triggers audible alarm if opened prematurely, preventing thermal shock and vacuum collapse.
Can temperature and vacuum be logged simultaneously?
Yes—when equipped with the optional programmable controller and external data acquisition module, synchronized time-stamped logging of both parameters is supported.
Does the unit support inert gas purging?
Yes—optional inert gas inlet valve and flowmeter (sold separately) allow continuous or pulsed nitrogen/argon introduction to maintain positive overpressure or displace residual oxygen during cooling cycles.
What maintenance is required for long-term vacuum integrity?
Routine inspection of the silicone door gasket for compression set or cracking is recommended every 6 months; replacement gaskets are available as consumable parts (P/N: DZF-GSK-6050).
