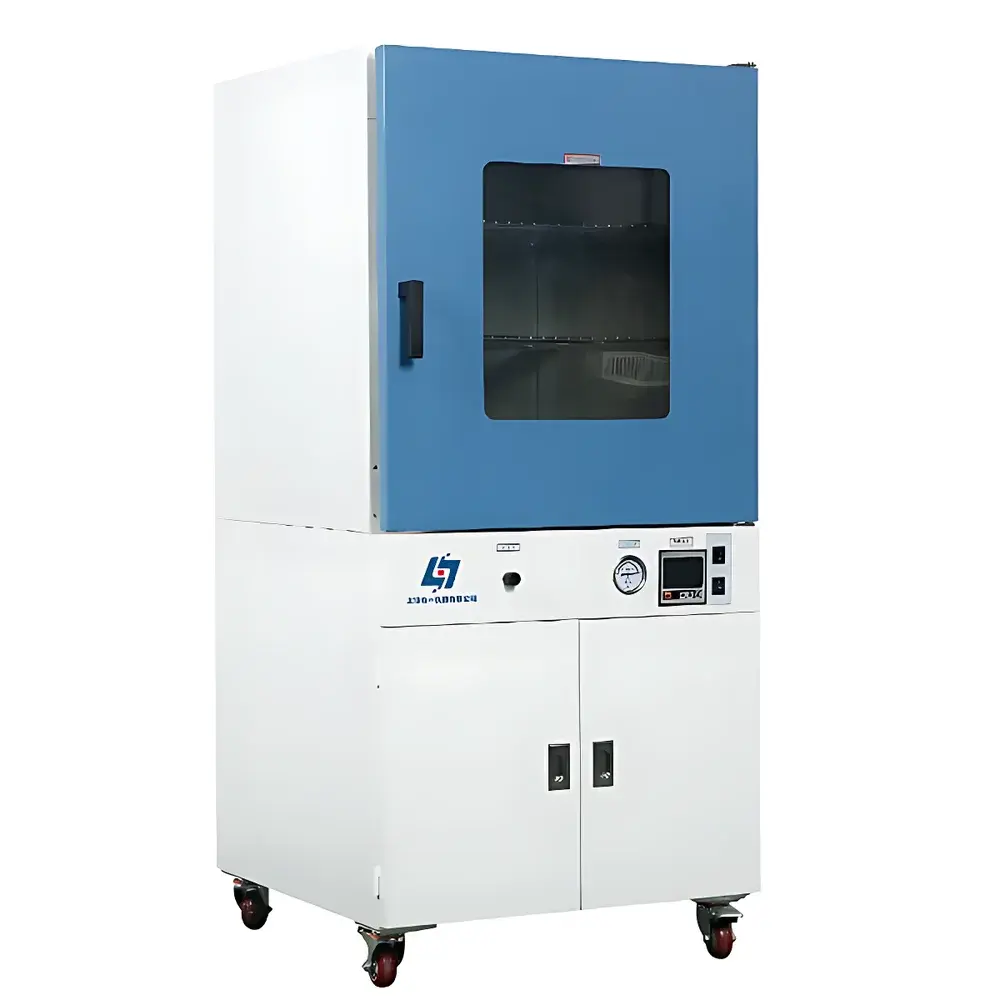

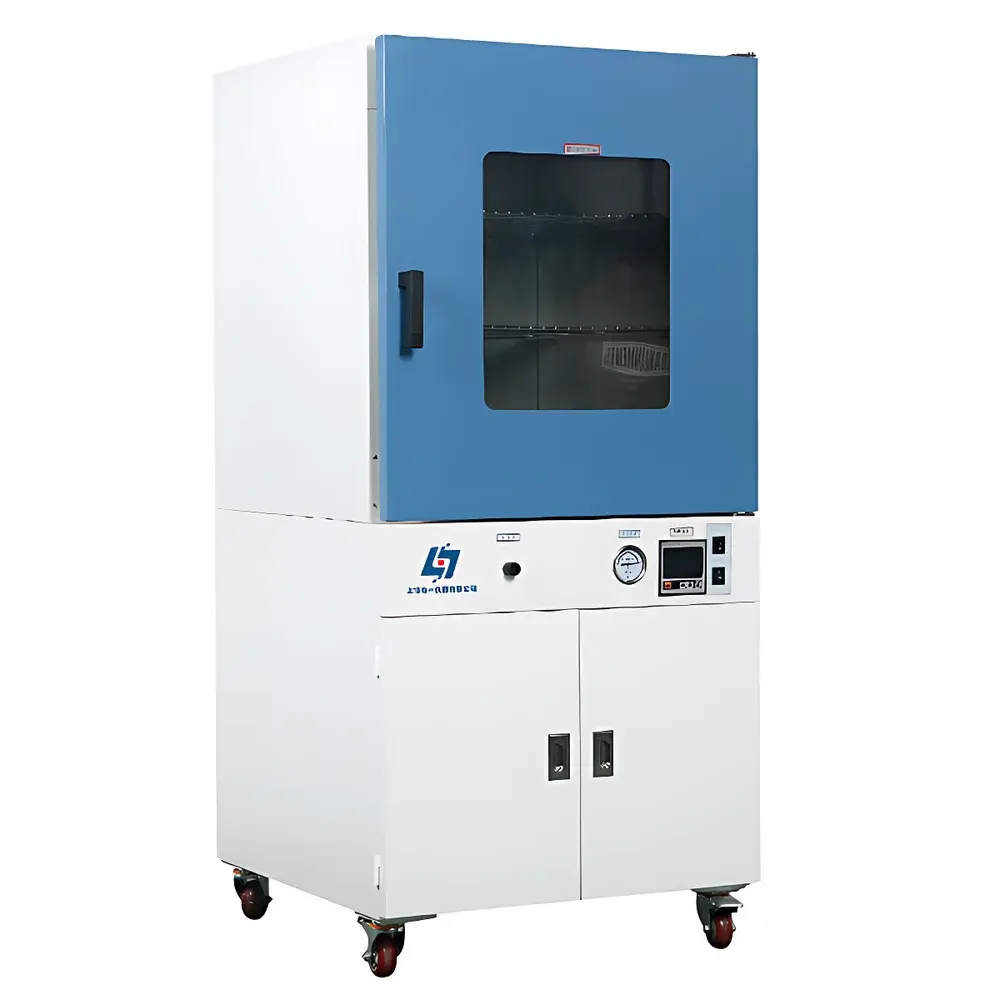

Yoyilab DZF-6090 Vertical Vacuum Drying Oven

Overview

The Yoyilab DZF-6090 Vertical Vacuum Drying Oven is an engineered solution for precise, oxygen-free thermal processing of heat-sensitive, oxidation-prone, or compositionally complex samples. Operating on the principle of reduced-pressure drying—where lowering ambient pressure decreases the boiling point of solvents and moisture—the DZF-6090 enables efficient dehydration, solvent removal, sterilization, and thermal stabilization without thermal degradation. Its vertical configuration maximizes floor-space efficiency while delivering a usable internal volume of 91.1 L (450 × 450 × 450 mm). Designed for laboratories requiring reproducible, low-oxygen environments—such as pharmaceutical QC labs, polymer R&D facilities, and academic materials science departments—the oven supports both vacuum-only and inert-gas-purged operation (e.g., N₂ or Ar), ensuring sample integrity during extended thermal cycles.

Key Features

• Robust 304 stainless steel interior chamber with seamless welds and electropolished finish for corrosion resistance, ease of cleaning, and long-term vacuum integrity.
• Microprocessor-based PID temperature controller with 0.1°C resolution and ±1°C uniformity across the working zone; automatic power recovery after interruption preserves set parameters and runtime.
• Double-layer tempered glass observation door with silicone gasket seal, rated for continuous operation under ≤133 Pa vacuum; optional inert gas inlet port (with integrated flow control valve) enables controlled atmosphere maintenance.
• Two high-conductivity aluminum shelving plates—formed via precision stamping and anodized for thermal stability—ensure rapid, uniform heat transfer and eliminate oxidation even at 250°C.

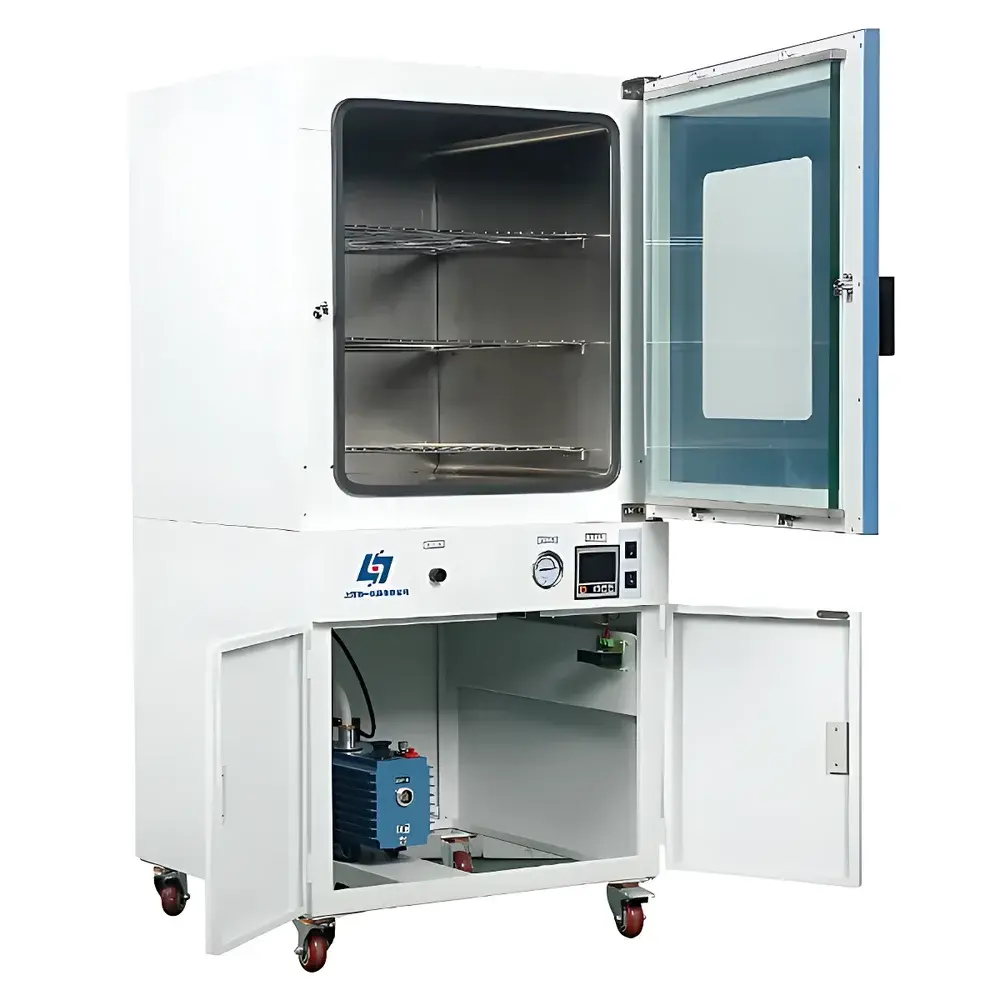

• Front-access vacuum connection point compatible with standard two-stage rotary vane pumps (2 L/s or 4 L/s); integrated analog vacuum gauge provides real-time pressure monitoring without reliance on digital interfaces.
• Ergonomic vertical architecture with reinforced cold-rolled steel exterior housing and electrostatic powder coating; adjustable door tension mechanism ensures repeatable sealing performance over thousands of cycles.

Sample Compatibility & Compliance

The DZF-6090 accommodates a broad spectrum of sample formats: powdered APIs, lyophilized biologicals, ceramic precursors, thin-film substrates, desiccated reference standards, and sterilized glassware. Its absence of convective airflow eliminates particle displacement and cross-contamination risks—critical for ISO 14644-1 Class 5–7 cleanroom-adjacent workflows. The system complies with core design and safety references including IEC 61010-1 (Electrical Safety for Laboratory Equipment), GB/T 5170.11–2017 (Environmental Testing—Vacuum Test Methods), and supports GLP/GMP documentation requirements through traceable temperature logging (when paired with external data loggers). While not FDA 21 CFR Part 11–validated out-of-the-box, its deterministic control logic and parameter retention capability align with audit-ready operational practices.

Software & Data Management

The DZF-6090 operates via an embedded microcontroller interface with a backlit LCD display showing real-time temperature, setpoint, elapsed time, and vacuum status—all visible in a single view. Menu-driven navigation permits intuitive adjustment of timer duration (1–9999 minutes), temperature ramp rates (via optional multi-segment programming module), and alarm thresholds. Although the base unit lacks Ethernet or USB connectivity, it supports integration with third-party data acquisition systems via 4–20 mA or 0–10 V analog outputs (available upon request). For regulated environments, users may deploy external compliant loggers (e.g., Omega OM-DAQPRO-5300) to generate CSV-formatted audit trails meeting ALCOA+ principles.

Applications

• Pharmaceutical: Residual solvent removal from active pharmaceutical ingredients (APIs) per ICH Q5C guidelines; pre-sterilization conditioning of vials and stoppers.
• Materials Science: Outgassing of composites prior to SEM/TEM analysis; moisture elimination from MOF frameworks and battery electrode slurries.
• Academic Research: Thermal gravimetric pre-treatment of catalysts; dehydration of hydrogels and biopolymers without chain scission.
• Quality Control Labs: Standardized drying of filter papers, crucibles, and volumetric glassware in accordance with ASTM E1228–18 (Standard Practice for Vacuum Drying of Laboratory Glassware).
• Environmental Testing: Conditioning of soil and sediment samples prior to heavy metal extraction (EPA Method 3050B).

FAQ

What vacuum level can the DZF-6090 achieve, and which pump is recommended?
The chamber reliably reaches ≤133 Pa using a standard 2 L/s two-stage rotary vane pump. For faster evacuation or lower ultimate pressure (<50 Pa), a 4 L/s pump is advised.
Can the oven operate under nitrogen purge while maintaining vacuum?
Yes—the optional inert gas inlet allows continuous low-flow N₂ introduction to displace residual O₂, enabling quasi-atmospheric purging or dynamic vacuum-purge cycling.
Is the temperature uniformity verified across the full chamber volume?
Uniformity of ±1°C is specified at the center of the working zone per GB/T 5170.11 test protocol; users performing critical applications should conduct in-house mapping per ISO/IEC 17025 requirements.
Are calibration certificates available for temperature and vacuum sensors?
Factory calibration reports are provided; NIST-traceable third-party certification (temperature only) can be arranged at additional cost.
Does the DZF-6090 support programmable ramp-soak profiles?
The base controller supports single-setpoint operation; multi-segment programming requires the optional Yoyilab TC-8000 module, enabling up to 30 steps with independent rate/time settings.
