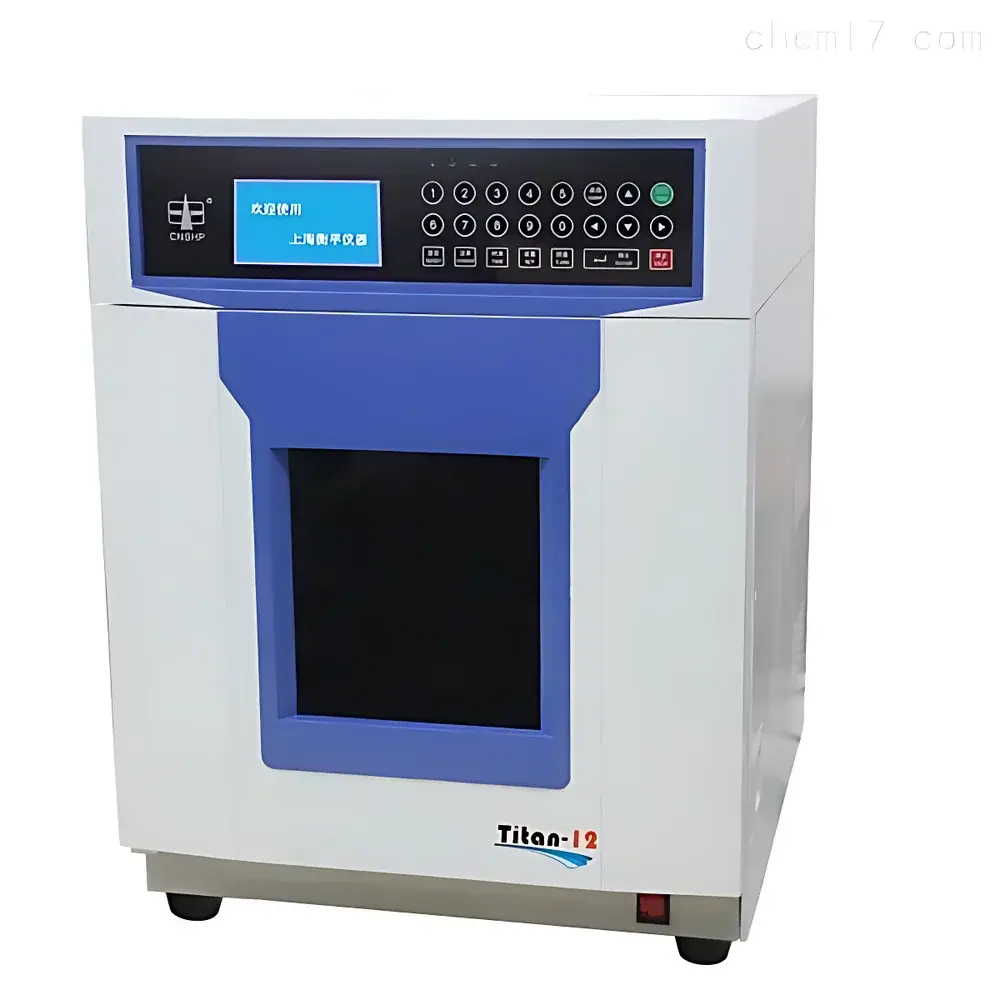

yoyilab TITAN10 Industrial-Grade Single-Magnetron Microwave Digestion System

Overview

The yoyilab TITAN10 Industrial-Grade Single-Magnetron Microwave Digestion System is a high-throughput, fully sealed microwave-assisted sample preparation platform engineered for rigorous analytical laboratories requiring reproducible, trace-level elemental analysis. Operating at 2450 MHz with a rated output of 1800 W, the system utilizes controlled microwave energy to rapidly and uniformly decompose organic matrices in closed-vessel configurations—enabling complete acid digestion of complex samples including soils, biological tissues, polymers, foodstuffs, and environmental solids. Its design adheres to fundamental principles of microwave dielectric heating, where polar molecules (e.g., HNO₃, HCl, HF) absorb electromagnetic energy and convert it into thermal motion, accelerating oxidative decomposition under elevated temperature and pressure. The TITAN10 is purpose-built for applications demanding compliance with EPA Method 3051A/3052, ASTM D5511, ISO 11466, and USP , serving as the critical first step in ICP-OES, ICP-MS, AAS, and HG-AFS workflows.

Key Features

• Industrial-grade 316L stainless steel cavity with eight-layer PFA (perfluoroalkoxy) coating—resistant to aggressive acid vapors (HF, aqua regia) and radiation-induced corrosion.

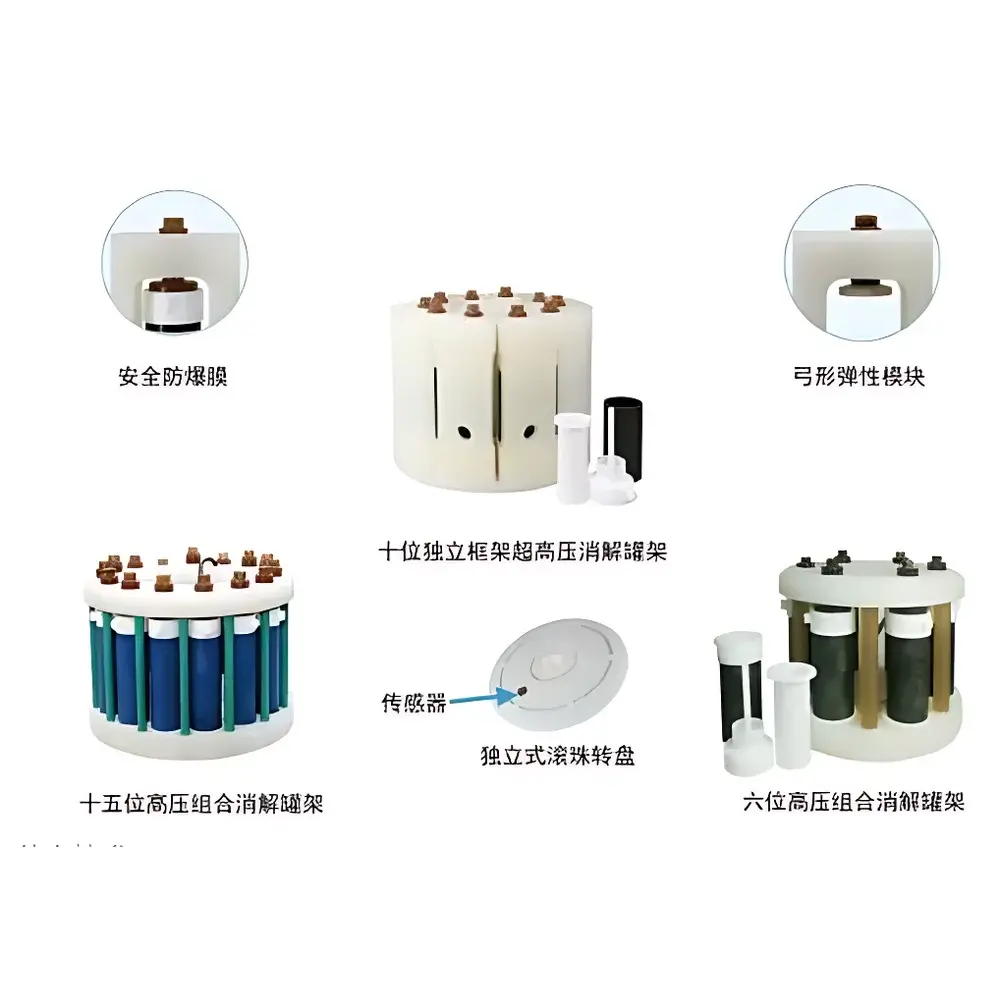

• Patented dual-safety pressure management: bow-shaped elastic pressure module + burst-disk safety membrane—providing quantitative overpressure release up to 20 MPa with automatic shutdown.
• Self-ejecting buffer door mechanism: engineered to displace laterally under uncontrolled pressure rise, venting gases safely without compromising structural integrity.
• Aerospace-grade composite outer vessels: fully encapsulated carbon-fiber-reinforced polymer with PFA spray coating—rated for 85 MPa (12,500 psi), eliminating fiber delamination and acid permeation issues common in open-top PEEK designs.
• Non-contact piezoelectric pressure sensing and high-precision Pt1000 temperature monitoring (–40 °C to 500 °C; ±0.1 °C control accuracy; ±0.1 MPa pressure resolution).
• Unidirectional rotor rotation with real-time status LED feedback—eliminating stop-start thermal gradients and reducing mechanical wear on drive components.
• Integrated PID-controlled power modulation: adaptive frequency-tuned non-pulsed microwave delivery ensures stable energy coupling and optimal energy efficiency.

Sample Compatibility & Compliance

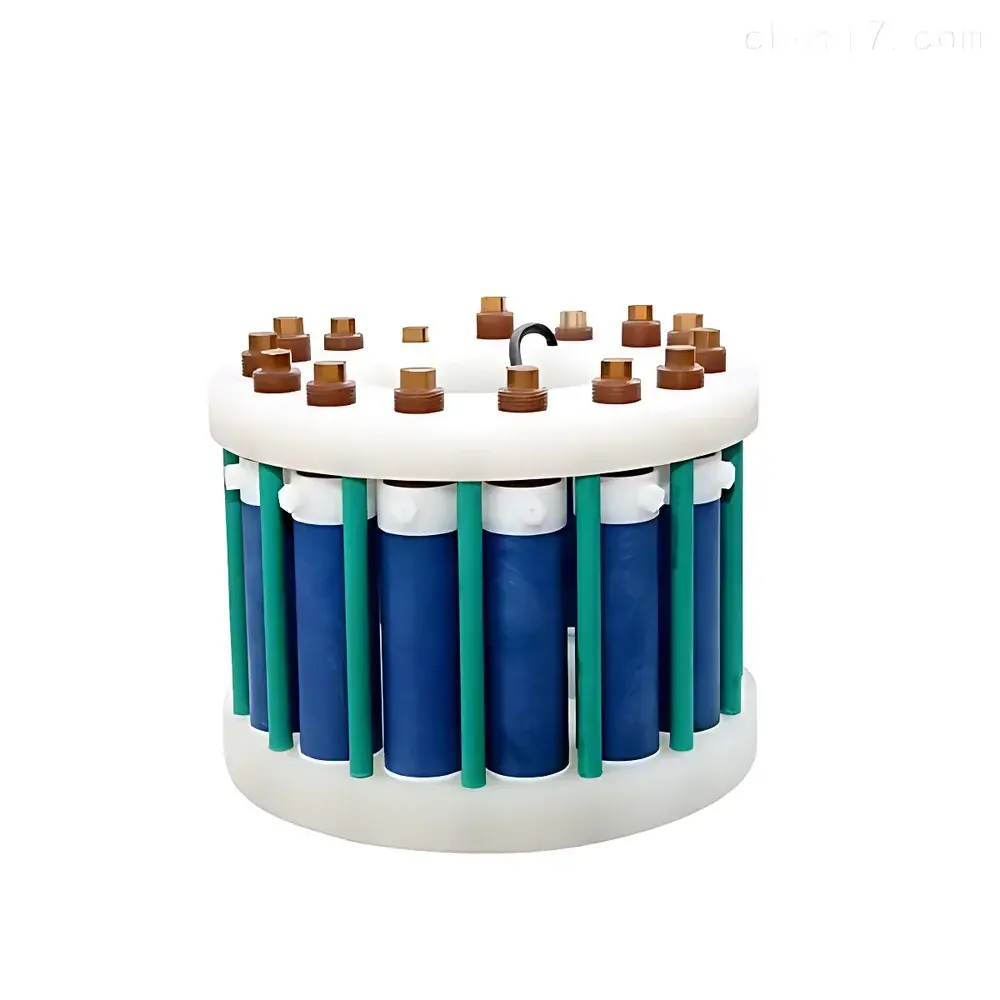

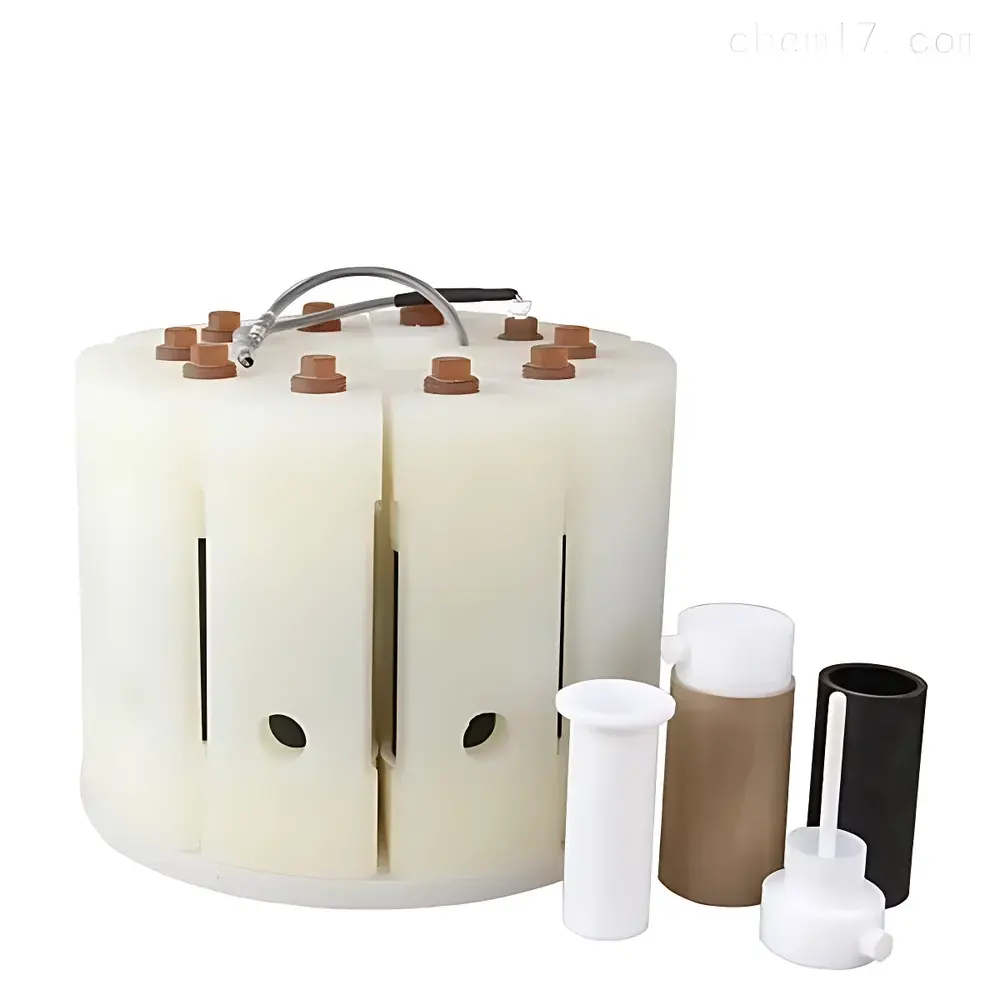

The TITAN10 accommodates standardized 55 mL or 100 mL high-pressure quartz or TF-PTFE inner vessels across its 10-position rotor, supporting both single-vessel and multi-sample batch protocols. Vessels are compatible with nitric, hydrochloric, hydrofluoric, perchloric, and hydrogen peroxide-based chemistries. All hardware and firmware comply with IEC 61000-6-3 (EMC), IEC 61010-1 (safety), and EN 62471 (photobiological safety). The system supports audit-ready operation under GLP/GMP environments via optional electronic logbook functionality and configurable user access levels. Pressure and temperature profiles are recorded at 1-second intervals, enabling full traceability for regulatory submissions (FDA 21 CFR Part 11 compliant when paired with validated software).

Software & Data Management

The embedded control interface features a capacitive touch panel with intuitive icon-driven navigation and multilingual support (English, Spanish, German, Chinese). Real-time graphical displays show simultaneous temperature, pressure, and microwave power curves during run execution. All method parameters—including ramp time, hold temperature/pressure setpoints, and cooling delay—are programmable and storable in encrypted user-defined methods. Raw data exports to CSV or XML formats include timestamps, sensor diagnostics, and alarm event logs. Optional PC-based software enables remote monitoring, method synchronization across multiple TITAN units, and integration with LIMS via TCP/IP or RS-232. Firmware updates are performed via USB or network connection with digital signature verification.

Applications

The TITAN10 is routinely deployed in environmental testing labs for heavy metal extraction from sediments and sludges (EPA 6010D, 6020B); clinical and pharmaceutical QA/QC for residual catalyst analysis in APIs; geochemical exploration labs digesting silicate-rich rock powders; and food safety laboratories quantifying As, Cd, Pb, and Hg in infant formula and seafood per EU Commission Regulation (EU) No 1881/2006. Its robust construction and consistent thermal homogeneity make it suitable for validation studies requiring ≤5% RSD in replicate digestions (n=10) across heterogeneous sample types. Paired with the MTC-II electric hotblock digester, the platform supports hybrid workflows—e.g., pre-digestion of high-fat or solvent-laden samples prior to microwave treatment.

FAQ

What safety certifications does the TITAN10 hold?

The system conforms to IEC 61010-1 (Ed. 3.1) for laboratory equipment safety and IEC 61000-6-3 for electromagnetic compatibility. Full test reports are available upon request.
Can the TITAN10 be integrated into an automated sample prep line?

Yes—via optional digital I/O ports and Modbus TCP protocol support, enabling synchronization with robotic autosamplers and downstream instrumentation.
Is HF acid digestion supported?

Yes. All wetted components—including inner vessels, sealing gaskets, and outer composite sleeves—are chemically resistant to concentrated hydrofluoric acid under specified temperature/pressure limits.
What maintenance is required for long-term reliability?

Annual calibration of temperature and pressure sensors is recommended. The magnetron carries a 3-year limited warranty; cavity PFA coating inspection is advised every 2,000 operating hours.
Does the system support method transfer from other microwave platforms?

Predefined method templates for CEM, Milestone, and Anton Paar instruments are included, with adjustable ramp/hold parameters to accommodate kinetic differences in cavity field distribution.
