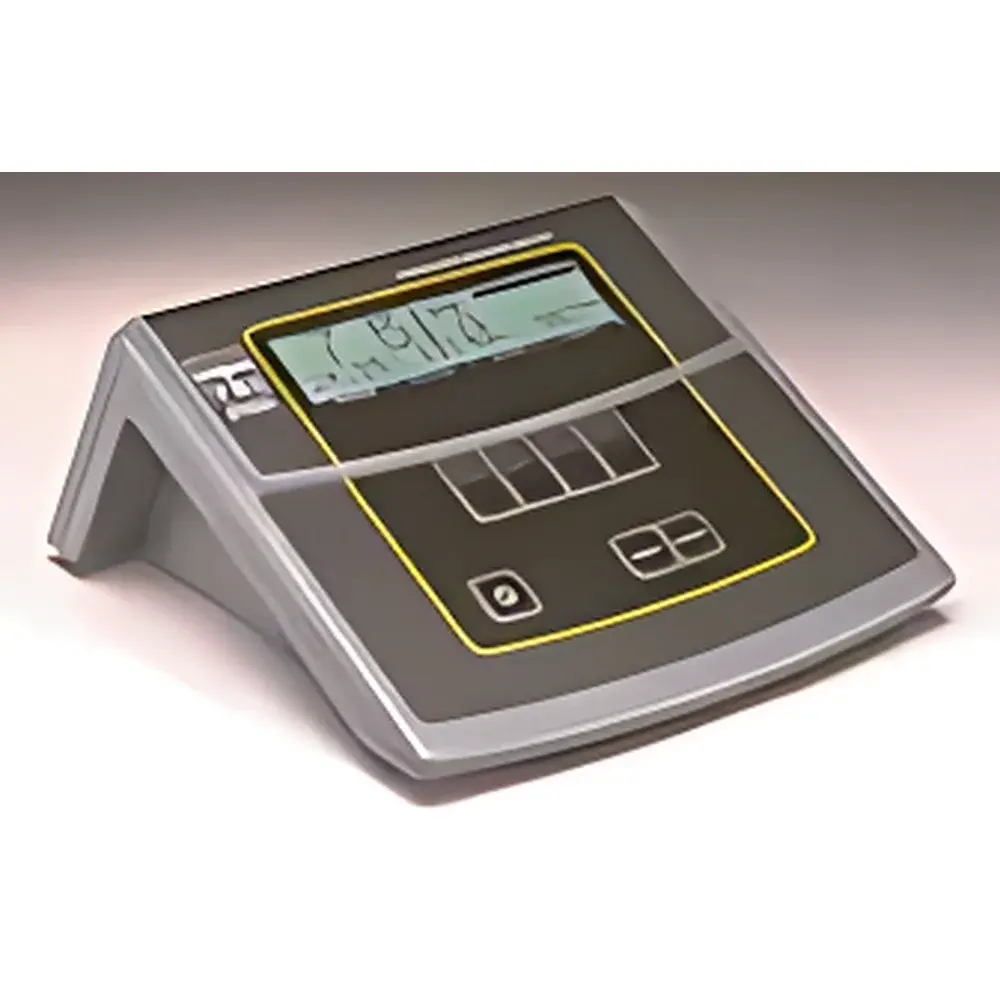

YSI 5000 Series Laboratory Dissolved Oxygen Analyzer

Overview

The YSI 5000 Series Laboratory Dissolved Oxygen Analyzer is a microprocessor-controlled, high-precision electrochemical measurement system engineered for regulatory-grade water quality analysis in environmental, wastewater, and research laboratories. It employs Clark-type polarographic sensor technology—comprising a gold cathode, silver/silver chloride anode, and oxygen-permeable membrane—to deliver stable, trace-level dissolved oxygen (DO) quantification across broad concentration and temperature ranges. The instrument operates on the principle of limiting current amperometry: molecular oxygen diffuses through the membrane and is reduced at the cathode surface, generating a current linearly proportional to DO concentration. This architecture ensures high reproducibility, minimal drift, and compliance with core method standards including ASTM D888, ISO 5814, and US EPA Method 4500-O_G. Designed for GLP/GMP-aligned workflows, the YSI 5000 supports full audit trails when integrated with laboratory information management systems (LIMS) via its RS-232 interface.

Key Features

• Large backlit LCD display with adjustable font size and contrast for optimal readability under varied lab lighting conditions
• Intuitive menu-driven interface with context-sensitive soft keys—function labels dynamically update on-screen to guide operators through calibration, measurement, and data review
• Instrument-powered probe architecture eliminates need for separate power supplies or additional cabling, reducing bench clutter and electrical interference risks
• Auto-stability detection with user-configurable stability criteria (e.g., ±0.02 mg/L over 10 seconds); automatic readout triggered upon meeting preset thresholds
• Integrated real-time clock with date/time stamping for all stored measurements—critical for BOD incubation tracking and regulatory reporting
• Onboard memory stores up to 100 fully timestamped datasets, including DO (mg/L and % saturation), temperature, salinity, and atmospheric pressure (YSI 5100)
• Tactile keyboard feedback and audible confirmation tones minimize input errors during high-throughput sample processing
• Firmware-upgradable architecture enables field-based software updates—ensuring long-term compatibility with evolving analytical protocols without hardware replacement
• Membrane integrity monitoring alerts users immediately upon detected membrane breach or electrolyte depletion, preventing invalid measurements

Sample Compatibility & Compliance

The YSI 5000 Series is validated for use with all YSI Clark-type DO probes, including the self-stirring YSI 5010 BOD probe—eliminating need for mechanical stirrers and ensuring consistent mass transfer during biochemical oxygen demand (BOD) assays. Its extended range (0–60 mg/L DO; 0–600% air saturation) accommodates hyperoxic conditions encountered in ozonation studies, algal bloom monitoring, and high-salinity estuarine samples (compensated up to 40 ppt). Temperature compensation follows the Winkler-derived polynomial algorithm per ISO 5814, while barometric pressure correction (YSI 5100 only) applies real-time altitude-adjusted compensation per US EPA Method 503—removing manual correction steps and associated transcription errors. All instruments ship with NIST-traceable calibration certificates and meet CE, RoHS, and FCC Part 15 requirements. For regulated environments, the system supports 21 CFR Part 11-compliant electronic signatures when paired with validated YSI BOD Analysis Software (v5.1+).

Software & Data Management

Data export occurs via standard RS-232 serial protocol to Windows-based PCs running YSI BOD Analysis Software—a validated application enabling automated BOD₅, BOD_u, oxygen uptake rate (OUR), and specific oxygen uptake rate (SOUR) calculations per APHA Standard Methods 5210D and US EPA Method 503. The software enforces structured data entry, generates PDF reports with embedded metadata (operator ID, instrument serial number, calibration history), and maintains immutable audit logs for all edits. When connected to LIMS or ELN platforms, raw ASCII data streams include header tags for unambiguous parsing (e.g., “#DATE=2024-06-15”, “#TIME=14:22:07”, “#DO_MG_L=8.42”). No proprietary drivers are required—standard Windows COM port configuration suffices.

Applications

• Regulatory BOD₅ testing in municipal and industrial wastewater treatment plants
• Activated sludge respirometry: determination of OUR and SOUR for process optimization and toxicity screening
• Environmental monitoring of rivers, lakes, and coastal zones—including hypoxia/anoxia event assessment
• Research-scale bioreactor DO profiling and aeration control validation
• EPA Method 503-compliant aerobic biodegradability studies
• Method validation and instrument qualification per ISO/IEC 17025

FAQ

Does the YSI 5000 support automatic temperature compensation?
Yes—temperature is measured in real time by an integrated thermistor within the probe; compensation follows ISO 5814 algorithms and is applied automatically to all DO readings.
Can the YSI 5000 perform BOD calculations without external software?
No—BOD computation requires YSI BOD Analysis Software installed on a host PC; however, the instrument stores all necessary time-series DO and temperature data for offline processing.
What is the difference between YSI 5000 and YSI 5100 models?
The YSI 5100 adds built-in EPA Method 503-compliant OUR/SOUR calculation routines, an integrated barometer for automatic pressure compensation, auto-calibration capability, and barcode scanner support—features not present in the base YSI 5000.
Is salinity compensation mandatory for freshwater samples?
No—it is optional and disabled by default; activation is recommended only when analyzing brackish or marine samples above 0.5 ppt.
How often must the DO membrane be replaced?
YSI recommends membrane replacement every 2–4 weeks under continuous use, or immediately following exposure to oils, solvents, or particulate-laden samples—verified via membrane integrity test in the instrument’s diagnostic mode.
