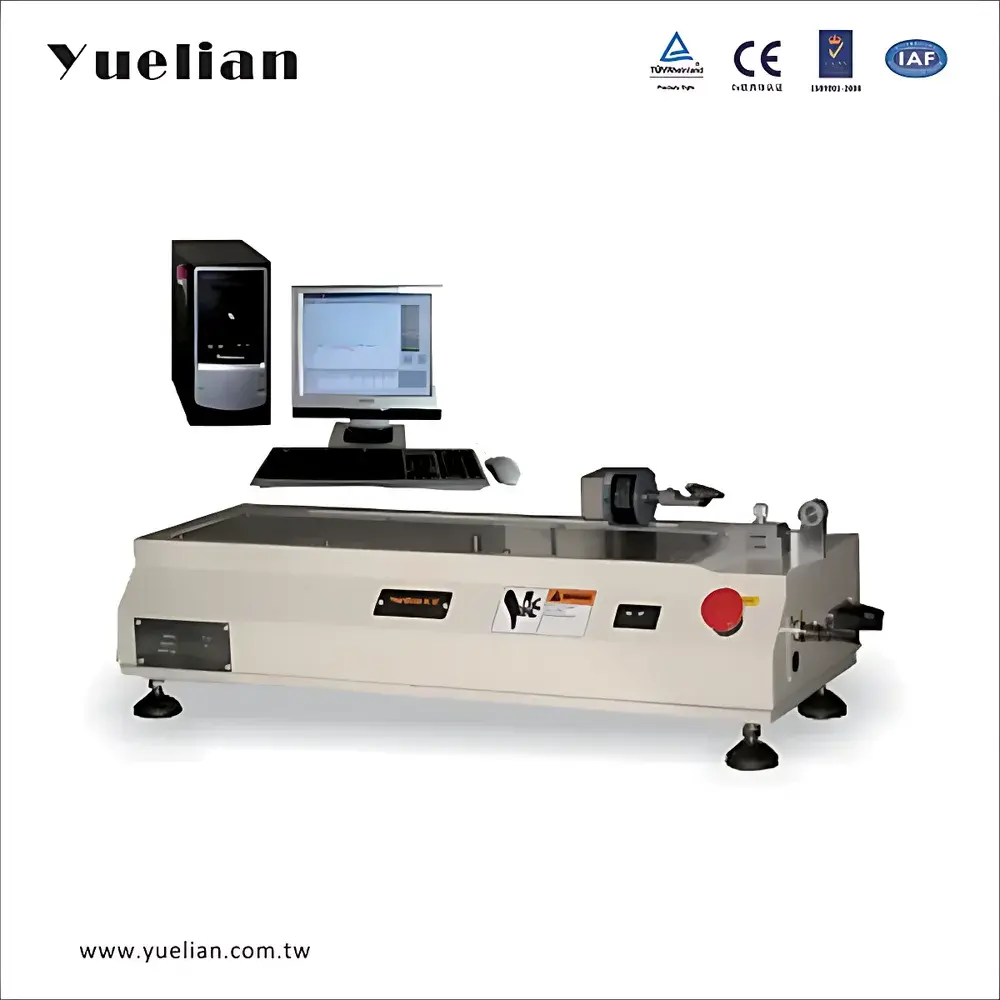

Yuelian YL-1103S Foam Tape Adhesion Tester

Overview

The Yuelian YL-1103S Foam Tape Adhesion Tester is a microprocessor-controlled tensile and peel testing system engineered for precise quantification of adhesive performance in pressure-sensitive foam tapes, double-coated tapes, and related flexible laminates. It operates on the principle of controlled uniaxial force application under standardized peeling geometry—typically 90° or 180° peel configurations per ASTM D3330, ASTM D6252, and ISO 8510-2—enabling reproducible measurement of interfacial bond strength between foam substrates and backing materials. Designed for QC laboratories in adhesive manufacturing, packaging R&D, and electronics assembly facilities, the instrument delivers traceable mechanical data critical for material qualification, batch release, and process validation. Its architecture integrates high-resolution load cell feedback, closed-loop speed control, and real-time displacement monitoring to ensure compliance with GLP and internal quality system requirements.

Key Features

• Programmable test speed from 5 to 500 mm/min with stepless adjustment via PC interface, supporting both static and dynamic peel rate protocols.
• Dual-capacity load cell configuration option (e.g., 10 N / 200 N) enables high-sensitivity measurement of low-force foam tape debonding while retaining capability for higher-strength laminates.
• Automatic return-to-start function after test completion minimizes operator intervention and improves throughput in high-volume testing environments.
• Integrated emergency stop, overload cutoff, specimen break detection, and programmable upper/lower travel limits ensure operational safety and data integrity.
• Precision ball screw and timing belt drive system provides smooth motion profile, minimal backlash, and long-term repeatability across extended duty cycles.
• Force resolution of 1 part in 250,000 and accuracy better than ±0.5% FS meet minimum metrological requirements for ISO/IEC 17025-accredited testing laboratories.

Sample Compatibility & Compliance

The YL-1103S accommodates standard peel specimens up to 140 mm wide and 500 mm travel length, compatible with ASTM D3330 Type I (roller-applied) and Type II (hand-applied) foam tape samples. It supports common substrate combinations including polyethylene foam on PET film, acrylic foam on aluminum foil, and silicone-coated release liners. Fixture mounting is standardized for interchangeable peel angle adapters (90°, 180°), and optional custom grips are available for non-planar or edge-lift configurations. The system complies with mechanical testing prerequisites outlined in ISO 11339 (adhesive tape testing), GB/T 7122 (Chinese national standard for high-strength adhesive tapes), and supports audit-ready documentation for FDA-regulated medical device packaging validation where peel force consistency is a critical process parameter.

Software & Data Management

The included Windows-based control and analysis software communicates via USB interface to acquire, visualize, and archive force-displacement curves in real time. It calculates and exports standardized metrics—including average peel force, peak force, energy to peel (area under curve), and coefficient of variation—directly into MS Access databases for trend analysis and SPC reporting. All test parameters, operator ID, timestamp, environmental notes, and raw waveform data are embedded in each exported record. Audit trail functionality logs user actions, method changes, and calibration events, satisfying documentation requirements under 21 CFR Part 11 when configured with electronic signature and access controls. Export formats include CSV, PDF reports, and image files (PNG/JPEG) suitable for inclusion in regulatory submissions or internal technical dossiers.

Applications

• Quantifying peel adhesion of ethylene-vinyl acetate (EVA) and polyurethane (PU) foam tapes used in automotive interior bonding.
• Evaluating aging effects on acrylic foam tape performance after thermal cycling (e.g., 70°C/95% RH for 1000 h) per ASTM D1876.
• Comparing surface energy modification efficacy on low-surface-energy substrates (e.g., PP, PE) prior to foam tape lamination.
• Validating consistency of release liner removal forces in medical-grade double-coated tapes intended for wound care products.
• Supporting root cause analysis of delamination failures in flexible printed circuit board (FPCB) shielding applications.

FAQ

What peel angles does the YL-1103S support?

The system is mechanically configured for 90° and 180° peel tests; fixtures for alternate angles (e.g., T-peel, loop tack) are available as optional accessories.

Is calibration certification included with shipment?

A factory calibration report traceable to NIM (National Institute of Metrology, China) is provided; ISO/IEC 17025-accredited third-party calibration is available upon request.

Can the software generate GMP-compliant test records?

Yes—when deployed with role-based login, electronic signatures, and audit trail enabled, the software meets core ALCOA+ data integrity principles for regulated environments.

What maintenance is required for long-term accuracy?

Annual verification of load cell linearity and travel encoder accuracy is recommended; routine cleaning of the ball screw and lubrication per manufacturer guidelines ensures mechanical stability.

Does the system support multi-language UI?

The default interface is English; localized versions (German, Japanese, Korean) can be deployed via firmware update upon order specification.
