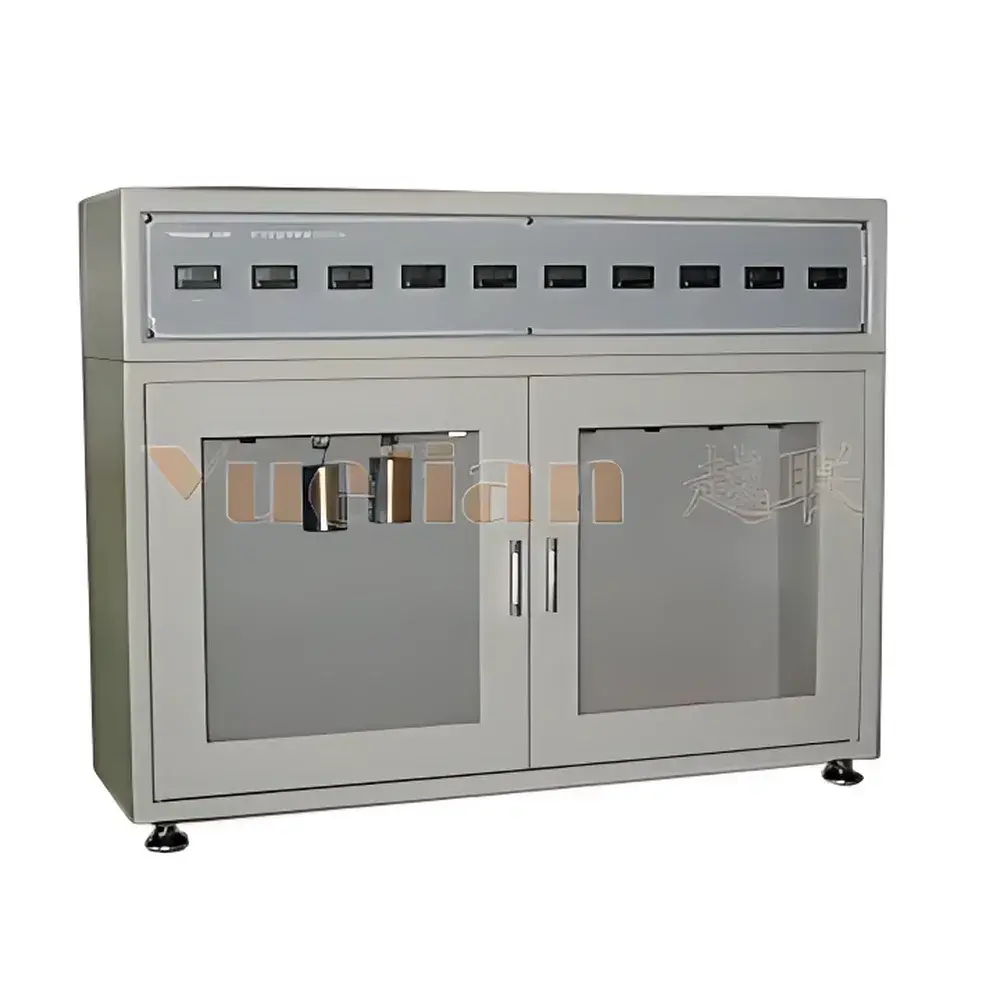

Yuelian YL-8806C 30-Station Tape Retentivity Tester

Overview

The Yuelian YL-8806C 30-Station Tape Retentivity Tester is a precision-engineered instrument designed for standardized evaluation of pressure-sensitive adhesive (PSA) tape performance under static load conditions. It operates on the principle of gravitational shear stress application: a defined mass (1 kg per station) is suspended vertically from a test specimen—adhered to a standardized SUS#304 stainless steel substrate—while elapsed time until complete debonding is recorded. This method quantifies the intrinsic cohesive strength and interfacial adhesion stability of tapes at ambient temperature (23 ± 2 °C, 50 ± 5% RH unless otherwise specified), directly supporting quality control protocols in manufacturing, R&D, and regulatory validation workflows.

Key Features

• Thirty independent test stations enable parallel evaluation of multiple samples or replicate measurements under identical environmental conditions—significantly improving statistical robustness and throughput efficiency.
• Each station integrates a dedicated, self-contained timer with sexagesimal LCD display (0 s to 999 h 59 m 59 s), eliminating cross-station interference and ensuring data integrity across long-duration tests.
• Imported high-reliability timer modules operate autonomously on internal batteries—no external AC power supply required—ensuring uninterrupted operation during extended testing cycles (typical service life: ≥7 years).
• SUS#304 stainless steel test plates (30 pcs) meet surface finish and corrosion resistance requirements specified in GB/T 2792 and PSTC-7, minimizing variability from substrate degradation or contamination.
• Structural frame constructed from rigid steel with optimized weight distribution (110 kg total mass) ensures mechanical stability during loading, reducing vibration-induced premature failure artifacts.
• Ergonomic footprint (135 × 35 × 66 cm) facilitates integration into standard laboratory benchtop environments without requiring dedicated floor space or anchoring.

Sample Compatibility & Compliance

The YL-8806C accommodates standard PSA tape specimens (typically 25 mm wide × 100 mm long) applied to conditioned SUS#304 plates following strict surface preparation protocols (e.g., solvent cleaning, lint-free wiping). It supports all common backing materials—including polypropylene, PVC, PET, paper, and foam—and is compatible with acrylic, rubber, silicone, and hybrid adhesive chemistries. The instrument fully conforms to internationally recognized test methodologies: GB/T 2792 (Peel Adhesion), GB/T 4851 (Tape Holding Power), PSTC-7 (Pressure Sensitive Tape Council Standard), and CNS 11888 (Chinese National Standard). While not inherently compliant with ISO 29862 or ASTM D3654 (which require environmental chamber integration), its mechanical architecture permits seamless retrofitting for temperature/humidity-controlled variants in GMP-aligned facilities.

Software & Data Management

The YL-8806C operates as a standalone hardware platform with no embedded microprocessor or digital interface. All timing data are manually recorded from individual LCD displays—a design choice aligned with GLP/GMP environments where audit trails must be human-readable, non-editable, and traceable to physical observation. For laboratories requiring electronic data capture, optional external USB loggers or industrial-grade time-lapse cameras can be deployed in conjunction with validated SOPs. When integrated into regulated quality systems, raw timer readouts serve as primary source data; subsequent transcription into LIMS or ELN platforms must follow documented change-control procedures consistent with FDA 21 CFR Part 11 requirements for electronic records.

Applications

• Quality assurance of production batches in adhesive tape manufacturing (e.g., masking tape, double-sided tape, medical transdermal tape).
• Comparative assessment of adhesive formulation changes—such as monomer ratios, crosslinker concentration, or tackifier selection—during R&D screening.
• Stability studies evaluating shelf-life impact on adhesive performance under accelerated aging protocols.
• Supplier qualification and incoming material inspection against contractual retention time thresholds (e.g., ≥10,000 min at 23 °C).
• Root cause analysis of field failures related to adhesive creep, cold flow, or interfacial delamination.
• Supporting technical documentation for ISO 9001:2015 clause 8.5.1 (Control of production and service provision) and IATF 16949 section 8.5.1.5 (Process validation for special characteristics).

FAQ

What is the maximum test duration supported per station?
Each timer supports up to 999 hours, 59 minutes, and 59 seconds—sufficient for multi-day creep evaluations under ambient conditions.
Are replacement timers available separately?
Yes—original imported timer modules are supplied as field-replaceable units with full calibration documentation upon request.
Does the instrument include test plates and weights?
Yes—the system ships with 30 SUS#304 stainless steel plates and 30 calibrated 1 kg loads, all pre-verified for dimensional and mass tolerance compliance.
Can this tester be used for elevated temperature testing?
No—the base model lacks environmental conditioning; however, it may be installed inside certified thermal chambers provided plate alignment and load suspension geometry remain unaffected.
Is operator training included with purchase?
Comprehensive installation and operational training is provided remotely or on-site, covering standard method execution, timer calibration verification, and deviation reporting per ISO/IEC 17025 Annex A.3 guidelines.
