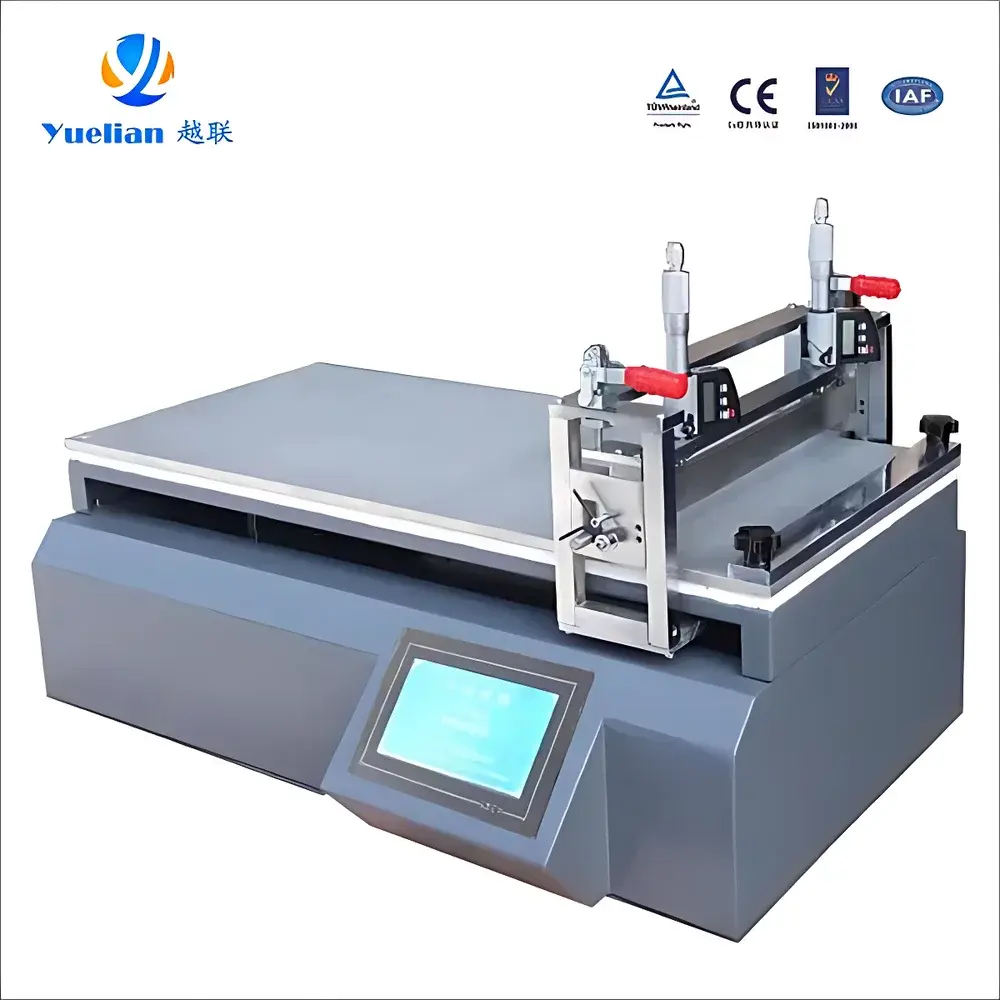

Yuelian YL-TB100 Heated Knife-Over-Substrate Coating Tester

Overview

The Yuelian YL-TB100 Heated Knife-Over-Substrate Coating Tester is an engineered laboratory-scale instrument designed for precise, reproducible wet-film deposition on flat substrates under controlled thermal and mechanical conditions. It operates on the principle of constrained fluid shear between a precision-ground tungsten carbide刮刀 (knife edge) and the substrate surface, where film thickness is governed by blade gap geometry, substrate speed, and rheological behavior of the coating formulation. Integrated PID-controlled heating enables active thermal management of both substrate and coating layer—critical for evaluating solvent evaporation kinetics, thermoset curing onset, or polymer melt viscosity transitions during deposition. Unlike manual drawdown methods, the YL-TB100 eliminates operator-dependent variability in pressure application and traverse velocity, delivering metrologically traceable wet-film profiles essential for R&D validation, formulation screening, and QC method development.

Key Features

• Thermally regulated coating platform with programmable temperature range from ambient to 160 °C, supporting studies of thermal curing, hot-melt adhesion, and temperature-sensitive dispersion stability.
• Digitally controlled linear drive system enabling precise, repeatable coating speeds from 0 to 10 m/min—fully adjustable via intuitive 5-inch PLC touchscreen interface.
• Interchangeable application modules: hardened tungsten carbide knife blade (quick-release, corrosion-resistant, easy-to-clean) and standardized wire-wound rods (e.g., Mayer rods), allowing method flexibility across low- to high-viscosity systems.
• High-accuracy gap adjustment mechanism calibrated to ±0.0025 mm wet-film thickness tolerance—validated against NIST-traceable profilometry standards.
• Rigid aluminum-alloy frame with vibration-damped base ensures mechanical stability during high-speed operation, minimizing edge bead formation and streaking artifacts.
• Compliance-ready architecture: supports audit trails, parameter locking, and user-level access control—facilitating alignment with GLP and internal SOP documentation requirements.

Sample Compatibility & Compliance

The YL-TB100 accommodates rigid and semi-rigid planar substrates up to 450 mm wide × 300 mm long, including paperboard, PET, PVC, aluminum sheet, stainless steel coupons, woven textiles, and coated composites. Its non-contact thermal design avoids substrate warping while enabling direct measurement of temperature-dependent coating rheology (e.g., viscosity drop during pre-drying). The system meets mechanical safety requirements per IEC 61000-6-2 (EMC immunity) and IEC 61000-6-4 (EMC emissions). While not certified to ISO/IEC 17025 as a standalone measuring instrument, its operational repeatability supports method validation per ASTM D823 (Standard Practice for Producing Films of Uniform Thickness of Paint, Varnish, and Related Products on Test Panels) and ISO 2808 (Paints and Varnishes — Determination of Film Thickness).

Software & Data Management

The embedded PLC-based controller logs all critical process parameters—including setpoint temperature, actual substrate temperature (via dual-point RTD feedback), coating speed, blade gap setting, and runtime—in timestamped CSV format exportable via USB. No proprietary software installation is required; raw data files are compatible with common analytical platforms (e.g., MATLAB, JMP, Python pandas). Audit trail functionality records user ID, timestamp, and parameter changes—supporting FDA 21 CFR Part 11 readiness when deployed within validated environments. Optional Ethernet/IP integration enables remote monitoring and centralized lab equipment fleet management.

Applications

• Formulation optimization of water-based, solvent-based, and UV-curable coatings, inks, adhesives, and battery electrode slurries.
• Accelerated drying/curing studies under controlled thermal gradients to model industrial oven profiles.
• Wet-film thickness correlation with final dry-film properties (gloss, hardness, adhesion) per ASTM D3359 and ISO 2409.
• Shear-thinning behavior assessment via variable-speed coating trials at fixed gap settings.
• Substrate-coating interfacial energy evaluation using contact angle mapping post-deposition.
• Reference sample preparation for spectroscopic analysis (FTIR, Raman), SEM cross-sectioning, or gravimetric solids content determination.

FAQ

What substrates are compatible with the YL-TB100?
Rigid or semi-rigid flat materials up to 450 mm × 300 mm, including paper, PET, PVC, aluminum, stainless steel, and fabric laminates—provided surface roughness Ra ≤ 3.2 µm and flatness deviation < 0.1 mm/m.
Can the heating function be disabled for ambient-temperature coating?
Yes—the thermal module is independently controllable; users may operate the system at ambient temperature without activating the heater.
Is calibration documentation provided with the instrument?
A factory calibration report covering speed linearity, temperature uniformity (±2 °C across platen), and gap repeatability is included. Full ISO/IEC 17025 calibration services are available upon request through authorized metrology partners.
How is blade wear monitored and compensated?
Tungsten carbide blades exhibit negligible wear under standard lab use (< 500 cycles); tip geometry is verified using optical profilometry before critical experiments. Replacement blades are field-swappable with no recalibration needed.
Does the system support GMP-compliant electronic records?
When operated with enabled audit trail and user authentication, the YL-TB100 satisfies core ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) for raw data capture—though full 21 CFR Part 11 compliance requires site-specific IT validation.
