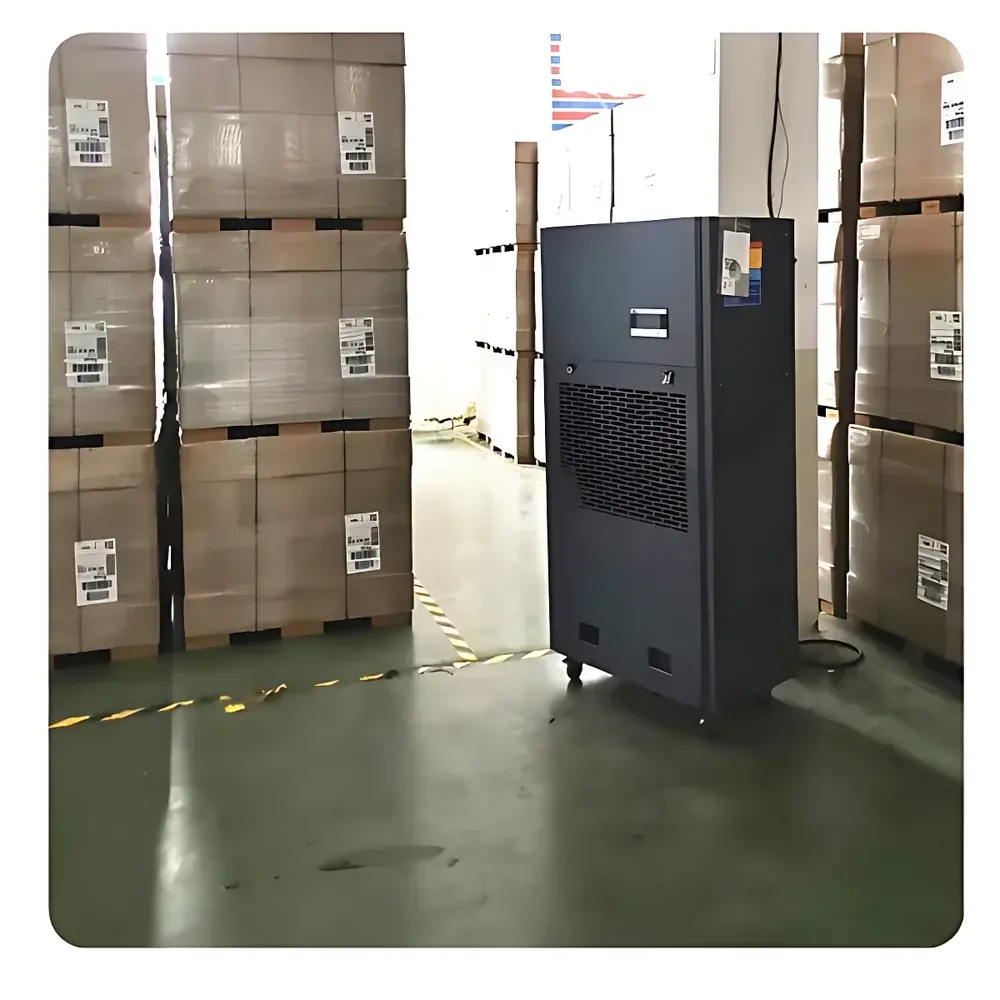

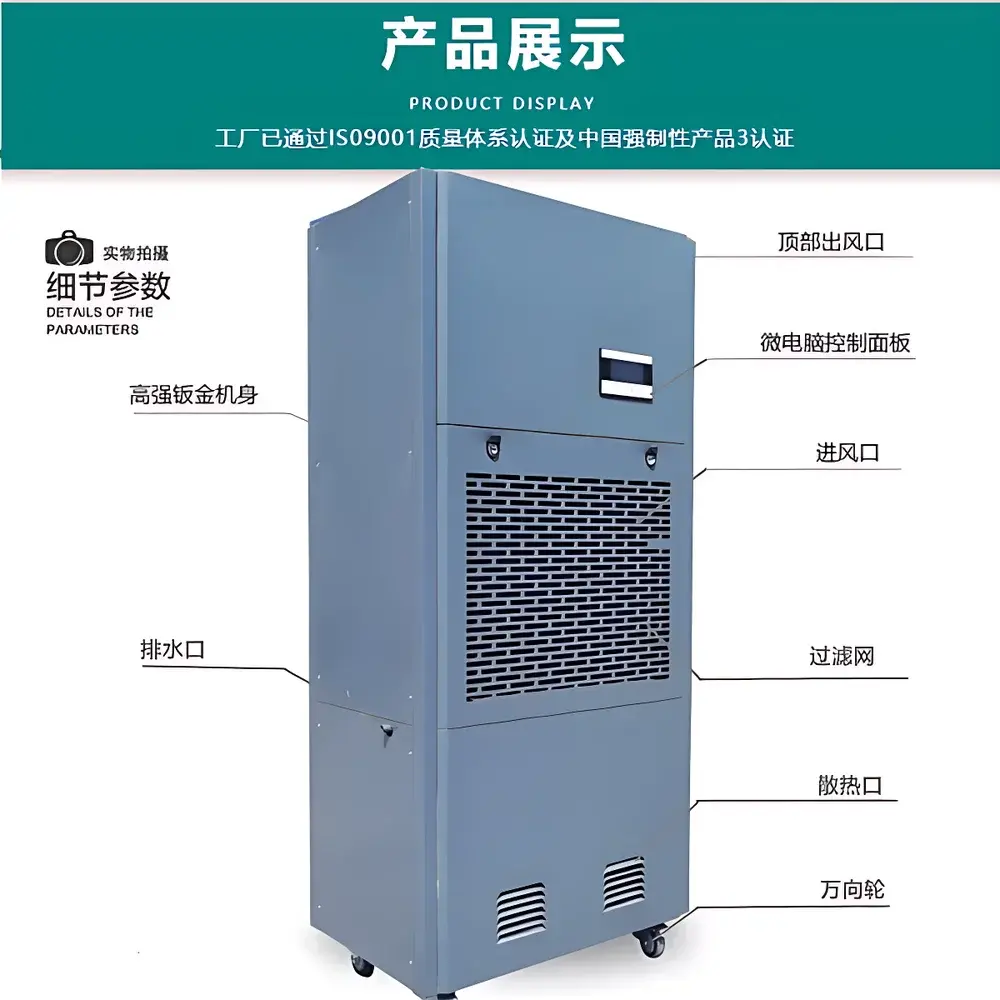

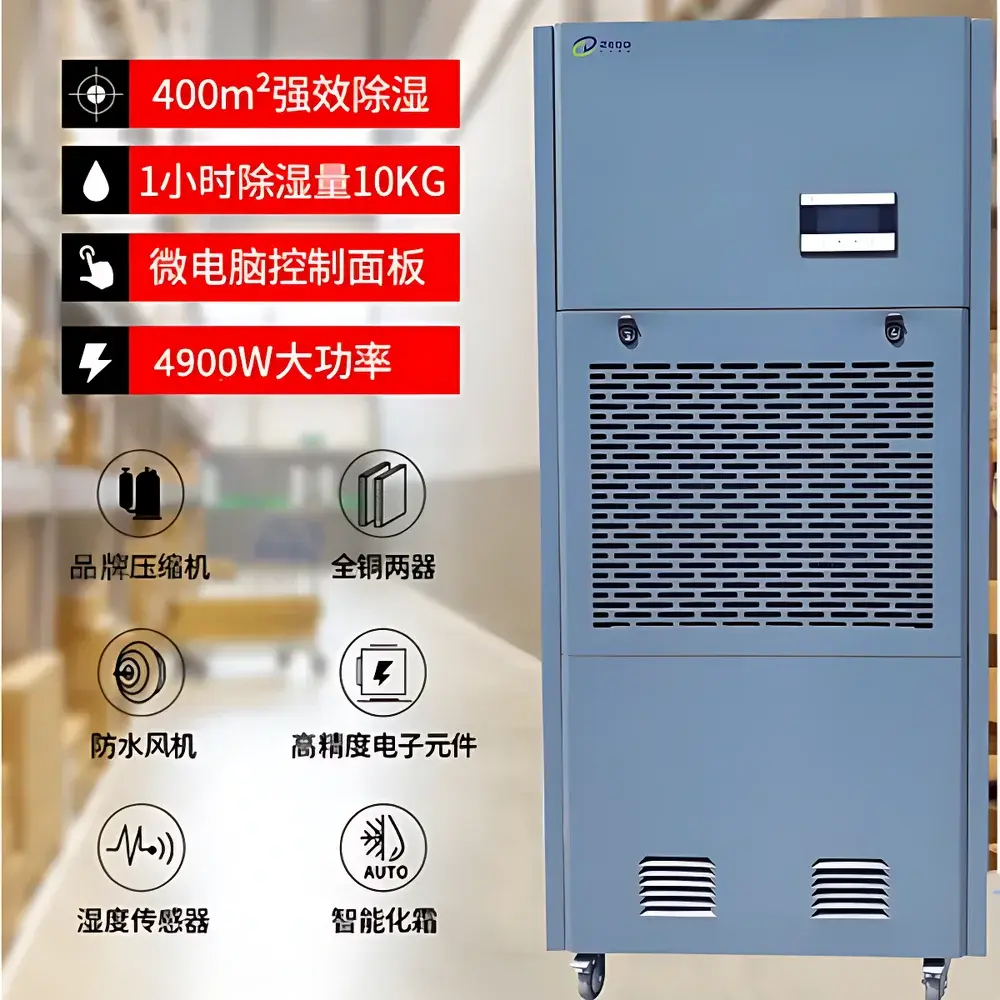

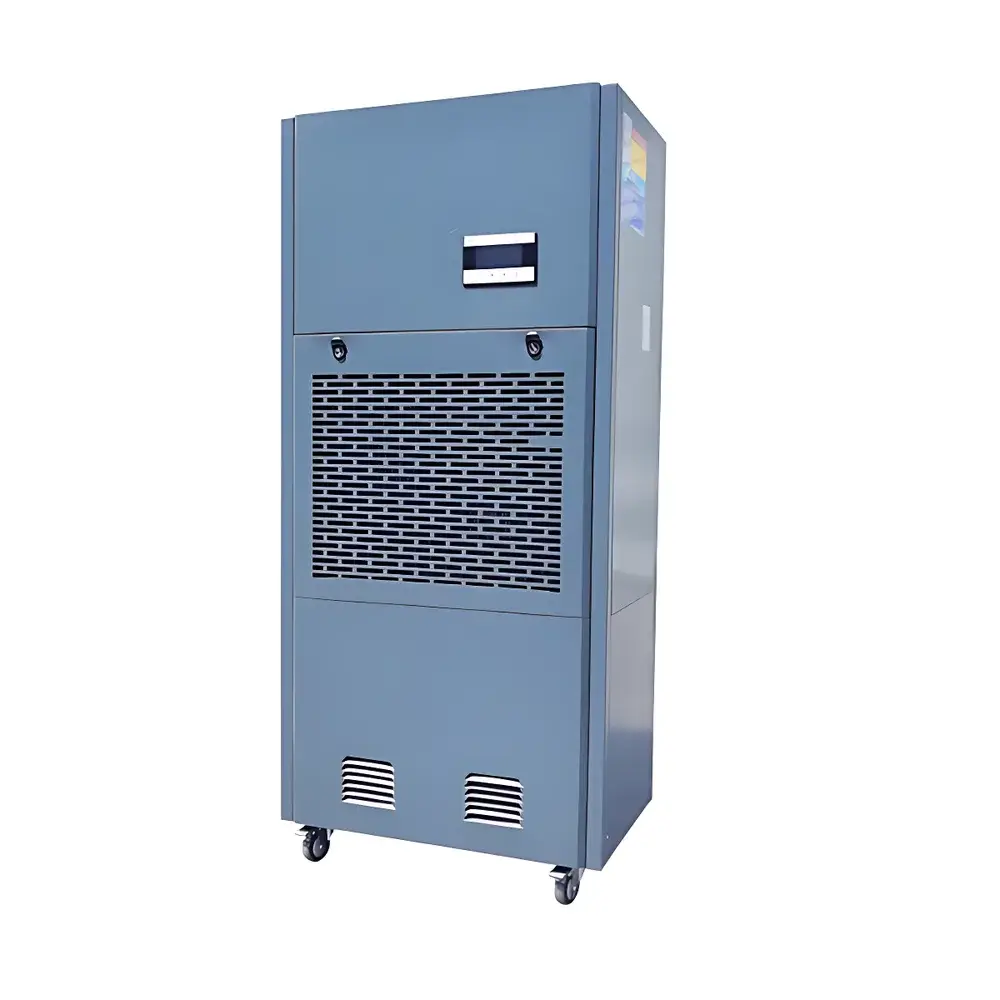

ZEDO ZD-8240C Industrial Condensation Dehumidifier

Overview

The ZEDO ZD-8240C Industrial Condensation Dehumidifier is an engineered solution for precise, continuous moisture control in large-scale controlled environments where ambient humidity poses a critical risk to process integrity, material stability, or product quality. Based on refrigerant-based condensation technology, the unit draws ambient air across a finned-tube evaporator coil maintained below the dew point temperature. Moisture condenses on the coil surface, drains into a collection pan, and is expelled continuously via gravity-fed or pump-assisted hose discharge. The dried air is reheated slightly by the condenser coil and returned to the space at near-ambient temperature—ensuring minimal thermal impact while delivering consistent dew point depression. Designed for uninterrupted operation in industrial laboratories, cleanrooms, precision manufacturing bays, and archival storage facilities, the ZD-8240C delivers stable RH control within ±3% accuracy under nominal conditions and maintains performance across its full operational envelope (5–38 °C ambient).

Key Features

• High-capacity rotary compressor with three-minute anti-short-cycling delay logic and integrated high/low-pressure cutouts for extended service life and reduced thermal stress.
• Optimized copper-aluminum microchannel heat exchanger with internally grooved tubing, achieving >82% sensible-to-total heat transfer ratio and minimizing frosting under marginal operating conditions.
• EC-type centrifugal blower delivering 3000 m³/h volumetric airflow at static pressure up to 120 Pa—engineered for uniform air distribution across spaces up to 400 m².
• Microprocessor-based controller with LCD interface, programmable RH setpoint (30–80% RH), real-time fault diagnostics (e.g., sensor drift, refrigerant loss, fan stall), and event-logged operational history.
• Dual-stage filtration system: washable aluminum pre-filter + activated carbon layer targeting airborne VOCs and particulates down to 10 µm—critical for protecting optical instruments and archival media.
• Structural chassis fabricated from powder-coated cold-rolled steel with vibration-dampened mounting, resulting in <52 dB(A) acoustic emission at 1 m distance—compliant with ISO 7779 noise testing methodology.

Sample Compatibility & Compliance

The ZD-8240C is intended for use as an environmental conditioning auxiliary device—not a primary containment or analytical instrument. It supports humidity-sensitive workflows involving hygroscopic materials (e.g., lithium battery cathode powders, pharmaceutical excipients), precision optics (interferometers, metrology stages), magnetic storage media, and cellulose-based archival documents. While not certified to UL 1995 or EN 13779, its electrical architecture adheres to IEC 60335-1 safety fundamentals, and its control firmware implements timestamped audit trails for humidity setpoint changes and alarm events—aligning with data integrity expectations under FDA 21 CFR Part 11 Annex 11 for non-GxP but GLP-aligned lab support infrastructure. Units are supplied with CE-conformity documentation covering EMC (EN 61000-6-3/4) and low-voltage directive (2014/35/EU) compliance.

Software & Data Management

The embedded controller stores up to 30 days of compressed operational logs, including hourly average RH%, compressor run time, fault codes, and ambient temperature trends. Data export is supported via RS-485 Modbus RTU protocol (optional USB-to-serial adapter required) for integration into building management systems (BMS) or centralized environmental monitoring platforms such as Siemens Desigo CC or Honeywell Experion PKS. No proprietary cloud platform is required; raw CSV exports can be parsed using standard SCADA historian tools. Firmware updates are performed locally via microSD card slot—eliminating network exposure risks associated with remote OTA updates.

Applications

• Photovoltaic module assembly cleanrooms requiring 40–60% RH stability to prevent interfacial condensation on encapsulant layers during lamination.
• Pharmaceutical secondary packaging areas where moisture ingress compromises blister foil seal integrity (aligned with USP permeation testing guidelines).
• Calibration laboratories housing coordinate measuring machines (CMMs), laser trackers, and interferometric gauges—where dimensional drift correlates strongly with RH-induced thermal expansion of granite bases.
• University research facilities housing cryogenic sample storage dewars, where ambient moisture infiltration causes ice buildup on vacuum jacket seals.
• Historical document preservation vaults meeting ISO 11799:2015 relative humidity recommendations for cellulose degradation mitigation (target: 45±5% RH, 18–22°C).

FAQ

What is the minimum recommended ambient temperature for continuous operation?
The unit is rated for stable dehumidification down to 5 °C dry-bulb temperature. Below this threshold, frost accumulation on the evaporator requires manual defrost cycles unless optional hot-gas bypass is installed.
Can the ZD-8240C be integrated into a facility-wide BMS?
Yes—via Modbus RTU over RS-485 (addressable node ID configurable), supporting read-only access to RH setpoint, actual RH, compressor status, and active alarms.
Is the activated carbon filter replaceable, and what is its service life?
The carbon-impregnated polyester mesh is field-replaceable every 6 months under typical industrial air quality (ISO 14644 Class 8); replacement part number is ZEDO-ACF-ZD8K.
Does the unit comply with energy efficiency regulations such as EU Ecodesign Directive?
It meets Tier 1 efficiency benchmarks per GB 21455-2019 (China’s national standard), but does not carry ENERGY STAR or EU Lot 10 certification due to its industrial-duty power class (>3 kW).
What maintenance intervals are recommended for optimal long-term reliability?
Condenser coil cleaning every 3 months in dusty environments; refrigerant charge verification annually via manifold gauge set; drain hose inspection weekly for kinks or algae growth.
