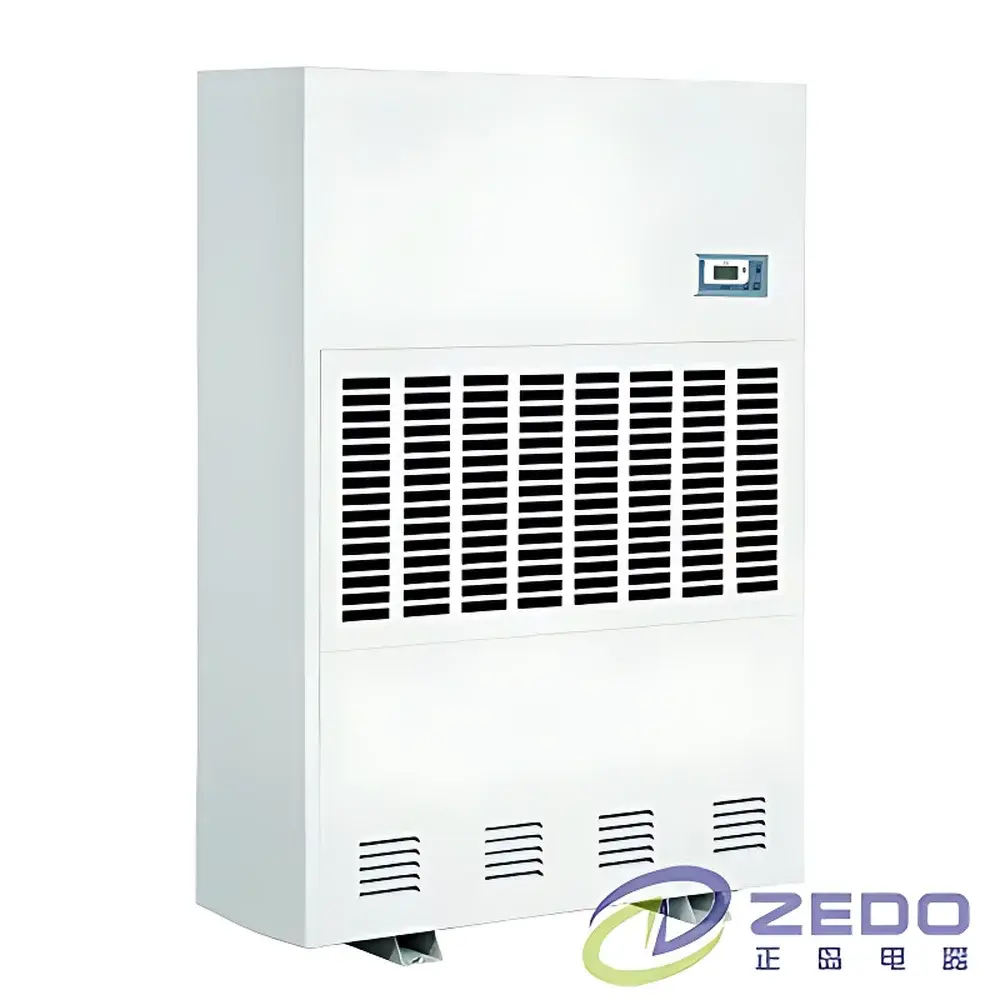

ZEDO ZD-8240C Industrial Warehouse Dehumidifier

Overview

The ZEDO ZD-8240C Industrial Warehouse Dehumidifier is a heavy-duty, continuously operating condensation-type dehumidification system engineered for precise ambient humidity control in large-scale storage, archival, and controlled-environment facilities. It operates on the principle of refrigerant-based condensation—drawing moist air across a cooled evaporator coil where water vapor condenses into liquid form, which is then collected or drained continuously. The unit maintains stable relative humidity (RH) within the recommended 40–60% RH range critical for safeguarding hygroscopic materials, electronic components, optical instruments, pharmaceuticals, archival documents, and precision mechanical assemblies. Designed for uninterrupted operation under demanding industrial conditions—including high ambient humidity, variable load profiles, and extended duty cycles—the ZD-8240C integrates robust thermodynamic architecture with fail-safe electrical and mechanical redundancy.

Key Features

• High-capacity dehumidification: 240 liters per day at 30 °C / 80% RH (standard AHAM test conditions), delivering consistent moisture removal across its full operational temperature range (5–38 °C).
• Dual centrifugal air handling system with external rotor industrial fans ensures uniform airflow distribution and minimizes pressure drop across the heat exchanger, enhancing energy efficiency and reducing acoustic emissions to ≤52 dB(A) at 1 m.
• Optimized refrigeration circuit featuring a globally certified scroll compressor, eco-friendly R410A refrigerant, and a high-efficiency finned-tube heat exchanger with internally grooved copper tubing and hydrophilic aluminum fins—maximizing latent heat transfer while minimizing frost formation.
• Intelligent microprocessor controller with a calibrated Shinyo humidity/temperature sensor (±2% RH accuracy, ±0.5 °C) enables precise setpoint programming, real-time monitoring, and automatic adjustment based on ambient drift.
• Comprehensive safety architecture: integrated high/low refrigerant pressure switches, thermal overload relays, undervoltage and phase-reversal protection, and 3-minute compressor restart delay to prevent short-cycling and extend service life.
• Structural modularity supports field maintenance—refrigeration and airflow systems are physically isolated; all major components (compressor, condenser, evaporator, control board) are accessible without disassembly of primary enclosures.

Sample Compatibility & Compliance

The ZD-8240C is suitable for environments requiring strict environmental stewardship of moisture-sensitive assets. It meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). While not classified as medical or laboratory-grade equipment per ISO 14644 or USP , its performance consistency and repeatability support GMP-aligned storage practices in pharmaceutical warehouses (per ICH Q5C stability guidelines) and archival preservation per ISO 11799:2015 (document storage environments). The activated carbon pre-filter mitigates airborne organic volatiles that may accelerate corrosion of sensitive electronics or degrade cellulose-based media.

Software & Data Management

The unit features a standalone control interface with no cloud connectivity or proprietary software dependency. All operational data—including runtime hours, fault logs (e.g., “E1: Evaporator frost lock”, “E3: Sensor calibration drift”), humidity setpoint history, and compressor cycle count—are stored locally in non-volatile memory and viewable via the front-panel LCD. Audit-ready event logging complies with basic GLP documentation needs: timestamps, operator actions (e.g., setpoint changes), and system status transitions are recorded with traceable integrity. No FDA 21 CFR Part 11 compliance is claimed, as the device lacks electronic signature capability or user-role authentication.

Applications

• Pharmaceutical and biotech warehousing: Maintaining RH below 60% to inhibit microbial growth on excipients, APIs, and finished dosage forms during long-term storage.
• Electronics manufacturing and logistics: Preventing condensation-induced dendritic growth on PCBAs and oxidation of solder paste stencils in SMT staging areas.
• Cultural heritage institutions: Stabilizing RH in archival vaults and museum storage to meet ANSI/NISO Z39.78–2000 and PAS 198:2012 specifications for paper and photographic material longevity.
• Industrial metrology labs: Ensuring dimensional stability of calibrated gauges, CMM fixtures, and interferometer reference optics by eliminating hygroscopic expansion in granite and ceramic substrates.
• Fresh food distribution centers: Reducing surface moisture on packaging to inhibit mold propagation and extend shelf-life of dry-goods inventory.

FAQ

What is the minimum ambient temperature at which the ZD-8240C remains effective?
The unit is rated for continuous operation down to 5 °C. Below this threshold, automatic defrost cycling engages to maintain evaporator coil efficiency; manual intervention is not required.
Can the ZD-8240C be integrated into a building management system (BMS)?
No native BACnet, Modbus, or LonWorks interface is provided. Analog 0–10 V or 4–20 mA output modules may be added via third-party retrofit—but ZEDO does not supply or validate such integrations.
Is condensate pump included?
No. Continuous drainage requires connection to a gravity-fed floor drain or optional external condensate pump (not supplied). The unit includes a standard 1.5 m PVC discharge hose.
How often does the activated carbon filter require replacement?
Under typical warehouse conditions (low VOC load), replacement is recommended every 6–12 months. Visual inspection for discoloration or reduced airflow is advised.
Does the unit comply with RoHS or REACH regulations?
Yes. All PCBs, wiring harnesses, refrigerants, and structural polymers conform to EU RoHS Directive 2011/65/EU and REACH Annex XVII restrictions on hazardous substances.
