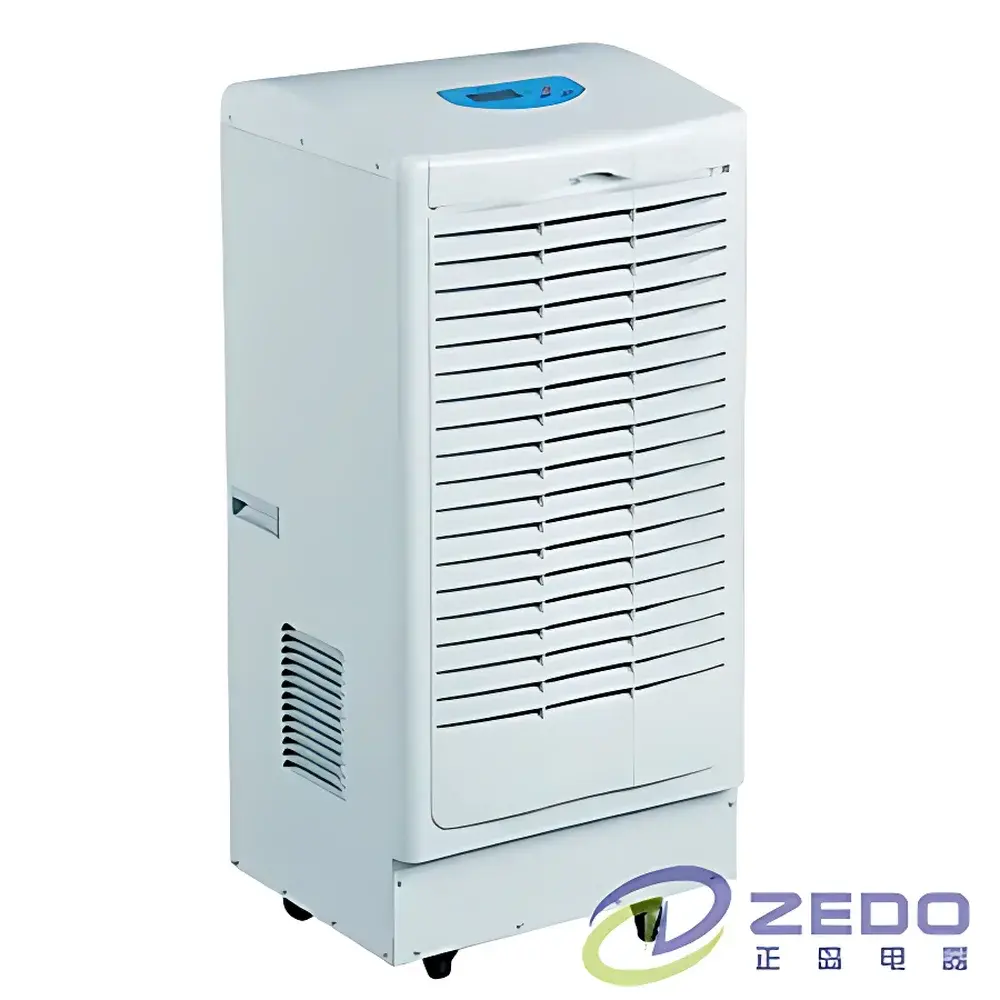

ZEDO ZD-8480C Heavy-Duty Industrial Dehumidifier

Overview

The ZEDO ZD-8480C Heavy-Duty Industrial Dehumidifier is an engineered solution for precise, continuous moisture removal in large-scale controlled environments where ambient humidity must be actively managed to prevent material degradation, microbial growth, or process interference. Unlike residential units or HVAC-integrated dehumidification, this system employs a dedicated refrigerant-based condensation cycle—utilizing dual hermetic scroll compressors—to achieve high-capacity water extraction under demanding operational conditions. Its design follows fundamental psychrometric principles: humid air is drawn across a cold evaporator coil, where moisture condenses and is collected, while the rewarmed, drier air is discharged back into the space. The unit operates within a validated temperature range of 5–38 °C, ensuring stable performance across seasonal variations typical in industrial facilities located in subtropical and high-humidity regions.

Key Features

• Dual Scroll Compressor Architecture: Integrates two high-efficiency, low-vibration scroll compressors with independent refrigerant circuits—enhancing system redundancy, thermal stability, and sustained dehumidification output even during extended duty cycles.
• Optimized Heat Exchange System: Features internally grooved copper tubing paired with hydrophilic aluminum fin coils, maximizing latent heat transfer efficiency and minimizing frost accumulation under high-relative-humidity loads.
• Industrial-Grade Air Handling: Equipped with dual centrifugal impellers driven by external rotor motors, delivering high-volume airflow (>3000 m³/h) with low turbulence and acoustic signature (≤55 dB[A] at 1 m).
• Microprocessor-Controlled Operation: Includes a programmable controller with Japanese Shinyo hygrothermographic sensors (±2% RH accuracy), enabling precise setpoint control (30–80% RH), real-time monitoring, and auto-adaptive fan speed modulation.
• Robust Structural Design: Constructed with powder-coated steel frame, segregated refrigeration and airflow modules, and service-access panels—facilitating routine maintenance, coil cleaning, and component replacement without system disassembly.
• Comprehensive Electrical Protection: Incorporates UL-listed contactors, class 10 thermal overload relays, phase failure detection, and automatic 3-minute compressor restart delay to prevent short-cycling and mechanical stress.

Sample Compatibility & Compliance

The ZD-8480C is not a sample-analysis instrument but a facility-level environmental conditioning device. It is intended for integration into climate-controlled infrastructure serving critical operational zones—including cleanrooms (ISO Class 7–8), pharmaceutical storage vaults (aligned with USP and EU GMP Annex 15 humidity requirements), battery dry rooms (≤1% RH pre-conditioning support), archival document repositories (ISO 11799:2015), and electronics manufacturing floors (IPC-STD-001 moisture sensitivity level compliance). While not certified to IEC 61000-6-3 or EN 60335-1 as a standalone medical device, its electrical architecture conforms to CE-marked industrial equipment safety standards. All refrigerant circuits use R-410A—a zero-ozone-depletion-potential (ODP = 0), low-global-warming-potential (GWP ≈ 2088) alternative compliant with current EU F-Gas Regulation (EU No 517/2014) phase-down schedules.

Software & Data Management

The ZD-8480C operates via embedded firmware with no cloud connectivity or proprietary software suite. However, its microcontroller supports analog 0–10 V or 4–20 mA input/output interfaces for integration into building management systems (BMS) or SCADA networks. Optional RS-485 Modbus RTU communication enables remote status polling (humidity reading, fault codes, runtime hours) and setpoint adjustment from centralized control stations. All operational logs—including compressor cycles, sensor drift alerts, and safety trip events—are stored locally with timestamped records accessible via front-panel diagnostics menu. For regulated environments requiring audit trails, third-party data loggers (e.g., Delta OHM HD32.3, Testo 177-H1) may be deployed in parallel to satisfy FDA 21 CFR Part 11 electronic record integrity requirements.

Applications

This dehumidifier serves mission-critical humidity control in sectors where moisture-induced failure modes are well-documented: lithium-ion battery electrode drying lines (preventing LiPF₆ hydrolysis), semiconductor wafer fabrication sub-fab zones (mitigating condensation on chilled beams), archival preservation of cellulose-based media (limiting fungal colonization per ISO 11799), food-grade warehouse cold storage (reducing condensate drip onto packaged goods), and underground utility vaults (suppressing corrosion on copper busbars and insulating materials). It is also deployed in pharmaceutical secondary packaging areas to maintain dew point stability during blister sealing, and in metro rail signaling equipment rooms to ensure uninterrupted operation of relay logic systems sensitive to surface moisture tracking.

FAQ

What is the recommended maintenance interval for the ZD-8480C?

Routine inspection—including evaporator coil cleaning, drain line verification, and filter replacement—is advised every 3 months under continuous operation; compressor oil analysis and refrigerant charge validation should occur annually.
Can the unit operate continuously at 5 °C ambient temperature?

Yes—its low-temperature adaptation includes hot-gas bypass and enhanced defrost logic, allowing stable operation down to 5 °C without manual intervention or performance derating.
Is the activated carbon filter replaceable, and what is its service life?

The standard carbon-impregnated polyester filter is user-replaceable and rated for 6–12 months depending on airborne VOC concentration; OEM replacement part number ZD-FIL-AC-01 is available.
Does the unit comply with electromagnetic compatibility (EMC) directives for laboratory installation?

It meets EN 61000-6-2 (immunity) and EN 61000-6-4 (emission) Class A limits for industrial environments; laboratory deployment requires confirmation of local grounding topology and separation from sensitive instrumentation cabling.
How is condensate disposal managed in unattended operation?

Continuous gravity-fed drainage via 16-mm ID PVC hose (supplied) is supported up to 5 m vertical lift; optional condensate pump kit (ZD-PUMP-02) extends lift capacity to 12 m for rooftop or basement installations.
