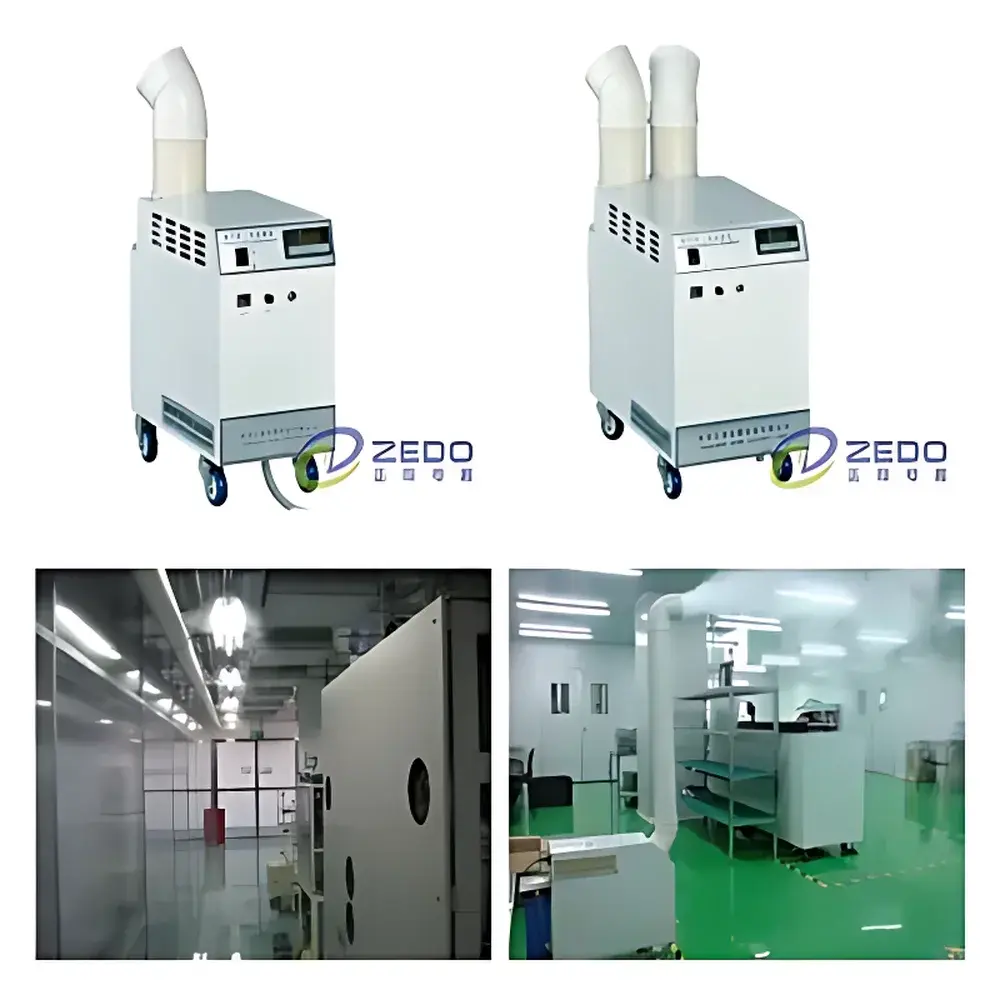

ZEDO ZS-40Z Electronic Industry Ultrasonic Humidifier

Overview

The ZEDO ZS-40Z Electronic Industry Ultrasonic Humidifier is an engineered environmental control solution designed specifically for precision manufacturing and storage environments where static electricity, particulate contamination, and dielectric degradation pose critical risks to electronic components. Unlike conventional evaporative or steam-based humidifiers, the ZS-40Z employs high-frequency ultrasonic transduction (1.7 MHz) to generate sub-10 µm droplets—enabling rapid, uniform humidity dispersion without thermal load or mineral carryover. This principle ensures stable relative humidity (RH) maintenance within tightly controlled ranges (40–60% RH), which is empirically validated as optimal for electrostatic discharge (ESD) mitigation in semiconductor assembly, PCB handling, cleanroom packaging, and SMT reflow staging zones. The unit operates under ISO Class 5–8 ambient conditions and complies with IEC 61340-5-1 ESD control requirements when integrated into a certified grounding and monitoring infrastructure.

Key Features

• Full 304 stainless steel enclosure and internal tank—resistant to corrosion, microbial growth, and chemical exposure during routine cleaning with isopropyl alcohol or mild alkaline solutions.
• IP68-rated sealed variable-frequency power supply and control electronics—certified for immersion at 1 m depth; eliminates condensation-induced short-circuit failures in high-humidity or washdown environments.
• Integrated ceramic ultrasonic transducer with alkaline-acid tolerance—engineered for long-term stability in hard-water regions (up to 300 ppm TDS) without scale buildup or frequency drift.
• Sealed ball-bearing 36V DC waterproof blower—provides consistent airflow (>120 m³/h) with <45 dB(A) acoustic emission, suitable for noise-sensitive cleanroom annexes and QA laboratories.
• Microprocessor-based controller with capacitive RH sensor (±3% RH accuracy)—supports closed-loop feedback control, programmable timer schedules, and manual on/off operation via tactile membrane interface.
• Modular single-tube atomization architecture—enables precise spatial targeting for localized humidity compensation in equipment enclosures, laminar flow hoods, or conveyor-integrated micro-environments.

Sample Compatibility & Compliance

The ZS-40Z is compatible with standard deionized (DI) water, reverse osmosis (RO) water, and softened municipal feed—no demineralization cartridges or pretreatment systems required. It meets mechanical safety standards per GB 4706.46-2008 (China) and conforms to electromagnetic compatibility (EMC) limits outlined in CISPR 11 Group 2, Class A. While not intrinsically rated for hazardous locations, its non-sparking design, low-voltage fan operation, and absence of heating elements make it suitable for use in Class 1, Division 2 areas when installed per NEC Article 500 guidelines. For GMP-regulated facilities, audit-ready operation logs can be exported via optional RS-485 Modbus RTU interface for integration with SCADA or MES platforms supporting FDA 21 CFR Part 11 data integrity protocols.

Software & Data Management

The ZS-40Z operates autonomously via embedded firmware with no external software dependency. All configuration parameters—including setpoint RH, timer windows, alarm thresholds, and runtime counters—are stored in non-volatile memory with battery-backed retention. Optional analog 4–20 mA RH output and digital Modbus RTU (RS-485) enable seamless integration into building management systems (BMS) or centralized environmental monitoring networks. Firmware updates are performed via USB-C port using manufacturer-validated binaries; version history and calibration timestamps are retained for GLP/GMP traceability. No cloud connectivity or remote telemetry is implemented—ensuring air-gapped operational security for classified or export-controlled production lines.

Applications

• Semiconductor wafer fabrication—maintaining RH stability during photolithography mask storage and probe station ambient conditioning.
• PCB assembly lines—preventing ESD-induced latent defects in BGA solder joints and thin-film resistor arrays.
• Hard disk drive (HDD) and SSD manufacturing—controlling triboelectric charging during head gimbal assembly and NAND flash handling.
• Medical electronics cleanrooms—supporting ISO 13485-compliant humidity control for implantable device packaging and sterilization validation.
• Automotive electronics test labs—sustaining repeatable RH conditions during EMC immunity testing per ISO 11452-2 and IEC 61000-4-2.
• Research & development clean benches—enabling reproducible material characterization of conductive polymers and piezoelectric ceramics.

FAQ

What is the recommended water quality for continuous operation?
Deionized (DI) water with resistivity ≥1 MΩ·cm is preferred. RO water (TDS ≤50 ppm) is acceptable; untreated tap water may reduce transducer lifespan and require more frequent cleaning.
Can the ZS-40Z be integrated into a central HVAC humidity control loop?
Yes—via optional 4–20 mA analog input/output or Modbus RTU communication. Integration requires third-party BMS configuration; ZEDO provides protocol documentation and register mapping.
Is the unit compliant with cleanroom particle generation standards?
The ZS-40Z produces <10 particles ≥0.3 µm per cubic foot per minute (tested per ISO 21501-4), meeting ISO Class 5 background requirements when operated with DI water and maintained per manufacturer schedule.
Does the humidifier include built-in ESD grounding provisions?
The chassis is grounded via dedicated M4 terminal; users must connect to facility earth ground per ANSI/ESD S20.20 Section 8.3. No internal grounding resistor is included—external 1 MΩ current-limiting path is required.
What maintenance intervals are recommended for GMP environments?
Daily visual inspection; weekly tank cleaning with 5% citric acid solution; biannual transducer replacement (or per 3000–5000 operating hours); annual calibration verification of RH sensor against NIST-traceable reference hygrometer.
