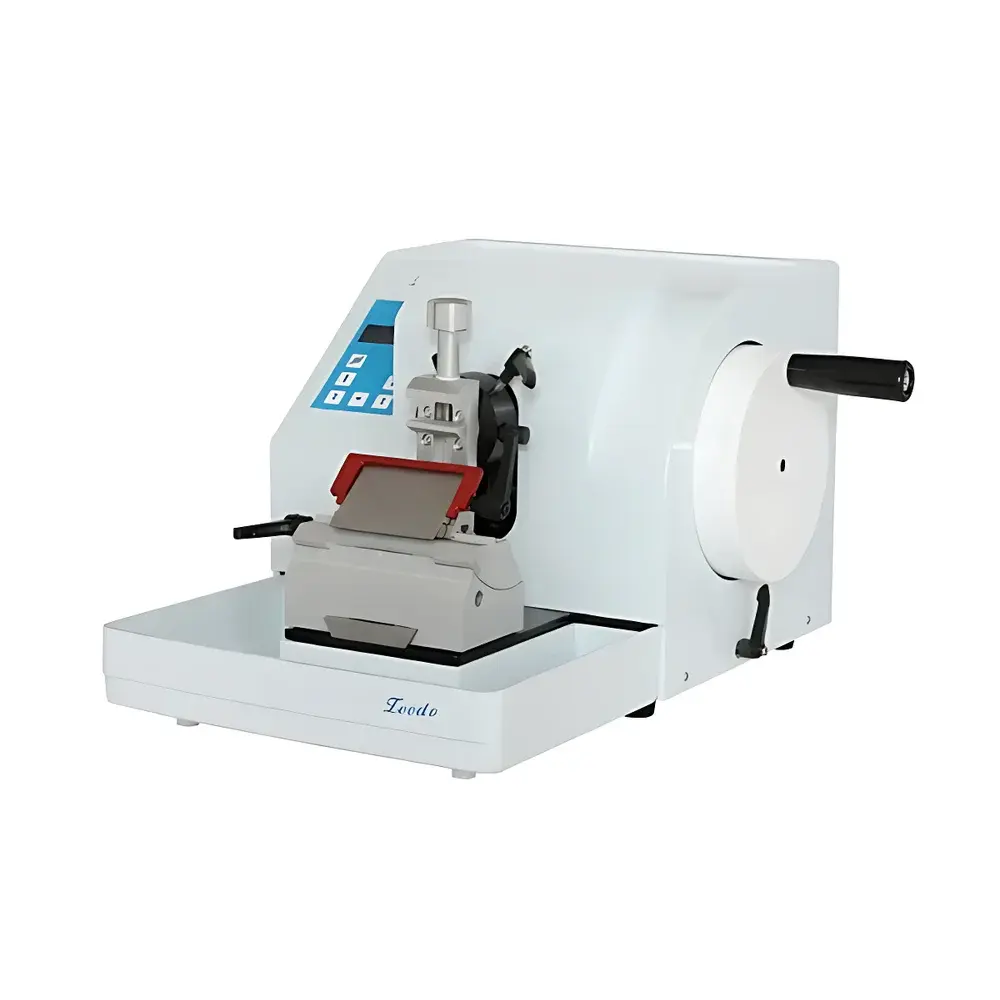

ZEEDO HS-3315 Semi-Automatic Rotary Microtome

Overview

The ZEEDO HS-3315 Semi-Automatic Rotary Microtome is a precision-engineered instrument designed for consistent, high-fidelity sectioning of paraffin-embedded and frozen biological specimens in histopathology, research laboratories, and academic institutions. Built upon the rotary microtome principle—where the specimen advances toward a stationary knife during each rotation of the handwheel—the HS-3315 integrates electromechanical control with mechanical robustness to deliver reproducible sections across soft, hard, and composite tissue types. Its dual-capability architecture supports both room-temperature paraffin sectioning and low-temperature cryosectioning (with optional cold stage), enabling seamless workflow integration in multi-modal histology labs. The system employs a stepper motor-driven feed mechanism coupled with crossed-roller linear guides and a recirculating ball screw assembly—components selected for minimal backlash, thermal stability, and long-term positional fidelity. This architecture ensures sub-micron repeatability in thickness setting and reliable performance under sustained daily use.

Key Features

• Stepper motor-controlled specimen advance with programmable step resolution down to 1 µm—enabling precise, repeatable sectioning across the full 0–100 µm range.
• Intuitive LCD interface with bilingual (English/Chinese) menu navigation for real-time adjustment of section thickness, trimming thickness, section count, rapid advance/retreat, and mode switching.
• Automated specimen retraction (12 µm per cycle) prevents reverse-drag damage between tissue block and blade edge—preserving structural integrity of delicate sections and extending blade service life.
• Handwheel lock at any rotational position enhances operator safety and facilitates precise manual positioning during alignment or troubleshooting.
• Dedicated removable waste tray with smooth-surface geometry simplifies cleaning and minimizes cross-contamination risk between specimens.
• Integrated acoustic and visual alarm system triggers on abnormal motor load, misalignment, or power fluctuation—supporting GLP-aligned operational continuity.

Sample Compatibility & Compliance

The HS-3315 accommodates standard cassette-mounted paraffin blocks (max. 50 × 45 mm footprint) and cryo-blocks mounted on metal stubs or aluminum planchets. Its adjustable horizontal (±14 mm) and vertical (60 mm) specimen travel enables optimal orientation of irregular or multi-layered tissues—including bone, calcified cartilage, plant xylem, and fibrous muscle bundles. While not certified to ISO 13485 or FDA 21 CFR Part 11 out-of-the-box, the device’s deterministic motion control, non-volatile parameter storage, and audit-ready operation log (via optional RS-232/USB data export) support alignment with internal QA protocols required for CLIA, CAP, or ISO/IEC 17025-accredited histology workflows. All mechanical components comply with RoHS Directive 2011/65/EU for hazardous substance restrictions.

Software & Data Management

The onboard firmware provides persistent memory for up to 16 user-defined protocol profiles—including thickness presets, trimming sequences, and auto-retract parameters. Section count and cumulative run time are logged locally with timestamp resolution of ±1 second. Optional PC connectivity (via USB-C or RS-232) allows export of CSV-formatted session logs for traceability in regulated environments. Though no proprietary software suite is bundled, the device supports integration with third-party LIMS platforms via ASCII command protocol—enabling automated job queuing, instrument status polling, and electronic record archiving compatible with 21 CFR Part 11-compliant validation packages when deployed with appropriate IT infrastructure controls.

Applications

• Routine diagnostic histology: Hematoxylin & eosin (H&E), special stains (e.g., Masson’s trichrome, PAS), and immunohistochemistry (IHC) on formalin-fixed paraffin-embedded (FFPE) human and animal tissues.
• Preclinical research: Serial sectioning of murine brain, tumor xenografts, and developmental tissue series for 3D reconstruction and spatial transcriptomics library preparation.
• Botanical morphology: High-resolution sectioning of lignified stems, root nodules, and seed embryos without compression artifacts.
• Hard-tissue histology: Decalcified bone and dental specimens requiring uniform 5–10 µm sections for tartrate-resistant acid phosphatase (TRAP) staining.
• Cryo-histology: Rapid intraoperative frozen sections (5–20 µm) in surgical pathology suites when paired with a compatible cryostat cooling module.

FAQ

What is the maximum specimen block size supported by the HS-3315?
The instrument accepts blocks up to 50 mm (width) × 45 mm (depth); height is constrained only by the knife clearance (typically ≤35 mm with standard disposable blade holders).
Does the HS-3315 support motorized knife advance or automatic knife positioning?
No—it features manual knife alignment and fixed-angle knife holder mounting. Motorization is limited to specimen feed and retraction.
Can the HS-3315 be validated for GMP-regulated histology production?
Yes—when operated within a documented IQ/OQ protocol, its deterministic feed mechanics, stable thermal design, and parameter logging capability meet foundational requirements for equipment qualification under ICH Q9 and ISO 13485 Annex A.
Is the 1 µm minimum section increment achievable across the entire 0–100 µm range?
The 1 µm resolution applies to setting input only; actual section thickness accuracy is ±5% per ASTM E29-23 guidelines for dimensional measurement systems, verified using calibrated stage micrometers and light microscopy.
What blade types are compatible with the HS-3315?
Standard microtome blades (e.g., Leica 819, Feather S35, or ZEEDO-branded stainless steel disposable blades) with 20–25 mm width and 0.5–0.7 mm thickness fit the universal blade holder without adapter.
