ZEISS ATOS Q2 Industrial 3D Optical Scanning System

Overview

The ZEISS ATOS Q2 is a high-precision, industrial-grade optical 3D scanning system engineered for metrology-critical applications in R&D, quality assurance, and production validation. Based on structured light triangulation with triple-camera sensor architecture (3-in-1 lens system), the ATOS Q2 captures full-field 3D surface data with sub-micron repeatability and traceable geometric accuracy. Unlike point-based contact probing or single-view fringe projection systems, ATOS Q2 simultaneously acquires three orthogonal perspectives per measurement cycle—enabling robust capture of complex freeform surfaces, undercuts, and reflective geometries without manual repositioning. Its core optical engine integrates calibrated LED illumination, high-resolution CMOS sensors (≥5 MP per channel), and real-time stereo matching algorithms compliant with ISO 10360-8 and VDI/VDE 2634 Part 2 standards for optical coordinate measuring machines.

Key Features

• Triple-sensor optical head: Simultaneous acquisition from left, center, and right viewpoints—reducing scan passes by up to 40% compared to dual-camera systems and minimizing occlusion on intricate parts.
• Self-monitoring metrology architecture: Real-time calibration verification, ambient light compensation, and dynamic tracking during probe movement ensure continuous traceability per measurement step.

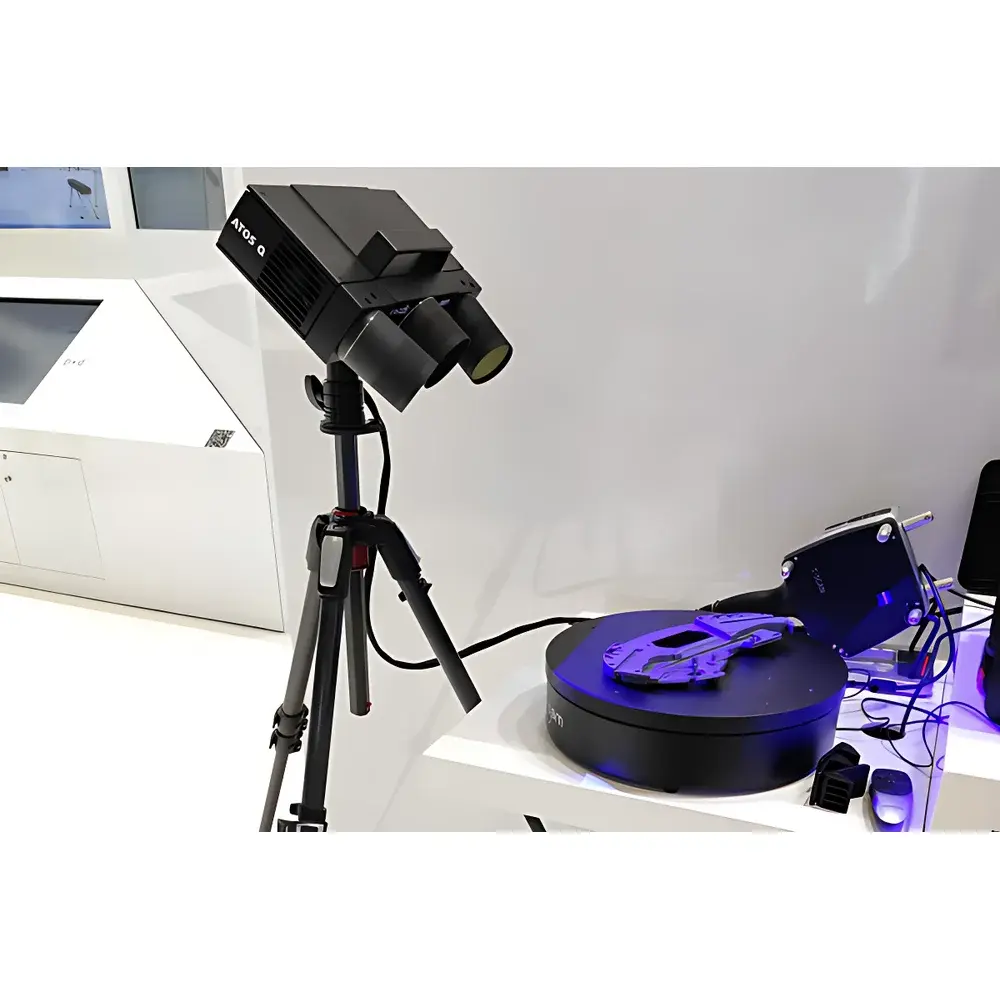

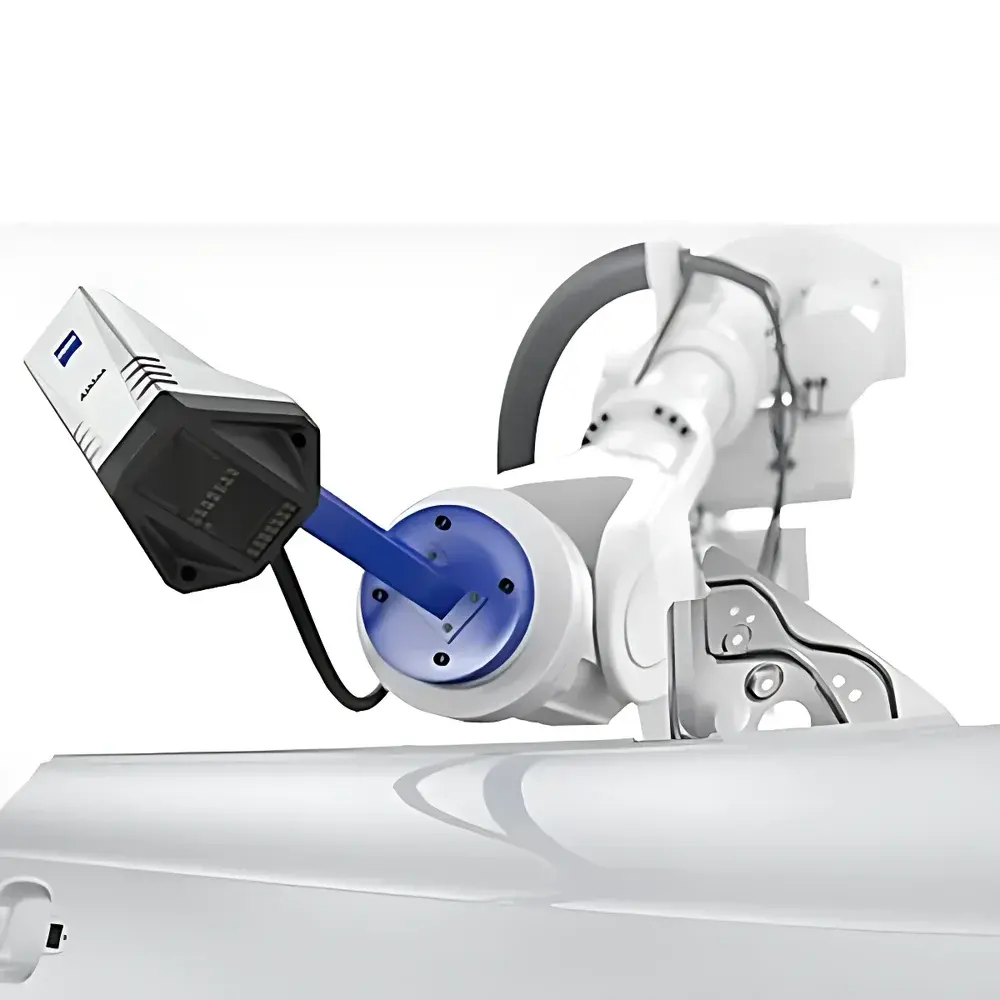

• Lightweight modular design: 4 kg handheld sensor head compatible with carbon-fiber tripods, desktop mounts, or robotic arms—enabling on-site, shop-floor, or lab-based deployment without infrastructure modification.
• Integrated thermal and mechanical stability: Precision-machined aluminum housing with passive thermal management maintains dimensional stability across ambient temperature fluctuations (15–28 °C operating range).
• Hardware-accelerated processing: Onboard FPGA co-processing enables real-time point cloud generation at ≥1.2 million points/sec, with native support for GOM Inspect and third-party CAD comparison workflows.

Sample Compatibility & Compliance

The ATOS Q2 accommodates parts ranging from small precision components (≥5 mm feature size) to large assemblies (up to 2,000 mm diagonal field of view with optional lenses). It supports matte, semi-gloss, and polished metallic surfaces via adaptive exposure control and optional blue-light polarization filters. All measurement data comply with ISO/IEC 17025 requirements for testing laboratories; system validation protocols align with ASTM E2924-22 (Standard Guide for Validation of Optical 3D Measurement Systems) and support GLP/GMP audit trails when integrated with GOM Inspect Professional and validated report templates. Calibration certificates are issued per DKD-R 3–7 (German Calibration Service) and include uncertainty budgets traceable to PTB (Physikalisch-Technische Bundesanstalt).

Software & Data Management

The ATOS Q2 operates exclusively with GOM Inspect Professional v2023+ and GOM Control Center, both qualified under FDA 21 CFR Part 11 for electronic records and signatures. Software features include automated mesh alignment (best-fit, RPS, GD&T-based), deviation color mapping against nominal CAD (STEP, IGES, JT), and statistical process control (SPC) export to Minitab or JMP. Audit logs record operator ID, timestamp, calibration status, environmental parameters, and software version for every measurement session. Data encryption (AES-256), role-based access control, and configurable retention policies ensure compliance with ISO 27001 information security standards.

Applications

• Aerospace: Blade profile verification, turbine disk inspection, and composite layup conformity assessment per AS9100 Rev D.
• Automotive: Body-in-white gap/flush analysis, die-cast part dimensional validation, and Class-A surface deviation reporting aligned with VW Group PV 3.30.
• Medical device manufacturing: Implant geometry verification against ISO 14242-2, orthopedic jig calibration, and additive-manufactured part porosity screening.
• Tooling & moldmaking: Electrode inspection, cavity wear analysis, and reverse engineering of legacy tooling with NIST-traceable uncertainty reporting.
• Academic research: Digital twin development, biomechanical motion capture integration, and materials deformation analysis under controlled loading.

FAQ

Is the ATOS Q2 certified for use in regulated industries such as medical device or aerospace manufacturing?
Yes—the system’s hardware, firmware, and GOM Inspect Professional software are validated per ISO 13485 and EN 9100 requirements, with documented IQ/OQ/PQ protocols available upon request.
Can the ATOS Q2 be integrated into an automated production line?

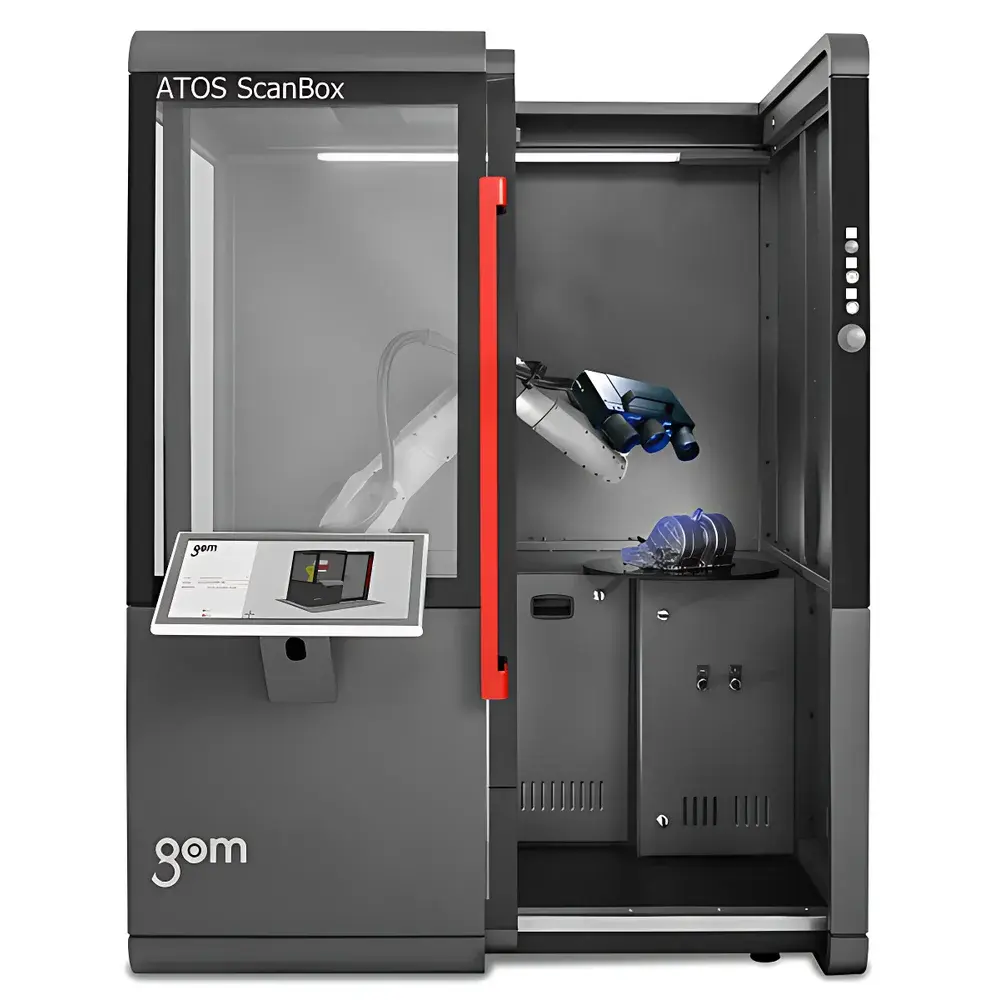

Yes—it supports EtherCAT and PROFINET interfaces for seamless integration with PLC-controlled robotic cells, and is fully compatible with ATOS ScanBox 4105 for fully automated, lights-out metrology operations.
What level of technical support and calibration services does ZEISS provide globally?
ZEISS offers factory-certified calibration services with annual recalibration intervals, remote diagnostics via ZEISS Metrology Cloud, and on-site application engineering support through authorized service centers in North America, EMEA, and APAC regions.
Does the system require specialized environmental controls (e.g., vibration isolation or climate chambers)?
No—the ATOS Q2 meets ISO 22476-1 for industrial floor operation; however, optimal performance is achieved in environments with <±1.5 °C/h temperature drift and <5 µm/s RMS floor vibration (per ISO 20486).
How is measurement uncertainty quantified and reported for each scan?
Uncertainty is calculated per GUM (JCGM 100:2008) using type A (statistical repeatability) and type B (calibration, environmental, algorithmic) components, with full budget documentation exported in PDF and XML formats alongside measurement reports.
