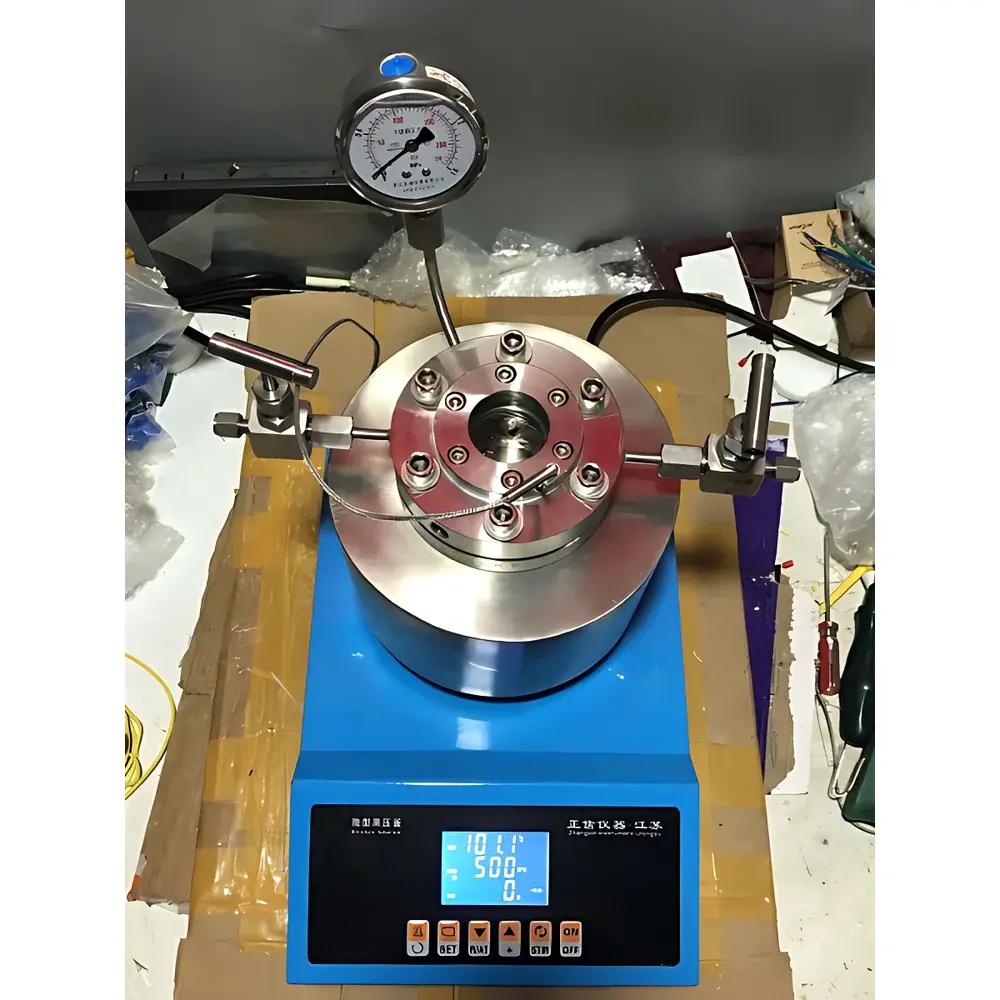

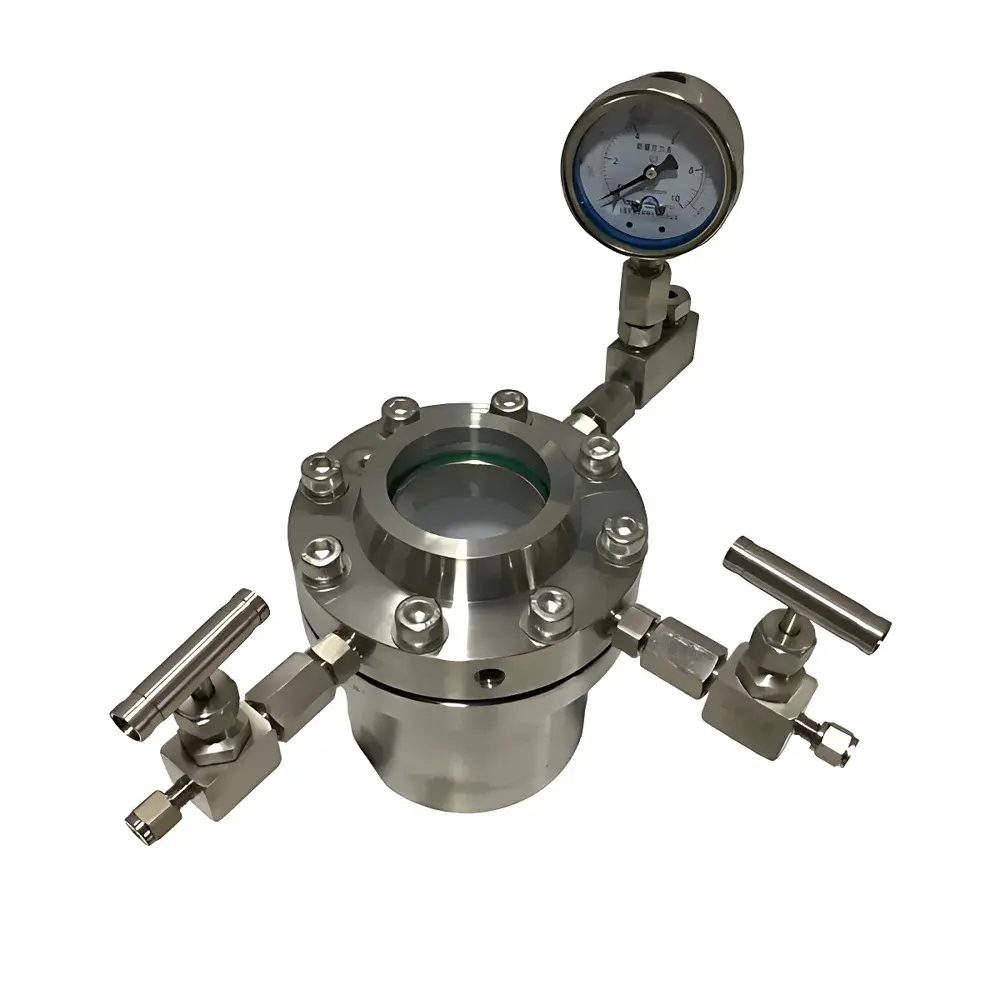

Zhengxin Instruments PSG-Series Viewable Window Magnetic Stirring High-Pressure Reactor

Overview

The Zhengxin Instruments PSG-Series Viewable Window Magnetic Stirring High-Pressure Reactor is an engineered solution for controlled chemical synthesis, catalytic studies, and kinetic investigations under elevated temperature and pressure conditions. Utilizing a hermetically sealed dual-layer vessel architecture with magnetic drive coupling, the reactor eliminates dynamic seal leakage—ensuring containment integrity during hazardous or air-sensitive reactions. Its defining feature is the optically graded viewing window composed of fused quartz and sapphire, enabling real-time visual monitoring of phase behavior, precipitation, crystallization, gas evolution, and mixing homogeneity without interrupting process continuity. The system operates on the principle of magnetically coupled torque transmission across a pressure boundary, maintaining vacuum-tight and pressure-tight integrity while delivering consistent agitation across viscosity ranges from low-viscosity solvents to moderately viscous slurries. Designed for integration into GLP/GMP-aligned laboratories, it supports reproducible process development and scale-down validation in pharmaceutical, fine chemical, and materials science applications.

Key Features

• Double-sealed 316L stainless steel reactor body with optional alloy variants (Hastelloy C-276, titanium Grade 2, zirconium 702) for aggressive media compatibility
• Optical-grade sapphire and fused quartz viewport (customizable diameter and thickness) transmitting >90% of visible to near-UV (200–2500 nm) and IR wavelengths
• Modular fixed-position electric heating mantle with uniform thermal distribution; heater and vessel are fully separable for rapid cleaning and maintenance
• PID-based intelligent temperature controller with auto-tuning (AT), programmable ramp/soak profiles, timer function, and reversible stirring direction control
• High-torque magnetic drive system rated for continuous operation at up to 1500 rpm under full pressure load; optional mechanical agitator with top-entry shaft and PTFE-sealed bearing housing
• Integrated K-type thermocouple with direct immersion well for real-time internal temperature feedback
• Dual-stage gas handling: precision 1/8″ and 1/4″ Swagelok®-compatible needle valves for inert gas purging, vacuum evacuation (<1 Pa), and controlled repressurization
• Stainless steel analog pressure gauge (0–40 MPa range) with overpressure safety margin; optional digital transducer with 4–20 mA output for SCADA integration

Sample Compatibility & Compliance

The PSG-Series accommodates heterogeneous, homogeneous, and gas–liquid–solid reaction systems—including hydrogenations, oxidations, hydrothermal syntheses, and polymerization initiations. Its PTFE or PPL-lined variants support strongly acidic (e.g., HF, aqua regia) or alkaline media, while metal-lined configurations enable high-temperature molten salt or fluoride chemistry. All standard configurations meet mechanical design requirements per ASME BPVC Section VIII Div. 1 and are compatible with laboratory safety protocols aligned with ISO 15190 and ANSI Z9.5. Optional explosion-proof relief devices conform to PED 2014/68/EU Annex I essential safety requirements. Documentation packages include material traceability certificates (EN 10204 3.1), pressure test reports (hydrostatic at 1.5× MAWP), and calibration records for temperature and pressure sensors—supporting audit readiness for FDA 21 CFR Part 11 and EU Annex 11 environments.

Software & Data Management

While the base unit features standalone PID instrumentation, optional RS485/Modbus RTU or Ethernet/IP interfaces enable connection to centralized LIMS or DCS platforms. Third-party software integration (e.g., LabVIEW™, MATLAB® via OPC UA) permits automated logging of temperature, pressure, stir speed, and elapsed time with timestamped CSV export. Audit trails record all parameter changes, user logins, and alarm events—fully compliant with ALCOA+ data integrity principles. Firmware updates preserve backward compatibility and include configurable alarm thresholds (e.g., pressure deviation >±2% of setpoint, temperature drift >±1 °C for >30 s).

Applications

• Catalyst screening under industrially relevant T/P conditions (e.g., Fischer–Tropsch, ammonia synthesis model reactions)
• In situ Raman or UV-Vis spectroscopic monitoring through the sapphire window during crystallization or nanoparticle nucleation
• Hydrothermal synthesis of MOFs, perovskites, and quantum dot precursors
• Corrosion testing of alloys in supercritical CO₂/H₂S environments
• Green chemistry process development using scCO₂ or subcritical water as reaction media
• Reaction calorimetry via temperature ramp rate analysis (dT/dt) under constant power input

FAQ

Can the reactor be used under vacuum and high pressure simultaneously?
Yes—the dual-rated sealing system maintains integrity from ≤1 Pa vacuum to 40 MPa positive pressure, validated per ISO 15848-1 for fugitive emission control.

Is sapphire window replacement possible onsite?
Yes—viewport assemblies are modular and field-replaceable using certified torque tools; spare gaskets and compression rings are stocked globally.

Does the system support GMP documentation packages?
Yes—upon request, Zhengxin provides IQ/OQ protocols, 21 CFR Part 11-compliant electronic signature logs, and raw calibration data from NIST-traceable standards.

What maintenance intervals are recommended for magnetic coupling?
No scheduled maintenance is required; the permanent magnet assembly is encapsulated in corrosion-resistant alloy and rated for >10,000 hours of continuous operation at 200 °C.

Can custom geometries or port configurations be fabricated?
Yes—engineering drawings, ASME code stamps, and finite element analysis (FEA) reports are available for client-specific designs, including side-port sampling valves and integrated pH/DO probes.
