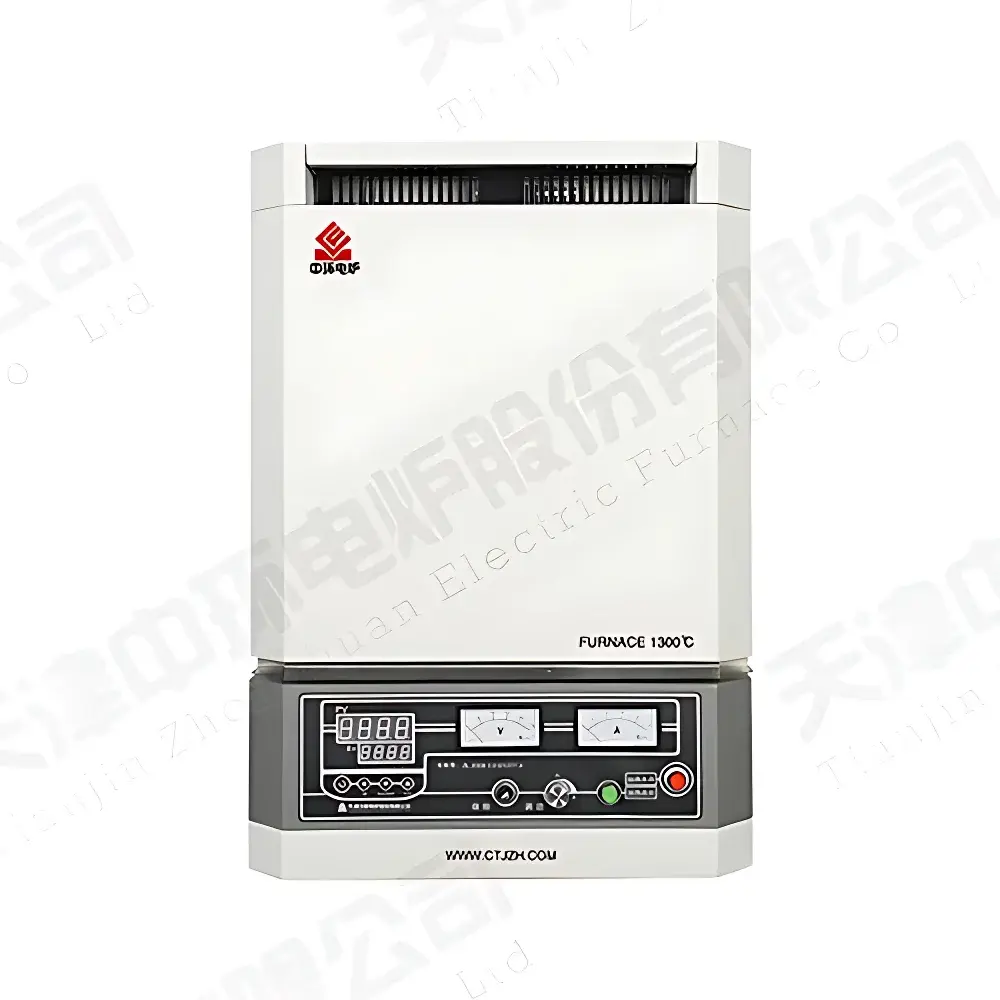

ZHONGHUAN FURNACE ZHX-G04133 1300°C Energy-Efficient Box-Type Muffle Furnace

Overview

The ZHONGHUAN FURNACE ZHX-G04133 is a precision-engineered, energy-efficient box-type muffle furnace designed for controlled high-temperature thermal processing in research and quality assurance laboratories. Operating up to 1300°C, it employs resistive heating via silicon carbide (SiC) rods — selected for their exceptional thermal stability, oxidation resistance, and uniform radiant heat distribution. The furnace chamber is fully insulated with vacuum-formed polycrystalline mullite fiber, achieving >50% energy reduction compared to conventional refractory brick linings while maintaining excellent thermal homogeneity (±3°C across the working zone at 1300°C). Its robust steel housing integrates active air-cooling logic: surface temperature sensors trigger high-efficiency axial fans when external casing temperature exceeds 50°C, ensuring safe operator interaction and extended structural integrity under repeated thermal cycling. As a batch-type (non-continuous) furnace, it supports standardized thermal protocols required for materials synthesis, phase transformation studies, and regulatory-compliant thermal treatment.

Key Features

• High-efficiency insulation system using vacuum-formed polycrystalline mullite fiber — reduces standby heat loss and improves thermal response time.
• High-reliability SiC heating elements rated to 1500°C surface temperature, enabling stable operation at maximum setpoint with minimal drift.
• Intelligent dual-mode temperature control: PID + fuzzy logic algorithm with auto-tuning capability; supports both fixed-setpoint operation and multi-segment programmable ramp/soak profiles.
• Comprehensive safety architecture: door-interlocked power cutoff, independent over-temperature cutout (hardware-based), and residual-current device (RCD) integrated into main supply circuitry.
• RS-485 serial interface compliant with Modbus RTU protocol, enabling integration into centralized lab management systems for remote monitoring, data logging, and audit-ready event tracking.
• Optional touchscreen controller (LCD, Chinese/English bilingual UI) with embedded data historian, real-time curve visualization, USB export (CSV), and optional LAN/WiFi gateway for local network or cloud-connected supervision.

Sample Compatibility & Compliance

The ZHX-G04133 accommodates crucibles and sample holders made from alumina, quartz, silicon nitride, or graphite — compatible with inert, oxidizing, and mildly reducing atmospheres (when used with purge gas fittings). It meets mechanical and electrical safety requirements per GB/T 13384–2008 (General Technical Conditions for Packing of Mechanical and Electrical Products) and GB 4706.1–2005 (Household and Similar Electrical Appliances – Safety). While not intrinsically rated for hazardous area use, its design aligns with general laboratory equipment best practices referenced in ISO/IEC 17025:2017 (Clause 6.4.3 on environmental conditions) and supports GLP/GMP traceability when paired with validated software tools. Temperature uniformity and repeatability are verified per ASTM E220–22 (Standard Test Method for Calibration of Thermocouples By Comparison Techniques), supporting method validation for sintering, annealing, ashing, and calcination procedures.

Software & Data Management

The furnace’s RS-485 interface enables bidirectional communication with Windows-based control software (included), supporting simultaneous monitoring and control of up to 200 units. The software provides real-time temperature graphing, configurable alarm thresholds, automated report generation (PDF/Excel), and timestamped event logs — including door status, power state, alarm triggers, and parameter changes. All records include digital signatures and support 21 CFR Part 11-compliant audit trails when deployed with validated user authentication and electronic signature modules. Optional firmware upgrades enable OPC UA server functionality for seamless integration into SCADA or MES platforms. Data export conforms to ISO/IEC 11179 metadata standards, facilitating interoperability with LIMS environments.

Applications

• Sintering of advanced ceramics (e.g., alumina, zirconia, silicon carbide) and composite powders.
• Heat treatment of metallic alloys: stress relief, solution annealing, and tempering of tool steels and superalloys.
• Oxidation kinetics studies of functional materials, including thermoelectrics (Bi₂Te₃, PbTe), battery cathode precursors (NMC, LFP), and MOFs.
• Thermal gravimetric analysis (TGA) pre-conditioning and residue ash quantification per ASTM D3174 and ISO 1171.
• Crystal growth support: flux evaporation, seed annealing, and post-growth homogenization of single crystals (e.g., YAG, LiNbO₃).
• Quality control testing for refractory products, catalyst supports, and dental porcelain formulations.

FAQ

What is the maximum continuous operating temperature of the ZHX-G04133?
The furnace is rated for continuous operation at 1300°C, with SiC heating elements and mullite fiber insulation engineered for long-term stability at this setpoint.
Does the furnace support inert or reducing atmospheres?
Yes — optional quartz or stainless-steel gas inlet/outlet ports can be installed to enable nitrogen, argon, or forming gas purging; however, full atmosphere control requires external gas mixing and flow regulation hardware.
Is the temperature uniformity validated across the chamber?
At 1300°C, typical radial and axial uniformity is ±3°C within the central 70% volume; certification reports are available upon request for specific chamber configurations.
Can the controller be upgraded to support Ethernet or WiFi connectivity?
Yes — the optional touchscreen controller includes embedded Ethernet and WiFi modules, enabling secure TLS-encrypted communication and remote access via authenticated web interface or mobile application.
What calibration documentation is provided with shipment?
Each unit ships with a factory calibration certificate referencing NIST-traceable reference thermocouples (Type S), verifying accuracy at 600°C, 900°C, and 1300°C against ISO/IEC 17025-accredited calibration standards.
