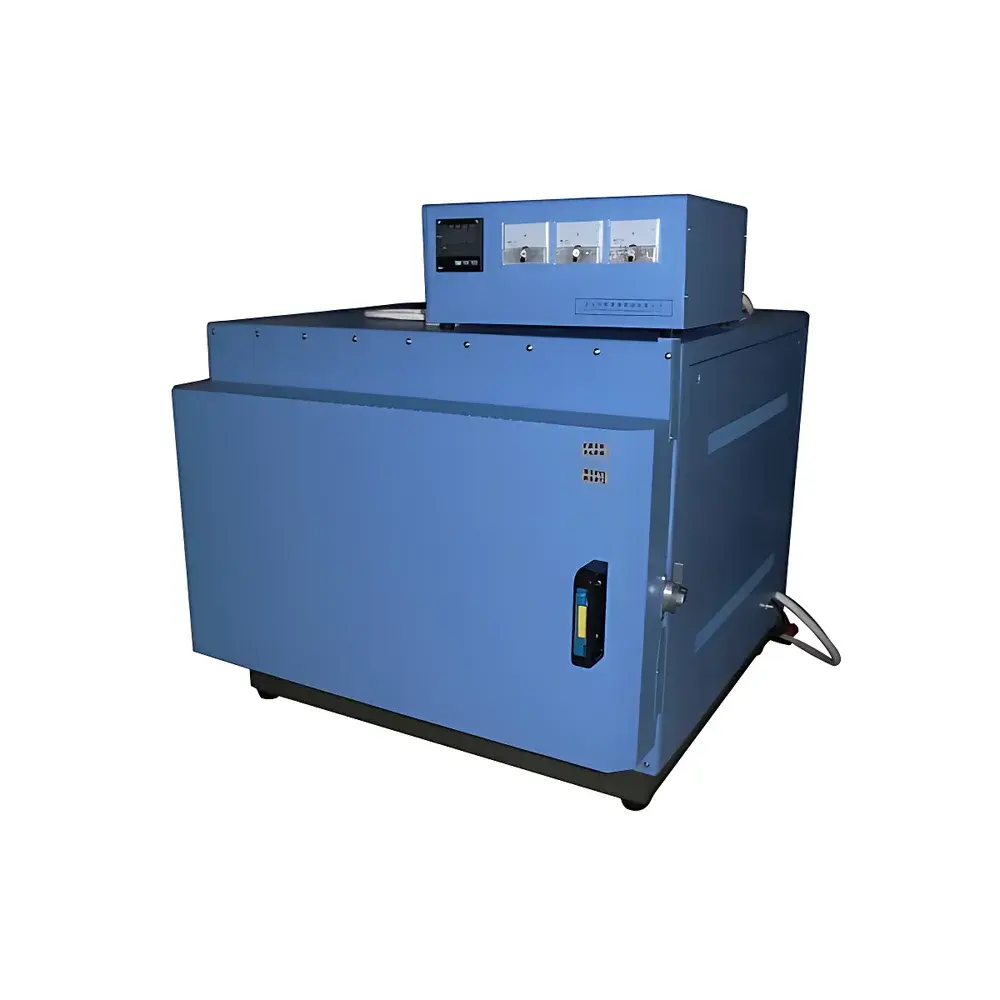

Zhongke Aobo TL0417 High-Temperature Box Furnace

Overview

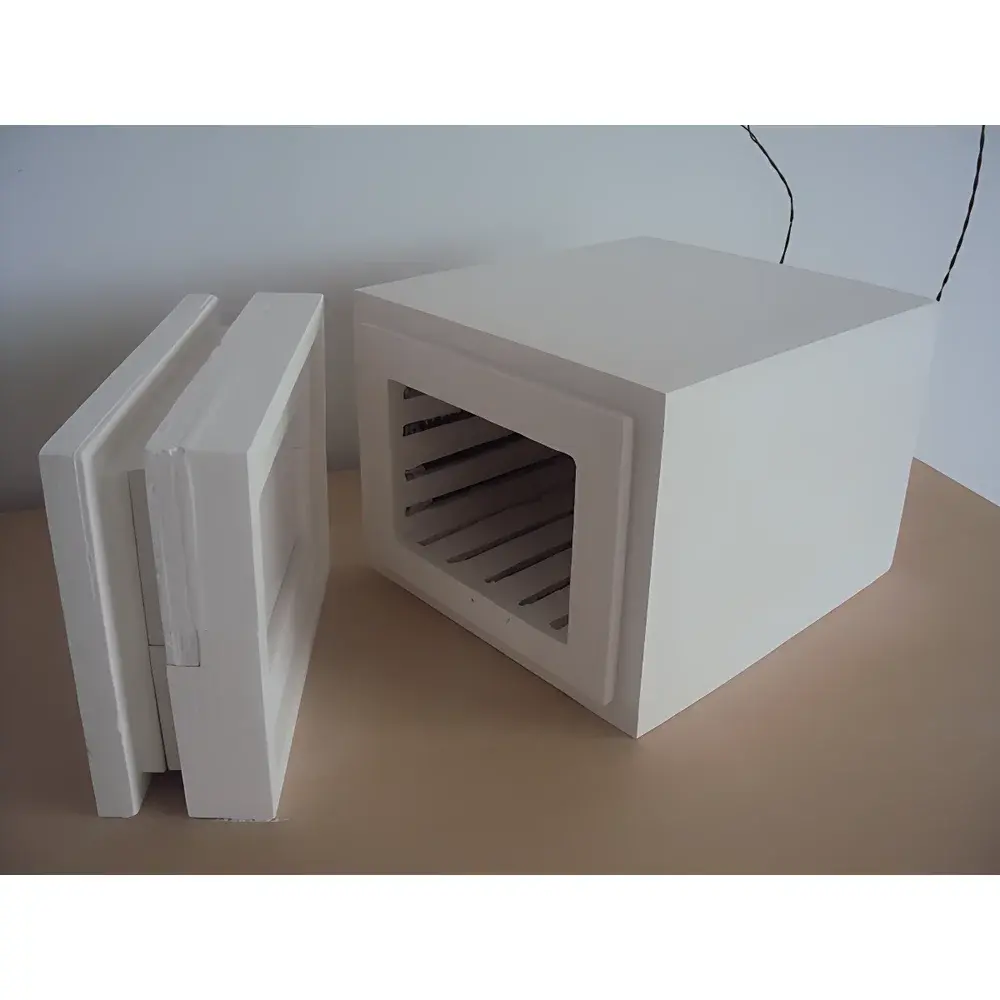

The Zhongke Aobo TL0417 is a high-precision, laboratory-grade box-type muffle furnace engineered for demanding thermal processing applications up to 1700 °C. It operates on the principle of resistive heating via high-purity silicon-molybdenum (SiMo) rods, which provide stable, oxidation-resistant performance in air atmospheres across extended temperature ranges. The furnace employs a double-layer ceramic fiber insulation architecture—comprising low-conductivity alumina-silica modules with optimized density gradients—to minimize radial heat loss and ensure uniform temperature distribution within the chamber (±5 °C at 1600 °C per ASTM E220). Its fully refractory-lined chamber eliminates catalytic interference, making it suitable for ashing, calcination, sintering, and thermal gravimetric pre-treatment where chemical purity and thermal stability are critical. Designed for integration into GLP-compliant laboratories, the TL0417 meets mechanical safety requirements per IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), and supports traceable calibration per ISO/IEC 17025 workflows.

Key Features

• High-temperature capability: Certified continuous operation at 1600 °C, with short-term tolerance to 1700 °C per manufacturer specification.
• Precision temperature control: PID-based intelligent controller with 8–30 programmable segments, ±1 °C accuracy over full range, and 0.5%FS temperature stability (full scale).
• Rapid thermal response: Achieves 100 °C → 1700 °C in ≤90 minutes due to low thermal mass ceramic fiber insulation and efficient SiMo rod geometry.
• Modular heating system: Side-mounted SiMo rods allow tool-free element replacement without disassembling the furnace shell or insulation lining.
• Enhanced safety architecture: Automatic power cutoff upon door opening; surface temperature maintained below 60 °C at ambient conditions (per ISO 13732-1), reducing burn risk during routine operation.
• Flexible ventilation interface: Standard rear-mounted exhaust port (M12 thread) supports optional gas purging (N₂, Ar) or active fume extraction via external ducting.
• Separate controller design: Detachable digital control unit enables benchtop placement, simplifies maintenance, and isolates electronics from thermal stress.

Sample Compatibility & Compliance

The TL0417 accommodates crucibles and boats made from Pt, Al₂O₃, ZrO₂, and high-purity graphite (with appropriate atmosphere control). Its inert ceramic fiber chamber ensures no metallic leaching or catalytic residue—critical for elemental analysis (e.g., ASTM D3174 ash content, ASTM D7582 proximate analysis) and pharmaceutical residual solvent testing (USP ). The furnace complies with key regulatory frameworks: temperature uniformity validation aligns with ASTM E988 (for muffle furnaces); controller firmware supports audit trails and user access levels required under FDA 21 CFR Part 11 for electronic records. Optional RS485 Modbus RTU output enables integration into centralized LIMS environments for automated data logging and SOP enforcement.

Software & Data Management

The embedded controller features a backlit 4.3-inch TFT display with touch-responsive navigation. All temperature programs—including ramp rates, dwell times, and cooling profiles—are stored non-volatile memory with timestamped version history. Data export is supported via USB flash drive (CSV format) containing time-stamped thermocouple readings (Type B, calibrated to NIST-traceable standards), power consumption logs, and event markers (door open/close, alarm triggers). For enterprise deployment, optional PC software provides real-time monitoring, remote parameter adjustment, and PDF report generation compliant with ISO 17025 documentation requirements. Firmware updates maintain alignment with evolving IEC 62443 cybersecurity guidelines for lab instrumentation.

Applications

• Coal and biomass analysis: Determination of ash content (ASTM D3174), volatile matter (ASTM D3175), fixed carbon, and ash fusion temperature (ASTM D1857).
• Environmental testing: Gravimetric analysis of total suspended solids (TSS), total dissolved solids (TDS), and heavy metal residue after acid digestion (EPA Method 3010A).
• Materials science: Pre-sintering of ceramic precursors, annealing of thin-film substrates, and thermal cycling of battery cathode materials (e.g., LiCoO₂, NMC).
• Pharmaceutical QA/QC: Residue-on-ignition (ROI) testing per USP , excipient thermal stability screening, and container closure integrity validation.
• Geochemical research: Fusion bead preparation for XRF analysis (ISO 12846), silicate decomposition, and mineral phase transformation studies.

FAQ

What thermocouple type is used for temperature sensing?
Type B (Platinum/Rhodium 30–6) thermocouples are factory-installed and calibrated to ±0.5 °C at 1600 °C.
Can the furnace operate under inert or reducing atmospheres?
Yes—standard exhaust port allows connection to purge gas manifolds; optional quartz tube insert kits (sold separately) enable controlled-atmosphere operation.
Is the controller compatible with LabVIEW or MATLAB?
Yes—Modbus RTU protocol support enables native integration via standard VISA drivers; sample SCPI command sets are provided in the technical manual.
What maintenance intervals are recommended for SiMo heating elements?
Under continuous use at ≤1600 °C in air, SiMo rods typically exceed 2,000 operational hours before resistance drift exceeds 10%; visual inspection every 500 hours is advised.
Does the furnace include NIST-traceable calibration documentation?
A factory calibration certificate (including as-found/as-left data at 1000 °C, 1300 °C, and 1600 °C) is supplied; on-site recalibration services are available through authorized service partners.
