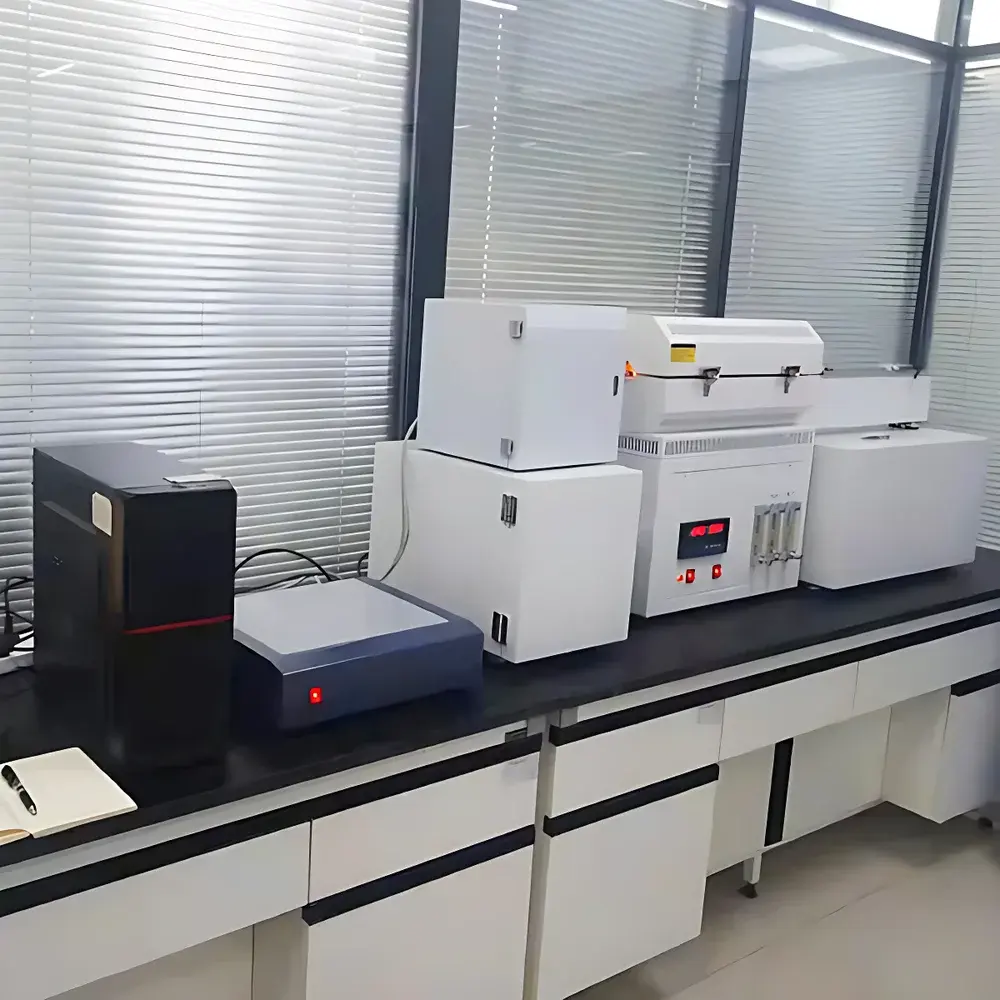

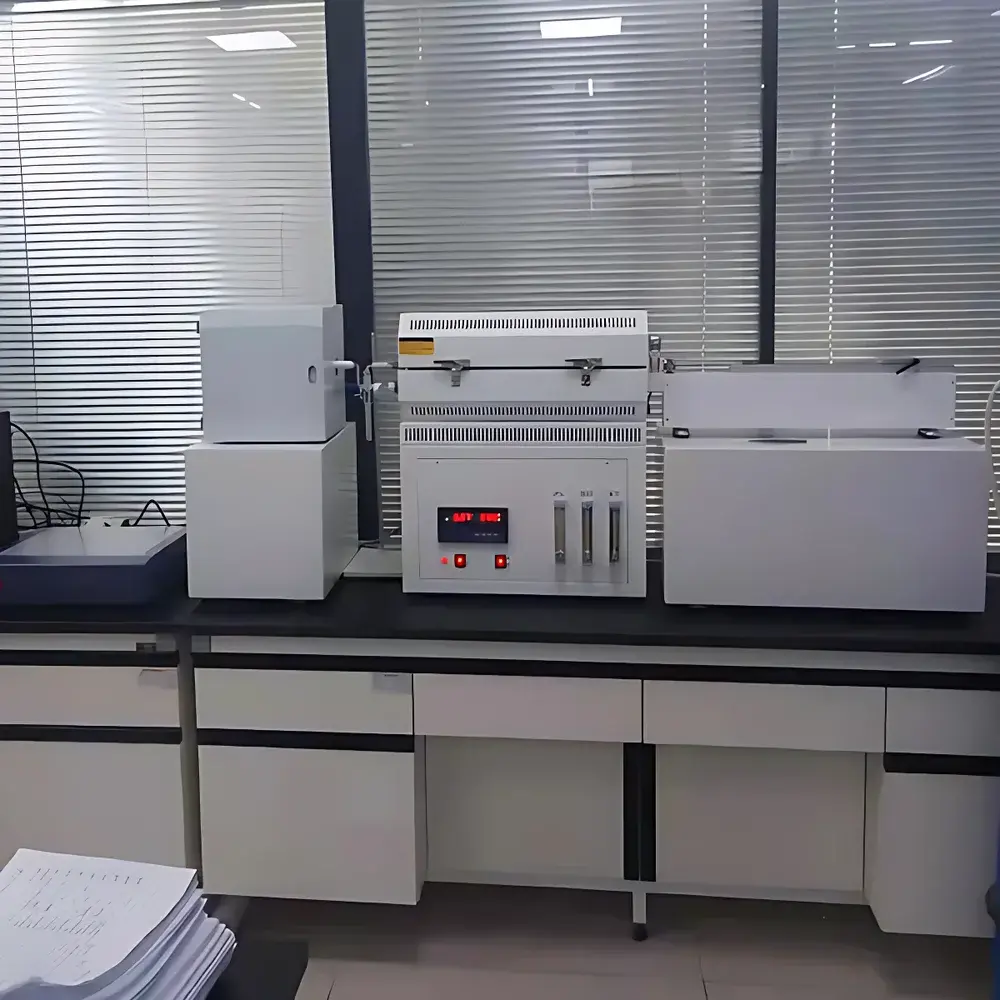

Zhuochi AOX-WK-S Microcoulometric Analyzer for Adsorbable Organic Halogens (AOX) in Water

Overview

The Zhuochi AOX-WK-S Microcoulometric Analyzer is a dedicated instrumental system engineered for the precise quantification of Adsorbable Organic Halogens (AOX) in aqueous environmental matrices—including surface water, wastewater, drinking water, and industrial effluents—according to the Chinese national standard HJ 1214–2021, “Determination of Adsorbable Organic Halogens (AOX) in Water—Microcoulometric Method.” The system operates on the validated combustion–microcoulometric titration principle: water samples are first acidified and passed through activated carbon columns to adsorb organic halogenated compounds; the loaded carbon is then combusted at high temperature (500–1000 °C) in an oxygen-rich quartz furnace, converting all organically bound chlorine, bromine, and iodine into hydrogen halides (HX). These gaseous species are swept into an electrolytic cell where quantitative electrochemical titration occurs via silver ion generation (Ag⁺), and the resulting charge consumption—measured in coulombs—is directly proportional to the total halogen mass. This fundamental coulometric relationship ensures trace-level sensitivity and stoichiometric accuracy without reliance on calibration curves.

Key Features

• Integrated dual-zone combustion furnace with independent gas-flow–controlled temperature regulation (500–1000 °C), enabling precise thermal decomposition while minimizing char formation and incomplete halogen release.
• Dedicated quartz combustion tube optimized for halogen retention and low blank performance, pre-conditioned and certified for AOX analysis.
• Automated sample introduction and ash removal modules reduce operator intervention and improve inter-run consistency.
• High-stability microcoulometric detector with real-time charge integration, digital signal processing, and auto-zero compensation to maintain baseline stability over extended analyses.
• Modular column adsorption unit compatible with standard 100–200 mg activated carbon cartridges; includes flow-controlled elution and drying stages prior to combustion.
• Robust mechanical architecture designed for continuous laboratory operation under ISO/IEC 17025-aligned quality management systems.

Sample Compatibility & Compliance

The AOX-WK-S is validated for use with liquid samples meeting the matrix requirements specified in HJ 1214–2021—including clarified, filtered, or centrifuged waters with turbidity <5 NTU and suspended solids <10 mg/L. It accommodates sample volumes from 10 to 500 mL, supporting both low-concentration environmental monitoring and higher-load industrial discharge testing. While developed for compliance with China’s Ministry of Ecology and Environment (MEE) standard, the underlying combustion–microcoulometric methodology aligns conceptually with international equivalents such as DIN 38409-23 (Germany), ISO 9562 (withdrawn but historically referenced), and EPA Method 1650 (US, discontinued but technically comparable). The system supports GLP documentation workflows and can be configured with audit-trail–enabled software for regulated environments requiring 21 CFR Part 11–compliant data integrity.

Software & Data Management

The embedded control interface provides real-time temperature profiling, combustion gas flow monitoring, coulometric current tracking, and automatic peak integration. Raw charge data (in µC) are converted to AOX concentration (µg/L as Cl) using user-defined calibration factors and sample volume inputs. All measurement parameters, method files, and result logs are stored with time stamps and operator IDs. Export options include CSV and PDF reports compliant with internal QA/QC protocols. Optional PC-based software extends functionality with batch reporting, trend analysis across multi-day campaigns, and electronic signature support for method validation records.

Applications

• Regulatory monitoring of AOX in municipal wastewater treatment plant (WWTP) effluents and receiving waters.
• Process control and discharge verification for pulp and paper mills, chlor-alkali facilities, and pharmaceutical manufacturing sites.
• Method validation and reference laboratory participation in interlaboratory comparison studies (e.g., proficiency testing per ISO/IEC 17043).
• Research into halogenated disinfection byproduct (DBP) formation kinetics during chlorination/chloramination of natural organic matter.
• Supporting environmental impact assessments (EIAs) requiring speciation-agnostic total organic halogen burden quantification.

FAQ

What regulatory standard does the AOX-WK-S strictly comply with?
It is fully aligned with HJ 1214–2021 issued by China’s Ministry of Ecology and Environment, covering instrument specifications, reagent purity, procedural blanks, recovery checks, and quality control criteria.
Can the system analyze brominated or iodinated organics alongside chlorinated compounds?
Yes—the microcoulometric detection responds equivalently to Cl, Br, and I (as AgX precipitates), reporting results as total AOX expressed in µg/L Cl-equivalent.
Is routine maintenance limited to consumables only?
Primary consumables include activated carbon cartridges, quartz combustion tubes, Ag anodes, and electrolyte solution; furnace insulation and detector electrodes exhibit service lifetimes exceeding 2,000 analyses under recommended operating conditions.
How is method blank contamination controlled?
The system incorporates a dedicated blank run sequence with ultra-pure water and pre-baked carbon, and the software flags results exceeding 0.5 µg/L AOX in method blanks—consistent with HJ 1214–2021 acceptance limits.
Does the analyzer support unattended overnight operation?
Yes—equipped with automated sample sequencing, thermal ramp hold functions, and fault-detection logic that pauses analysis upon gas flow deviation or voltage instability, preserving sample integrity and instrument safety.
