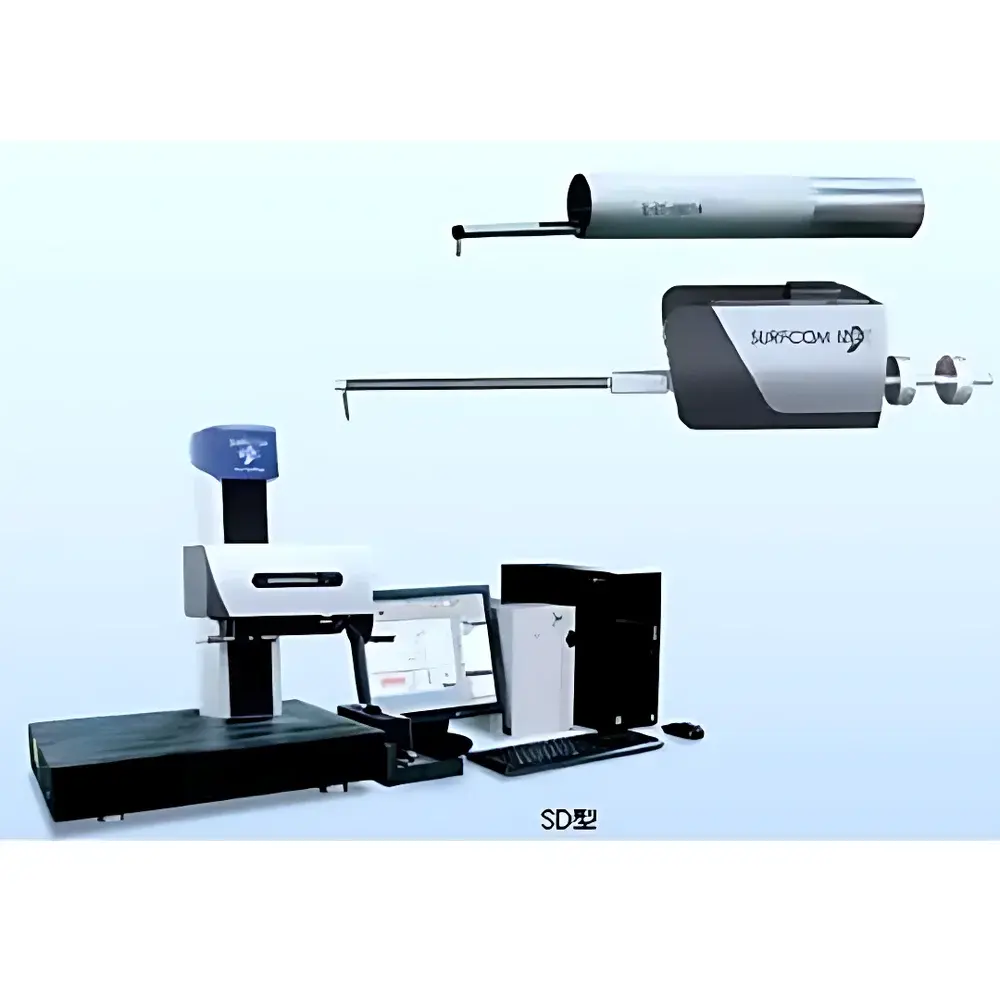

| Brand | Accretech |
|---|---|
| Origin | Japan |
| Model | SURFCOM NEX 031SD |
| Measurement Principle | Stylus-based profilometry |
| Sensor Type | Dual-purpose (contour + roughness) |
| Standard Stylus Force | 0.75 mN |
| Roughness Vertical Range | ±500 µm |
| Drive Mechanism | Linear motor |
| Temperature Compensation | Yes (20 ± 5 °C operational range) |
| Sensor Mounting | V-groove + three-point ball-pin定位 |
| Quick-change Arm | Yes, with collision detection and auto-stop |
| Measurement Orientation | Upward, downward, lateral (via bracket or stylus reorientation) |
| Compliance Ready | Designed for ISO 4287, ISO 4288, ISO 25178-2, JIS B 0601, ASME B46.1, and GLP/GMP-aligned data integrity workflows |

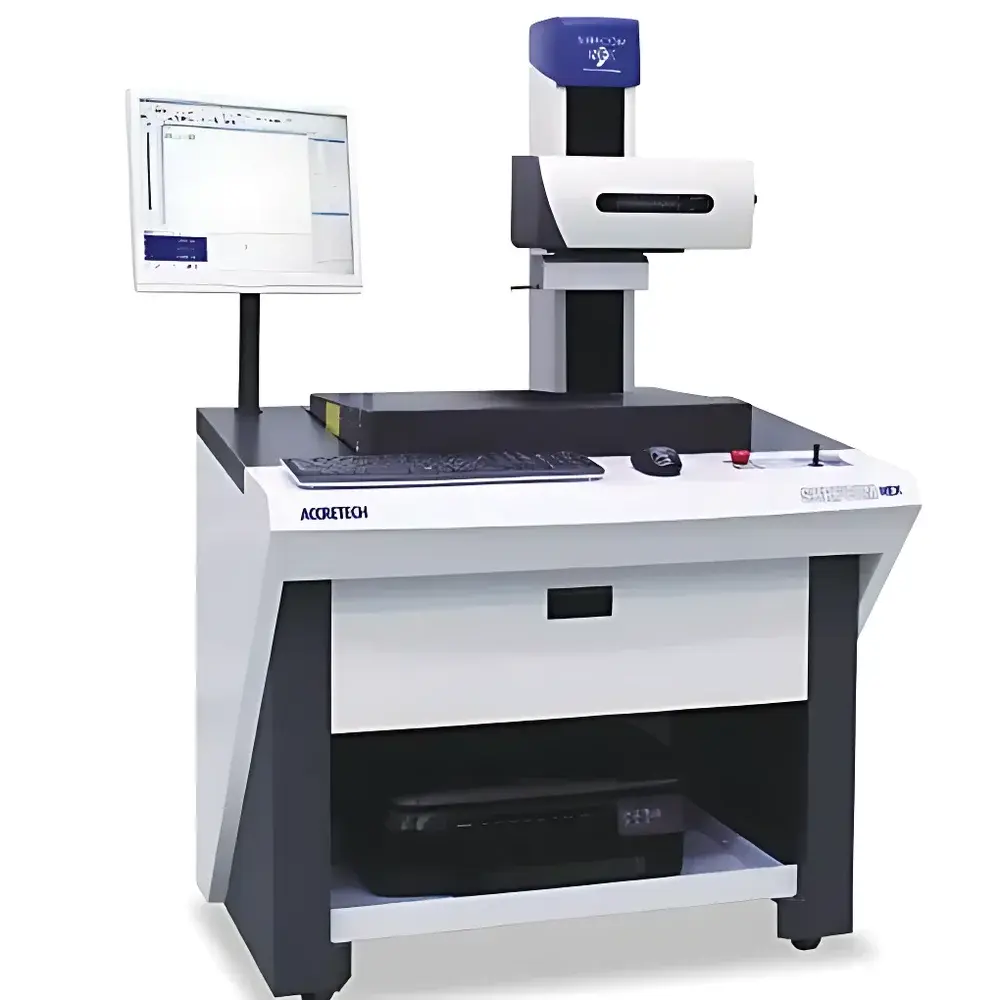

| Brand | ACCRETECH |
|---|---|
| Origin | Japan |
| Model | SURFCOM NEX |
| Type | Contact Profilometer / Surface Roughness Tester |
| Operating Principle | Stylus-Based Profilometry |
| Category | Imported Precision Geometric Measurement Instrument |
| Distributor Status | Authorized General Distributor |
| Price Range | USD 68,000 – 136,000 (FOB Japan) |

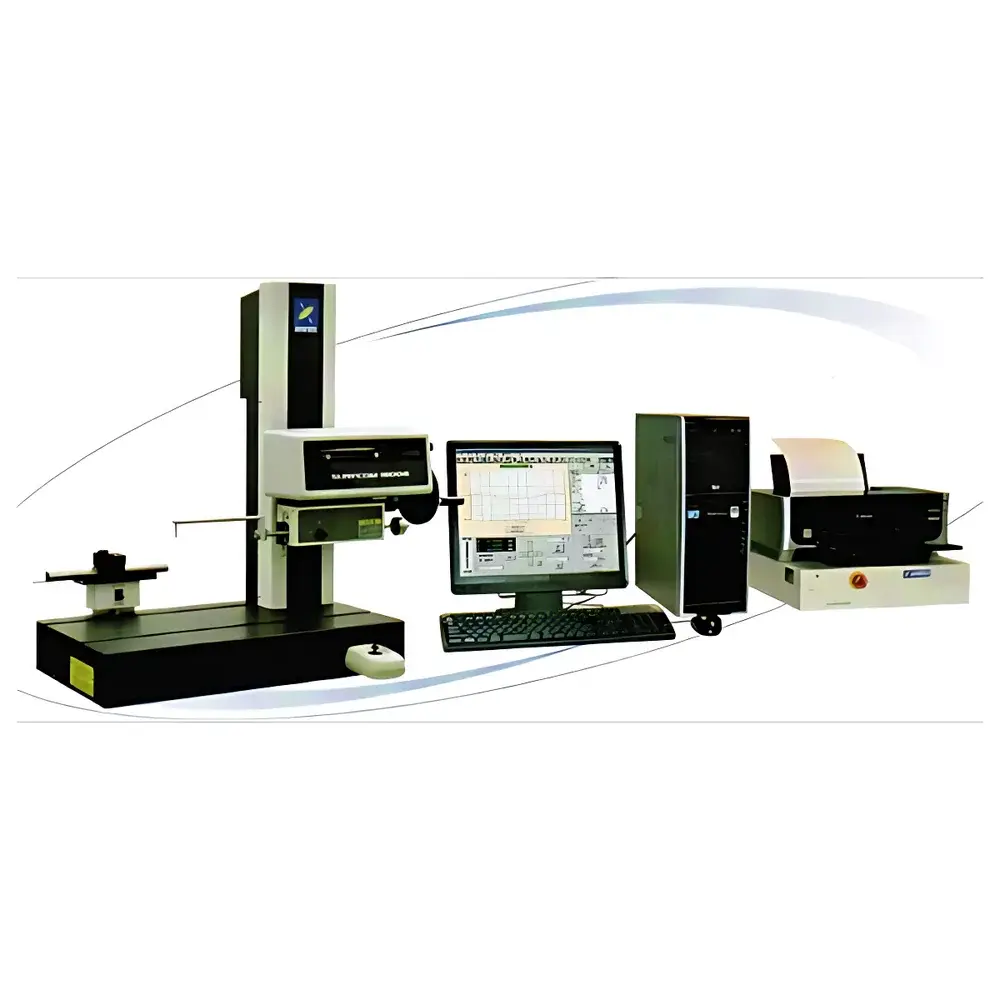

| Brand | Accretech (Tokyo Seimitsu) |
|---|---|
| Origin | Japan |
| Model | SURFCOM 1800G |
| Z-Axis Range | 50 mm |
| X-Axis Range | 100 mm (200 mm optional) |
| Z-Axis Indication Accuracy | ±0.25% FS (±4 µm within 5 mm) |
| Z-Axis Resolution | 0.1 µm (±2.5 mm), 0.4 µm (10 mm), 1 µm (±25 mm) |
| X-Axis Indication Accuracy | ±(1 + 2L/100) µm (L in mm) |
| X-Axis Straightness | (0.05 + 1.5L/1000) mm |
| Measurement Principle | Contact stylus profilometry with Moiré fringe interferometric X-axis positioning and differential voltage displacement sensing on Z-axis |
| Stylus Force | 0.75 mN (standard), ≤30 mN (max) |
| Stylus Tip Radius | 2 µm or 25 µm (interchangeable) |
| Stylus Material | Diamond or superhard alloy |
| Traverse Speeds | 0.03–6 mm/s (8-step programmable) |
| Vertical Column Speed | 3 mm/s |
| Filter Types | 2RC standard, 2RC phase-corrected, Gaussian |
| Cutoff Wavelengths | 0.025–25 mm (7 standard values) |
| Standards Compliance | JIS B 0601:2001/1994/1982, ISO 4287, ISO 13565, DIN 4768, ASME B46.1, CNOMO |
| Roughness Parameters | Ra, Rq, Rv, Rp, Rc, Rz, Rmax, Rt, Rz(JIS), R3z, Sm, S, RDa, RDq, Rla, Rlq, Til, TA, lr, Pc, Rmr, tp2, Rmr2, Rdc, AVH, Hmax, Hmin, AREA, NCRX, R, Rx, AR, NR, CPM, SR, SAR |
| Profile Evaluation | Straightness, flatness, roundness, curvature, slope, angle, radius, distance, coordinate difference, polar coordinate difference, symmetry (point-point, point-circle, line-line, circle-circle, etc.), envelope wave profile, motif analysis (roughness & waviness), load curve, power spectral density (PSD), amplitude distribution |
| Software Functions | Auto-condition setup (patented AI function), CNC measurement sequence recording & playback, automatic feature recognition & dimensioning, shape synthesis, tilt compensation (linear, R-surface, front/rear/both-end, spline), macro programming, peak/valley search, workpiece trajectory mapping, design vs. actual comparison, mirror inversion |
| Brand | Accretech Tokyo Seimitsu |
|---|---|
| Origin | Japan |
| Product Type | Contact Profilometer / Surface Roughness Tester |
| Operating Principle | Stylus-Based Profilometry |
| Model Range | 1600G, S1400G, 1800G |
| Compliance | Designed for ISO 25178, ISO 4287, ISO 4288, and JIS B 0601-compliant surface metrology |
| Brand | Accretech |
|---|---|
| Origin | Japan |
| Model | DM45505 |
| Type | Contact Stylus Probe for Surface Profilometry and Roughness Measurement |
| Compliance | Designed for ISO 25178, ISO 4287, ASME B46.1, and JIS B 0601-compliant profilometric systems |
| Mounting Interface | Standard 8-32 UNC threaded shank (compatible with Accretech SJ-410/SJ-510/SJ-610 series, Formtracer series, and other OEM profilometers) |
| Tip Geometry | Spherical diamond tip, nominal radius 2 µm or 5 µm (standard variant), 90° included angle conical backup geometry |
| Shank Diameter | 3.0 mm |
| Total Length | 25 mm |
| Maximum Tracking Force | ≤ 1.5 mN (adjustable via instrument feedback loop) |
| Material | High-purity synthetic diamond tip bonded to hardened stainless steel shank |

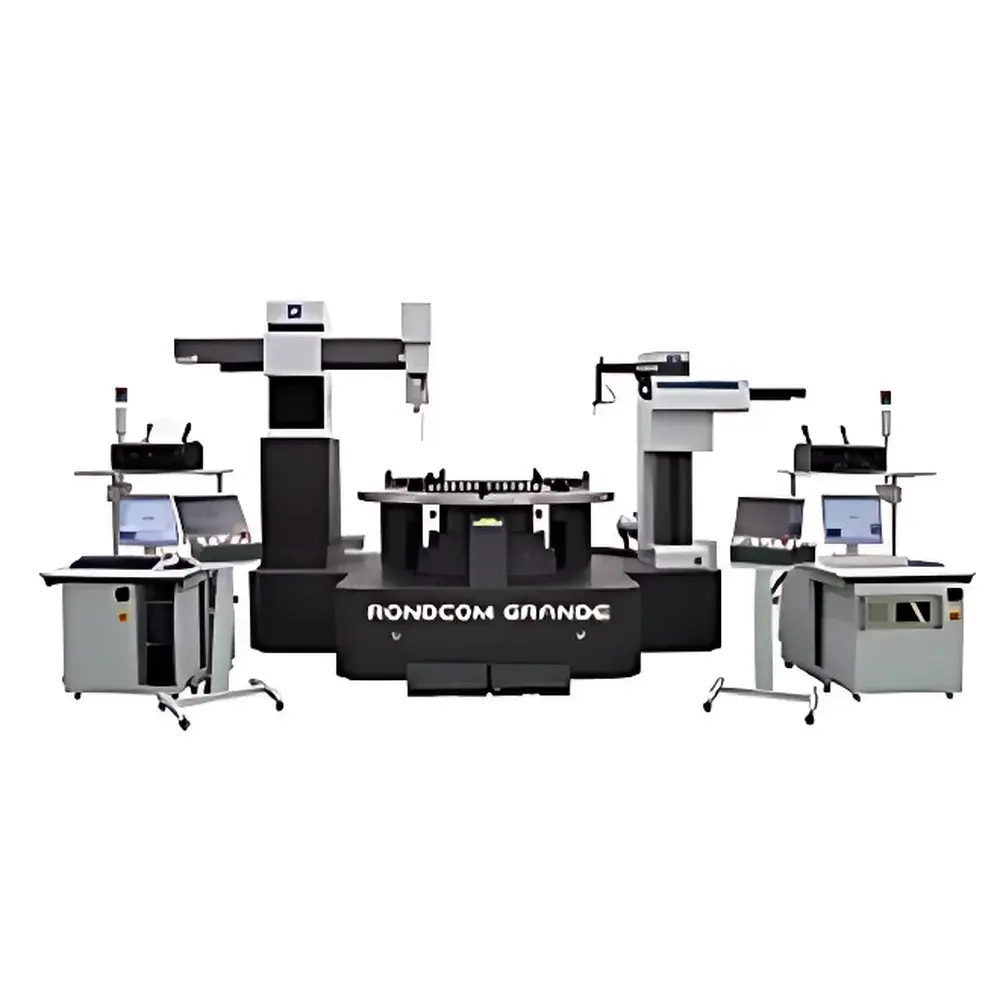

| Brand | Accretech |
|---|---|
| Origin | Japan |
| Type | Contact Profilometer / Roughness Tester |
| Model | Rondcom GRANDE DUO / GRANDE |
| Bearing Type | High-Precision Air Bearing |
| R-Axis Flexibility | Adjustable Radial Traverse for Small-to-Large Diameter Components |
| Application Focus | Roundness, Cylindricity, Surface Roughness, and Form Error Measurement of Large-Heavy Industrial Parts |
