Rheometer and Viscometer Components and Peripherals
Filter
Showing 31–39 of 39 results
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Model | iVisc (LMV 830) |
| Temperature Range | −20 to 150 °C |
| Viscosity Range | 0.3 to 30,000 mm²/s |
| Timing Resolution | 10 ms |
| Detection Method | Optical (Near-Infrared) |
| Power Consumption | 1 W (USB-powered) |
| Dimensions (W × D × H) | 95 × 96 × 425 mm |
| Net Weight | 1.4 kg |
| Operating System Compatibility | Windows 7–11 |
| Max. Simultaneous Units per PC | 2 |
| Recommended Flow Time | 30–1000 s |
| Sample Temperature Accuracy | ±0.01 °C (when used with LAUDA thermostats) |
| Brand | LAUDA |
|---|---|
| Origin | Germany |
| Type | Calibrated Capillary Viscometer Set (Ubbelohde Type 1, Dilution Ubbelohde, Micro-Ubbelohde, Cannon-Fenske Routine, Micro-Ostwald) |
| Compliance | ISO 3105, DIN 51562, ASTM D2515, BS 188, NFT 60-100 |
| Capillary Constants | 0.003–30.0 mm²/s per division |
| Viscosity Range | 0.7–7576 mm²/s (cSt) |
| Accuracy | ±0.2% (Ubbelohde & Dilution), ±0.3% (Cannon-Fenske), ±0.5% (Micro variants) |
| Volumes | 2–75 mL |
| Total Lengths | ~245–290 mm |
| Optional Integration | LAUDA VRM Automatic Cleaning Module, LAUDA Transparent Thermostats (e.g., Alpha Series), LAUDA Viscosity Measurement Systems |
| Brand | SRD |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | PY-1 |
| Pricing | Available Upon Request |

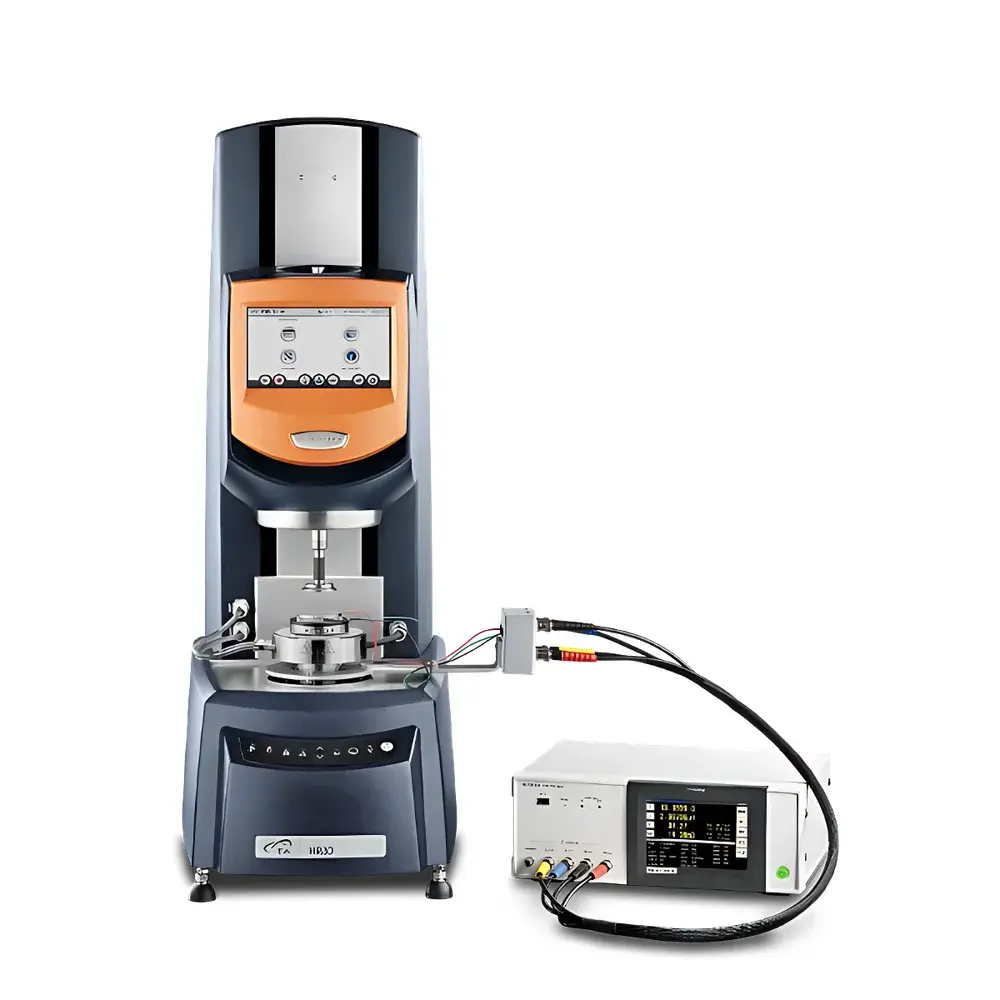

| Brand | TA Instruments |
|---|---|
| Origin | USA |
| Model | Rheo-IS |
| Application | In-situ rheo-electrochemical coupling for complex fluids |
| Compatibility | Designed exclusively for TA Instruments Discovery HR Hybrid Rheometers |
| Measurement Mode | Simultaneous dynamic oscillatory rheology and electrochemical impedance spectroscopy (EIS) |
| Operating Frequency Range (EIS) | 10 mHz – 10 MHz |
| Electrode Configuration | Integrated parallel-plate or cone-and-plate dual-function geometry with embedded platinum or stainless-steel working/counter electrodes |
| Temperature Control | Compatible with TA’s Peltier and environmental chamber systems (−40 °C to 200 °C) |
| Data Synchronization | Hardware-triggered, sub-millisecond time alignment between rheological and impedance data streams |
| Brand | Techcomp |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic (China-made) |
| Model | SNB-E Portable Digital Rotational Viscometer |
| Pricing | Available Upon Request |
| Display | Large Backlit LCD (Dual-Language: English/Chinese) |
| Temperature Range | –50 °C to 99 °C (with optional semiconductor temperature probe) |
| Viscosity Range | 0.1–6×10⁶ mPa·s (with standard and optional “0” spindle) |
| Interface | RS232 serial port |
| Power Supply | External AC adapter |
| Compliance | GLP/GMP-ready with real-time clock and audit-trail-capable data logging |
| Brand | Techne |
|---|---|
| Origin | United Kingdom |
| Model | GT-5 (1 rpm), GT-6 (10 rpm) |
| Timer Resolution | 1 min (GT-5) or 0.1 min (GT-6) |
| Maximum Timing Duration | 9999 min (GT-5) / 999.9 min (GT-6) |
| Drive Speed | 1 rpm (GT-5), 10 rpm (GT-6) |
| Detection Method | Mechanical gel-point endpoint via plunger immobilization |
| Compliance | Fully compliant with BS EN ISO 2535, ASTM D2471, and BS 2782-5 for gel time determination |
| Warranty | 3-year limited warranty including factory calibration certificate |
| Sample Holder Compatibility | Standard 22 mm, 19 mm, and 16 mm stainless-steel plungers |
| Mounting | Compatible with standard distillation flask stands (e.g., Claisen or Graham condenser supports) |
| Brand | Techne |
|---|---|
| Origin | United Kingdom |
| Model | GT-5 / GT-6 |
| Category | Rheometer/Viscometer Peripheral Service Offering |
| Compliance | ASTM D4287, ISO 1133-2 (gelation timing reference), USP <724> (for hydrogel formation kinetics) |
| Service Scope | Calibration, Repair, Legacy Unit Support |
| Brand | TQC |
|---|---|
| Origin | Netherlands |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Sheen Efflux Cup |
| Pricing | Upon Request |
| Brand | TQC |
|---|---|
| Origin | Netherlands |
| Model | VF2020 |
| Material | Anodized Aluminum Body with Stainless Steel Orifice Holder |
| Orifice Diameter Options | 1–7 mm (VF2181–VF2027), 4 mm Orifice Complies Fully with DIN 53211 |
| Capacity | 100 mL |
| Weight | 226 g |
| Max Width | 84 mm |
| Height | 74 mm |
| Compliance | DIN 53211 (4 mm orifice), ASTM D1200 (approximate equivalence), ISO 2431 (methodological alignment) |
| Calibration Recommendation | Annual traceable calibration recommended |
| Accessories Available | Leveling stands (VF2061, VF2062), temperature controllers (VF1982, VF2067), certified stopwatch (DI0076), viscosity conversion chart (VF2053) |
