| Brand | Tinius Olsen |
|---|---|
| Origin | United Kingdom |
| Model | ST Series |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity Range | 1 kN to 300 kN (0.2%–100% load cell accuracy) |
| Crosshead Speed Range | 0.001–1000 mm/min (model-dependent) |
| Load Cell Accuracy | ±0.2% of reading from 0.2% to 100% of capacity |
| Sampling Rate | Up to 2.73 kHz per channel (software-limited to 1 kHz via USB 2.0) |
| Compliance | ASTM E4, ASTM E8/E8M, ISO 7500-1, ISO 527, ISO 6892-1, EN 10002-1, USP <1041>, FDA 21 CFR Part 11 (audit trail & electronic signature enabled) |
| Brand | Tinius Olsen |
|---|---|
| Origin | USA |
| Model | SL Series |
| Load Capacity Range | 150 kN – 3000 kN |
| Accuracy | ±0.1% of indicated load (0.2–100% full scale) |
| Compliance | ASTM E4, ASTM E8/E21, ISO 7500-1, ISO 6892-1, GB/T 228.1 |
| Calibration Traceability | NIST-traceable |
| Frame Architecture | Four-column, dual-pressure hydraulic loading system |
| Control Options | ProTerm wired controller, HMC handheld Bluetooth controller, PC-based virtual controller |
| Software | Horizon Materials Testing Software |
| Frame Configurations | Fully enclosed, semi-open front, fully open front, adjustable or fixed crosshead |
| Optional Accessories | Extended columns & lead screws (up to +914 mm), environmental chambers (–185 °C to 1200 °C), hydraulic wedge grips, T-slot test tables, high-temperature furnaces, custom tooling kits |

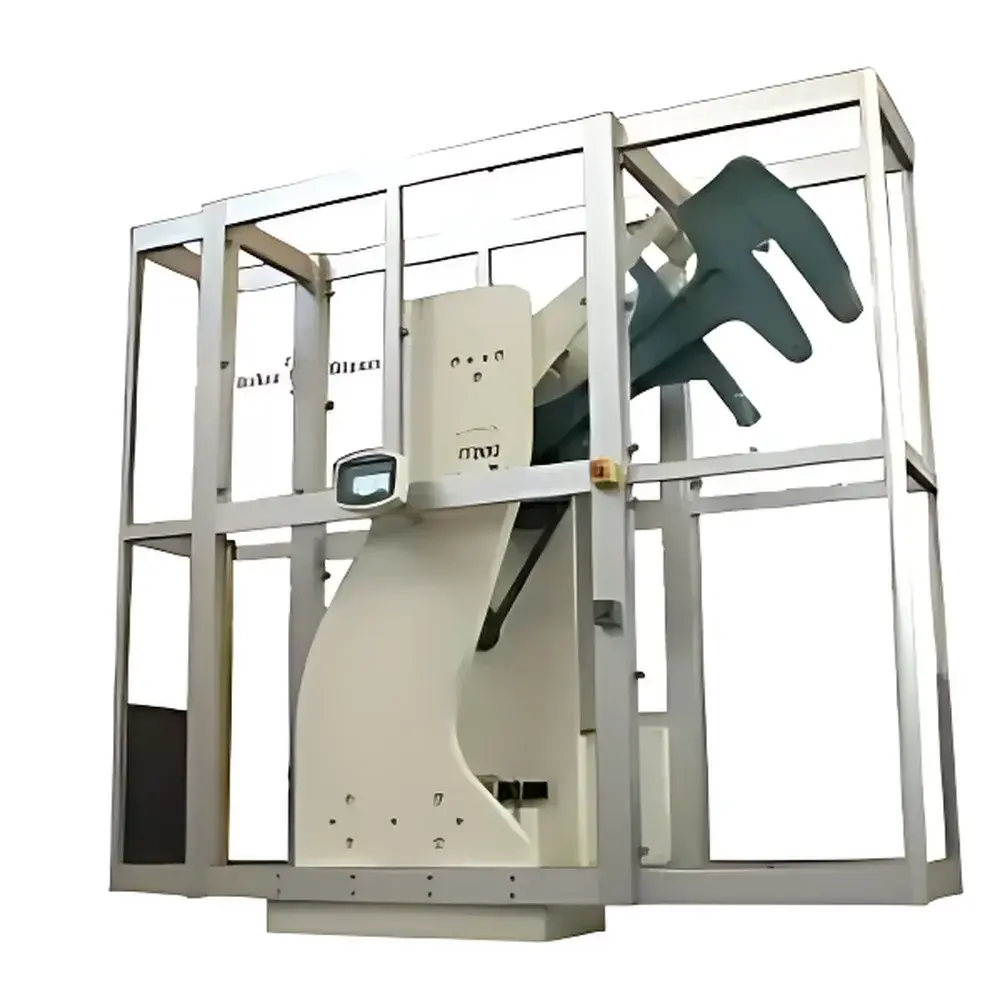

| Brand | Tinius Olsen |
|---|---|
| Model | IT406 / IT542 |
| Origin | USA |
| Impact Energy | 406 J / 542 J |
| Impact Velocity | 5.5 m/s |
| Maximum Lifting Height | 1.5 m |
| Compliance | ASTM E23, ISO 148-1, EN 10045-2 |
| Instrument Type | Pendulum Impact Tester |
| Sample Support Options | Charpy (simply supported beam), Izod (cantilever beam), Tensile Impact |
| Safety Features | Interlocked guarding, mechanical safety latch, optional electronic brake and auto-return system |
| Display Options | Analog scale (ft·lbf, J, kg·m) + optional digital readout |
