| Brand | Olympus |
|---|---|
| Origin | Japan |
| Model | EPOCH 600 |
| Instrument Type | Digital |
| Inspection Method | Pulse-Echo |
| Waveform | Pulsed Ultrasonic |
| Compliance | EN12668-1 |
| Weight | 1.68 kg |
| Display | Full VGA (640 × 480), Transflective LCD |
| PRF | 10–2000 Hz |
| Pulse Voltage | 100–400 V |
| Pulse Width | 25–5000 ns (adjustable via PerfectSquare™) |
| Receiver Bandwidth | 0.2–26.5 MHz |
| Digital Filters | 8 standard settings |
| Battery Life | ≥12 h (Li-ion) |
| IP Rating | IP66 (rotary encoder config) / IP67 (keypad config) |
| Operating Temperature | –10 °C to +50 °C |
| Data Storage | 50,000 onboard IDs + 2 GB microSD card |
| Interface | USB OTG, RS-232, VGA output, optional analog output |
| Brand | Olympus |
|---|---|
| Origin | Japan |

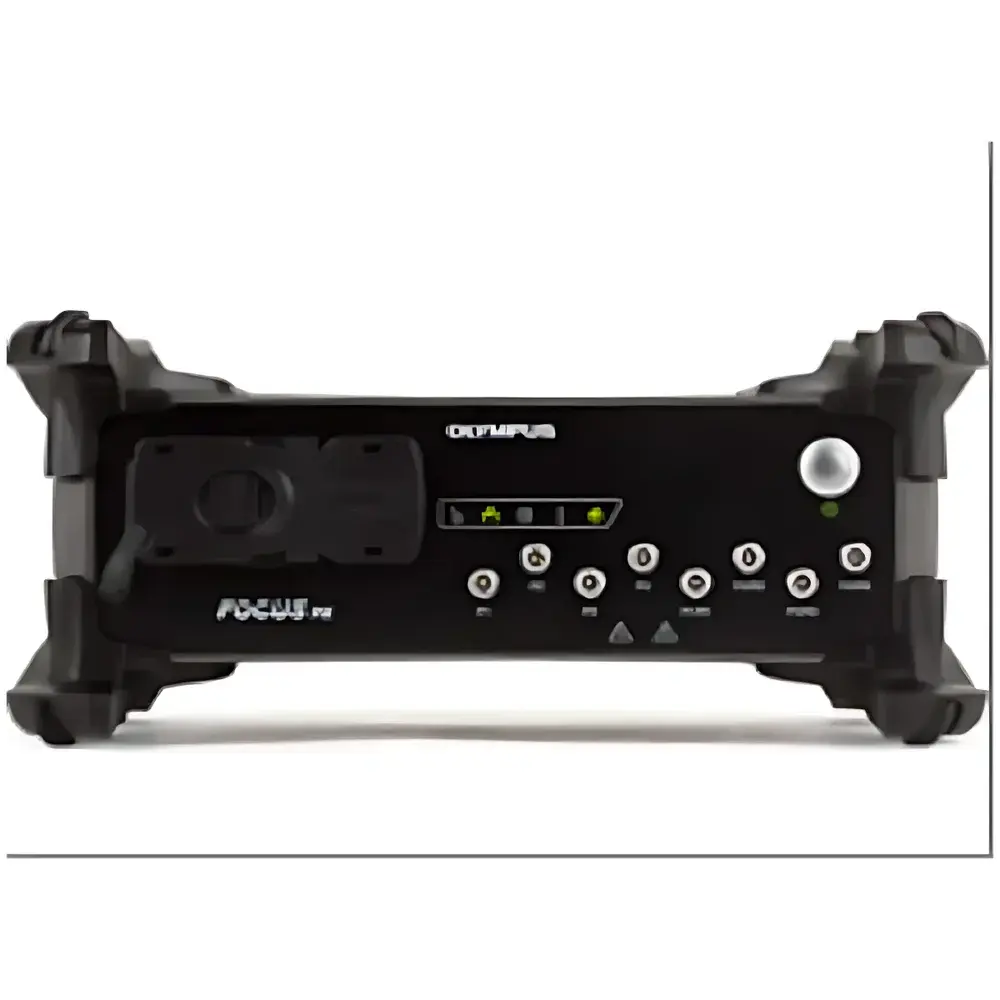

| Model | FOCUS PX / PC / SDK |
| Phased Array Channels | 16:64PR, 16:128PR, 32:128PR |
| Conventional UT Channels | 4 dedicated |
| Max Simultaneous Units | 4 |
| Data Throughput | up to 60 MB/s (4 units) |
| A-scan Rate | up to 20,000 @ 12-bit resolution (750 points/A-scan) |
| Pulse Voltage Range | PA: 4–115 V |
| UT | 50–190 V |
| Gain | PA: 80 dB (46 dB analog + 34 dB digital) |
| UT | 120 dB digital |
| Pulse Width | PA: 30–500 ns (2.5 ns step) |
| UT | 30–1000 ns (2.5 ns step) |
| Bandwidth (−3 dB) | PA: 0.6–17.8 MHz |
| UT | 0.25–28 MHz |
| Beam Count | up to 1024 |
| PRF | 1 Hz–20 kHz |
| Real-time Averaging | PA: 1–16 |
| UT | 1–64 |
| Gate Count | 4 detection + 1 encoder sync |
| Enclosure Rating | IP65 |
| Operating Temperature | up to 40 °C |
| Dimensions (with housing) | 30.7 × 13.5 × 23.6 cm |
| Weight (with housing) | 4.8 kg |
| Brand | Olympus |
|---|---|
| Origin | Japan |
| Model | EPOCH 6LS |
| Instrument Type | Digital |
| Inspection Method | Pulse-Echo |
| Waveform Type | Pulsed Ultrasonic |
| Compliance Standard | NB/T 47013.3–2015 |
| IP Rating | IP65/IP67 |
| Operating Temperature | –10 °C to 50 °C |
| Weight | 890 g (with Li-ion battery) |
| Display | Full VGA (640 × 480), Transflective Color LCD |
| Battery Life | Up to 6 hours |
| PRF Range | 10–2000 Hz |
| Pulse Voltage | Up to 400 V |
| Receiver Bandwidth | DC–26.5 MHz (–3 dB) |
| Digital Filters | 8 preset configurations |
| Gate Count | 2 independent measurement gates |
| DAC Points | Up to 50, 110 dB dynamic range |
| Data Storage | 100,000 waveforms with ID tags |
| Interface | Dual USB (Host + Client), Digital Video Output |
| Brand | Olympus |
|---|---|
| Origin | Japan |
| Model | EPOCH 6LT |
| Instrument Type | Digital |
| Inspection Method | Pulse-Echo |
| Waveform | Pulsed Ultrasonic |
| Compliance | EN 12668-1:2010 |
| Environmental Rating | IP65/IP67 |
| Weight | 890 g |
| Display | Full VGA (640 × 480) Transflective Color LCD |
| Battery Life | Up to 6 hours |
| Operating Temperature | –10 °C to 50 °C |
| PRF Range | 10–2000 Hz |
| Pulse Voltage | 100–400 V |
| Receiver Bandwidth | DC–26.5 MHz (standard), 0.2–26.5 MHz (EN-compliant) |
| Digital Filters | 8 standard settings |
| Data Storage | 100,000 IDs |
| Connectivity | USB 1.1 host, USB 2.0 client, optional Wi-Fi module |
| Software Compatibility | GageView Pro, Olympus Scientific Cloud |
| Brand | Olympus |
|---|---|
| Origin | Japan |

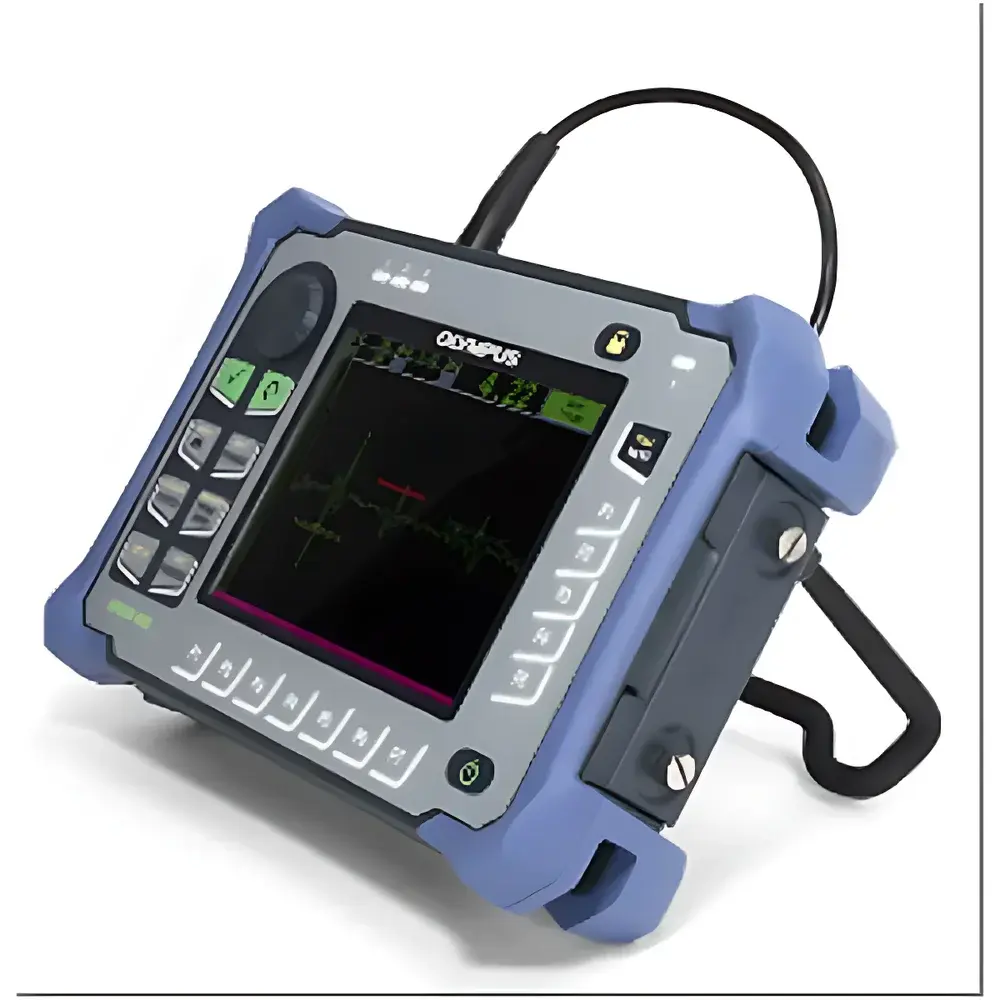

| Model | EPOCH 650 |
| Instrument Type | Digital |
| Inspection Method | Pulse-Echo |
| Waveform Type | Pulsed Ultrasound |
| Compliance | EN 12668-1:2010 |
| IP Rating | IP66 (rotary knob), IP67 (keypad) |
| Operating Temperature | –10 °C to 50 °C |
| Weight | 1.6 kg (with Li-ion battery) |
| Display | Full VGA (640 × 480) transflective color LCD |
| Battery Life | >15 hours |
| PRF | 10–2000 Hz |
| Pulse Energy | 100–400 V |
| Pulse Width | 25 ns–5000 ns (PerfectSquare™) |
| Receiver Bandwidth | 0.2–26.5 MHz |
| Digital Filters | 30 standard, including 7 EN-compliant |
| Gain Range | 0–110 dB |
| Dynamic Range | 110 dB (DAC) |
| A-Scan Memory | 100,000 encoded records |
| Storage | Standard 2 GB microSD card |
| Interfaces | USB OTG, VGA, RS-232, analog output (optional), digital I/O, encoder input |
| Probe Connectors | Two BNC or LEMO No.1 |
| Certifications | MIL-STD-810F (shock/vibration/explosion-proof), NFPA 70 Class I, Div. 2, Group D |
