| Brand | Anyan Instruments |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AYAN-50LB |
| Nitrogen Production Principle | Pressure Swing Adsorption (PSA) with Carbon Molecular Sieve (CMS) |
| Output Flow Rate | 50 L/min |
| Output Pressure | 0–0.6 MPa (Factory Set at 0.5 MPa) |
| Nitrogen Purity | 99% |
| Dew Point | −40 °C |
| Power Supply | 220 V ±10%, 50 Hz ±5% |
| Power Consumption | 3200 W |
| Noise Level | ≤65 dB(A) |
| Ambient Operating Conditions | 10–40 °C, RH ≤85%, non-corrosive, low-dust environment |
| Dimensions (W×D×H) | 1200 × 900 × 1400 mm |
| Weight | 220 kg |
| Compliance | Designed per ISO 8573-1:2010 Class 2.2.2 for compressed air quality |
| Brand | Anyan Instruments |
|---|---|
| Origin | Zhejiang, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | AYAN-40LB |
| Nitrogen Generation Principle | Pressure Swing Adsorption (PSA) using Carbon Molecular Sieve (CMS) |
| Output Flow Rate | 40 L/min |
| Output Pressure | 0–0.6 MPa (factory-set at 0.5 MPa) |
| Nitrogen Purity | 99% |
| Dew Point | −40 °C |
| Power Supply | 220 V ±10%, 50 Hz ±5% |
| Power Consumption | 2800 W |
| Noise Level | ≤65 dB(A) |
| Ambient Temperature Range | 10–40 °C |
| Relative Humidity | ≤85% RH (non-condensing) |
| Dimensions (W×D×H) | 1200 × 900 × 1400 mm |
| Weight | 180 kg |
| Air Intake Requirement | Integrated oil-lubricated air compressor, refrigerated dryer, and multi-stage filtration system (coalescing, activated carbon, ultra-fine) |
| Onboard Monitoring | Real-time nitrogen purity analyzer (electrochemical O₂ sensor), digital flow meter, pressure gauges on inlet, adsorption tower, and output lines |
| Structural Features | Castor-mounted chassis with locking brakes, integrated nitrogen buffer tank, CMS bed stabilization mechanism (pneumatic cylinder-based compaction), dual-tower PSA architecture with automatic valve sequencing |
| Brand | Anyan Instruments |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-30LB |
| Nitrogen Generation Principle | Pressure Swing Adsorption (PSA) using Carbon Molecular Sieve (CMS) |
| Output Flow Rate | 0–30 L/min |
| Output Pressure | 0–0.6 MPa (factory-set at 0.5 MPa) |
| Nitrogen Purity | 99% (selectable up to 99.9999%) |
| Oxygen Content | ≤0.01% |
| Dew Point | −40 °C |
| Power Supply | 220 V ±10%, 50 Hz ±5% |
| Power Consumption | 3500 W |
| Noise Level | ≤65 dB(A) |
| Ambient Operating Conditions | 10–40 °C, RH ≤85%, non-corrosive, low-dust environment |
| Dimensions (W×D×H) | 1400 × 1100 × 1400 mm |
| Weight | 260 kg |
| [Brand | Anyan Instruments |
|---|---|
| Origin | Shanghai, China |
| Model | AYAN-60LB |
| Output Flow Rate | 0–60 L/min |
| Output Pressure | 0–0.7 MPa (factory-set at 0.5 MPa) |
| Nitrogen Purity | 99.9% (configurable up to 99.999%) |
| Oxygen Content | ≤1000 ppm |
| Dew Point | –40 °C |
| Power Supply | 220 V ±10%, 50 Hz ±5% |
| Power Consumption | 3600 W |
| Ambient Operating Temperature | 10–40 °C |
| Relative Humidity | ≤85% RH (non-condensing) |
| Dimensions (W×D×H) | 1300 × 900 × 1400 mm |
| Weight | 260 kg |
| Noise Level | ≤65 dB(A) |
| Compliance | CE-marked design principles |
| compatible with ISO 8573-1 Class 2 | 2:2 compressed air input] |

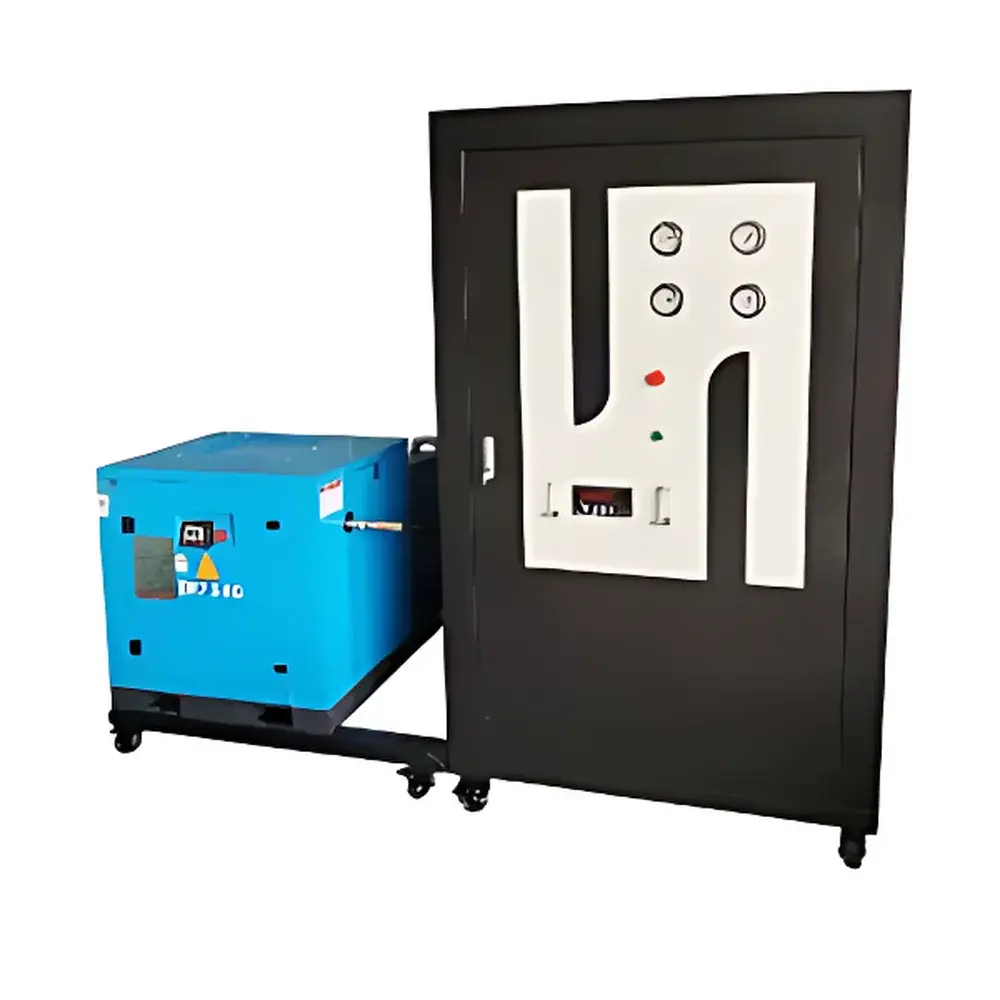

| Brand | Anyan Instruments |
|---|---|
| Origin | Zhejiang, China |
| Model | AYAN-70LB |
| Nitrogen Generation Principle | Carbon Molecular Sieve (CMS) based PSA Technology |
| Output Flow Rate | 0–70 L/min |
| Output Pressure | 0–0.7 MPa |
| Nitrogen Purity | 99%–99.999% |
| Dew Point | −40 °C |
| Power Supply | 380 V ±10%, 50 Hz ±5% |
| Power Consumption | 4.5 kW |
| Noise Level | ≤65 dB(A) |
| Ambient Operating Temperature | −10 °C to 40 °C |
| Relative Humidity | ≤85% RH (non-condensing) |
| Dimensions (W×D×H) | 1300 × 950 × 1200 mm |
| Weight | 380 kg |
