| Brand | HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HS-CJ-500B |
| Price Range | USD 28,000 – 70,000 (FOB Shanghai) |
| High-Temperature Zone Range | RT+10°C to +200°C |
| Low-Temperature Zone Range | −10°C to −65°C (B-type configuration) |
| Thermal Shock Temperature Range | +60°C to −55°C |
| Temperature Stability | ±0.5°C |
| Temperature Uniformity | ±2.0°C |
| Heating Rate | ≤30 min (RT to +200°C) |
| Cooling Rate | ≤55 min (+25°C to −65°C) |
| Door Switching Time | ≤10 s |
| Temperature Recovery Time | ≤5 min |
| Controller Resolution | 0.1°C (temperature), 0.01°C (display) |
| Power Supply | AC 380 V ±10%, 50 ±0.5 Hz, 3-phase 4-wire + PE |

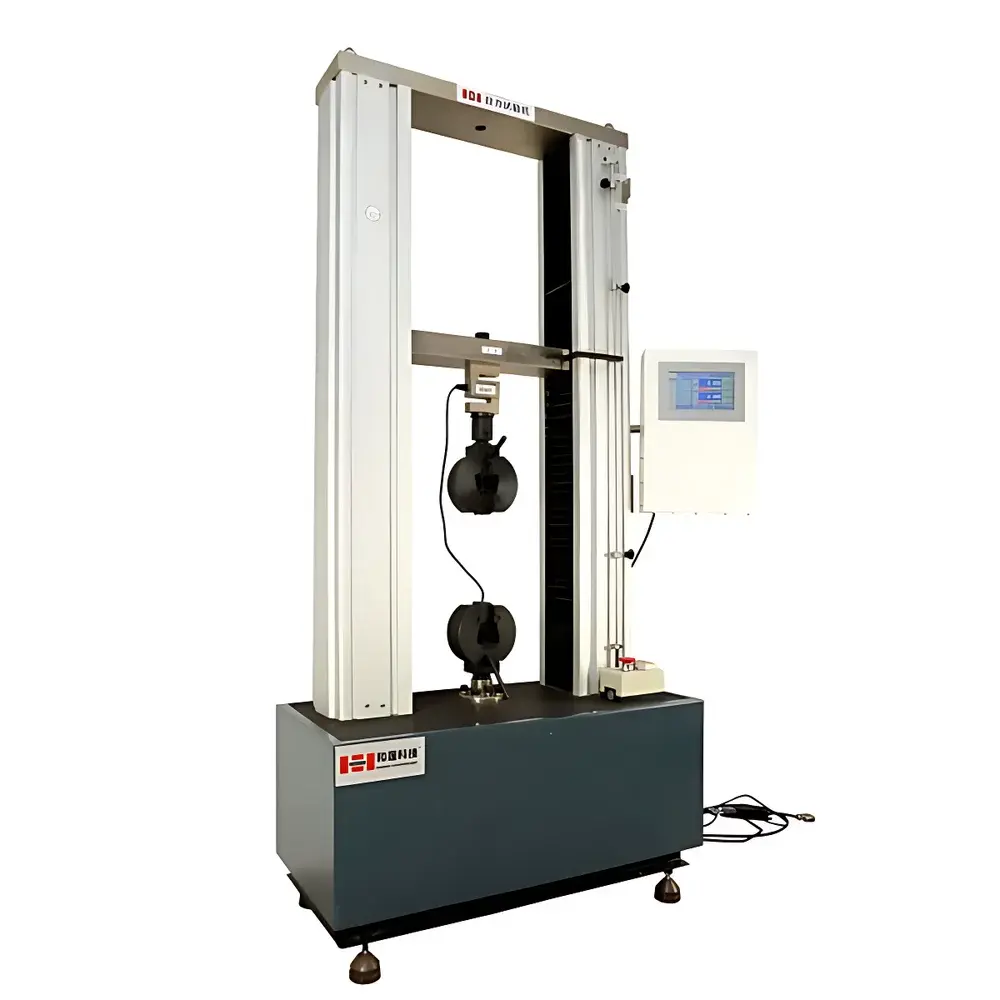

| Brand | HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HS-3002C-S (300 kN Bolt Pull-Out & Universal Testing Machine) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Load Capacity | 300 kN |
| Effective Test Height | 800 mm |
| Force Units | gf, kgf, N, kN, lbf, MPa |
| Force Sensor | Transcell (USA), 300 kN |
| Drive System | Panasonic AC Servo Motor & Controller (Japan) |
| Force Resolution | ±1/500,000 |
| Force Measurement Range | 0.4–100% FS |
| Force Accuracy | ±0.5% of reading |
| Displacement Resolution | 0.05 mm |
| Displacement Accuracy | ±0.5% of reading |
| Strain Resolution | ±1/300,000 FS |
| Strain Measurement Range | 0.2–100% FS |
| Strain Accuracy | ±0.5% of reading |
| Speed Range | 0.001–100 mm/min (stepless, segmented control) |
| Speed Accuracy | ±1% (<0.01 mm/min) |
| Force Rate Control Range | 0.5–6% FS/s |
| Force Rate Accuracy | ±1% of set value |
| Strain Rate Control Range | 0.2–6% FS/s |
| Strain Rate Accuracy | ±1% (<0.05% FS/s) |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (W×D×H) | ~800 × 400 × 1800 mm |
| Weight | ~300 kg |
| Software | Integrated bilingual (English/Chinese) test software with real-time curve plotting, report generation, and audit-ready data export |
| Brand | HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | DSC |
| Sample Capacity | Single-sample |
| Temperature Range | Ambient to 600 °C |
| Temperature Accuracy | ±0.1 °C |
| Heating/Cooling Rate | 0.1–100 °C/min |
| DSC Signal Range | 0–±600 mW |
| Temperature Stability | ±0.1 °C |
| Temperature Resolution | 0.01 °C |
| DSC Resolution & Sensitivity | 0.001 mW |
| Atmosphere Control | Dual-gas auto-switching (N₂/O₂), Flow Range: 0–300 mL/min |
| Calibration Standards Included | Indium, Tin, Lead |
| Compliance | GB/T 41873–2022, GB/T 19466.3–2004 |

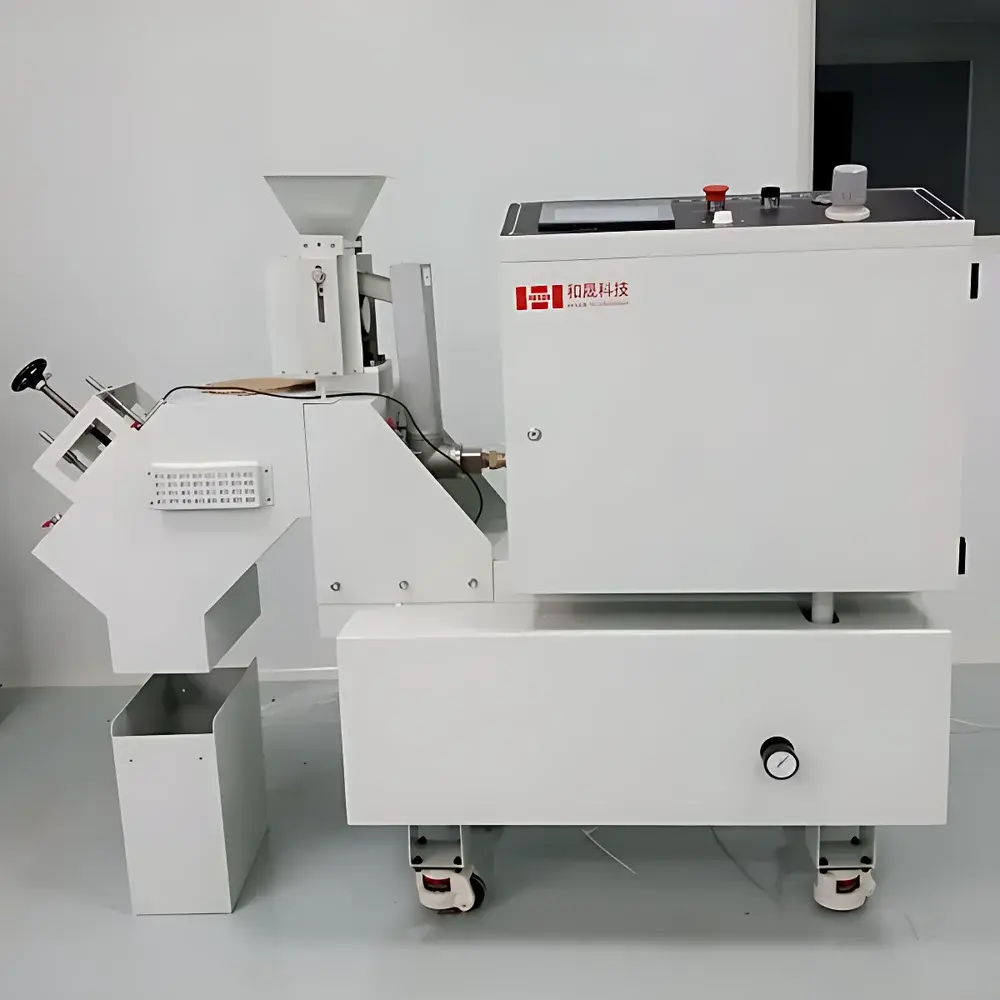

| Brand | HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |
| Model | HS-SS-1A Gravel Impact Tester |
| Price Range | USD 7,000 – 14,000 |
| Operating Pressure Range | 0–1 MPa (adjustable) |
| Air Flow Rate | 0–0.08 m³/s (adjustable) |
| Compressed Air Pipe ID | ≥12.7 mm |
| Air Reservoir Volume | 136 L |
| Impact Nozzle ID | 52.6 mm, Length: 290 mm |
| Max Specimen Dimensions | Width ≤105 mm, Thickness ≤30 mm |
| Impact Angles | SAE 45°/90°, VDA 54°/90°, Radiator-specific chamber |
| Sound Pressure Level | ≤130 dB(A) |
| Feed Mechanism | Electromagnetic vibratory feeder |
| Test Media | Gravel, Sand, Steel Shot, Iron Shot |
| Operating Mode | Continuous-duty |
| Compliance Standards | SAE J400, ISO 20567-1:2005, DIN 55996-1:2001, ASTM D3170-03(2007), GME 60268-96, GMW14700, GM9508P, MGR ES30.AD.149, NES M0007 Sec.28, DIN EN ISO 20567-1:2007, FLTM BI 157-06 |
| Brand | HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Category | Domestic |
| Model | HS-3000A-S (Rubber Tensile Testing Machine) |
| Instrument Type | Electromechanical Universal Testing Machine |
| Maximum Load Capacity | 1 kN |
| Effective Test Height | 600 mm |
| Force Sensor | Transcell (USA), 5 kN capacity |
| Drive System | Panasonic AC Servo Motor & Controller (Japan) |
| Force Resolution | ±1/500,000 |
| Force Measurement Range | 0.4–100% of full scale |
| Force Accuracy | ±0.5% of reading |
| Displacement Resolution | 0.05 mm |
| Displacement Accuracy | ±0.5% of reading |
| Strain Resolution | ±1/300,000 F.S. |
| Strain Measurement Range | 0.2–100% F.S. |
| Strain Accuracy | ±0.5% of reading |
| Speed Range | 0.001–500 mm/min (infinitely variable, segmented control) |
| Speed Accuracy | ±1% (at <0.01 mm/min) |
| Force Rate Control Range | 0.5–6% FS/s |
| Force Rate Accuracy | ±1% of set value |
| Strain Rate Control Range | 0.2–6% FS/s |
| Strain Rate Accuracy | ±1% (at <0.05% FS/s) |
| Power Supply | AC 220 V, 50 Hz |
| Software | Proprietary bilingual (Chinese/English) test software with GLP-compliant audit trail and report generation |

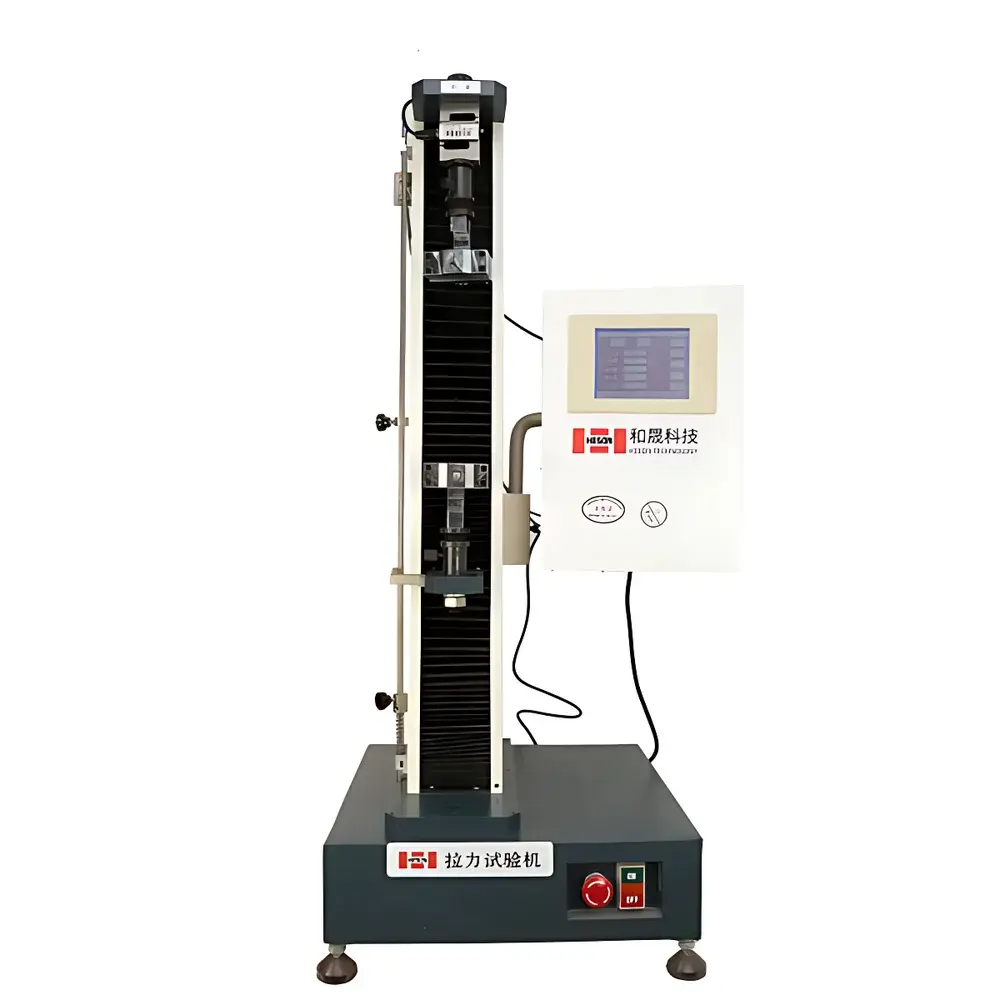

| Brand | HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Model | HS-3000A (Adhesive Tensile Tester) |
| Load Capacity | 1 kN (100 kgf) |
| Force Resolution | 1/500,000 full scale |
| Force Accuracy | ±1% (±0.5% optional) |
| Displacement Accuracy | ±1% (±0.5% optional) |
| Test Speed Range | 50–500 mm/min (stepless servo control) |
| Effective Stroke | ~600 mm |
| Power Supply | 220 V, 50 Hz |
| Dimensions (W×D×H) | 580 × 400 × 1200 mm |
| Weight | ~60 kg |
| Compliance | ISO 7500-1, ASTM E4, ASTM D638, ASTM D3330, ISO 8510-2, GB/T 1040, GB/T 2790 |
| Brand | HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Transient Plane Source (TPS) Method |
| Sample Capacity | Single sample per test |
| Test Environment | Ambient temperature (20–30 °C) |
| Dimensions (L×W×H) | 450 × 385 × 165 mm |
| Accuracy | ±3% |
| Thermal Conductivity Range | 0.005–300 W/(m·K) |
| Repeatability | ≤3% |
| Test Atmosphere | Ambient air (no purge required) |
| Sample Forms | Solids, powders, liquids, pastes, granules, gels, coatings, thin films, and insulating materials |
| Brand | HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | HS-SC-100 |
| Test Chamber Volume | 1 m³ (1000 × 1000 × 1000 mm W×H×D) |
| External Dimensions | 1480 × 1960 × 1450 mm (W×H×D) |
| Temperature Range | RT+10°C to +60°C (adjustable) |
| Humidity Control | ≤25% RH (displayed on controller) |
| Dust Medium | Dry talc or silica cement powder, particle size ≤75 µm (mesh aperture), metal wire diameter 50 µm |
| Dust Concentration | 2–4 kg/m³ |
| Airflow Velocity | 0–15 m/s (adjustable, nominal test velocity 2 m/s) |
| Settling Dust Rate | 6 g/m²/day |
| Vibration Mode | Intermittent/continuous (0–9999 min adjustable) |
| Blowing Mode | Intermittent/continuous (time programmable) |
| Vacuum Pump Flow Rate | 60–600 L/h |
| Dust Recovery System | Conical stainless steel dust collector with shaker mechanism |
| Chamber Interior | SUS304 stainless steel (1.2 mm thickness) |
| Exterior | SECC steel (1.5 mm thickness), powder-coated |
| Control System | PLC-based programmable logic controller with high-precision microcomputer interface |
| Compliance | GB/T 2423.37–2006, GJB 150.12, GB/T 10485–2007, GB 4208–2017 (IP5X/IP6X) |
