| Key | Brand: HESON |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Manufacturer |
| Product Category | Domestic |

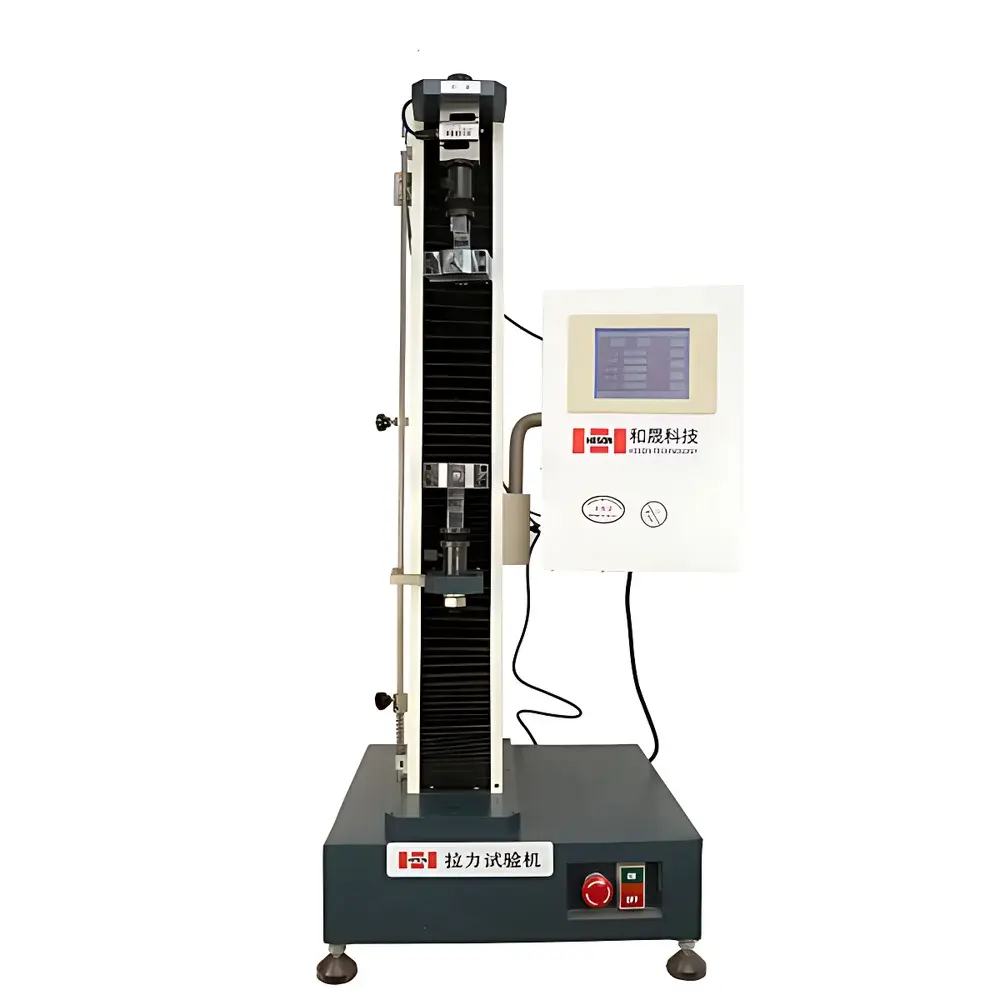

| Model | HS-3000A-S (Zipper Tensile Tester) |
| Load Capacity | 1 kN (100 kgf) |
| Effective Test Height | 600 mm |
| Force Resolution | ±1/500,000 |
| Force Accuracy | ±0.5% of reading |
| Displacement Resolution | 0.05 mm |
| Displacement Accuracy | ±0.5% of reading |
| Deformation Resolution | ±1/300,000 F.S. |
| Deformation Range | 0.2–100% F.S. |
| Deformation Accuracy | ±0.5% of reading |
| Speed Range | 0.001–500 mm/min (stepless, segmented control) |
| Speed Accuracy | ±1% (<0.01 mm/min), ±0.5% (≥0.01 mm/min) |
| Force Rate Control Range | 0.5–6% FS/s |
| Deformation Rate Control Range | 0.2–6% FS/s |
| Power Supply | AC 220 V, 50 Hz |
| Force Sensor | Transcell (USA), 1 kN |
| Drive System | Panasonic AC Servo Motor & Controller (Japan) |
| Lead Screw | ABBA high-carbon steel (Taiwan) |
| Linear Guide | Taekyung (Korea), hardened & chrome-plated (HRC ≥60) |
| Dust Protection | Yidie bellows (Taiwan) |
| Control Interface | Touchscreen HMI with PC connectivity and printer support |
| Software | Proprietary bilingual (CN/EN) testing software compliant with GLP audit trail requirements |
