| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | Shamrock 163i |
| Focal Length | 163 mm |
| f-number | f/3.6 |
| Optical Design | Czerny-Turner |
| Grating Compatibility | Interchangeable ruled and holographic gratings |
| Input Options | Adjustable slit (10–200 µm), fiber optic coupling (SMA905, FC/PC), free-space input |
| Detector Interface | Standard Andor camera mounting (C-mount, F-mount, or direct sensor integration) |
| Wavelength Range | UV-Vis-NIR (dependent on grating and detector choice) |
| Resolution | <0.1 nm (typical, with 1200 grooves/mm grating and 10 µm slit) |
| Stray Light Rejection | <1×10⁻⁴ |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |

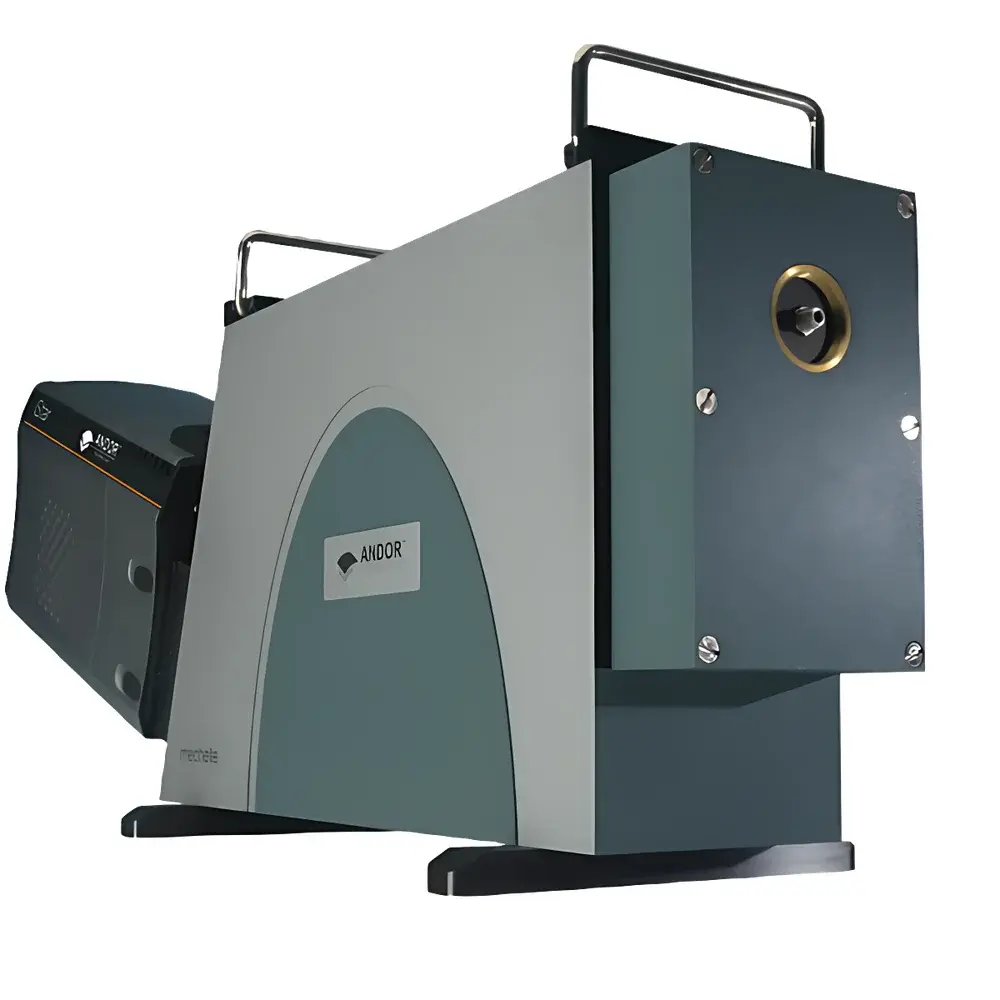

| Model | Mechelle 5000 |
| Spectral Range | 200–975 nm |
| Optical Architecture | Fixed, pre-aligned echelle spectrograph with no moving parts |
| Detector Format | Integrated CCD or sCMOS detector (user-selectable) |
| Resolution | High-resolution echelle dispersion (R ≈ 20,000–40,000 depending on slit and detector configuration) |
| Wavelength Coverage | Simultaneous full-range acquisition without scanning |
