| Brand | Andor |
|---|---|
| Origin | United Kingdom |
| Model | iKon-XL CCD |
| Effective Pixels | 16.8 Megapixel |
| Pixel Size | 15 µm × 15 µm |
| Cooling | Deep Thermoelectric (−100 °C typical, with optional liquid nitrogen backup) |
| Readout Noise | <3 e⁻ (slow scan), <15 e⁻ (fast kinetics) |
| Full Well Capacity | ~100,000 e⁻ |
| Spectral Range | 200–1100 nm (UV-NIR optimized silicon sensor) |
| Interface | USB 3.0 / Camera Link (selectable) |
| Compliance | CE, RoHS, UKCA |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |

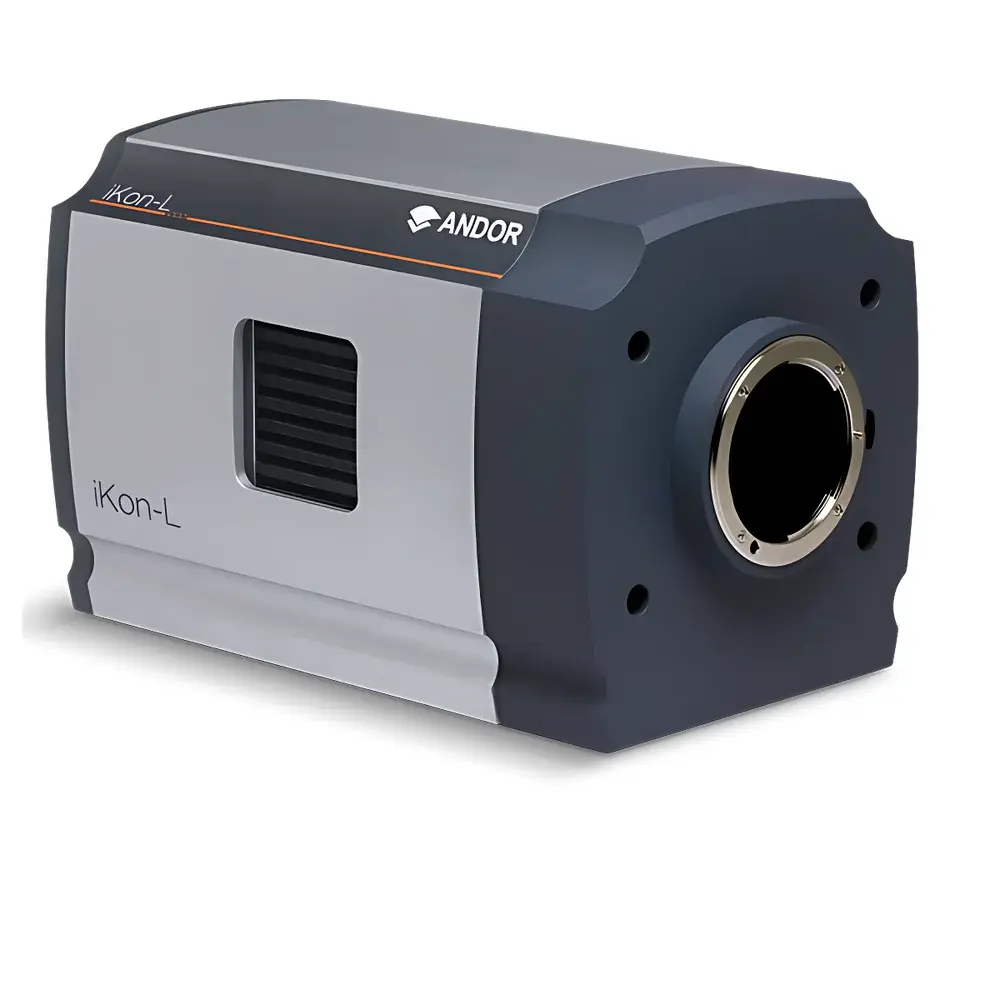

| Model | iKon-L 936 |
| Effective Pixels | 2048 × 2048 |
| Pixel Size | 13.5 µm × 13.5 µm |
| Sensor Diagonal | 39 mm |
| Cooling | Thermoelectric Vacuum Cryostat (Down to –100 °C) |
| Mount | F-mount (EF-mount optional) |
| Quantum Efficiency | Optimized for Near-Infrared (NIR) via Deep Depletion Technology |
| Readout Modes | Standard Low-Noise Mode & Fast Kinetics Mode (µs Time Resolution) |
| Brand | Andor |
|---|---|
| Origin | United Kingdom |

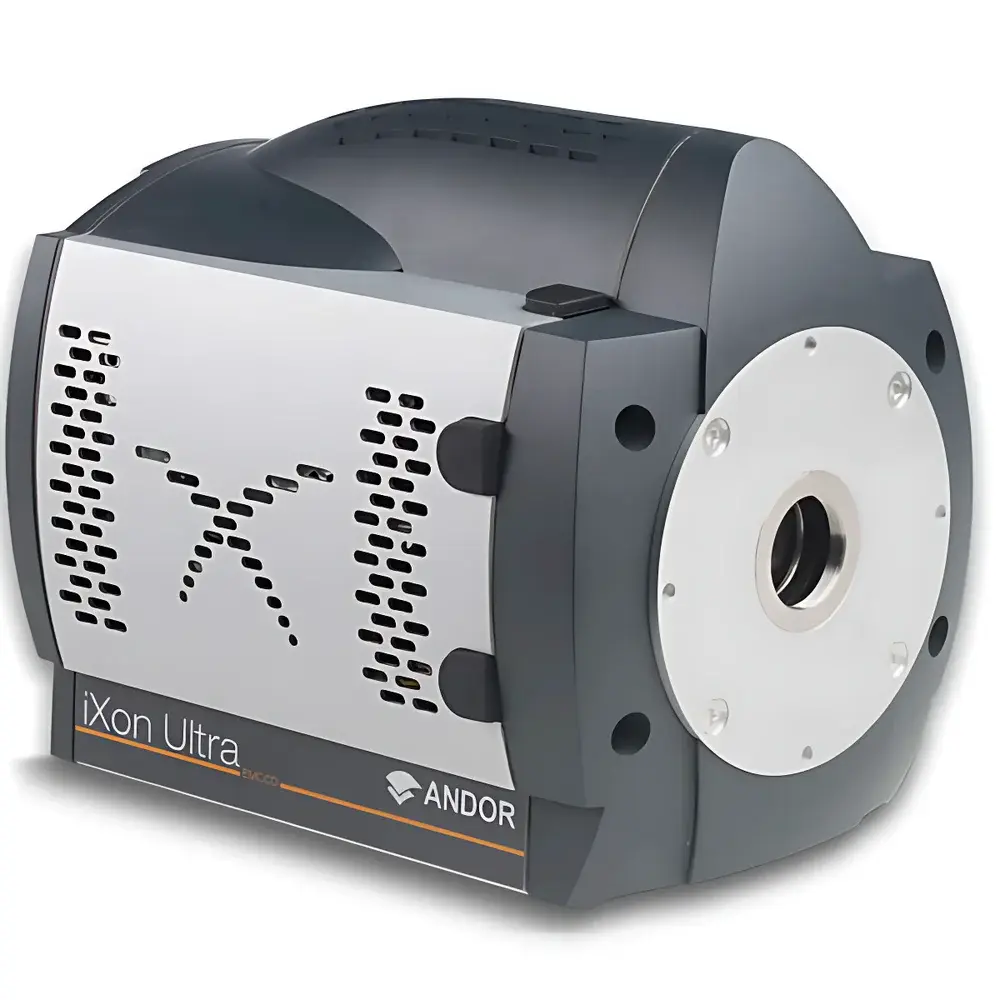

| Model | iXon Ultra 888 |
| Sensor Format | 1024 × 1024 pixels |
| Pixel Size | 13 µm |
| Quantum Efficiency | >95% (peak, back-illuminated) |
| Technology | Electron-Multiplying CCD (EMCCD) |
| Primary Application | Single-molecule fluorescence microscopy, live-cell super-resolution imaging |
| Brand | XenICs |
|---|---|
| Origin | Belgium |
| Model | Ceres T 640 Series |
| Effective Resolution | 640 × 480 |
| Pixel Pitch | 12 µm |
| NETD | < 50 mK |
| Maximum Frame Rate | 60 Hz |
| Temperature Range | Up to 400 °C |
| Interface Options | Camera Link / GigE Vision |
| Compliance | GenICam v2.0 compliant |
| Operating Spectral Band | 8–14 µm |
