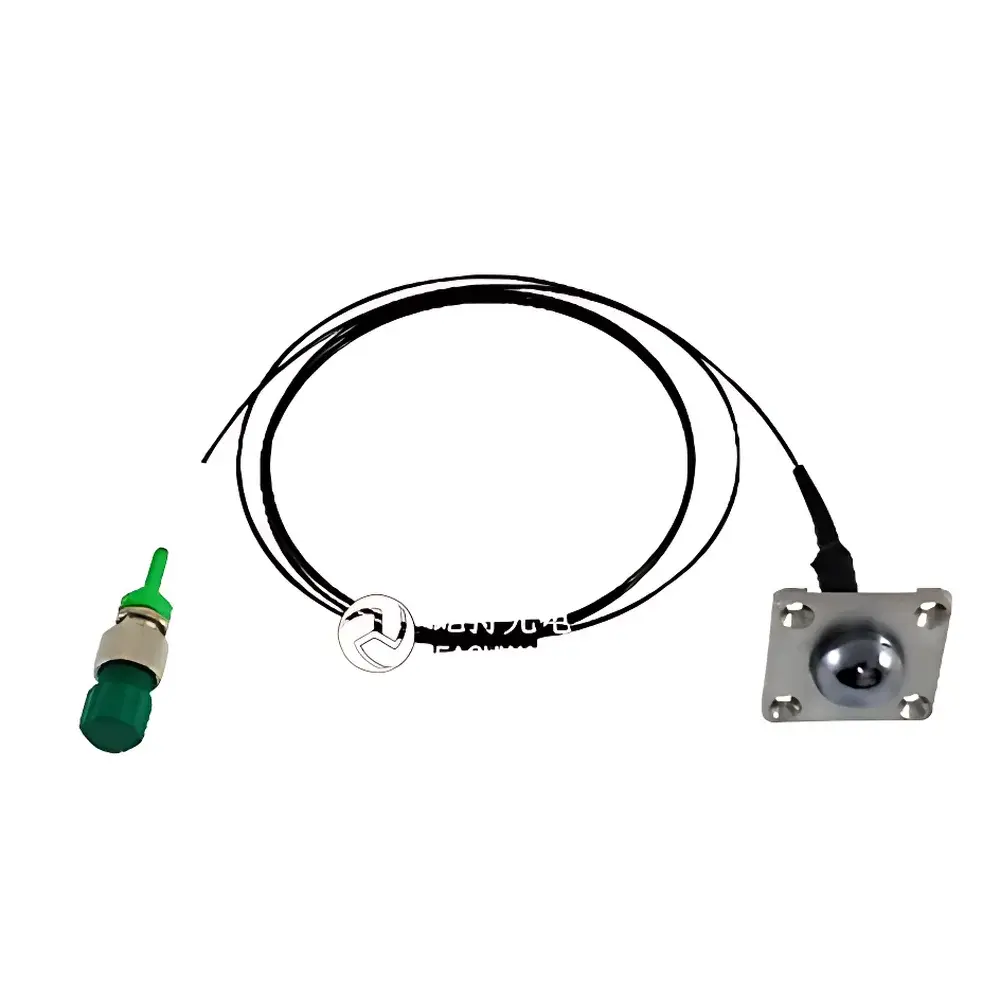

| Brand | Bakman |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | PB1319 |
| Price Range | USD 2,800 – 8,500 |
| Operating Temperature (Standard) | −40 °C to +85 °C |
| Operating Temperature (Cryogenic Variant) | 4.5 K to 350 K |
| Pump Wavelength | 760–855 nm |
| THz Bandwidth | 0.1–3 THz |
| Bias Voltage Range | ±20 V (typ.), ±25 V (max) |
| Dark Current @20 V, 25 °C | ≤0.5 µA |
| THz Output Power @200 GHz, 30 mW pump | 0.02–0.5 µW |
| Dynamic Range @100 GHz / @1000 GHz | 70 dB / 50 dB |
| Optical Return Loss @780 nm | ≥40 dB |
| Packaging | Fiber-coupled, hermetically sealed module with integrated silicon hyperhemispherical lens |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | PO-TWP |
| Spectral Range (UVIR) | 150 nm – 6.5 µm |
| Spectral Range (FIR) | 1 µm – 19 µm |
| Aperture Options | Ø11 mm, Ø24 mm, Ø16 mm |
| Thickness | 2.0–5.0 mm |
| Retardation Modes | λ/4, λ/2, continuous 0–360°, dual-wavelength (e.g., λ/2 @ fundamental & λ @ SHG), fs-optimized AR-coated variants |
| Mounting | Precision kinematic tilt/rotation stage included |
| Brand | AmpliConyx |
|---|---|
| Origin | Finland |
| Model | TGMC-PM / TGMD-PM |
| Output Power (Max) | 100 W |
| Pump Wavelength | 976 nm |
| Signal Input | PM 10/125 Fiber |
| PER (Input-Dependent) | ≥13 dB |
| Cooling | Water-Cooled |
| Dimensions (TGMC-PM) | 342 × 330 × 38 mm |
| Dimensions (TGMD-PM) | 342 × 330 × 58 mm |
| Flow Rate | 4–10 L/min |
| Brand | Alpao |
|---|---|
| Origin | France |
| Model | SH-CMOS |
| Spectral Range | 350–1700 nm |
| Subaperture Count | 50 × 50 |
| Microlens Pitch | 96.6 µm |
| Pupil Diameter | 4.83 µm |
| Sampling Frequency | 477 Hz (standard), up to 28.14 kHz (SH-CMOS Fast) |
| Readout Latency | 5000 µs (standard), down to 10.7 µs (SH-CMOS Fast) |
| Tilt & Defocus Range (PV) | ±96 µm / ±242 µm |
| Repeatability | <152 nm RMS |
| Compliance | Fully compatible with Alpao deformable mirrors and real-time control software |
