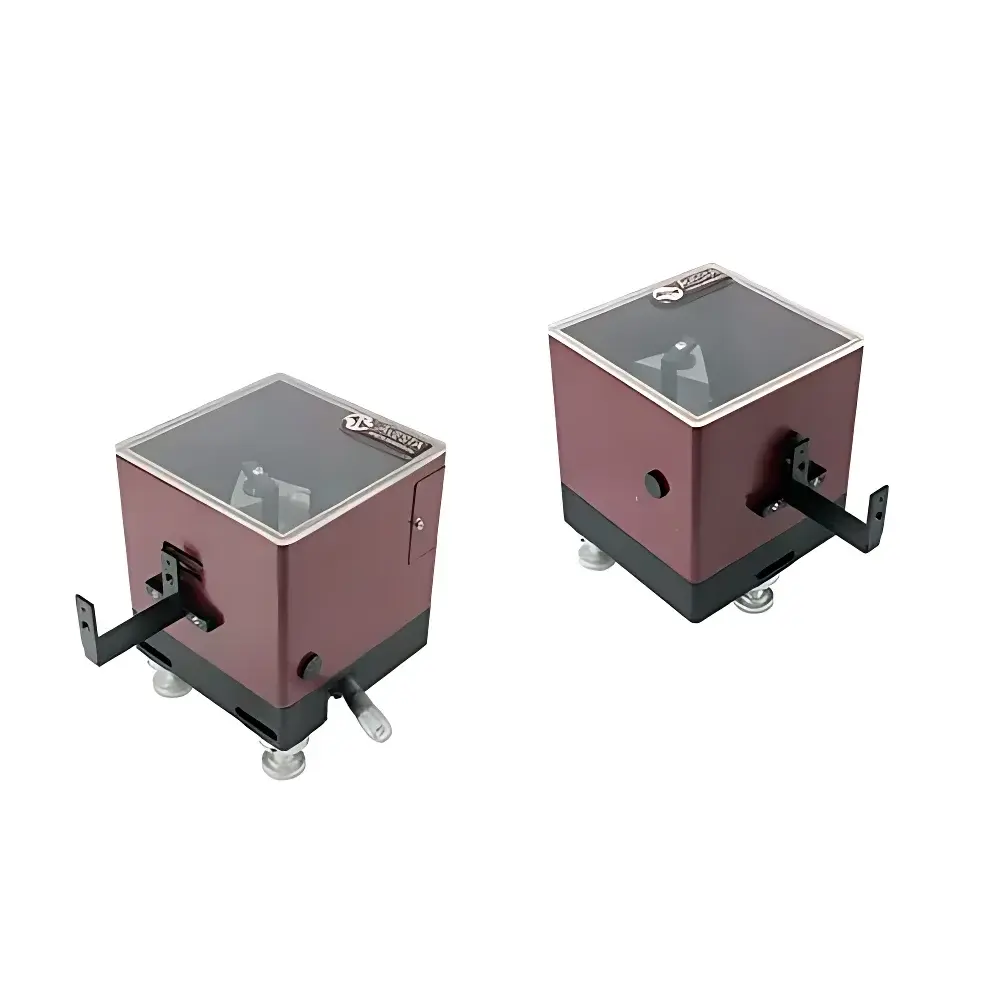

| Brand | ATSEVA |
|---|---|
| Origin | Russia |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | APC Femtosecond Pulse Compressor |
| Core Component | Prism-Based Dispersion Compensation Unit |
| Wavelength Range | 700–900 nm (customizable) |
| GVD Tuning Range @ 800 nm | +16,500 to −13,800 fs² (APC Pro DF) |
| Transmission | >90% @ 800 nm |
| Beam Diameter | Up to 4 mm |
| Polarization | Linear, horizontal (vertical optional) |
| Prism Materials | Fused Silica & Dense Flint Glass |
| Dimensions (APC Pro DF) | 410 × 324 × 186 mm |
| Compliance | Designed for ultrafast laser systems compliant with ISO 11146 (laser beam parameters) and IEC 60825-1 (laser safety) |
| Brand | ATSEVA |
|---|---|
| Origin | Russia |
| Model | OG-B/F |
| Core Components | Pockels Cell, High-Voltage Gate Driver, Synchronization & Delay Module |
| Wavelength Ranges | 340–1280 nm (OG-F), 200–2200 nm (OG-B), 1000–2700 nm (OG-B-R/K) |
| Max Repetition Rate | 1 MHz (OG-B-R/K), 100 kHz (OG-B), 1 kHz (OG-F) |
| Minimum Repetition Rate | Single-shot |
| Aperture | Up to 20 mm (OG-B), 6 mm (OG-F), 3.5 mm (OG-B-R/K) |
| HV Gate Pulse Width (10% level) | 3 ns (OG-F), 8 ns (OG-B), 8 ns (OG-B-R/K) |
| Rise Time (10–90%) | 700 ps (OG-F), 3.5 ns (OG-B/OG-B-R/K) |
| Contrast Ratio | >1500:1 (OG-F), >700:1 (OG-B), >800:1 (OG-B-R/K) |
| Pockels Cell Voltage | up to 10 kV (OG-F), up to 4 kV (OG-B), up to 3 kV (OG-B-R/K) |
| Transmission | >85% (standard GT prism + PC), >98% (PC only) |
| Trigger Options | Internal/External, Optical/Electrical, Edge/Level/Burst Mode |
| Channel Delay Range | 0–10 µs (OG-F), 0–1 µs (OG-B/OG-B-R/K), extendable per request |
| Cooling | Passive ≤3 kHz |

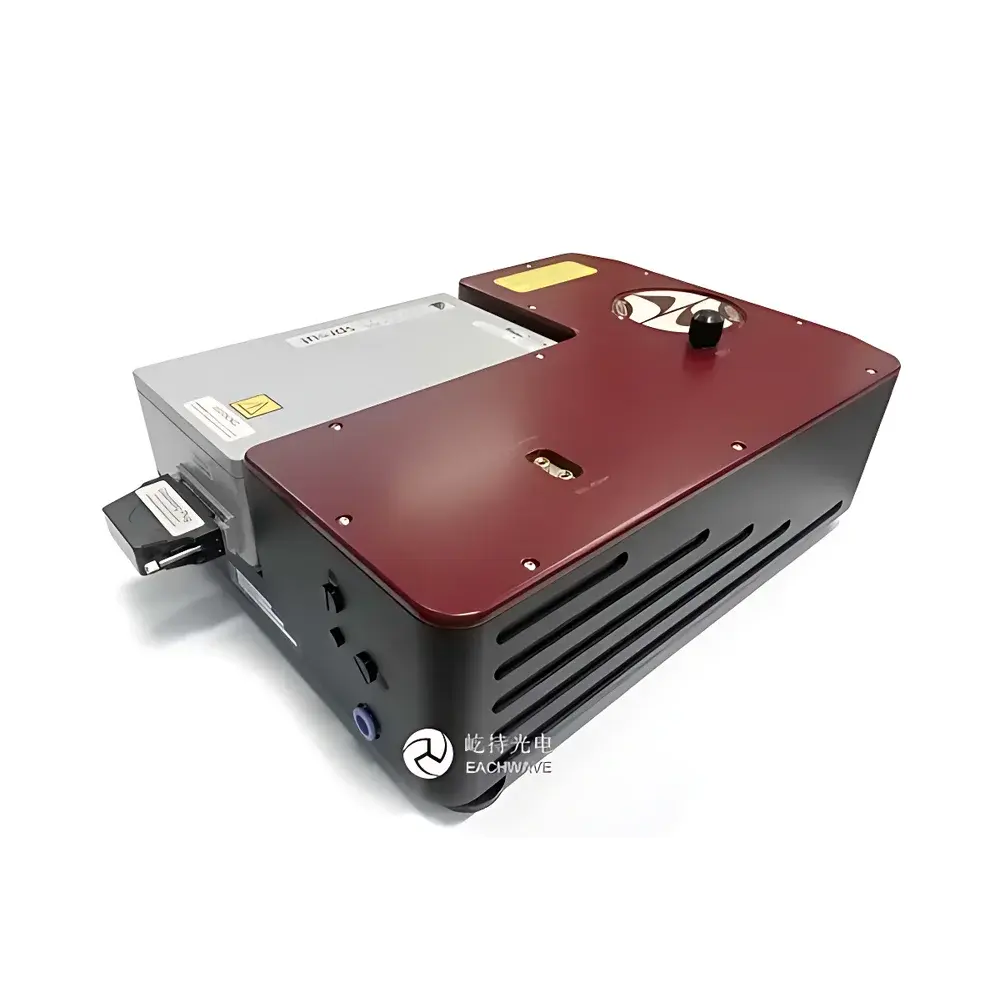

| Brand | ATSEVA |
|---|---|
| Origin | Russia |
| Model | TiC |
| Type | Solid-State CW Tunable Laser Oscillator |
| Tuning Range | 700–1000 nm (standard), extendable to 690–1060 nm |
| Output Power | >1.8 W @ 800 nm (free-space), up to 1.2 W (fiber-coupled, 4 µm core) |
| Linewidth | <45 GHz (default), <20 GHz (with one intra-cavity etalon), <2 GHz (with two intra-cavity etalons) |
| Pump Requirement | CW DPSS or Ar⁺-Ion laser at 480–550 nm (typically 532 nm), 2–10 W |
| Beam Quality | TEM₀₀, M² < 1.2 |
| Polarization | Linear, horizontal, PER > 100:1 |
| Power Stability | <0.2 % rms (12 h, after 30-min warm-up, with closed-loop chiller & certified pump laser) |
| Control Interface | USB-connected stepper motor actuation, Windows-based software suite (Basic/AU/Automatic packages) |
| Optional Features | Integrated spectrometer, power meter, active power stabilization, fiber coupling (SMF, FC connector), BRF control |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | PICOPOWER |
| Wavelength | 1064 nm (IR) or 532 nm (Green) |
| Pulse Width | < 10 ps (customizable) |
| Repetition Rate | 100 MHz (customizable) |
| Beam Quality | TEM₀₀ |
| Beam Diameter (1/e²) | 1 mm at output |
| Beam Divergence | 1 mrad |
| Pointing Stability | 40 µrad |
| Output Power | ≥10 W @ 1064 nm (PICOPOWER 10 IR), ≥5 W @ 532 nm (PICOPOWER 5G) |
| Power Stability | <1% peak-to-peak (24 h) |
| Polarization Ratio | >300:1 linear |
| Optical Noise (30 Hz–2 MHz) | <0.5% |
| Pump Diode Lifetime | >10,000 h |
| Electrical Input | 85–240 V AC, single-phase |
| Max. Power Consumption | <800 W |
| Laser Head Dimensions | 150 × 150 × 800 mm³ |
| PSU & Cooling Unit Dimensions | 450 × 300 × 600 mm³ |
| Operating Temperature | 10–35 °C |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | MONOPOWER |
| Type | Diode-Pumped CW Solid-State Laser |
| Wavelengths | 473 nm (blue), 532 nm (green), 671 nm (red), 1047/1053/1062/1064 nm (IR) |
| Output Power Range | 10 mW – 10 W |
| Beam Mode | TEM₀₀ (single transverse mode), single longitudinal mode (SLM) or multi-longitudinal mode (MLM) options |
| Amplitude Noise | <0.3% RMS (10 Hz–1 GHz) for SLM variants, <0.5% RMS for MLM variants |
| M² | ≤1.2 |
| Polarization Ratio | >200:1 |
| Beam Pointing Stability | <5 µrad/°C (SLM), <8 µrad/°C (MLM) |
| Coherence Length | ~300 m (SLM, 532 nm) |
| Beam Waist (1/e²) | 0.34 mm (SLM), 0.8 mm (MLM) |
| Divergence | <2.2 mrad (SLM), <3 mrad (MLM) |
| Warm-up Time | 3–8 min |
| Power Consumption | <35 W (SLM), <600 W (MLM) |
| Laser Head Dimensions | 250×105×80 mm³ (SLM), 350×105×80 mm³ (MLM) |
| Cooling Base | 120×65×60 mm³ |
| Pump Source | LDF-30 diode module (for 5W variant) |

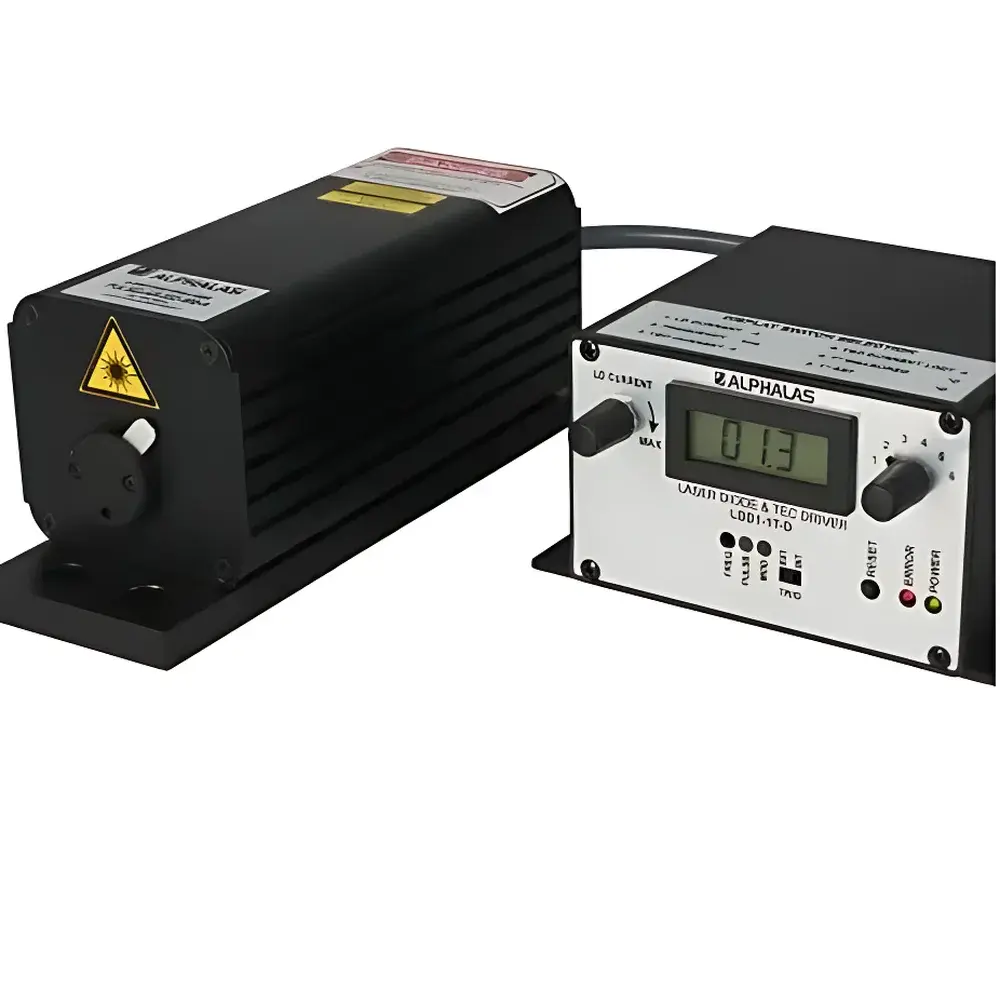

| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | PULSELAS-P |
| Wavelength | 1064 nm |
| Pulse Width | < 1 ns (typ. 800 ps) |
| Pulse Energy | up to 1500 µJ @ 100 Hz |
| Peak Power | > 1.5 MW |
| Average Power | up to 1 W |
| Repetition Rate | up to 100 kHz |
| Beam Quality | TEM₀₀ |
| Polarization Ratio | > 100:1 |
| Power Stability | < 2% RMS (1 h) |
| Output Beam Diameter | 0.3–0.4 mm |
| Beam Divergence | ~6 mrad |
| Laser Head Dimensions | 40 × 52 × 90 mm or 40 × 52 × 140 mm (HP/HE variants) |
| Harmonic Options | 532 nm, 355 nm, 266 nm (optional) |
| Triggering | Internal frequency generator (up to 5 kHz) and external TTL trigger standard |
| Pump Configuration | Free-space or fiber-coupled laser diode (LDF-30-P) |
| Brand | Alphalas |
|---|---|
| Origin | Germany |
| Model | PULSELAS-A-1064-10W-SF |
| Wavelength (fundamental) | 1064 nm |
| Pulse Energy (1064 nm) | 1 mJ |
| Average Power (1064 nm) | 10 W |
| Peak Power (1064 nm) | >80 kW |
| Pulse Width (FWHM, 1064 nm) | <12 ns |
| Repetition Rate | 10 kHz |
| Spectral Linewidth (1064 nm) | <40 MHz |
| Beam Quality (M², 1064 nm) | <1.2 |
| Power Stability (RMS) | ≤1% |
| Polarization Ratio (1064 nm) | >100:1 |
| Beam Diameter (1/e², 1064 nm) | 1.4 mm ±10% |
| Beam Divergence (1064 nm) | 1.0 mrad ±10% |
| Harmonic Options | 532 nm / 355 nm / 266 nm |
| Remote Control Interface | Ethernet (LAN, RJ-45) |
| Cooling | Closed-loop liquid cooling |
| Warm-up Time to 95% Output | <5 min |
| Operating Temperature | 20–28 °C |
| Compliance | ISO 11146 (beam quality), IEC 60825-1 (laser safety), CE-marked |

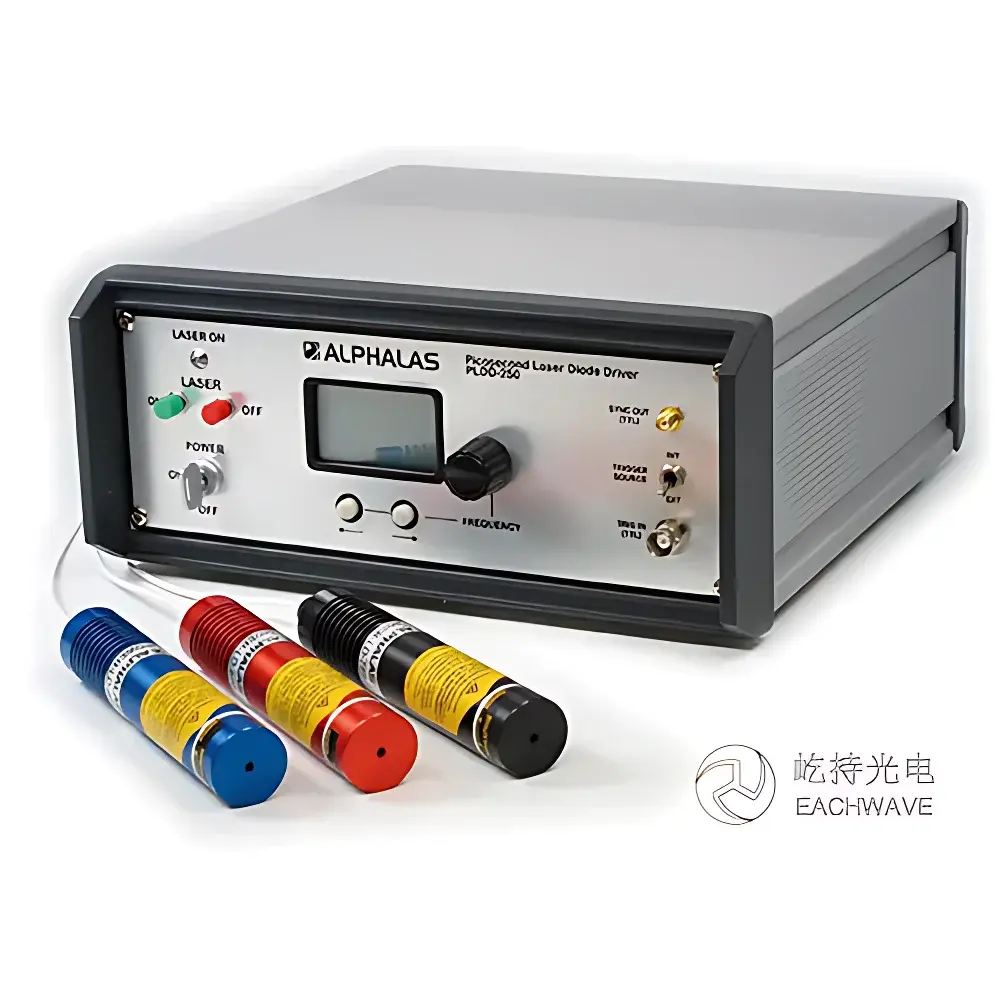

| Brand | ALPHALAS |
|---|---|
| Origin | Germany |
| Type | Picosecond Pulsed Semiconductor Laser Source |
| Wavelength Range | 375–2300 nm |
| Pulse Width | Down to 12 ps (FWHM, convolved) |
| Peak Power | Up to 3 W |
| Repetition Rate | Single-shot to 100 MHz |
| Output Options | Free-space collimated or fiber-coupled (SM/PM) |
| Linewidth Options | Fabry–Pérot (FP) or DFB narrow-linewidth variants |
| Compliance | CE, RoHS, IEC 61000-6-3/6-4 |

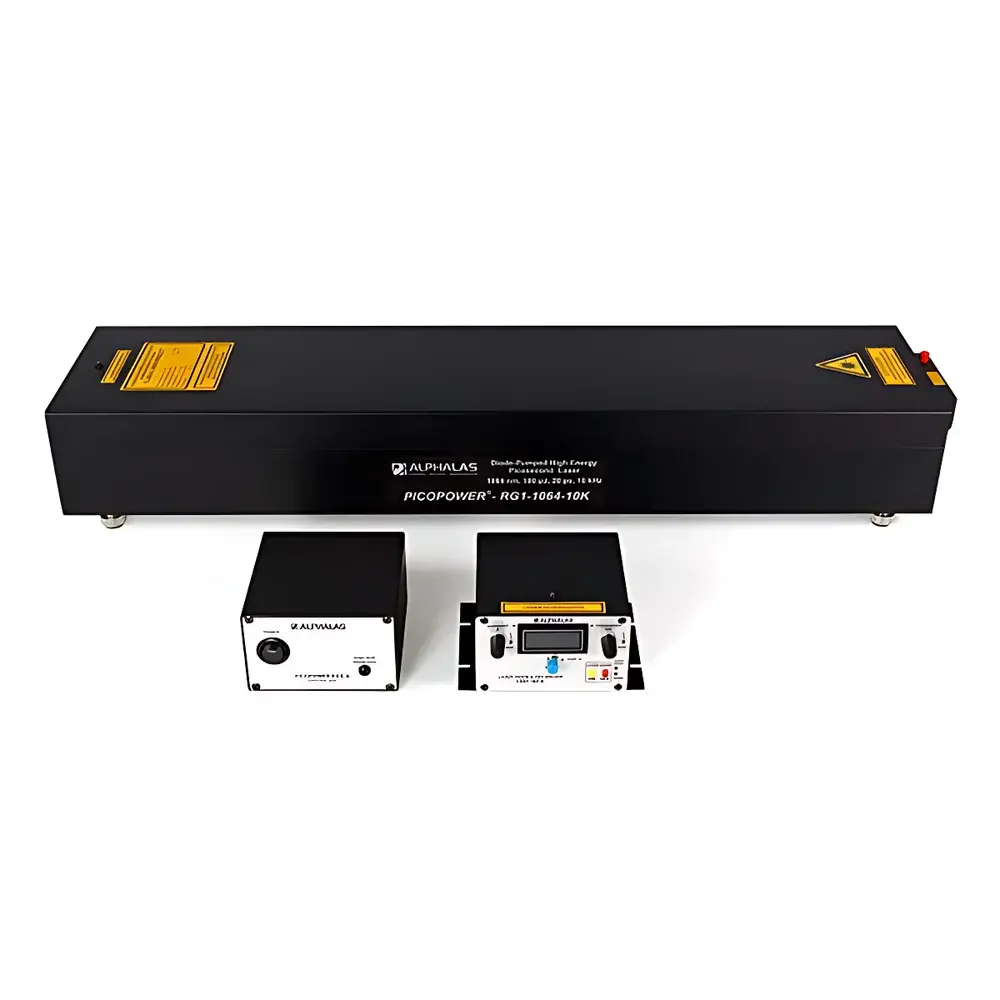

| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | PICOPOWER-RG1-1064-10K |
| Wavelength | 1064 nm (fundamental), optional harmonics at 532 nm, 355 nm, and 266 nm |
| Pulse Width | < 30 ps (FWHM) |
| Repetition Rate | Single-shot to 10 kHz |
| Pulse Energy @ 1064 nm | 50 µJ @ 10 kHz (up to 100 µJ @ lower rep rates) |
| Peak Power @ 1064 nm | > 2 MW |
| RMS Timing Jitter (external trigger) | 3.5 ps |
| Beam Quality | TEM₀₀, M² < 1.2 |
| Beam Pointing Stability | < 30 µrad (8 h) |
| Power Stability (8 h) | < 1.0% rms @ 1064 nm |
| Cooling | Air-cooled |
| Compliance | CE, RoHS |
| Brand | Ampliconyx |
|---|---|
| Origin | Finland |
| Model | TGMA-PM |
| Core Technology | Patented Polarization-Maintaining Tapered Yb-Doped Double-Clad Fiber |
| Wavelength Range | 1030–1065 nm |
| Pump Wavelength | 976 nm |
| Mode Field Diameter | 40 µm |
| PER | 13–15 dB |
| M² | ≤1.3 |
| Core Diameter (thin/thick end) | 29/48 µm |
| Cladding Diameter (thin/thick end) | 275/380 µm |
| Fluorine-Doped Cladding Diameter (thin/thick end) | 285/430 µm |
| Cladding Absorption @976 nm | 25 dB/m |
| Gain Fiber Length | 2.5 m |
| Input Fiber | 10/125 PM (standard) |
| Max Pump Power (free-space) | 250 W |
| Max Output Power | 150 W |
| Cooling Options | Active water-cooled fiber mount & thermal platform |
