| Brand | Edwards Vacuum |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | YT890Z040 |
| Pump Type | Turbo Molecular Pump |
| Oil-Free Operation | Yes |
| Pumping Speed (N₂) | 2200 L/s |
| Ultimate Pressure | 1×10⁻⁹ mbar |
| Weight | 38 kg |
| Flange | ISO-F 250 / CF 250 |
| Brand | Edwards Vacuum |
|---|---|
| Origin | United Kingdom |

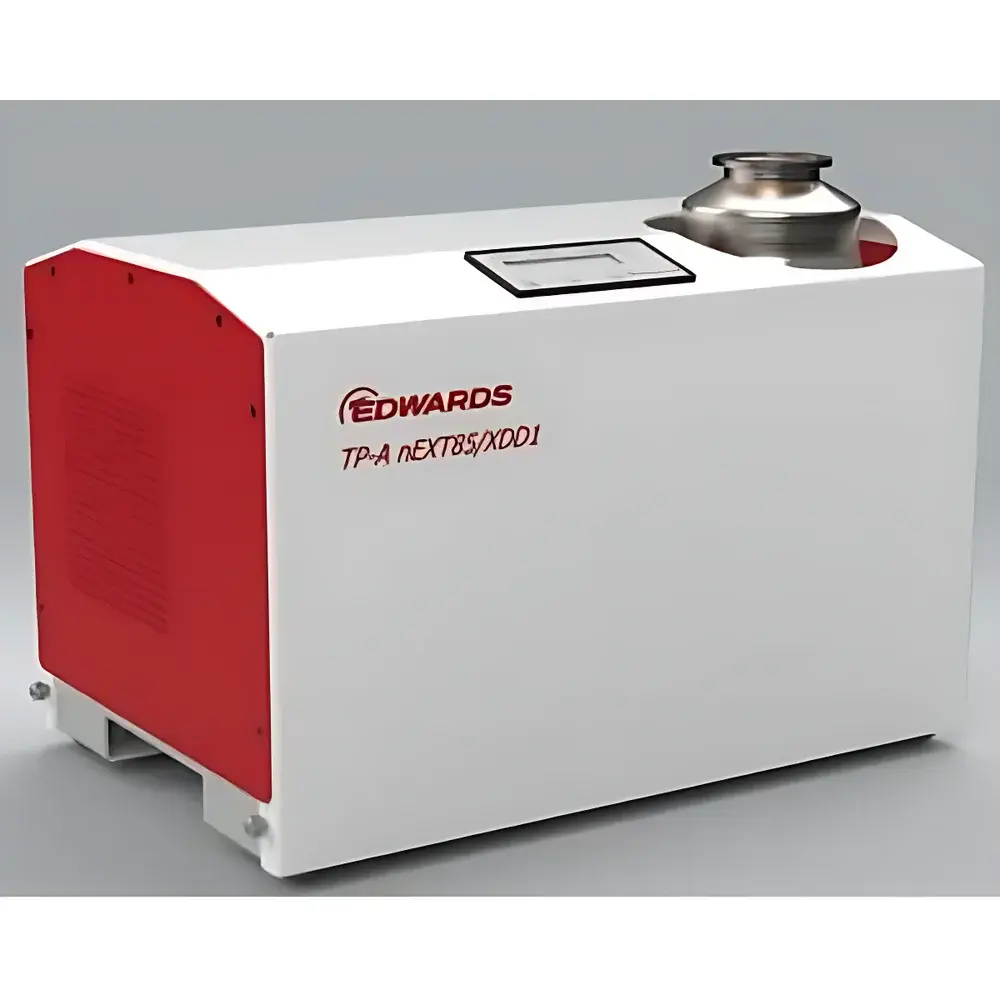

| Model | TP-A |
| Pump Type | Oil-Free Turbomolecular Pump System |
| Base Pressure | ≤5 × 10⁻¹⁰ mbar |
| Pumping Speed (N₂) | 84 L/s |
| Dimensions (W × D × H) | 376 × 279 × 239 mm |
| Weight | 17 kg |
| Drive Power | 300 W |
| Forevacuum Requirement | Integrated Diaphragm Pump |
| Brand | Edwards Vacuum |
|---|---|
| Origin | United Kingdom |
| Model | RV3 |
| Pump Type | Oil-Sealed Rotary Vane Pump |
| Ultimate Vacuum | 2 × 10⁻³ mbar |
| Pumping Speed | 3.3 m³/h |
| Motor Power | 450 W |
| Dimensions (L×W×H) | 430 × 158 × 225 mm |
| Weight | 25 kg |
| Oil Type | Ultragrade PFPE-based lubricant (compatible) |
| Voltage | 115/230 V, 50/60 Hz |
| Brand | Edwards Vacuum |
|---|---|
| Origin | Czech Republic |
| Model | nXDS10i |
| Pump Type | Dry Scroll |
| Pumping Speed | 7–20 m³/h |
| Ultimate Pressure | 0.007 mbar |
| Dimensions (W×D×H) | 432 × 295 × 265 mm |
| Weight | 26 kg |
| Motor Power | 280 W |
| Brand | Leybold |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | D8C |
| Pump Type | Oil-Sealed Rotary Vane Pump |
| Ultimate Vacuum (with gas ballast closed) | 0.3 mbar |
| Pumping Speed (50 Hz) | 8.11 m³/h |
| Pumping Speed (60 Hz) | 9.65 m³/h |
| Inlet/Outlet Port | DN25 KF |
| Noise Level (LpA) | 54–56 dB(A) |
| Motor Power | 550 W (Single-phase 220 V, 50 Hz or Three-phase 380 V, 50/60 Hz) |
| Oil Type | Leybold LVO 130 |
| Oil Capacity | 1.5 L (max), 1.0 L (min) |
| Net Weight (dry) | 32 kg |
| Dimensions (W × D × H) | 260 × 173 × 272 mm |
| Operating Ambient Temperature | 10–40 °C |
| Maximum Allowable Water Vapor Pressure | 30 mbar |
| Gas Ballast Enabled Ultimate Pressure | ~6 × 10⁻² mbar |
| Gas Ballast Disabled Ultimate Pressure | ~3 × 10⁻² mbar |
| Brand | Edwards Vacuum |
|---|---|
| Origin | United Kingdom |
| Model | TP-D |
| Pump Type | Oil-Free Turbo Molecular Pump |
| Pumping Speed | 300–950 L/s |
| Ultimate Vacuum | 3 × 10⁻¹⁰ mbar |
| External Dimensions | 541 × 476 × 434 mm |
| Weight | ≤165 kg |
| Motor Power | 1000 W |
| Brand | Pfeiffer Vacuum |
|---|---|
| Origin | Germany |

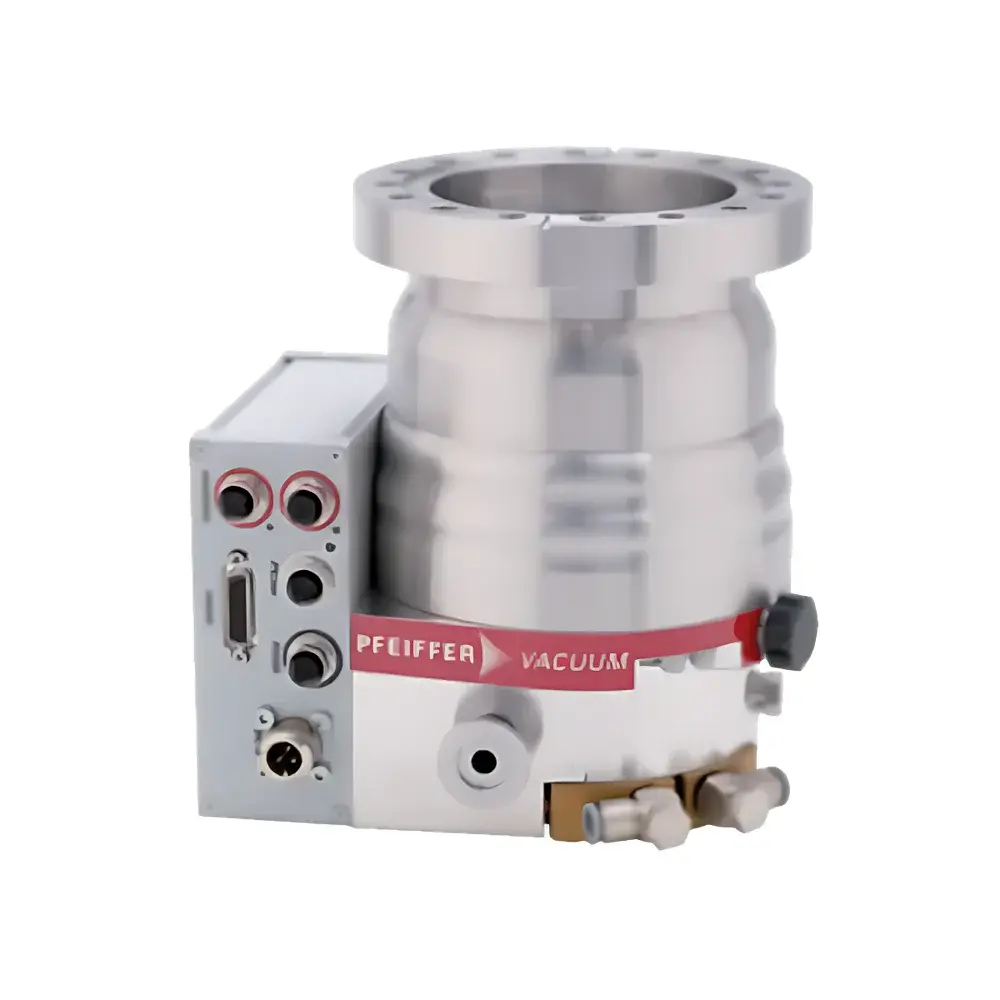

| Model | HiPace 300 |
| Nominal Pumping Speed for N₂ | 260 L/s |
| Protection Rating | IP54 |
| Certifications | UL/CSA, CE, compliant with EN 61000-6-2/-4 and EN 61000-3-2 |
| Integrated Drive Electronics | TC 400 |
| Cooling | Integrated water-cooling system |
| Mounting | Flange-compatible (DN 100 CF/KF optional) |
| Application Class | High and ultra-high vacuum (UHV) systems |
| Brand | Pfeiffer Vacuum |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | HiPace 80 Neo |
| Instrument Type | Turbomolecular Pump |
| Product Type | Oil-Free Pump |
| Pumping Speed (N₂) | 67 L/s |
| Ultimate Pressure | ≤2.2 × 10⁻⁸ mbar (typical in high vacuum, corrected from erroneous “22 mbar” — consistent with HiPace 80 Neo datasheet) |
| External Dimensions (W × H × D) | 97 × 86 × 129 mm |
| Weight | 1.7 kg |
| Motor Power Supply | 110 V AC, 50/60 Hz (integrated drive electronics) |
| Brand | Pfeiffer Vacuum |
|---|---|
| Origin | Germany |
| Model | HiCube 80 Eco |
| Pump Type | Oil-Free Turbo-Molecular Pump System |
| Ultimate Pressure | <1×10⁻⁸ Pa (without gas ballast) |
| Pumping Speed (N₂) | 67 L/s at DN 63 CF-F inlet |
| Pre-vacuum Pump | MVP 015-2 multi-stage diaphragm pump |
| Forepump Speed | 1 m³/h (16.67 L/min, N₂) |
| Ultimate Forepressure | <1×10⁻² Pa |
| Cooling | Convection-cooled (standard) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Max. Power Consumption | 170 W |
| Sound Pressure Level | ≤50 dB(A) |
| Inlet Flange | DN 63 CF-F |
| Outlet Flange | G 1/8" |
| Dimensions (W×D×H) | 352 × 301 × 302 mm |
| Weight | 13.5 kg |
| Compliance | CE, RoHS, ISO 9001 certified |
| Control Interface | Integrated digital controller with status LEDs and RS-232/USB option |
| Brand | Edwards Vacuum |
|---|---|
| Origin | United Kingdom |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

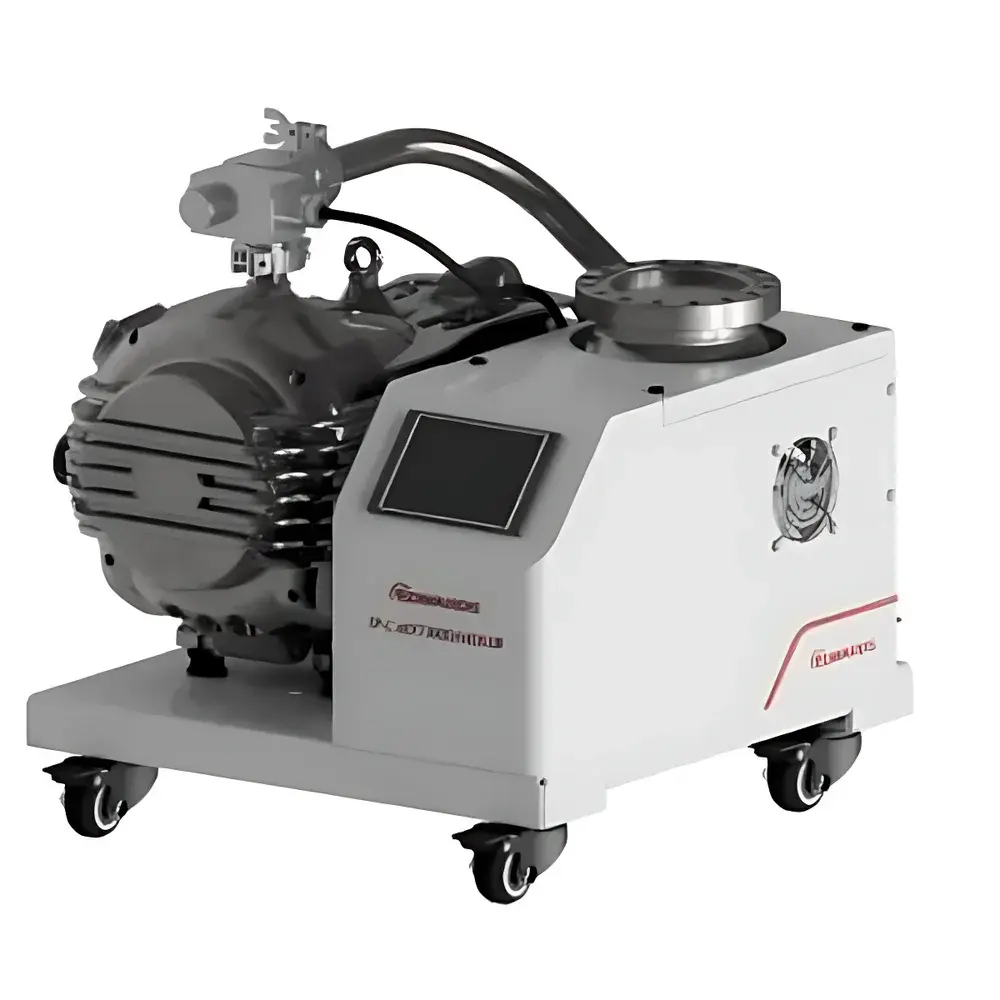

| Model | TP-C |
| Instrument Type | Turbo Molecular Pump |
| Product Type | Oil-Free Vacuum Pump |
| Pumping Speed | 84–300 L/s |
| Ultimate Pressure | 5 × 10⁻¹⁰ mbar |
| External Dimensions | 514 × 504 × 470 mm |
| Weight | 55 kg |
| Motor Power | 500 W |
| Brand | Edwards Vacuum |
|---|---|
| Origin | United Kingdom |

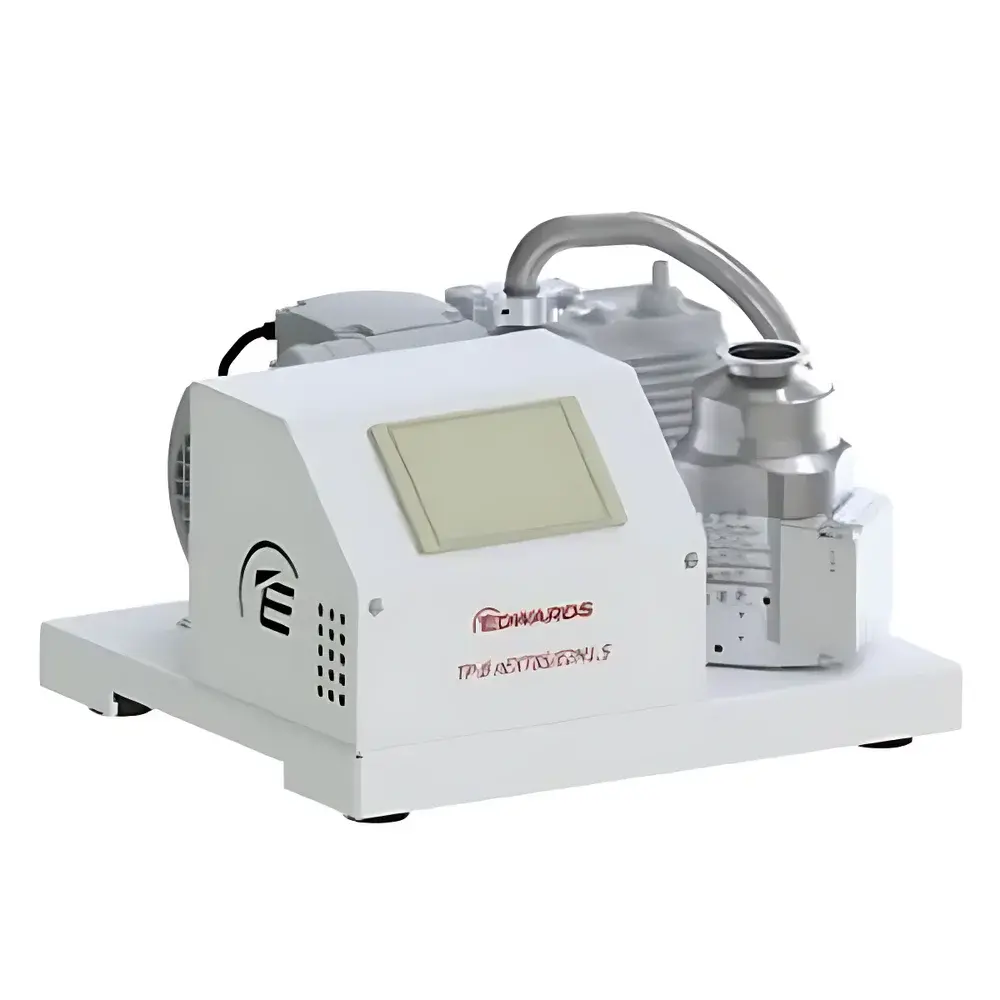

| Model | TP-B |
| Pump Type | Oil-Free Turbomolecular Pump System |
| Ultimate Vacuum | 5 × 10⁻¹⁰ mbar |
| Pumping Speed (N₂) | 84 L/s |
| Dimensions (W × D × H) | 410 × 350 × 298 mm |
| Weight | 21 kg |
| Motor Power | 300 W |
| Primary Pump Compatibility | Small Rotary Vane or Scroll Backing Pump |
| Brand | Edwards Vacuum |
|---|---|
| Origin | United Kingdom |

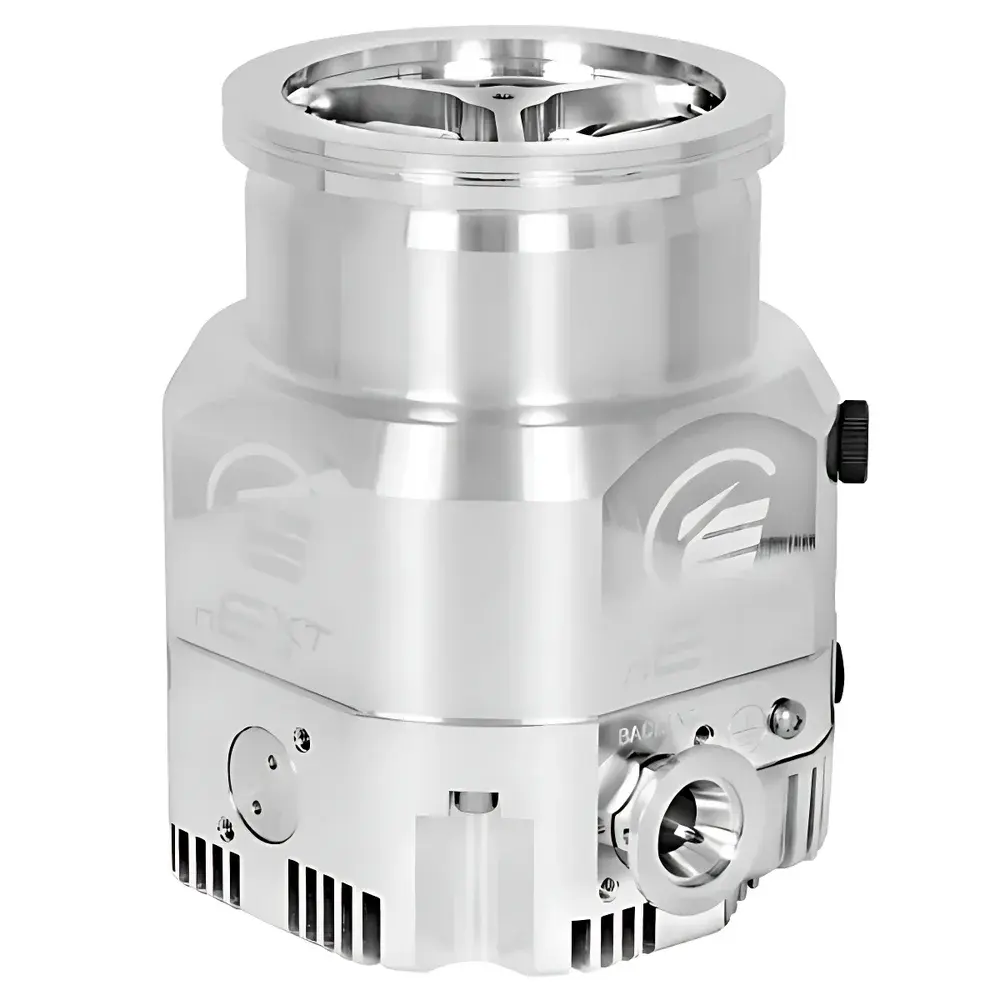

| Model | nEXT85 |
| Pump Type | Oil-Free Turbo-Molecular Pump |
| Pumping Speed (N₂) | 84 L/s |
| Ultimate Pressure | 1 × 10⁻⁷ mbar |
| Flange Interface | DN 63 CF |
| Weight | 3 kg |
| Motor Power | 80 W |
| Compliance | CE, RoHS, UL Recognized |
| Brand | Pfeiffer Vacuum |
|---|---|
| Origin | Germany |
| Model | MVP015-2 |
| Power Supply | 24 V DC |
| Noise Level | <50 dB(A) |
| Operating Temperature Range | 5–40 °C |
| Pumping Speed (at 100 mbar) | 1.5 m³/h |
| Ultimate Vacuum (with gas ballast open) | ≤10 mbar |
| Ultimate Vacuum (with gas ballast closed) | ≤3 mbar |
| Motor Type | Electronically Commutated DC Motor (ECM) |
| Stages | Two-stage |
| Gas Ballast | Magnetic Solenoid Valve |
| Maintenance Interval | Up to 2 years under typical lab conditions |
| Weight | ~6.2 kg |
| Brand | Agilent Technologies |
|---|---|
| Origin | Singapore |
| Model | IDP-3 |
| Pump Type | Oil-Free Scroll Vacuum Pump |
| Pumping Speed | 3 m³/h |
| Ultimate Vacuum | 0.33 mbar (absolute) |
| External Dimensions | 358 × 140 × 127 mm |
| Weight | 10.5 kg |
| Motor Power | 200 W |
| Input Voltage | 100–240 VAC, 50/60 Hz (24 VDC motor option available) |
| Compliance | CE, UL, RoHS |
