| Brand | RWD |
|---|---|
| Origin | Japan |
| Manufacturer Type | OEM Manufacturer |
| Product Origin | Imported |

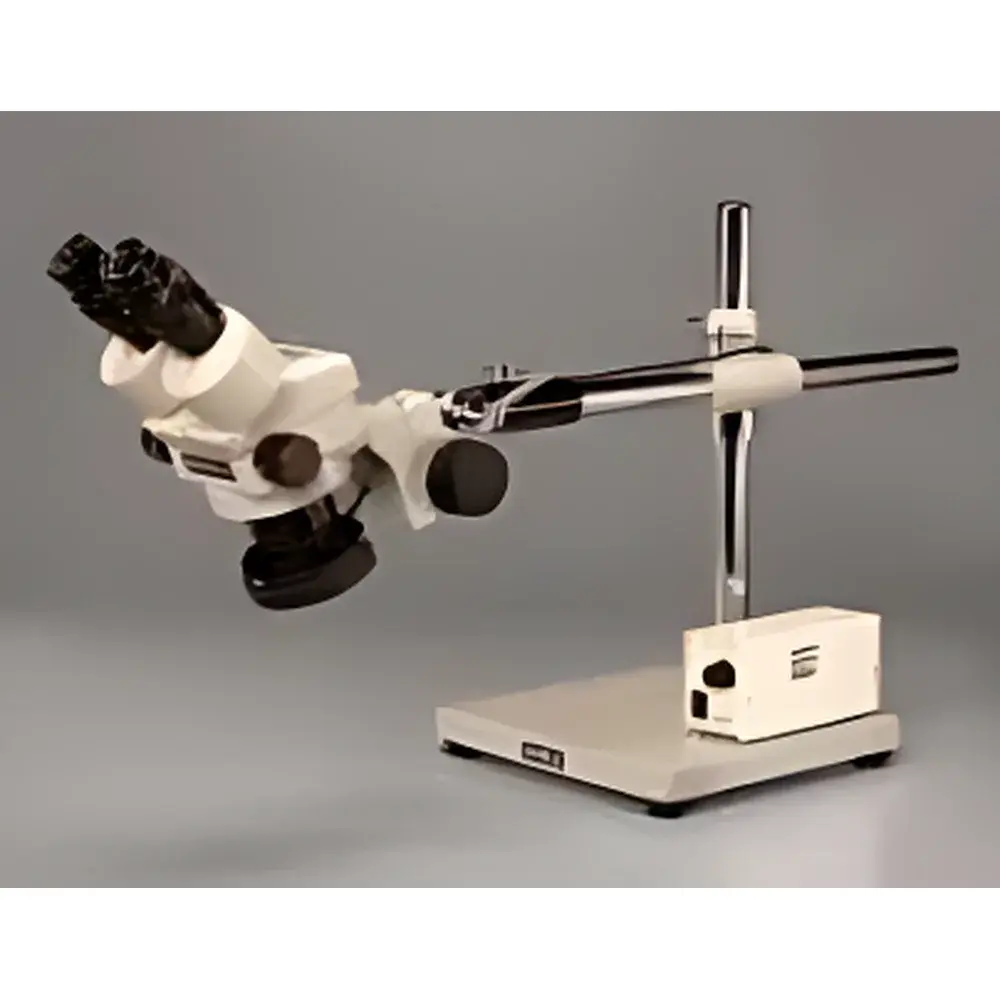

| Model | DV-6500 Series |
| Price | Upon Request |
| Zoom Ratio | 6.5:1 |
| Zoom Range | 0.7× – 4.5× |
| Total Magnification (Standard) | 7× – 45× (with 10× eyepieces, no auxiliary lens) |
| Field of View | 32 mm – 5.1 mm |
| Working Distance (Standard) | 93 mm (10× eyepieces, no auxiliary lens) |
| Binocular Tube Inclination | 60° |
| Trinocular Tube Inclination | 45° |
| Interpupillary Adjustment Range | 54 mm – 75 mm |
| Diopter Adjustment Range | ±5 D per eyepiece tube |
| Extended Magnification Range (Dual) | 2.1× – 270× (with optional 2.0× auxiliary lens and 30× eyepieces) |
| Extended Magnification Range (Trino) | 0.98× – 203× (with optional 1.5× auxiliary lens and 30× eyepieces) |
| Extended Working Distance Range (Dual) | 34 mm – 251 mm (with 2.0× to 0.3× auxiliary lenses) |
| Extended Working Distance Range (Trino) | 38 mm – 300 mm (with 0.28× to 1.5× auxiliary lenses) |
| Eyepiece Options | 5×, 10× (graduated), 15×, 20×, 30× |
| Auxiliary Lens Options | 0.28×, 0.3×, 0.35×, 0.44×, 0.5×, 0.75×, 1.0×, 1.5×, 2.0× |
| Illumination Compatibility | LED ring light, cold light source, fluorescence excitation modules |
| Imaging Interface | C-mount adapter (trinocular), USB 2.0 digital camera included in trinocular configuration |
| Mounting Flexibility | Universal articulated stand (610 mm height), sliding lens carrier, 360° rotating head |
| Brand | RWD |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | DOM-1001 |
| Price | Upon Request |
| Resolution | 16 MP (Panasonic 1/2.33" CMOS, 1.335 µm pixel size) |
| Frame Rate | 60 fps |
| Output | 4K stills (3840×2160), 1080p video |
| Magnification Range | 18–100× (with 27″ display), 8–44× (with included 11.6″ display) |
| Zoom Ratio | 7:1 |
| Working Distance | 180 mm |
| Depth of Field | 0.4 mm (high mag) to 21.6 mm (low mag) |
| Illumination | Adjustable LED ring light + optional gooseneck lamp |
| Focus Control | Foot pedal + manual coaxial focus knobs |
| Interface | HDMI 1.3 (Type A), USB 2.0 (Type B), SDHC slot (up to 64 GB) |
| Software | DOM-1001 PC application (Windows 7/10) |
| Menu Language | English & Chinese |
| Power Supply | 12 V DC via external adapter |
| Compliance | CE-marked optical system architecture |
