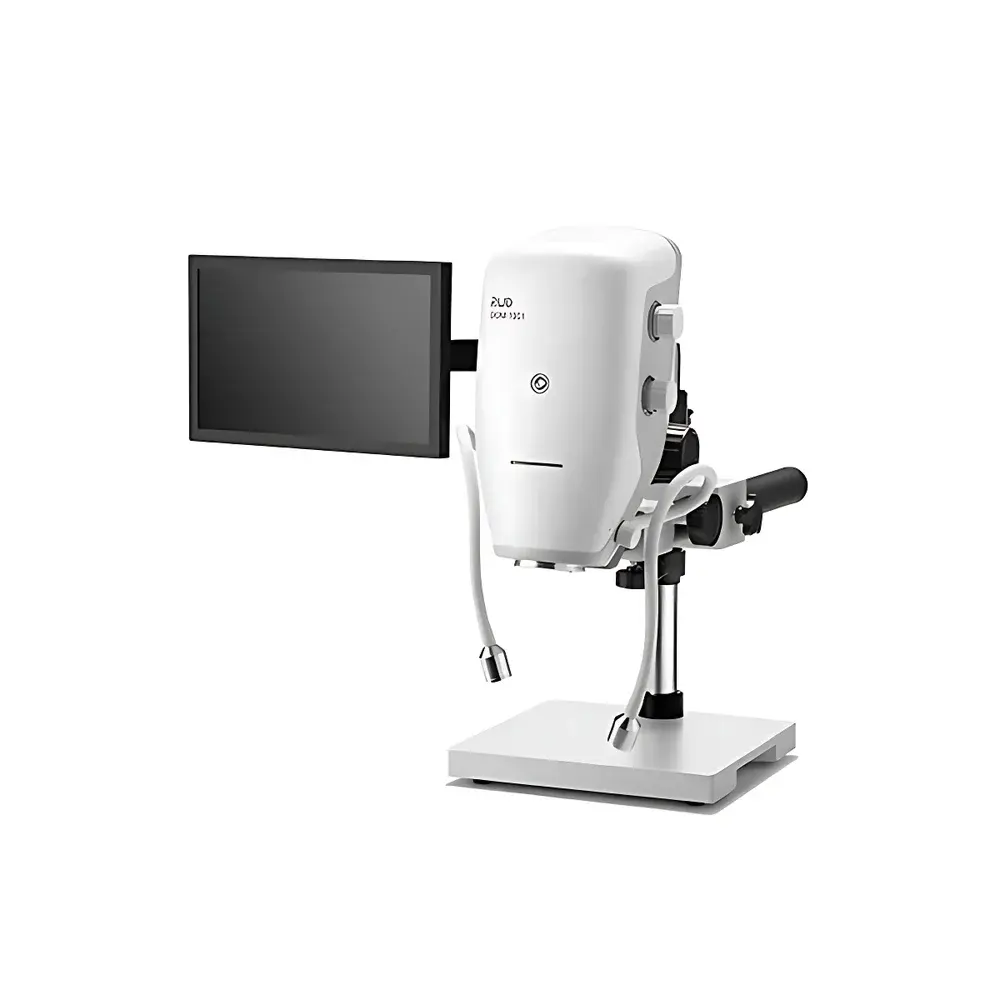

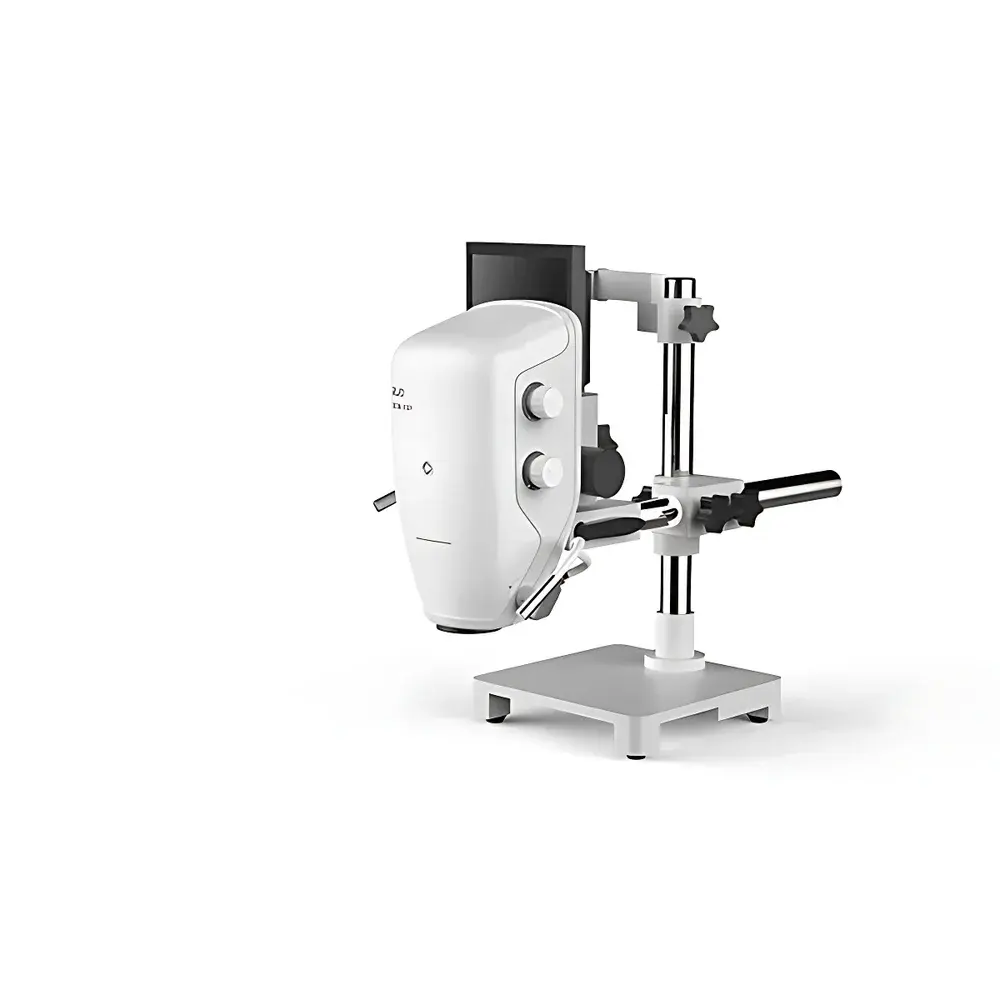

RWD DOM-1001 Digital Microscope

Overview

The RWD DOM-1001 Digital Microscope is a high-performance, eyepiece-free imaging platform engineered for precision visual inspection and documentation in both life science and industrial applications. Unlike traditional compound or stereo microscopes, the DOM-1001 employs a coaxial, parfocal optical path coupled with a 16-megapixel Panasonic CMOS sensor (1/2.33″ format, 1.335 µm pixel pitch) to deliver real-time, distortion-minimized imaging at up to 60 frames per second. Its core optical architecture features a 7:1 continuous zoom lens system with integrated aperture control—enabling seamless magnification transitions from 18× to 100× (when used with a 27″ 1080p display) without loss of focus or image registration. Designed for ergonomic sustainability, the system maintains a fixed 180 mm working distance and supports multi-axis articulation of the objective head, facilitating unobstructed access during delicate procedures such as embryonic dissection, PCB soldering inspection, or metallurgical sample evaluation.

Key Features

• Parfocal & coaxial optical design ensures consistent focal plane alignment across the full 7:1 zoom range—eliminating refocusing during magnification changes.
• 16 MP CMOS imaging sensor with native 4K still capture (3840 × 2160) and full HD 1080p video recording at 60 fps for motion-critical observation.
• Dual illumination system: adjustable-intensity LED ring light (standard) plus optional gooseneck auxiliary lamp for shadow-free, directional contrast enhancement.
• Ergonomic operation suite: foot-switch focus control, motorized zoom ring, and fully articulating arm mount—reducing repetitive strain during extended sessions.
• HDMI 1.3 and USB 2.0 dual-output architecture enables simultaneous display on external monitors and real-time acquisition on Windows-based workstations.
• On-device imaging controls including one-touch exposure, RGB-adjustable white balance, exposure compensation, and programmable annotation overlays.

Sample Compatibility & Compliance

The DOM-1001 accommodates opaque, translucent, and semi-reflective specimens without requiring sectioning or coating—making it suitable for whole-mount biological samples (e.g., zebrafish embryos, insect morphology, plant tissue), electronic assemblies (PCBs, SMD components), metallographic mounts, battery electrode cross-sections, and polymer composites. Its optical path conforms to ISO 10934-1 (optical microscopy terminology) and supports traceable imaging workflows aligned with GLP and GMP documentation requirements. When used with validated software configurations—including timestamped metadata embedding, user-access logging, and exportable DICOM/ TIFF 6.0 files—the system meets foundational criteria for FDA 21 CFR Part 11 compliance in regulated laboratory environments.

Software & Data Management

The DOM-1001 PC software (v3.2+, Windows 7/10 compatible) provides calibrated measurement tools (distance, area, angle, particle count), multi-layer annotation, batch image export (JPEG, PNG, TIFF, AVI), and HDMI-triggered auto-capture sequencing. Raw sensor data is preserved in 12-bit linear format prior to on-the-fly gamma correction, ensuring quantitative repeatability across sessions. The embedded SDHC card slot (supports cards up to 64 GB) allows standalone operation with automatic file naming, folder structuring by date/user ID, and error-resilient write buffering. All captured media include EXIF metadata: magnification level, exposure time, white balance mode, lens position, and system firmware revision.

Applications

• Developmental Biology: Real-time visualization of murine embryonic heartbeat dynamics, neural tube closure, and vascular plexus formation—validated in MCAO stroke modeling and ocular morphogenesis studies.
• Entomological Screening: High-fidelity taxonomic identification and viral vector screening in mosquito species (e.g., Aedes albopictus, Anopheles sinensis) under non-invasive, ambient-light conditions.
• Electronics Manufacturing: Solder joint integrity assessment, wire bond inspection, and fine-pitch component alignment verification at ≥50 µm resolution.
• Materials Science: Grain boundary analysis in heat-treated alloys, coating thickness estimation via edge-detection metrology, and composite delamination mapping.
• Education & Training: Classroom-scale live demonstration via HDMI mirroring; integrated annotation tools support curriculum-aligned pedagogical workflows.

FAQ

Does the DOM-1001 support calibration traceability for metrological applications?
Yes—when used with NIST-traceable stage micrometers and the software’s built-in calibration wizard, users can generate ISO/IEC 17025-compatible calibration reports.
Can the foot pedal be programmed for functions other than focus?
No—the foot switch is dedicated exclusively to coarse/fine focus actuation; zoom and capture are controlled via front-panel buttons or IR remote.
Is the HDMI output capable of driving 4K displays at 60 Hz?
The HDMI 1.3 interface outputs native 1080p60; 4K resolution is available only for still-frame capture—not real-time streaming.
What is the maximum usable field of view at lowest magnification with a 27″ display?
Approximately 24.5 mm diagonal FOV (calculated from sensor dimensions and optical magnification path).
Does the system support third-party software integration via SDK?
RWD provides a documented COM-based API for custom automation, including trigger synchronization, parameter polling, and image buffer access—subject to OEM licensing agreement.
