| Brand | SUNS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Country of Origin | China |
| Model | YAW-600-WJ |
| Max. Test Force | 600 kN |
| Force Loading Rate | 0.02–2% FS/s |
| Platen Spacing | 450 mm |
| Platen Dimensions | 620 × 500 × 1900 mm (W × D × H, overall machine footprint) |
| Brand | SUNS |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Category | Domestic (China) |
| Model | YAW-2 |
| Quotation | Upon Request |
| Maximum Test Force | 1000–3000 kN |
| Loading Rate Range | 0–80 kN/s |
| Platen Spacing | 300 mm |
| Platen Dimensions | 300 × 300 mm |
| Brand | SUNS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | YAW-1000-JM |
| Max Test Force | 1000 kN |
| Load Application Rate | 0.02–2% FS/s |
| Platen Spacing | 100 mm |
| Platen Dimensions | φ300 mm |
| Frame Type | Dual-Column |
| Column Spacing (Effective) | 520 mm |
| Displacement Measurement Channels | 8 |
| Force Accuracy Class | 0.5 |
| Force Range | 1–100% FS (Single Range) |
| Force Resolution | 1/500,000 of Full Scale |
| Displacement Resolution | 0.001 mm |
| Displacement Range | 0–1 mm |
| Crosshead Speed | 0–100 mm/min |
| Hydraulic Power Unit | Low-Noise High-Pressure Pump with Air Cooling |
| Control Mode | Electro-Hydraulic Servo with Closed-Loop Force & Displacement Control |
| Compliance | ASTM E4, ASTM E9, ISO 7500-1, GB/T 228.1, GB/T 7314, DIN 51221, JIS Z 2241 |
| Brand | SUNS |
|---|---|
| Origin | Shenzhen, China |
| Manufacturer Type | Direct Manufacturer |

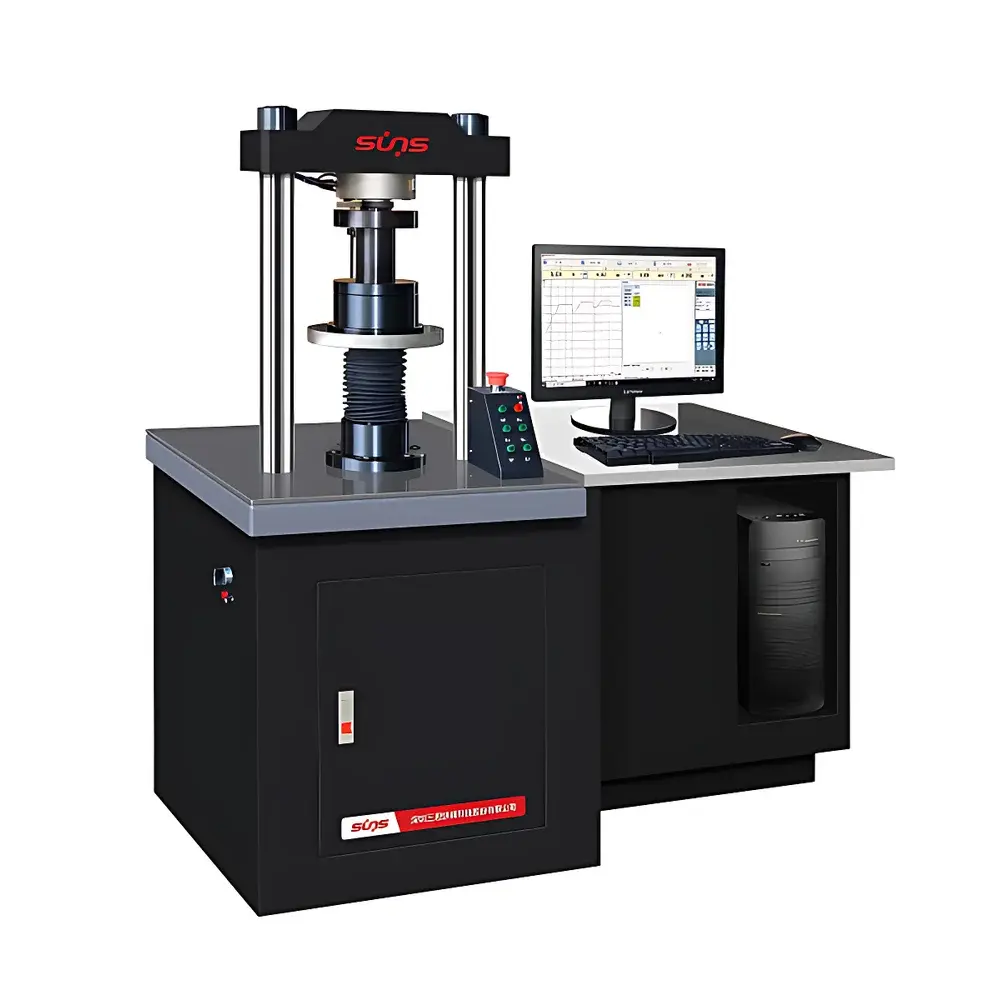

| Model | UTM7305 |
| Max Test Force | 300 kN |
| Force Loading Rate | 0.02–5% FS/s |
| Platen Spacing | 240 mm |
| Platen Diameter | 150 mm |
| Compression Die Diameter | 13 mm |
| Crosshead Travel | 100 mm |
| Displacement Control Range | 0.001–50 mm/min |
| Force Measurement Accuracy | ±0.5% of reading (0.4–100% FS) |
| Force Resolution | 1/500,000 full scale (unsegmented) |
| Displacement Accuracy | ±0.5% of reading |
| Motor Power | 1.5 kW |
| Dimensions (W×D×H) | 1200 × 700 × 1500 mm |
| Weight | ~800 kg |
| Power Supply | 380 V / 50 Hz ±10% |
| Brand | SUNS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |

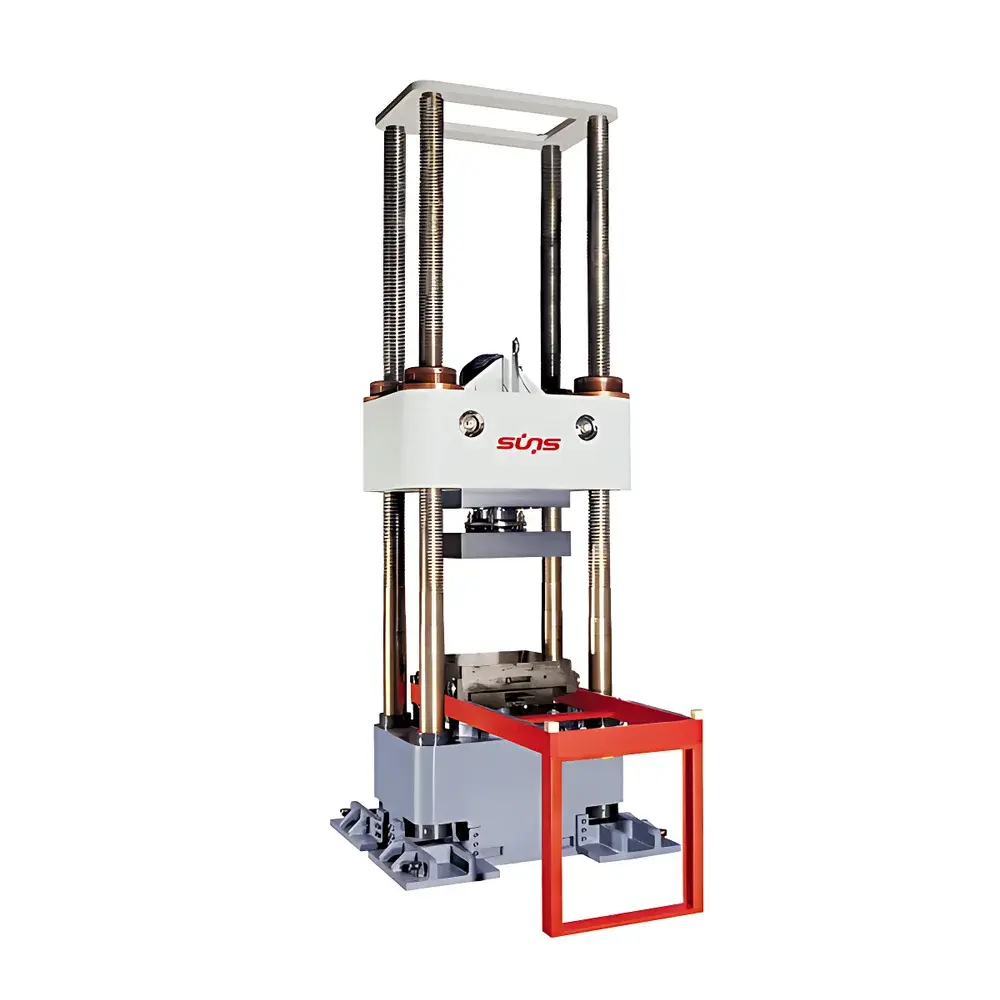

| Model | YAW Series |
| Quotation | Upon Request |
| Maximum Test Force | 1000–20000 kN |
| Loading Rate Range | 0.02–2% FS/s |
| Platen Spacing | 800 mm |
| Platen Dimensions | 720 × 1300 × 2300 mm (L×W×H) |
| Brand | SUNS |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

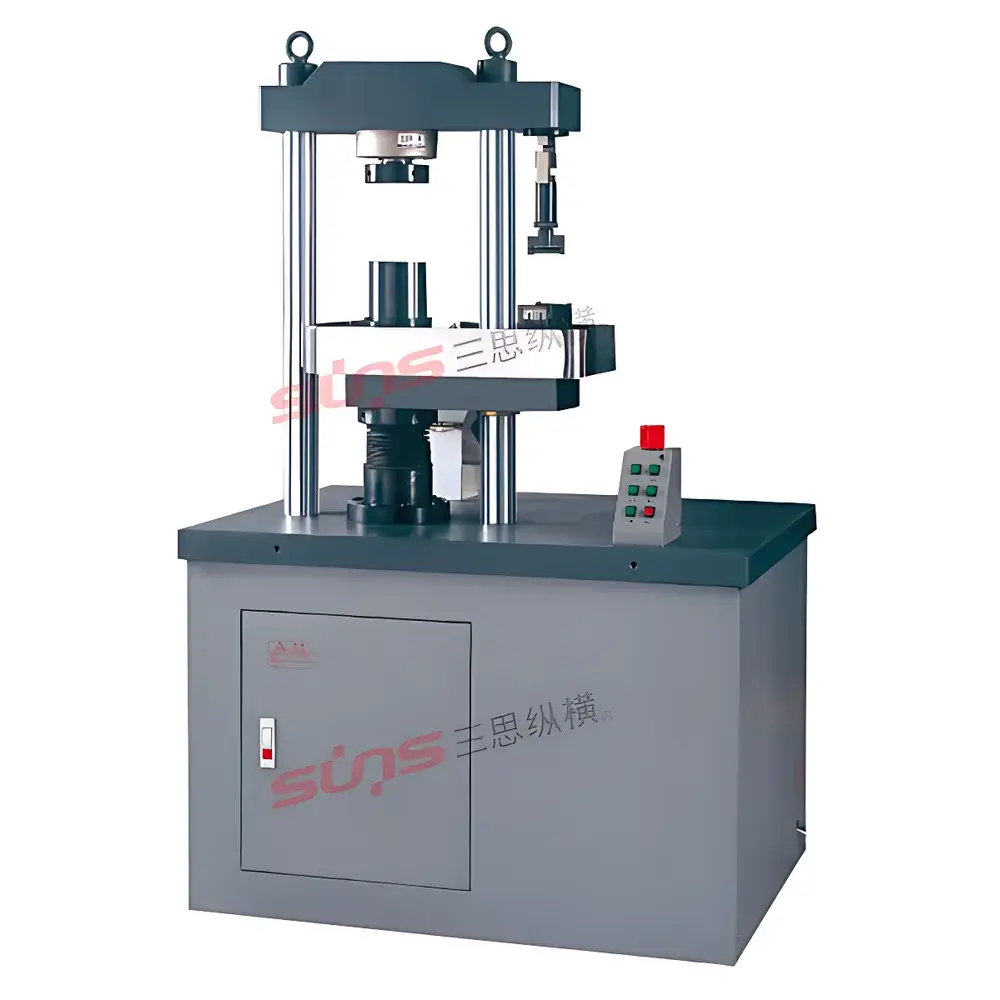

| Model | UTM7305Z05 |
| Max. Compression Load | 300 kN |
| Max. Flexural Load | 10 kN |
| Load Rate Range | 0.02–2% FS/s |
| Platen Spacing (max) | 240 mm |
| Platen Diameter | φ110 mm |
| Flexural Support Span | 100 mm |
| Flexural Roller Diameter | φ10 mm |
| Flexural Roller Length | 60 mm |
| Upper-Lower Roller Distance | 94 mm |
| Force Resolution | 1/300,000 of Full Scale |
| Accuracy Class | ISO 7500-1 Class 1 / Optional Class 0.5 |
| Load Measurement Range | 1–100% FS (single-range, no auto-ranging) |
| Screw Travel | 100 mm |
| Power Supply | 1.5 kW |
| Weight | 1000 kg |
