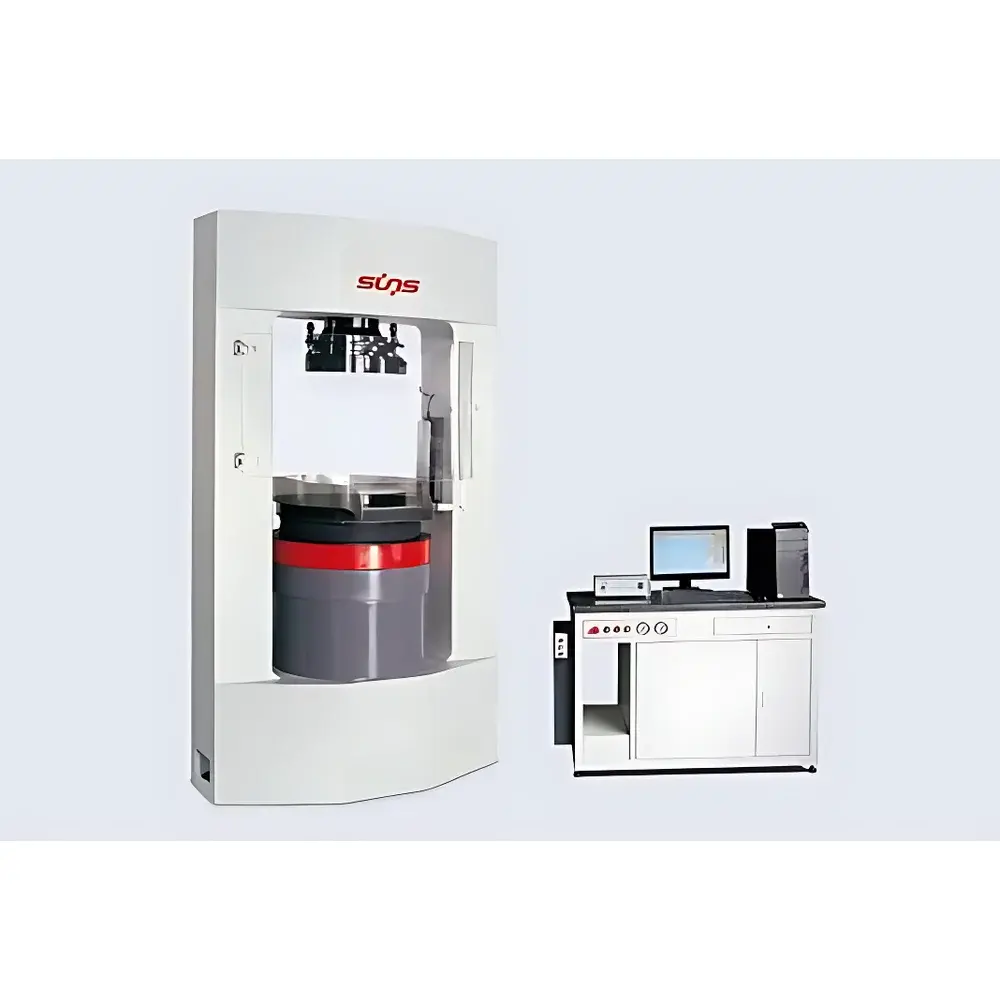

SUNS YAW-1000-JM High-Precision Custom Compression Testing Machine

Overview

The SUNS YAW-1000-JM is a high-stiffness, electro-hydraulic servo-controlled compression testing machine engineered for applications demanding exceptional force accuracy, structural rigidity, and displacement fidelity—particularly in the mechanical characterization of critical sealing components such as spiral-wound gaskets used in oil and gas pipeline systems. Operating on the principle of closed-loop hydraulic actuation with real-time force feedback, the system employs a dual-column rigid frame architecture to minimize parasitic deformation during high-load compression cycles. Its 1000 kN capacity, combined with a 0.5-class force accuracy rating per ISO 7500-1 and ASTM E4, ensures traceable, repeatable results across extended test durations. The machine’s design prioritizes metrological integrity: load is measured via calibrated high-stability load cells; displacement is captured simultaneously across eight independent high-resolution LVDT or magnetostrictive transducers (0.001 mm resolution), enabling multi-point strain mapping and precise evaluation of non-uniform deformation behavior.

Key Features

• Electro-hydraulic servo control architecture with proportional servo valve (imported) for dynamic load regulation, supporting both constant stress rate and load hold modes per ASTM E9 and ISO 376.
• Dual-column monolithic frame with 520 mm clear column spacing and optimized cross-sectional geometry to maintain axial alignment under full 1000 kN load—critical for gasket creep-recovery and rebound testing.
• Eight-channel high-fidelity displacement acquisition system synchronized with force data, enabling spatially resolved compression profiling and compliance correction in real time.
• Low-noise, air-cooled high-pressure hydraulic power unit rated for continuous operation (>8 h duty cycle), minimizing thermal drift and ensuring stable control performance in QA/QC laboratory environments.
• Single-range force measurement from 1% to 100% FS (10–1000 kN) with 1/500,000 internal resolution, eliminating range-switching artifacts and supporting seamless transition between low-force preload and high-force failure testing.
• Hydraulically adjustable platen spacing (0–100 mm) with bidirectional cylinder and precision-machined φ300 mm hardened steel platens—designed for uniform pressure distribution and minimal edge effects per ASTM F38.

Sample Compatibility & Compliance

The YAW-1000-JM accommodates cylindrical, annular, and rectangular specimens up to 300 mm in diameter or width, including spiral-wound metallic gaskets (SWGs), non-metallic compressed fiber gaskets (CFGs), and high-performance elastomeric seals. Its mechanical layout conforms to the geometric constraints defined in ASTM F37, ASTM F152, and EN 1514-2 for gasket compression testing. Force and displacement calibration procedures are fully compatible with ISO/IEC 17025 requirements for accredited testing laboratories. System-level validation supports audit readiness for GLP and GMP environments, with documentation traceable to national standards (e.g., CNAS-accredited calibration certificates). All control firmware and data acquisition modules comply with electromagnetic compatibility (EMC) directives IEC 61326-1 and safety standard IEC 61000-6-2.

Software & Data Management

The embedded control software provides ISO 17025-aligned test method templates—including gasket compression set (ASTM F36), recovery (ASTM F37), and creep relaxation (EN 1514-4)—with configurable ramp-hold sequences, automatic zeroing, and real-time pass/fail threshold monitoring. Raw data streams (force, eight displacement channels, time) are recorded at ≥1 kHz sampling rate and stored in vendor-neutral ASCII CSV format with embedded metadata (operator ID, sample ID, environmental conditions, calibration expiry). Audit trail functionality logs all user actions—including parameter changes, calibration events, and report exports—with timestamped, non-erasable records compliant with FDA 21 CFR Part 11 requirements when deployed with optional electronic signature module. Export interfaces support direct integration into LIMS platforms via OPC UA or TCP/IP protocols.

Applications

• Mechanical evaluation of spiral-wound gasket rebound ratio, compression set, and stress relaxation under simulated flange loading conditions.
• High-precision compressive yield and ultimate strength testing of advanced ceramics, carbon composites, and sintered metal powders per ISO 13314.
• Creep compliance assessment of polymer-based sealing materials at elevated temperatures (when integrated with environmental chamber).
• Calibration verification of reference load cells and proving rings per ISO 376 Annex C.
• Structural validation of custom-engineered mechanical joints and interface materials in energy infrastructure components.

FAQ

What standards does the YAW-1000-JM support for gasket testing?
It fully implements ASTM F36, F37, F152, EN 1514-2, and ISO 13628-4 for compressive behavior, recovery, and long-term sealing performance evaluation.
Can the system perform multi-point displacement tracking during compression?
Yes—eight synchronized high-resolution displacement sensors enable simultaneous measurement at multiple radial and axial locations, supporting ASTM D695-compliant strain field analysis.
Is the hydraulic system suitable for unattended overnight testing?
The air-cooled, low-noise pump and thermally stable servo valve allow continuous operation up to 12 hours without performance degradation or calibration drift.
Does the controller support third-party data acquisition or automation integration?
Yes—open TCP/IP and OPC UA APIs enable bidirectional communication with PLCs, MES systems, and custom Python/Matlab scripts for automated test sequencing and SPC reporting.
What is the recalibration interval recommendation for ISO/IEC 17025 compliance?
Annual force calibration against certified deadweight standards is recommended; displacement system verification should be performed quarterly using NIST-traceable gauge blocks.
