| Brand | Otisense |
|---|---|
| Origin | Tianjin, China |
| Model | AP-01P |
| Pump Type | Diaphragm (Oil-Free) |
| Ultimate Vacuum | ≥80 kPa (≈23.6 inHg / −20 psi gauge) |
| Maximum Pressure | Not specified |
| Flow Rate | 10 L/min |
| Motor Power | 35 W |
| Dimensions (W×H×D) | 246 × 190 × 135 mm |
| Weight | 3.1 kg |
| Power Supply | AC 220 V, 50 Hz |
| Housing Materials | Polyphenylene Sulfide (PPS) and Polytetrafluoroethylene (PTFE) |
| Compliance | CE-marked per IEC 61000-6-3 (EMC) and IEC 61000-6-2 (Immunity) |
| Brand | Otisience |
|---|---|
| Model | AP-9950 |
| Type | Oil-Free Dual-Head Vacuum Pump |
| Ultimate Vacuum | >85 kPa (gauge, adjustable) |
| Max Positive Pressure | >500 kPa (gauge) |
| Pumping Speed | 40 L/min |
| Power | 60 W |
| Dimensions (W×D×H) | 230 × 145 × 160 mm |
| Weight | 3.8 kg |
| Input Voltage | 220 V / 50 Hz |
| Configuration | Dual-head (parallel/series switchable) |
| Control | Manual pressure regulation knob |
| Compliance | CE-marked design principles, RoHS-compliant materials |
| Brand | Otisience |
|---|---|
| Origin | Tianjin, China |
| Model | AP-01D |
| Pump Type | Diaphragm-Type Oil-Free Vacuum/Pressure Pump |
| Ultimate Vacuum | 80 kPa (≈20 psi vacuum) |
| Max Pressure Output | Not Specified |
| Flow Rate | 10 L/min |
| Motor Power | 35 W |
| Dimensions (W×H×D) | 246 × 190 × 135 mm |
| Weight | 3.2 kg |
| Power Supply | AC 220 V / 50 Hz |
| Construction Materials | PPS (Polyphenylene Sulfide) & PTFE (Polytetrafluoroethylene) |
| Compliance | CE-marked design principles |
| Brand | Otisience |
|---|---|
| Origin | Tianjin, China |
| Model | AP-9925(N) |
| Type | Diaphragm-Type Oil-Free Vacuum Pump |
| Ultimate Vacuum | <15 kPa (abs) |
| Pumping Speed | 25 L/min |
| Motor Power | 50 W |
| Dimensions (W×D×H) | 230 × 130 × 160 mm |
| Weight | 3.1 kg |
| Voltage/Frequency | 220 V / 50 Hz |
| Pressure Regulation | Manual Knob-Controlled Dual-Port (Vacuum & Positive Pressure) |
| Diaphragm & Cylinder Surface | PTFE-Coated |
| Compliance | CE-marked per EN 61000-6-3 & EN 61000-6-2 (EMC), RoHS 2015/863/EU |

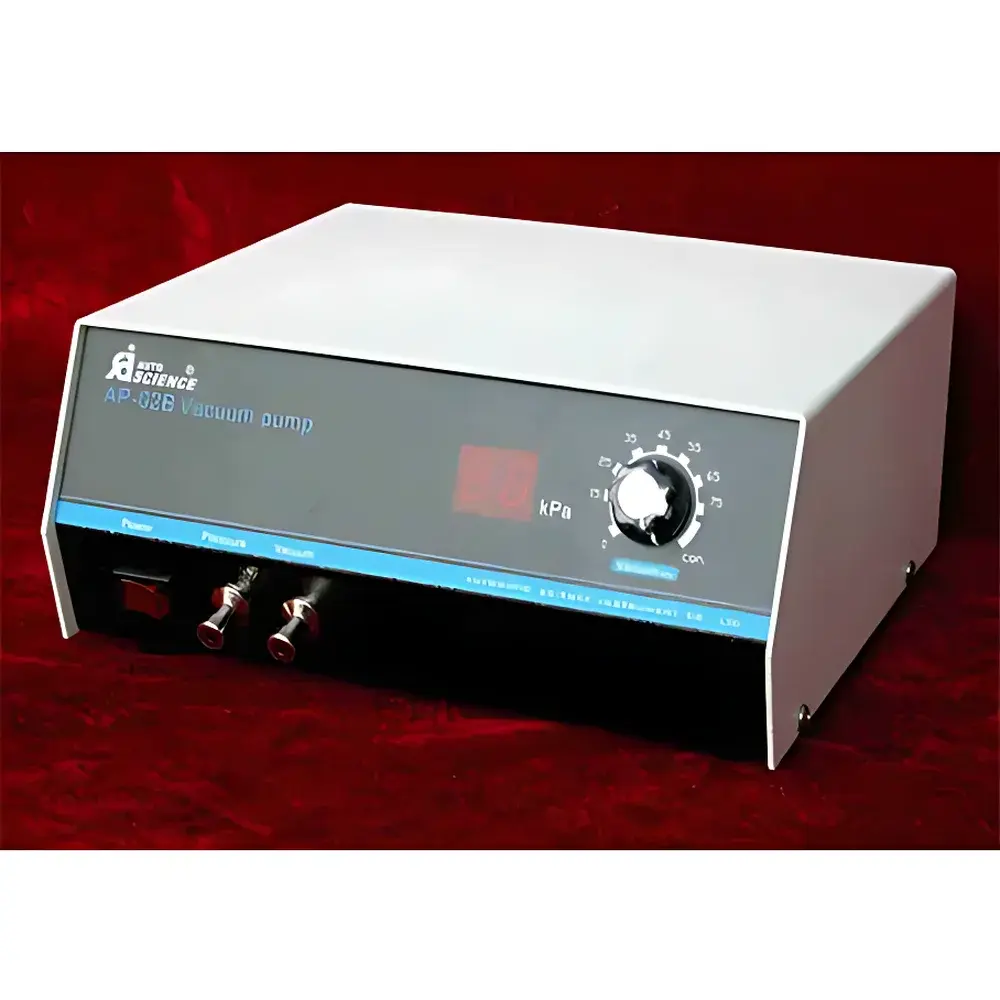

| Brand | Otisience |
|---|---|
| Model | AP-02B |
| Type | Diaphragm-Based Oil-Free Dual-Head Vacuum/Pressure Pump |
| Vacuum Range | 0–80 kPa (adjustable) |
| Maximum Pressure Output | >150 kPa |
| Flow Rate | 10,000 mL/min |
| Power Consumption | 45 VA |
| Input Voltage | AC 220 V / 50 Hz |
| Dimensions (W×H×D) | 230 × 85 × 200 mm |
| Weight | 2.5 kg |
| Compliance | CE-marked design for laboratory use under IEC 61010-1 |
| Brand | Otisience |
|---|---|
| Model | AP-9100A |
| Pump Type | Oil-Free Diaphragm Pump |
| Vacuum Range | 0–95 kPa (gauge), Max Absolute Vacuum >500 kPa (i.e., <50 kPa abs) |
| Pressure Output | Up to 95 kPa (gauge) |
| Flow Rate | 80 L/min |
| Motor Power | 250 W |
| Dimensions (W×H×D) | 270 × 180 × 246 mm |
| Weight | 11.2 kg |
| Power Supply | 220 V / 50 Hz |
| Construction | PPS (Polyphenylene Sulfide) and Anodized Aluminum Housing |
| Compliance | CE-marked, RoHS-compliant, Designed for GLP-Compatible Lab Environments |
