| Brand | MOCON |
|---|---|
| Origin | USA |
| Model | PERMATRAN-W® Model 3/34G |
| Test Range (Film) | 0.005–100 g/(m²·day) |
| Resolution | 0.001 g/(m²·day) |
| Repeatability | ±0.005 g/(m²·day) or ±2% |
| Temperature Control | 10–40 °C (±0.2 °C) |
| Humidity Range | 5–90% RH, up to 100% RH |
| Test Chamber Area | 2 × 50 cm² |
| Sample Size (Film) | 10.8 cm × 10.8 cm |
| Package Capacity | Up to 3 L |
| Sensor Type | Coulometric Moisture Detector |
| Sealing Technology | TruSeal™ Nitrogen Perimeter Purge |
| Interface | Touchscreen + Ethernet/USB |
| Data Storage | Internal (100 test records) + PermNet® Lite remote software support |
| Compliance | ASTM F1249, ISO 15106-3, TAPPI T464, USP <671>, FDA 21 CFR Part 11 (with audit trail enabled) |
| Brand | Mocon |
|---|---|
| Origin | USA |

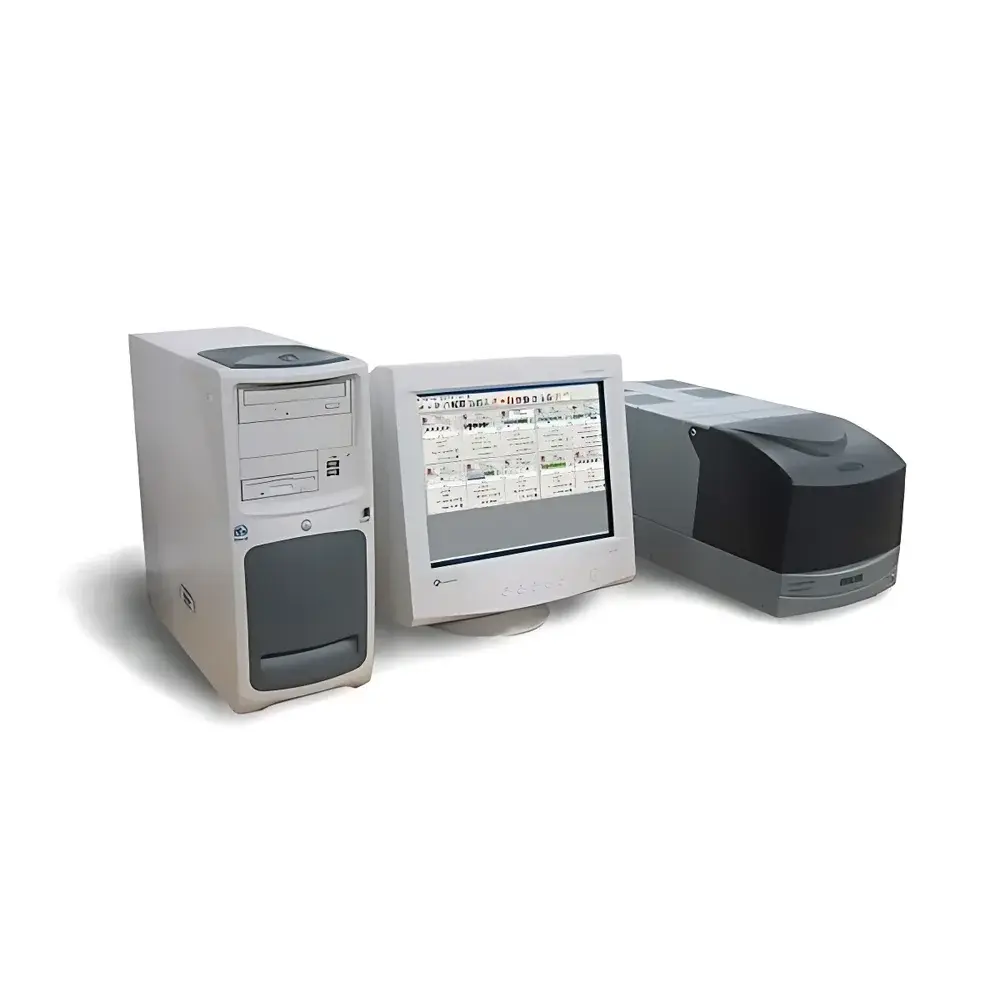

| Model | PERMATRAN-W® Model 3/61 |
| Test Principle | Infrared Detection (ASTM F1249-compliant) |
| Sample Capacity | 6 independent test cells (10 cm² each) |
| WVTR Range (per cell) | 0.05–500 g/m²·day |
| Combined 6-cell Range | 0.01–85 g/m²·day |
| RH Control | 35–90% RH (film), up to 100% RH (container mode) |
| Temperature Range | Ambient to 65°C |
| Calibration Traceability | NIST-traceable standard films |
| Sample Types | Flat films (10.8 × 10.8 cm), rigid/flexible packages (≤3 L) |
