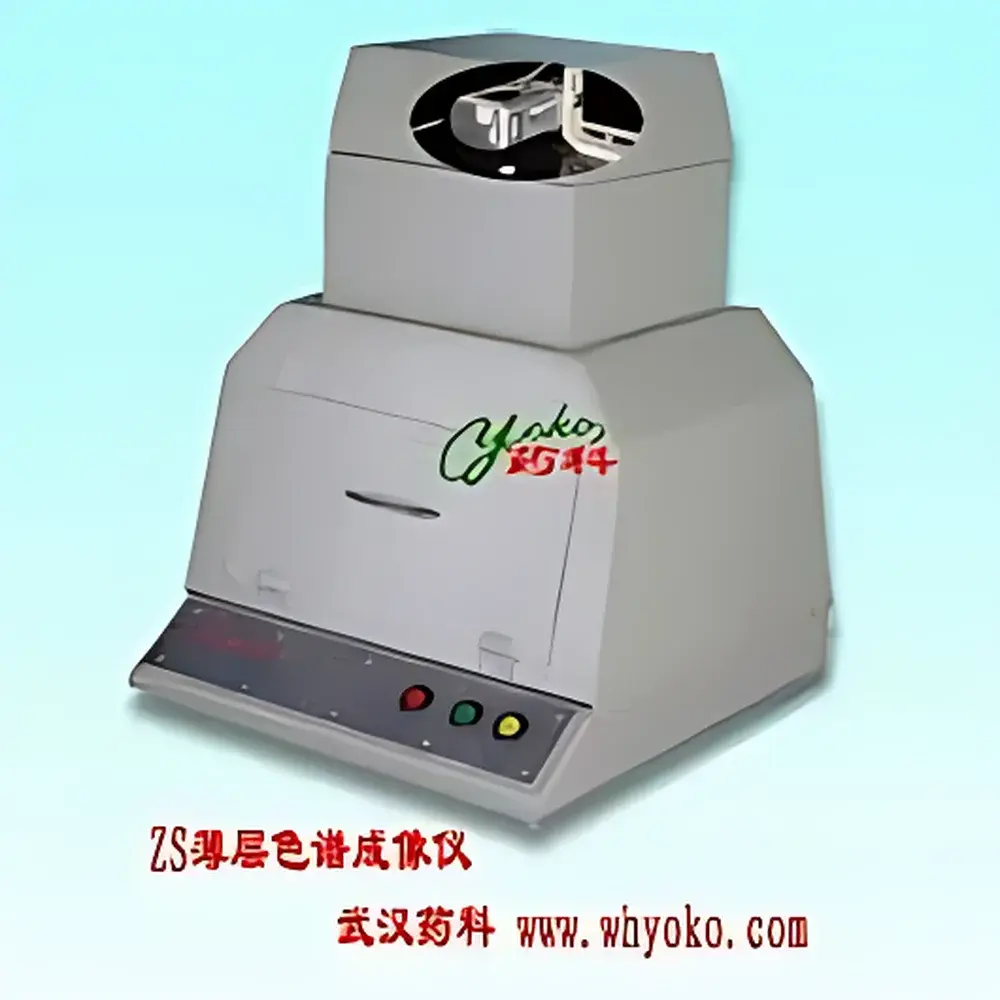

| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | TLC Imaging System |
| Illumination Sources | 254 nm (2 × 6 W), 365 nm (2 × 6 W), White Light (GB standard, 2 × 6 W) |
| UV Transmittance | ≥68% at 254 nm, ≥86% at 365 nm |
| Filter Dimensions | 50 × 200 mm (dual-wavelength UV-transmitting) |
| Power Supply | 220 V, 50 Hz |

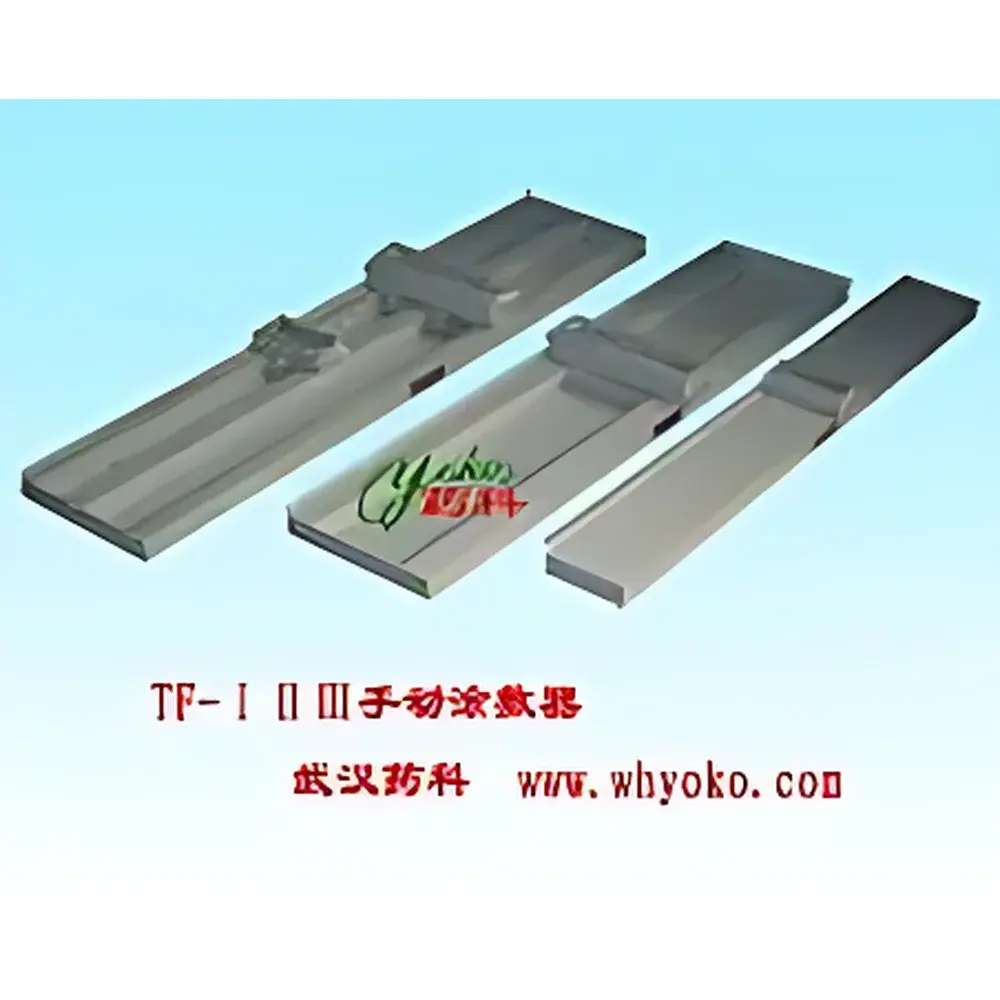

| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | YOKO-TF |
| Instrument Category | TLC Ancillary Equipment |
| Operation Mode | Manual |
| Coating Width Options | 10 cm (TF-I), 20 cm (TF-II), Dual 10/20 cm (TF-III) |
| Adjustable Layer Thickness | 0.02–2 mm |
| Frame Material | Anodized Aluminum with Epoxy Coating |
| Compatible Plate Sizes | 5×10, 10×10, 20×10, 5×20, 10×20, 20×20 cm |

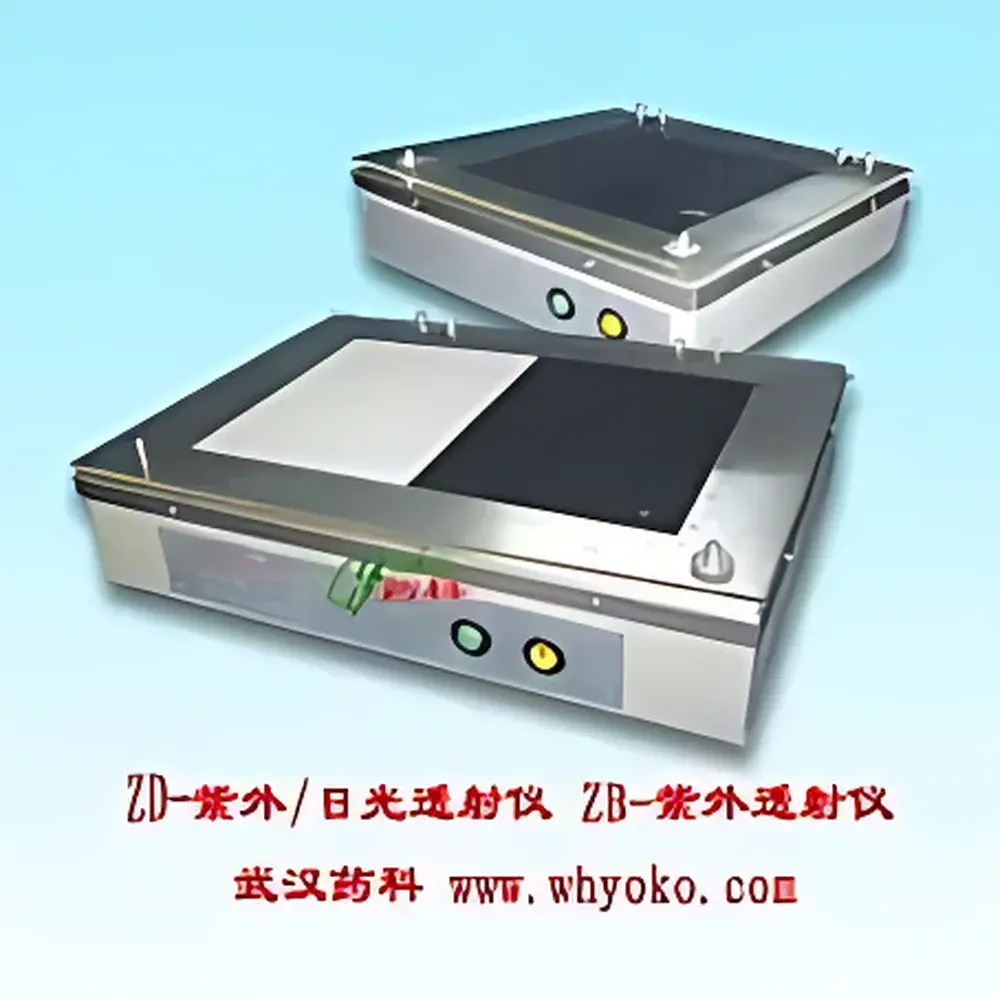

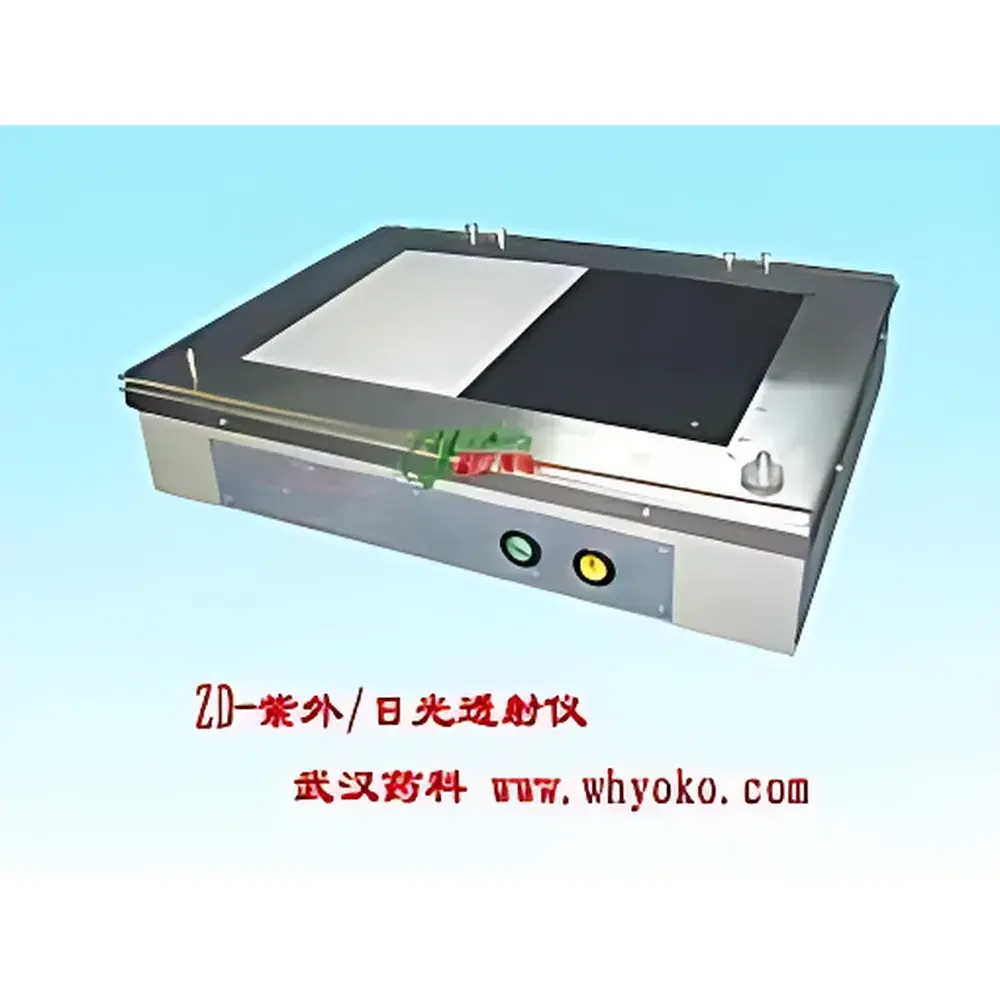

| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |
| Model | ZB + ZD |
| UV Lamps | 4 × 12 W U-shaped lamps (312 nm standard |
| UV Filter Dimensions | 200 mm × 200 mm (ZB), 200 mm × 150 mm (ZD) |
| UV Filter Transmission | ≥68% at 254 nm, ≥86% at 365 nm |
| Visible Lamp | 3 × 12 W U-shaped daylight lamp (380–700 nm) |
| White Diffuser Plate | 200 mm × 150 mm (ZD only) |
| Dimensions (ZB) | 300 × 300 × 90 mm |
| Dimensions (ZD) | 400 × 300 × 90 mm |
| Key | Brand: whYOKO |
|---|---|
| Origin | Hebei, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Category | Domestic |
| Model | YOKO-ZF |
| Operation Mode | Manual |
| UV Wavelengths | 254 nm (1 lamp), 365 nm (1 lamp) |
| Visible Light | Integrated daylight lamp (400–700 nm) |
| UV Filter Dimensions | 50 × 200 mm |
| UV Transmission | ≥68% at 254 nm, ≥86% at 365 nm |
| Power Supply | 220 V, 50–60 Hz |
| Rated Power | 25 W |
| Overall Dimensions | 250 × 255 × 220 mm |
| Compliance | CE-marked design principles, compatible with ISO/IEC 17025 laboratory environment requirements |
| Accessories | Host unit, two 1A fuses, instruction manual, certificate of conformity, warranty card |
| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Model | YOKO-PN+PX |
| Instrument Type | Preparative Thin-Layer Chromatography System |
| Operation Mode | Automatic |
| Wavelength Range | 200–700 nm |
| Wavelength Accuracy | ±1 nm |
| Power (PN-I) | 50 W |
| Airflow (PN-I) | 65 L/min |
| Noise Level (PN-I) | <48 dB(A) |
| Dimensions (PN-I) | 207 × 142 × 215 mm |
| Power (PX-II-A) | 50 W |
| Airflow (PX-II-A) | 5000 L/min |
| Dimensions (PX-II-A) | 480 × 480 × 420 mm |
| Construction | Full Stainless Steel Enclosure |
| Exhaust Fan | Centrifugal Type |
| Duct Diameter | Φ150 mm × 2 m Extendable Hose |
| Brand | YOKO |
|---|---|
| Model | BD-II |
| Type | Electric Thin-Layer Chromatography Spotter |
| Spotting Mode | Contact-based circular spotting |
| Max Plate Size | 200 × 200 mm |
| Heating Platform Power | 600 W |
| Temperature Control Range | 0–200 °C (digital display & setpoint control) |
| Heating Stage Travel | 0–180 mm (bidirectional, stepper motor-driven with auto-limit protection) |
| Syringe Drive | Stepper motor actuation with downward行程 auto-protection |
| Syringe Options | 10 µL and 50 µL glass microsyringes included |
| Spotting Accuracy | < 1.0% RSD |
| Spotting Reproducibility | < 1.5% RSD |
| Sample Uptake | Direct capillary aspiration (bubble-free operation) |
| Cleaning | Removable syringe for manual cleaning |
| Input Power | 630 W, 220 V ± 10%, 50–60 Hz |
| Heating Platform Material | Stainless steel |

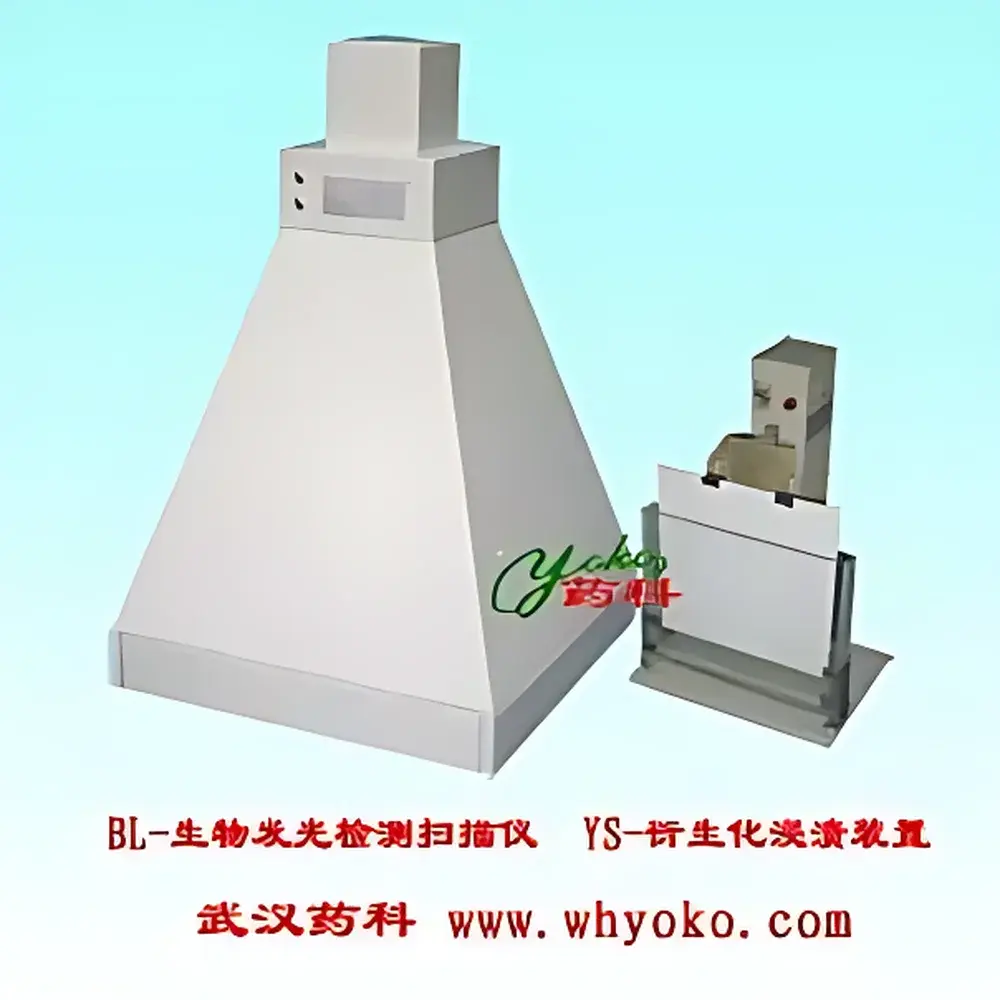

| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Model | BL+YS |
| Instrument Type | Thin-Layer Chromatography (TLC) Densitometer with Bio-Luminescence Detection and Integrated Immersion Derivatization System |
| Detector Principle | Bioluminescent Inhibition Assay (BIA) |
| Maximum Plate Size | 200 mm × 200 mm |
| Scanning Modes | Linear scan, Multi-channel simultaneous acquisition |
| Detection Sensor | High-quantum-efficiency CCD with cooled imaging architecture |
| Derivatization Method | Vertical immersion (non-aerosol, contact-based) |
| Immersion Speed | 40 mm/s (adjustable vertical actuation) |
| Immersion Duration | 1–60 s (programmable in 0.1 s increments) |
| Plate Height Compatibility | 100 mm and 200 mm formats |
| Pre-wash Function | Supported via immersion cylinder |
| Derivatization Chamber | Sintered stainless-steel immersion tank (200 mm × 200 mm × 50 mm depth) |
| Software Platform | whYOKO TLC-Densitometry Suite v3.x (Windows 10/11 compatible) |
| Quantitation Algorithms | Normalization, internal standard, external standard |
| Data Storage | Unlimited spectral archives with metadata tagging (ISO/IEC 17025-compliant file structure) |
| Regulatory Compliance | Supports audit trail, user access levels, electronic signature (FDA 21 CFR Part 11 ready mode) |
| Brand | whYOKO |
|---|---|
| Model | YOKO-PX |
| Type | Manual Prep-TLC Spray Development Chamber |
| Construction | All-Stainless-Steel Enclosure |
| Exhaust System | Centrifugal Duct Fan |
| Exhaust Capacity | 5000 L/min (PX-A) / 8300 L/min (PX-B) |
| Dimensions | 460 × 460 × 460 mm (PX-A) / 500 × 500 × 500 mm (PX-B) |
| Duct | φ150 mm × 2 m telescopic stainless-steel flex duct with fittings |
| Power | 50 W (PX-A) / 90 W (PX-B) |
| Compliance | Designed for ISO/IEC 17025-aligned lab safety workflows |
| Application | Post-development spray reagent application and acid carbonization in thin-layer chromatography |

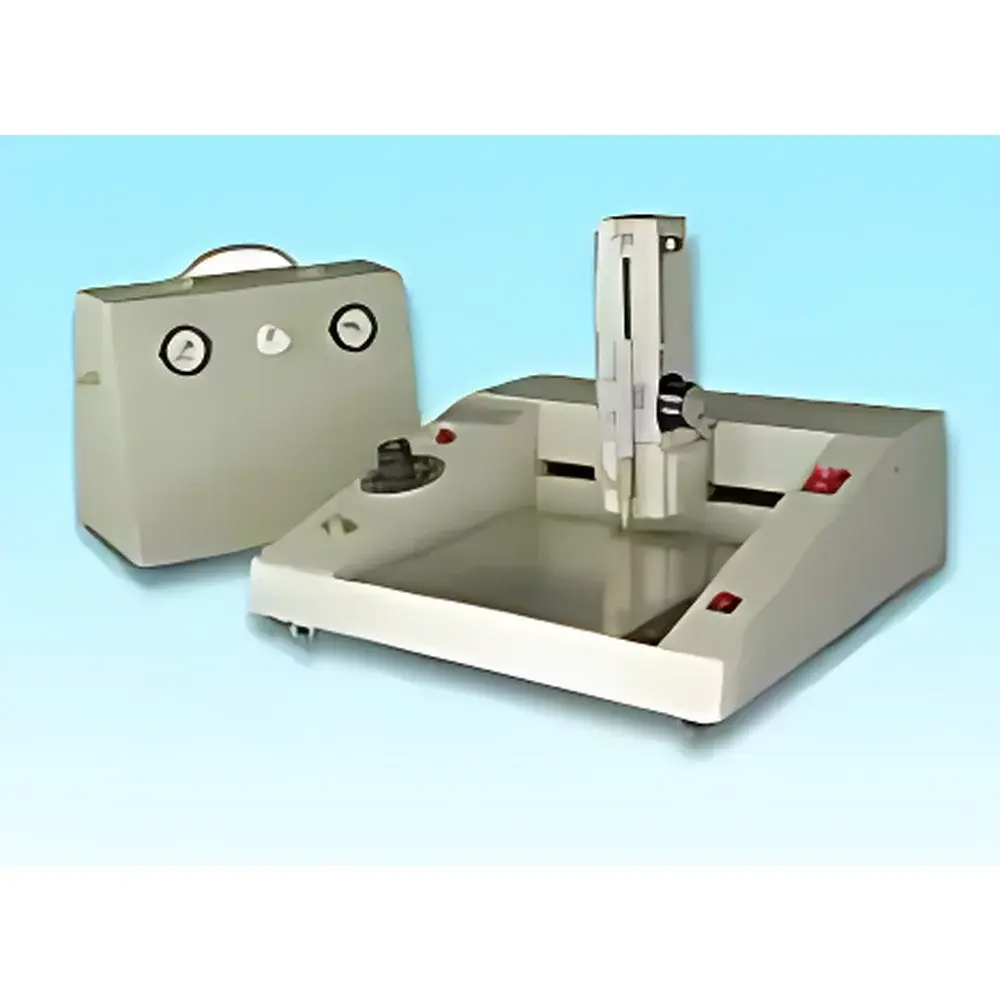

| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | YOKO-TD |
| Instrument Category | Thin-Layer Sample Applicator |
| Operation Mode | Fully Automatic |
| Wavelength Accuracy | < ±1.0% |
| Wavelength Repeatability | < ±1.5% |
| Sample Platform Dimensions | 200 × 200 mm TLC Plate |
| Heating Range | 35–200 °C |
| Heating Power | 600 W |
| Strip Length Range | 0–180 mm |
| Air Pressure Control | 0–0.12 MPa |
| Gas Flow Rate | 0.1–2.0 L/min |
| Power Supply | 220 V ±10%, 50–60 Hz, 630 W |
| Dimensions (L×W×H) | 450 × 390 × 290 mm |
| Weight | 16 kg |
| Included Syringes | 10 µL & 50 µL stainless-steel flat-tipped microsyringes |
| Optional Syringes | 25 µL, 100 µL |
| Sample Delivery Method | Non-contact pneumatic spray dispensing |
| Spot/Strip Precision | < ±1.0% (accuracy), < ±1.5% (repeatability) |
| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (PRC) |
| Model | YOkO-YS |
| Instrument Category | TLC Ancillary Equipment |
| Operation Mode | Manual |
| Vertical Speed | 40 mm/s |
| Immersion Time Range | 1–60 s (adjustable in 1-s increments) |
| Compatible Plate Heights | 10 cm and 20 cm |
| Standard Immersion Bath | 20 × 20 cm Sintered Glass Reservoir |
| Input Voltage | AC 220 V |
| Power Consumption | 20 W |
| Brand | YOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Preparative Thin-Layer Chromatography (TLC) Imaging System |
| Operation Mode | Manual |
| UV Wavelengths | 254 nm, 365 nm |
| Visible Light Source | Standard White Light (6 W, GB-compliant) |
| UV Lamp Configuration | Dual 254 nm (6 W each), Dual 365 nm (6 W each), Dual White Light (6 W each) |
| UV Transmittance | ≥68% at 254 nm, ≥86% at 365 nm |
| Filter Dimensions | 50 × 200 mm (2 pcs) |
| Power Supply | 220 V ±10%, 50–60 Hz |
| Total Power Consumption | 36 W |
| Dimensions (L×W×H) | 400 × 390 × 290 mm |
| Weight | Not specified |
| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Preparative TLC Coater |
| Operation Mode | Fully Automatic |
| Wavelength Range | 200–700 nm |
| Wavelength Accuracy | ±1 nm |
| Coating Thickness Adjustment | 0.05–2.0 mm |
| Non-Parallelism Tolerance | ≤0.04 mm |
| Throughput | 210 plates (200 × 200 mm) per 10 minutes |
| Traverse Speed | 4.2 m/min |
| Power Consumption | 90 W (BF-111) |
| Dimensions (L×W×H) | 340 × 130 × 190 mm |
| Plate Compatibility | 100 × 100 mm to 200 × 200 mm |
| Coating Frame Material | Anodized Aluminum with Powder Coating |
| Compliance | Designed for GLP-compliant laboratory environments |
| Brand | YOKO |
|---|---|
| Origin | Hubei, China |
| Model | YOKO-FD1 |
| Spotting Mode | Contactless Pneumatic Spray & Precision Needle Deposition |
| Programmable Methods | 50 (100 steps each) |
| Heating Platform | 0–200 °C, 200 × 200 mm stainless steel |
| Spotting Accuracy | ≥99% |
| Spotting Reproducibility | ≥99% |
| Syringe Options | 10 µL, 50 µL (standard) |
| Air Supply | Oil-free compressor, 0–0.12 MPa adjustable, gas flow 0.1–2.0 L/min |
| Dimensions | 480 × 420 × 390 mm |
| Weight | 20 kg |
| Power | 220 V ±10%, 50–60 Hz, 650 W |

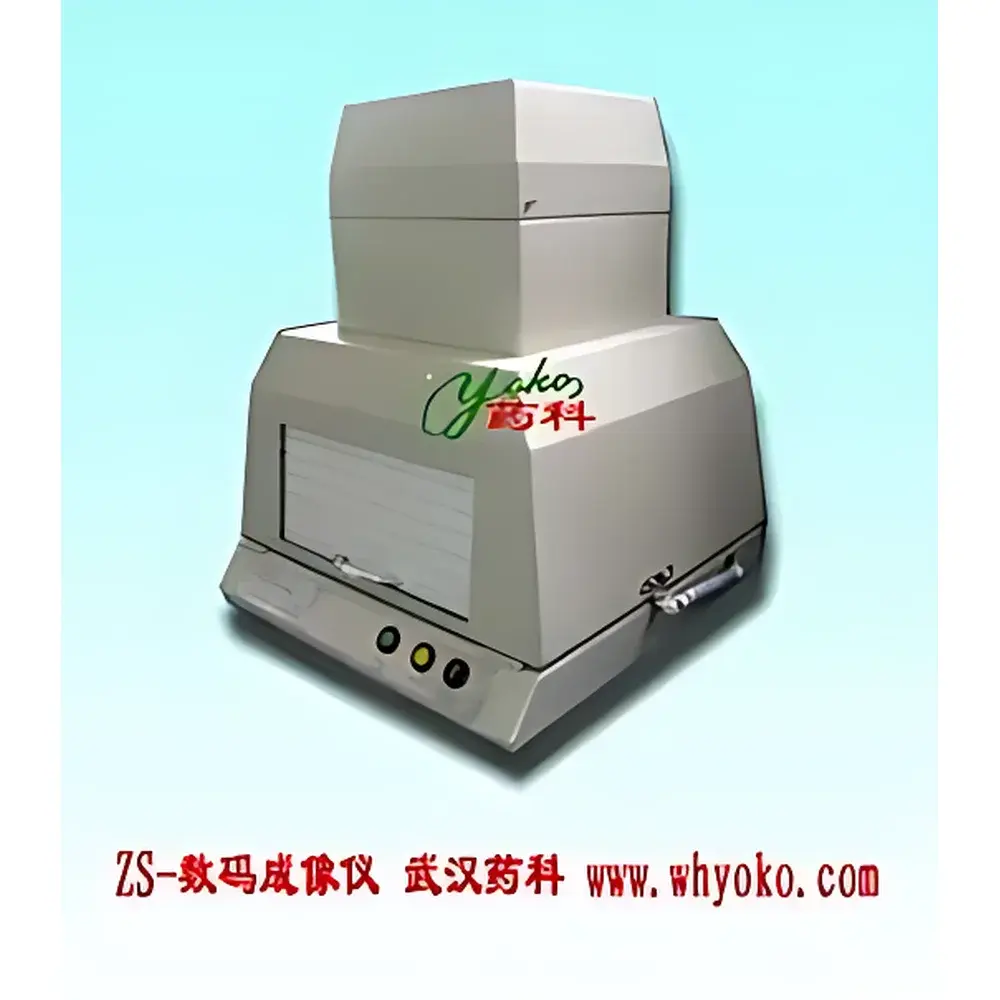

| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | ZS |
| Instrument Type | TLC Imaging System |
| Operation Mode | Automated |
| Light Sources | 2 × 6 W UV lamps at 254 nm, 2 × 6 W UV lamps at 365 nm, 2 × daylight fluorescent lamps |
| Transmittance | ≥68% at 254 nm, ≥86% at 365 nm |
| UV Transmission Filters | 50 × 200 mm (2 pcs) |
| Power Supply | 48 W, 220 V ±10%, 50–60 Hz |
| Compliance | Meets technical requirements specified in Chinese Pharmacopoeia (ChP) for TLC imaging systems |

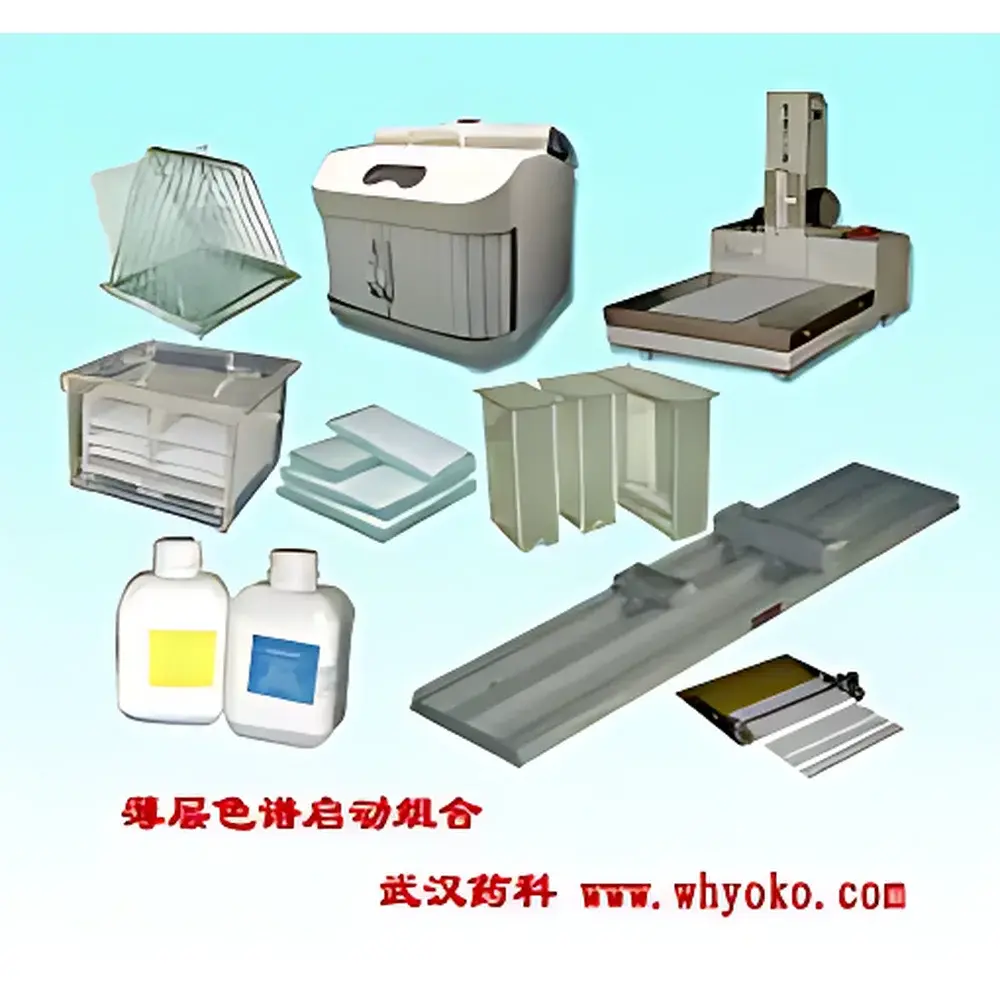

| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | Domestic (China) |
| Model | YOKO-QB |
| Instrument Category | TLC Accessories & Manual Workflow System |
| Operation Mode | Manual |
| Pricing | Upon Request |
| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Model | yoko-BF-111 |
| Type | TLC Plate Coating Device |
| Operation Mode | Motorized (non-manual hand-crank) |
| Coating Width Options | 100 mm or 200 mm |
| Adjustable Coating Thickness | 0.05–2.0 mm |
| Thickness Uniformity (Non-Parallelism) | ≤ 0.04 mm |
| Throughput | Up to 210 pcs of 200 × 200 mm plates per 10 minutes (BF-I/BF-II mode) |
| Motorized Traverse Speed | 4.2 m/min |
| Power Consumption | 90 W (BF-I/BF-II), 40 W (BF-III variant) |
| Dimensions (L×W×H) | 340 × 130 × 190 mm |
| Frame Material | Anodized Aluminum with Epoxy Coating |
| Compliance | Designed for GLP-compliant thin-layer chromatography (TLC) plate preparation in regulated and research laboratories |

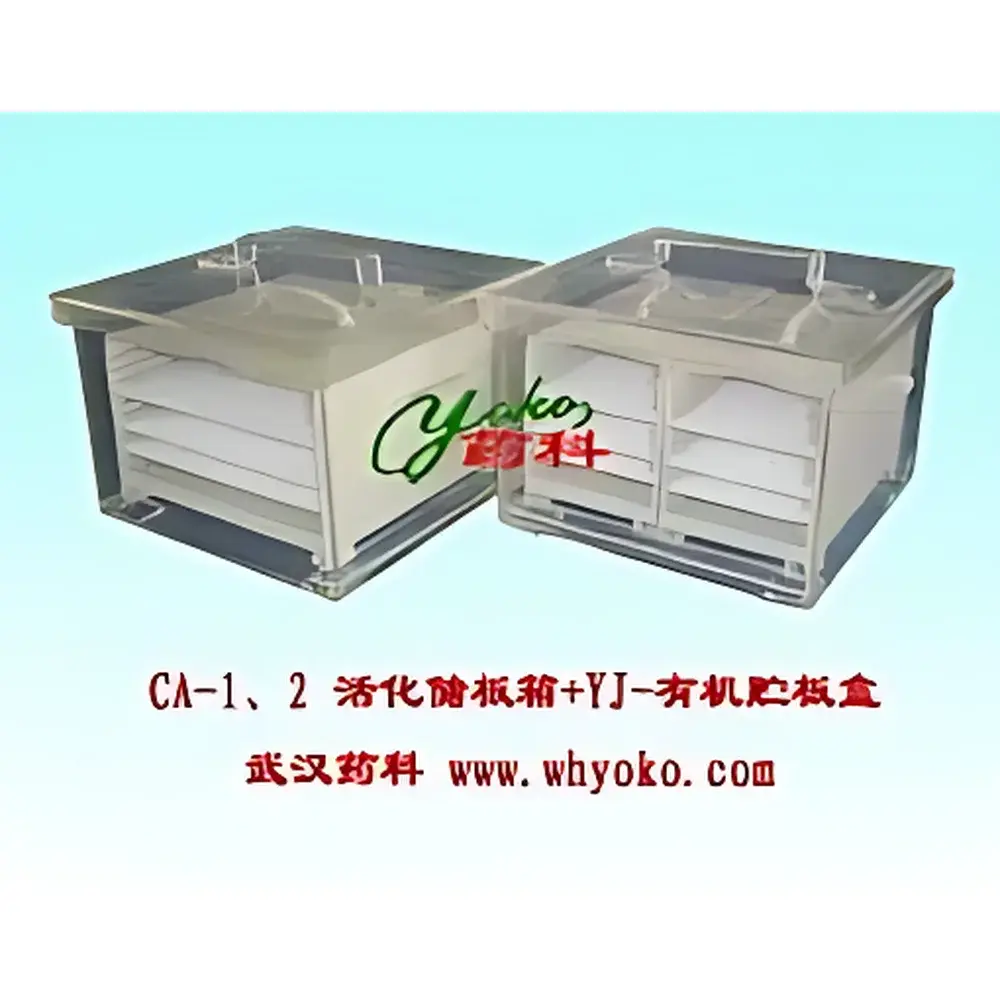

| Brand | WhYOKO |
|---|---|
| Origin | Hubei, China |
| Model | YOkO-CA (Type I), YOkO-YJ (Type II) |
| Dimensions | Type I – 10 × 20 cm capacity (holds 10 pcs of 10×20 cm plates, or 20 pcs of 10×10 cm plates, or 40 pcs of 5×10 cm plates) |
| Material | Anodized aluminum frame with high-performance engineering plastic coating |
| Compliance | Designed for USP <621>, EP 2.2.27, and ISO/IEC 17025-compliant TLC workflows |
| Packaging | Each organic solvent-resistant storage box accommodates two Type I cabinets |

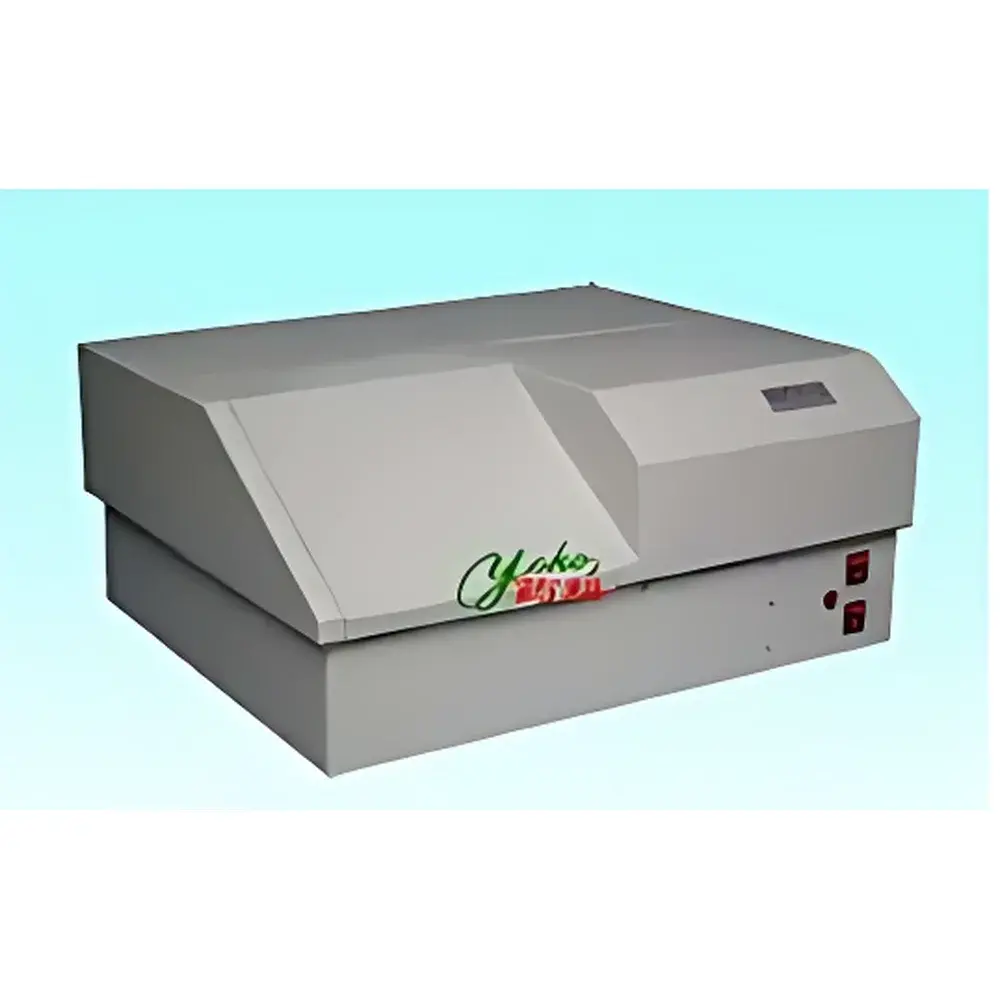

| Brand | YOKO |
|---|---|
| Model | YOKO-3000 |
| Origin | Hubei, China |
| Instrument Type | TLC Scanner |
| Operation Mode | Automatic |
| Measurement Modes | Reflectance, Fluorescence, Absorption |
| Wavelength Range | 200–800 nm |
| Light Sources | Tungsten-Halogen Lamp & Deuterium Lamp (Auto-Switching) |
| Monochromator | Holographic Grating (1200 lines/mm) |
| Spectral Bandwidth | 5 nm |
| Wavelength Accuracy | ±0.5 nm |
| Minimum Spatial Resolution | 10 µm |
| Sample Stage Capacity | Up to 200 mm × 200 mm TLC Plates |
| Scan Speed | 50 mm/s |
| Baseline Flatness | ±1% |
| Interface | USB 2.0 |
| Power Supply | 220 V AC, 300 W |
| Operating System Compatibility | Windows 2000/XP |
| Brand | YOKO |
|---|---|
| Model | TD-1 |
| Origin | Hubei, China |
| Type | Electrospray-based linear applicator for thin-layer chromatography (TLC) |
| Sample Delivery | Non-contact pneumatic spray |
| Spot/Strip Modes | Single-spot, multi-spot, continuous linear strip (0–180 mm) |
| Maximum Plate Size | 200 × 200 mm |
| Heating Platform | Stainless steel, 35–200 °C (±0.5 °C stability), 600 W |
| Motion Control | Synchronous stepper motors with end-stop protection (X-axis translation, Z-axis needle actuation) |
| Syringe Compatibility | 10 µL, 50 µL standard |
| Accuracy | <1.0% RSD |
| Precision (repeatability) | <1.5% RSD |
| Air Supply | Oil-free compressor, 0–0.12 MPa adjustable, gas flow 0.1–2.0 L/min |
| Power | 220 V ±10%, 50–60 Hz, 630 W |
| Dimensions (L×W×H) | 400 × 390 × 290 mm |
| Weight | 16 kg |
| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |
| Model | ZD |
| UV Lamp | 3 × 12 W U-shaped lamp @ 312 nm (standard), optional 254 nm or 365 nm |
| Visible Lamp | 3 × 12 W U-shaped daylight lamp (380–700 nm) |
| UV Filter | 200 mm × 150 mm, transmittance ≥68% at 254 nm, ≥86% at 365 nm |
| White Diffuser Plate | 200 mm × 150 mm porcelain-white glass |
| Dimensions | 400 mm (L) × 300 mm (W) × 90 mm (H) |
| Brand | YOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | YOKO-CS |
| Instrument Type | TLC Imaging System |
| Operation Mode | Manual |
| UV Lamps | 254 nm (2 × 12 W), 365 nm (2 × 12 W), 312 nm (5 × 20 W), All at 220 V / 50 Hz |
| Visible Light | GB-standard daylight lamps (2 × 12 W) |
| UV Transmission Filters | Two 50 × 200 mm filters (for reflected UV), One 150 × 200 mm filter (for transmitted UV) |
| Power Supply | 220 V AC, 50 Hz |
| Ballast | High-efficiency electronic ballast (instant start) |
| Brand | WhYOKO |
|---|---|
| Origin | Hubei, China |
| Manufacturer Type | Authorized Distributor |
| Country of Manufacture | China |

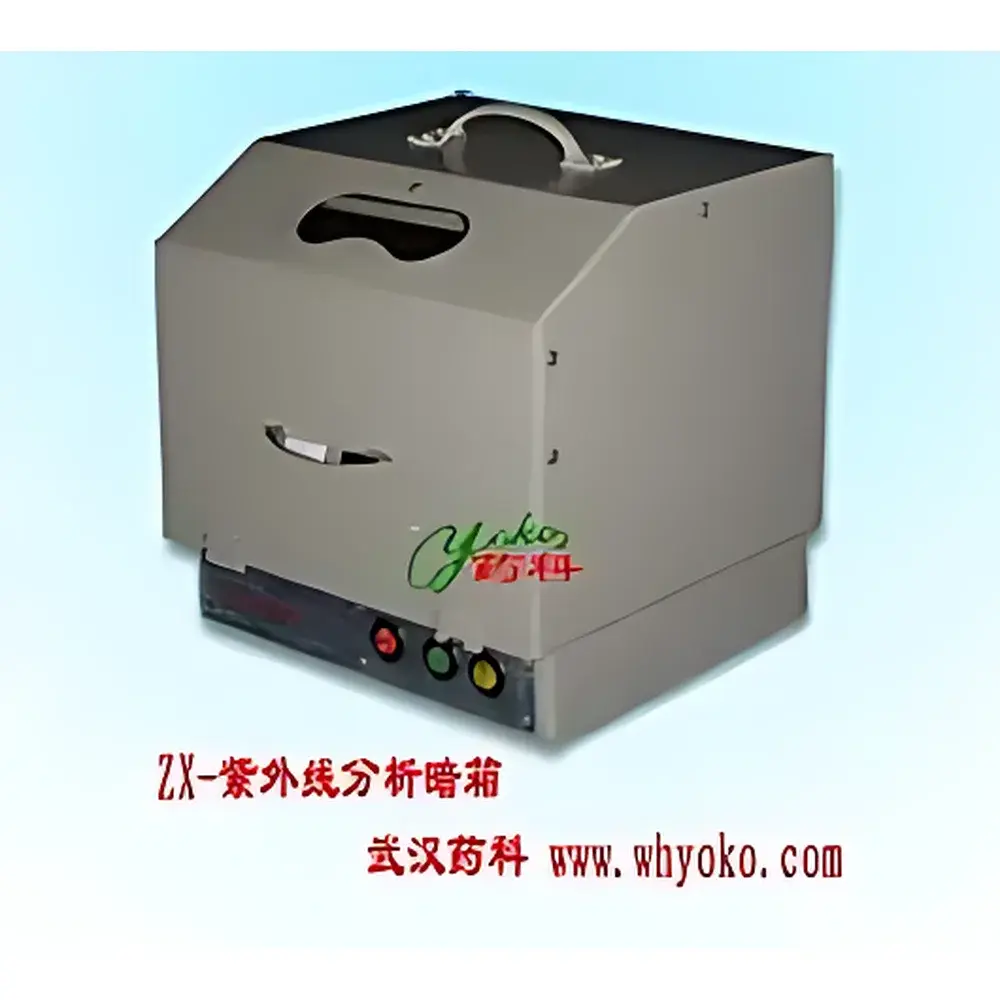

| Model | YOKO-ZX |
| Instrument Category | TLC Support Equipment |
| Operation Mode | Manual |
| UV Wavelengths | 254 nm & 365 nm |
| Visible Light Source | White Fluorescent Lamp (365 nm lamp also serves as visible illuminator) |
| UV Lamp Configuration Options | ZX-A (1×254 nm), ZX-B (2×254 nm), ZX-C (2×365 nm), ZX-D (2×312 nm) |
| UV Filter Dimensions | 50 × 200 mm |
| UV Transmission Efficiency | ≥68% at 254 nm, ≥86% at 365 nm |
| Power Supply | 20 W, 220 V, 50–60 Hz |
| External Dimensions | 250 × 240 × 280 mm |
| Filter Material | High-transmission quartz-doped optical glass |
| Brand | whYOKO |
|---|---|
| Origin | Hubei, China |

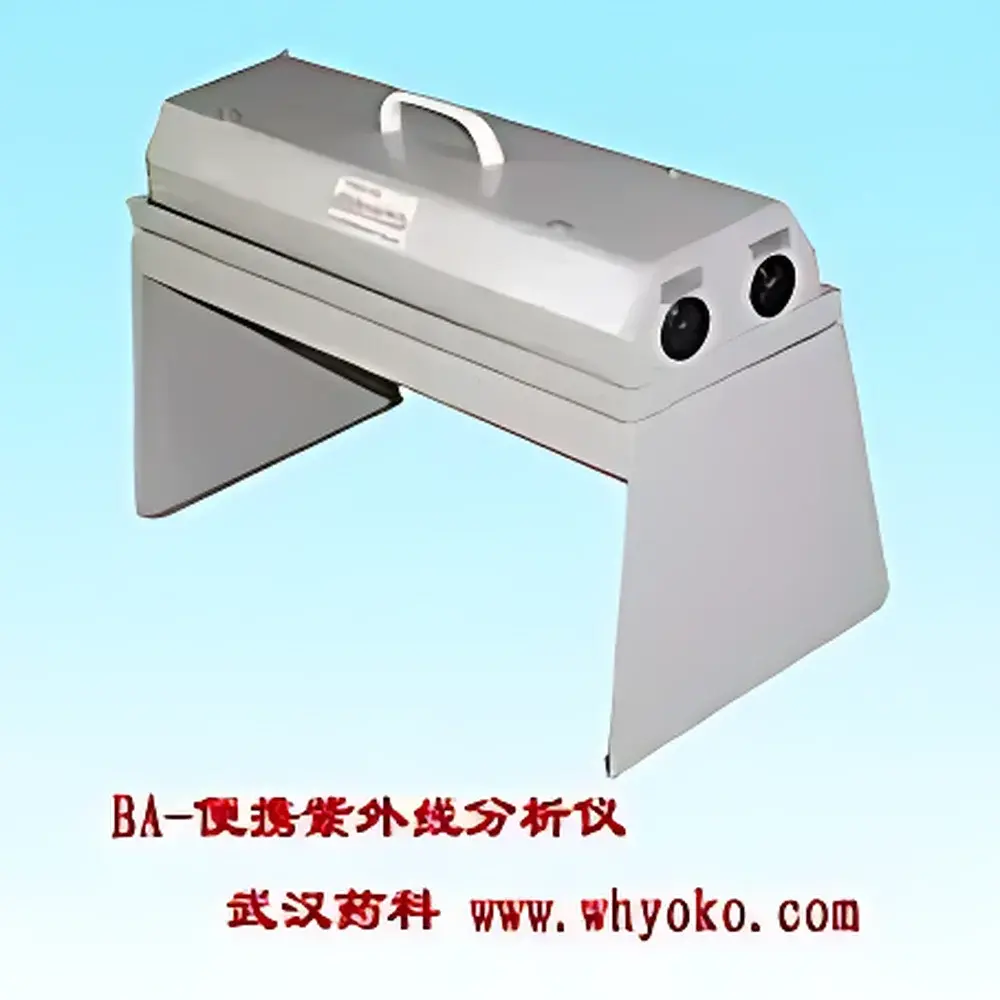

| Model | YOKO-BA |
| Wavelengths | 254 nm & 365 nm (dual-band) |
| Lamp Configuration | Two independent UV lamps (one 254 nm, one 365 nm) |
| Filter Dimensions | 50 mm × 200 mm |
| Filter Transmission | ≥68% at 254 nm, ≥86% at 365 nm |
| Power Supply | 220 V ±10%, 50–60 Hz |
| Power Consumption | 12 W |
| Operating Mode | Manual |
| Enclosure Dimensions | 340 mm (L) × 130 mm (W) × 190 mm (H) |
| Sample Viewing Area | 200 mm × 200 mm |
| Maximum Sample Thickness | 5 mm |
| Compliance | CE-marked design principles |
| Brand | YOKO |
|---|---|

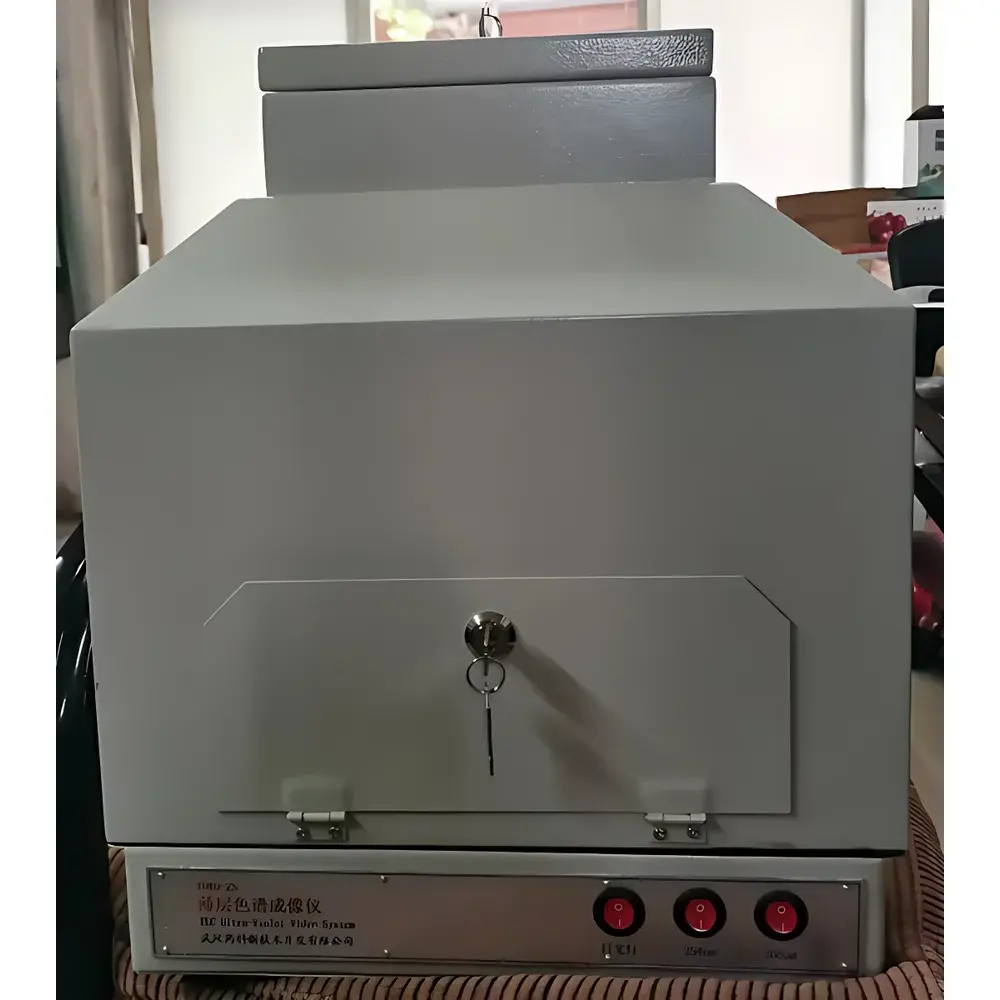

| Model | YOKO-2002 |
| Instrument Type | Preparative Thin-Layer Chromatography Imaging System |
| Operation Mode | Automatic |
| Detection Method | Fluorescence and Reflectance |
| Wavelength Range | 200–700 nm |
| Light Source | UV (254 nm & 365 nm) and Visible |
| Monochromator | Fluorescence Linear Scanning |
| Spectral Bandwidth | 6 mm |
| Wavelength Accuracy | ±1 nm |
| Wavelength Repeatability | ±0.2 nm |
| Minimum Spatial Resolution | 10 µm |
| Imaging Wavelengths | 254 nm, 365 nm |
| Sample Stage Dimensions | 200 × 200 mm |
| Maximum Scan Speed | 100 mm/s |
| Quantitative Algorithms | Normalization, Internal Standard, External Standard (Single-Point Linear, Two-Point Quadratic) |
| Software Platform | Windows XP/2000/NT |
| Regulatory Compliance | Designed to support USP <621>, EP 2.2.27, and ChP monograph requirements for TLC densitometry |
Show next
